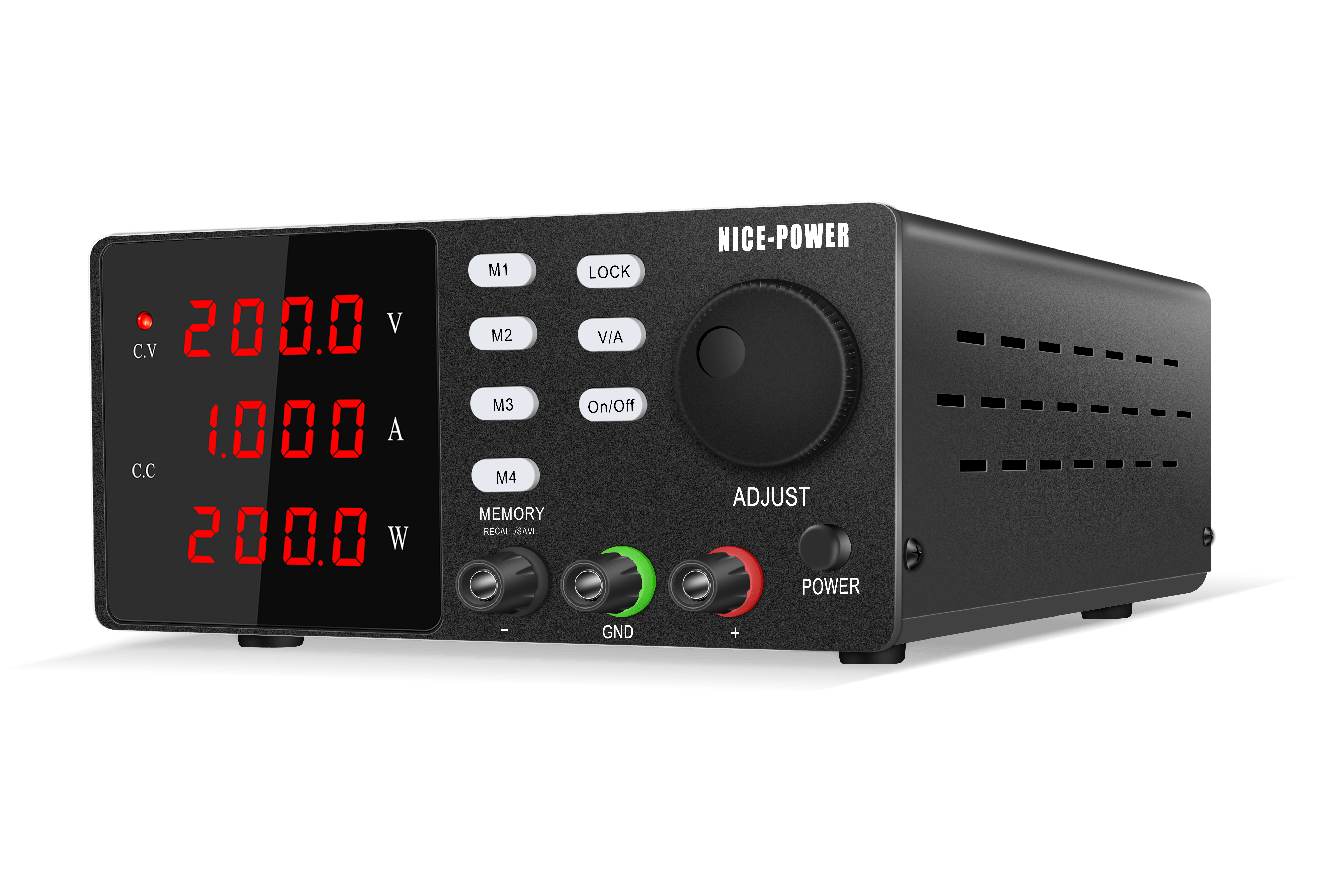

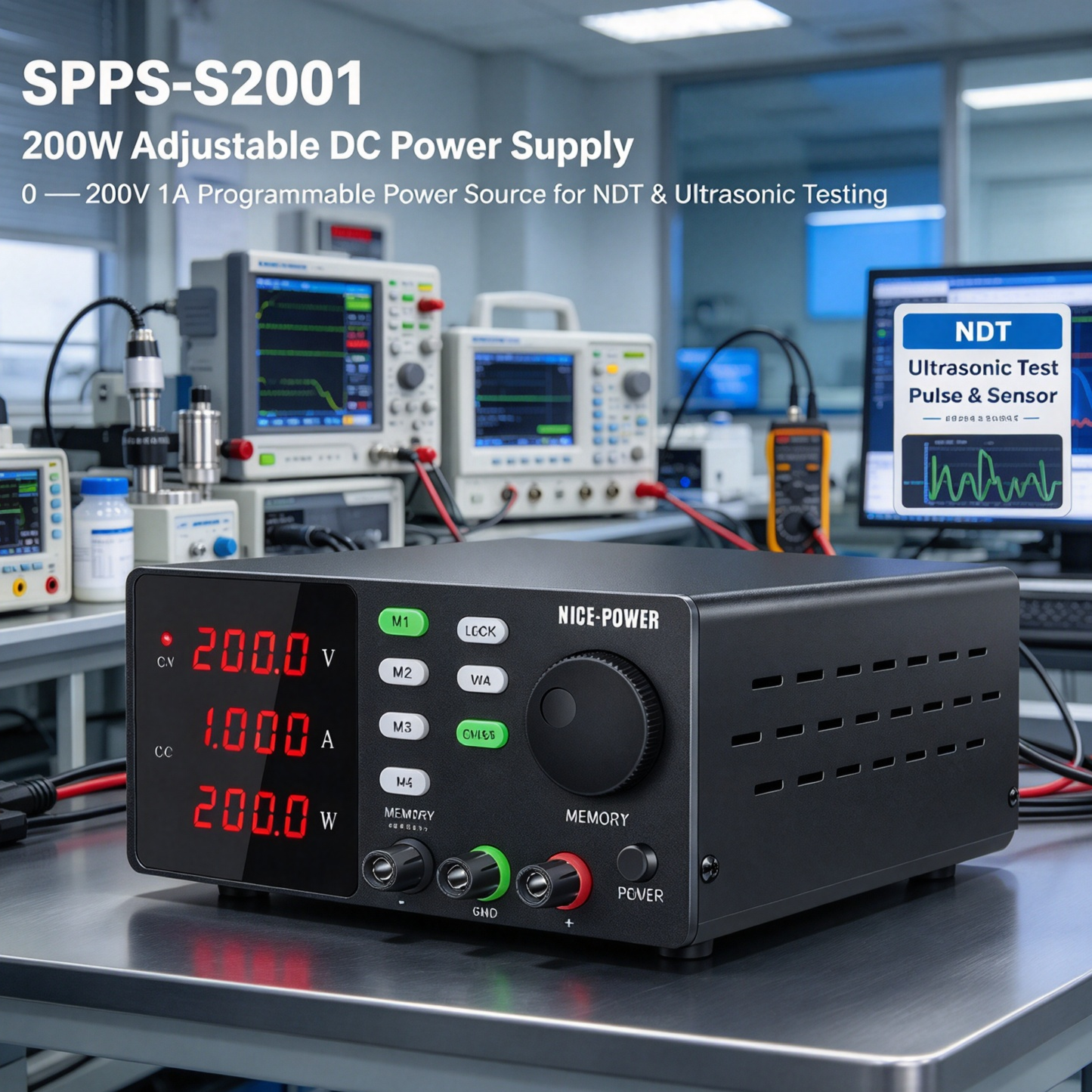

The SPPS-S2001 NDT Equipment Power Supply is a programmable 0–200V / 0–1A, 200W DC power supply designed for non-destructive testing equipment, ultrasonic inspection systems and industrial inspection electronics. Its adjustable DC output provides controlled power for NDT instruments, ultrasonic testing modules, inspection equipment and electronic control circuits during development and testing.
With USB, RS232 and RS485 communication interfaces, the SPPS-S2001 can be integrated into PC-controlled and automated inspection systems. Engineers can remotely adjust output parameters and incorporate the power supply into automated NDT test benches, ultrasonic inspection equipment and industrial inspection workflows.
The 4-digit digital display provides clear voltage and current readings, while OVP, OCP and OPP protection helps protect sensitive NDT electronics during development, troubleshooting and verification. The wide 0–200V adjustable output makes this 200V programmable DC power supply suitable for a range of inspection equipment and electronic test modules.
200V NDT Equipment Power Supply – Adjustable 0–200V / 0–1A output with up to 200W power for non-destructive testing equipment.
Programmable DC Output – Controlled voltage and current adjustment for ultrasonic inspection and NDT equipment development.
Ultrasonic Testing Power Supply – Suitable for ultrasonic inspection electronics, testing modules and instrument control circuits.
USB, RS232 & RS485 Interfaces – Supports PC control and integration with compatible automated inspection systems.
Remote-Controlled DC Power Supply – Enables computer-based power adjustment for automated NDT test equipment.
OVP/OCP/OPP Protection – Helps protect sensitive inspection electronics and connected test modules.

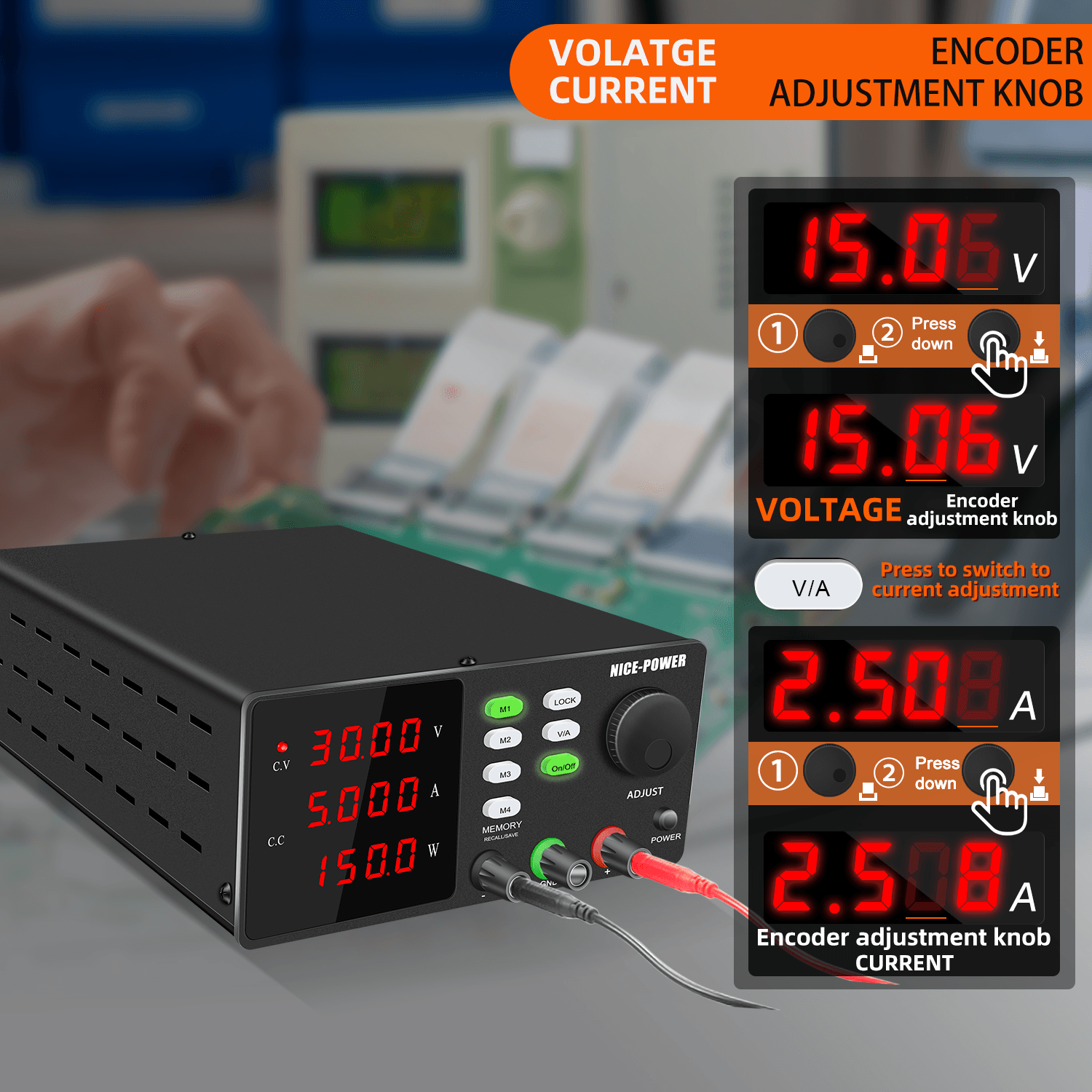

4-Digit Digital Display – Provides clear real-time voltage and current monitoring during equipment testing.
Use the 200V DC power supply for NDT equipment during development, troubleshooting and verification of non-destructive testing instruments.
The SPPS-S2001 provides adjustable DC power for ultrasonic testing equipment, electronic control modules and inspection-system prototypes.
Suitable for industrial inspection equipment requiring controlled DC power during development and system integration.
USB, RS232 and RS485 connectivity enables integration into automated NDT testing systems, PC-controlled test benches and inspection equipment.
The adjustable output supports development and testing of ultrasonic inspection modules, electronic control circuits and measurement subsystems.
The programmable output provides controlled power for inspection equipment development, electronic module verification and troubleshooting.
| Specification | SPPS-S2001 |
|---|---|
| Rated Value (0℃~40℃) | |
| Voltage | 0-200V |
| Current | 0-1A |
| Power | 200W |
| Load Regulation | |
| Voltage | ≤0.3% + 10 mV |
| Current | ≤0.1% + 2.5 mA |
| Line Regulation | |
| Voltage | ≤0.01% + 2.5 mV |
| Current | ≤0.1% + 2.5 mA |
| Setting Resolution | |
| Voltage | 100mV |
| Current | 1mA |
| Readback Resolution | |
| Voltage | 100mV |
| Current | 1mA |
| Setting Accuracy | |
| Voltage | ≤0.01% + 20mV |
| Current | ≤0.01% + 10mA |
| Readback Accuracy | |
| Voltage | ≤0.01% + 20mV |
| Current | ≤0.1% + 5mA |
| Ripple (20Hz~20MHz) | |
| Voltage | ≤1000 mVp-p / ≤120 mVrms |
| Current | ≤60 mArms |
| Rise Time (No Load) | ≤200mS |
| Rise Time (Full Load) | ≤300mS |
| Fall Time (No Load) | ≤5S |
| Fall Time (Full Load) | ≤200mS |
| Dynamic Response Time | ≤200mS |
| Efficiency | ≥85% |
| Input Voltage/Current | AC 220V (AC110V optional) |
| Size/Net Weight | About 25178.5cm / 1.4KG |
| Package Size/Weight | Single unit: 33.51222cm, 1.95KG (8pcs/Carton) |
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
