SPPS-Q3010 Robot Motion Control Power Supply, 30V 10A 300W Programmable DC Bench Power Supply for AGV & Servo Development

Description

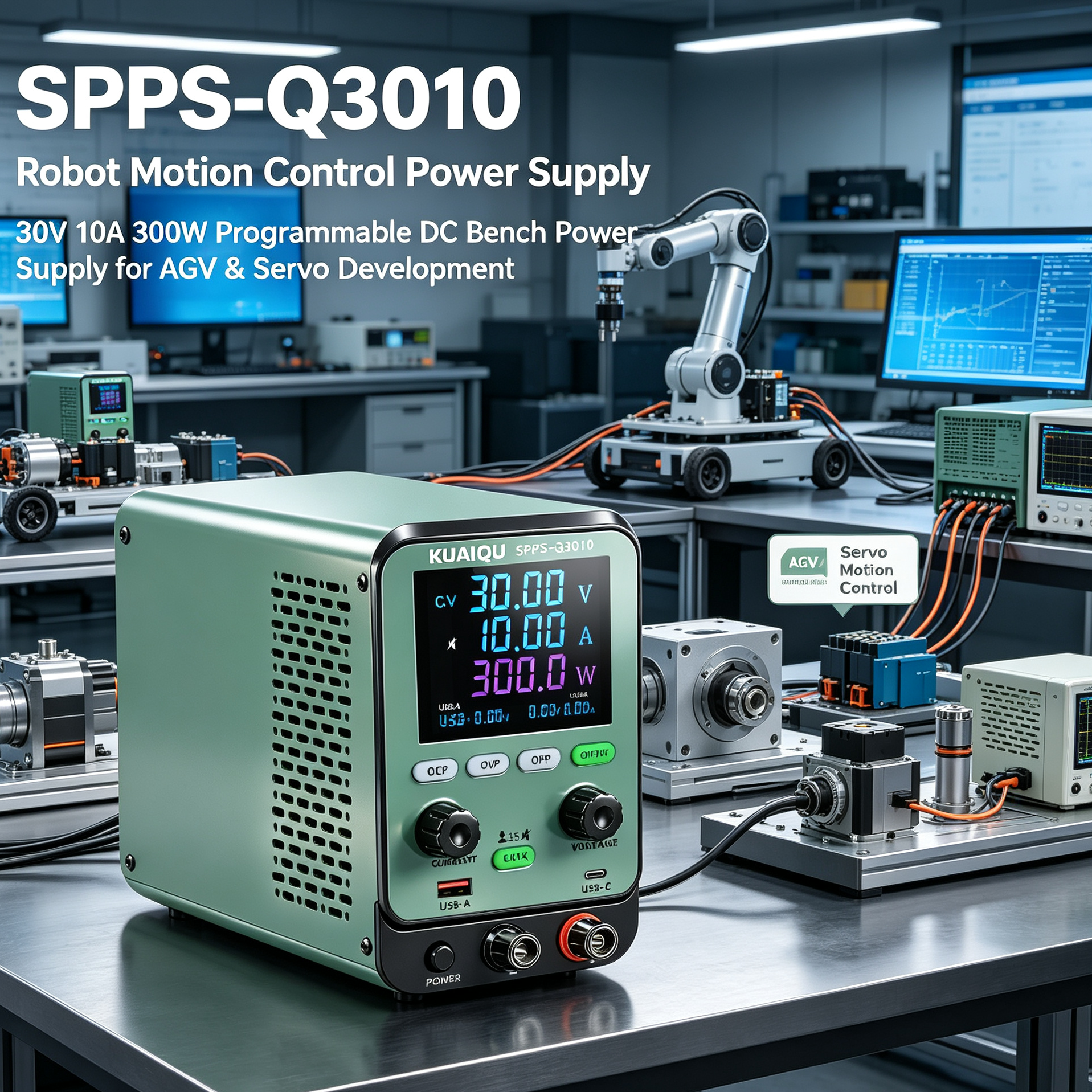

The KUAIQU SPPS-Q3010 Robot Motion Control Power Supply is a precision 30V 10A DC power supply designed for robotics, AGV electronics, servo controllers and motion control development. With adjustable 0–30V / 0–10A output and up to 300W power, it provides stable and controllable DC power for robot control boards, AGV prototypes, servo drives and robotic actuator modules.

The programmable and adjustable output makes this robot development power supply suitable for controlled prototype testing, while real-time voltage, current and power monitoring helps engineers evaluate the power requirements of robot electronics. Built-in OVP, OCP and OPP protection helps safeguard sensitive control boards and motion control components during bench testing.

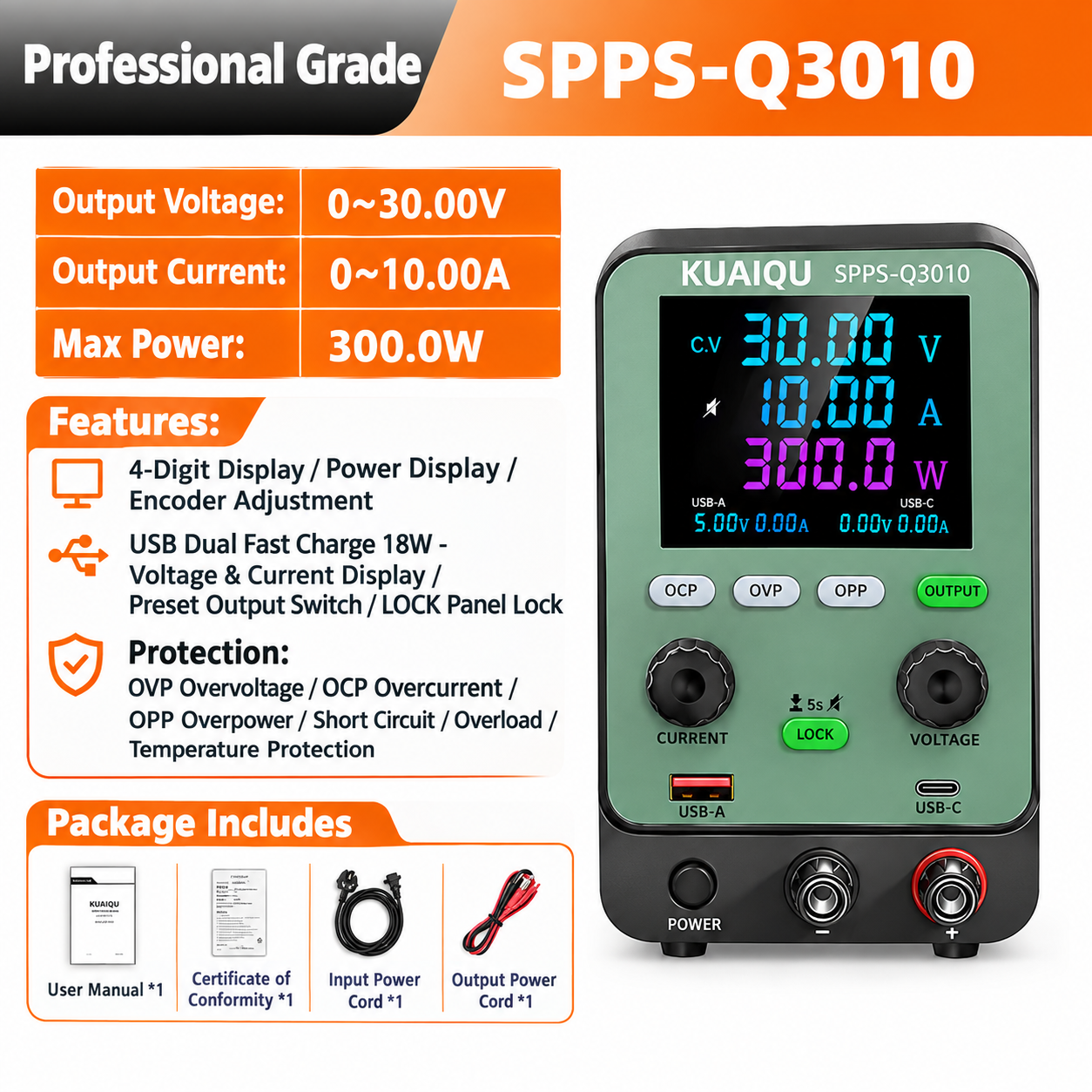

Key Features

30V 10A Robot Power Supply – Adjustable 0–30V / 0–10A DC output with up to 300W power for robot electronics and AGV prototype development.
Motion Control Development – Suitable for robot motion controllers, servo drives, servo controllers and robotic actuator testing.
Precision Power Monitoring – Real-time voltage, current and power readings help evaluate the power consumption of mobile robot electronics and motion control systems.
Programmable DC Output – Provides controlled power conditions for robotics development, AGV electronics testing and prototype verification.
OVP/OCP/OPP Protection – Helps protect robot control boards, servo control modules and other sensitive prototype electronics.
Color LCD Display – Clear operating information for engineering workbenches, robotics laboratories and prototype test environments.

Applications

AGV Prototype Development – Use the 30V 10A DC power supply to power and test AGV control boards, mobile robot electronics and prototype motion control systems.
Robot Motion Control Testing – Suitable for testing robot motion controllers and evaluating power requirements during motion control development.
Servo Drive & Controller Development – Provides adjustable DC power for servo controller and servo drive bench testing.
Robotic Actuator Testing – Supports controlled power testing of robotic actuator modules and other robot electronic components.
Robot Control Board Development – Suitable for robot control board debugging, prototype verification and power consumption measurement.
Mobile Robot Electronics Testing – Provides stable bench power for mobile robot electronics during development and troubleshooting.

Quality Check and Terms of Service

Has passed CE & FCC Certification.
All DC power supplies and accessories are inspected before shipment to ensure good quality.
Customer support: Contact us with any questions, and we'll respond within 24 hours.

Package includes:

DC Power Supply *1

Output Power Cord *1

Input Power Cord *1

User Manual *1

Warranty Card *1

Product Parameters

Parameter Item		SPPS-Q3010
Rated Values	Voltage	0~30V
	Current	0~10A
	Power	300W
Load Regulation	Voltage	≤ 0.01%+25mV
	Current	≤ 0.1%+10mA
Line Regulation	Voltage	≤0.01%+5mV
	Current	≤0.1%+5mA
Setting Resolution	Voltage	<10V: 1mV ≥10V: 10mV
	Current	<10A: 1mA ≥10A: 1mA
Readback Resolution (Display Resolution)	Voltage	<10V: 1mV ≥10V: 10mV
	Current	< 20mA: 10 uA ≥ 20mA: 1 mA
Setting Accuracy	Voltage	≤0.05%+20mV
	Current	≤0.05%+15mA
Readback Accuracy (Display Accuracy)	Voltage	≤0.05%+20mV
	Current	<20mA: 0.1%+60uA 20mA~10A: ≤0.01%+15mA
Ripple (20Hz～20MHz)	Voltage	≤80mV(p-p) ≤20mV(rms)
	Current	≤30mA(rms)
Rise Time (No Load)	Voltage	≤100ms
Rise Time (Full Load)	Voltage	≤1200ms
Fall Time (No Load)	Voltage	≤2500ms
Fall Time (Full Load)	Voltage	≤100ms
Efficiency (Full Power)	/	≥83%
Input Voltage Range	Vac	200Vac~240Vac
Minimum Display Current	mA	0.01mA
Fuse	220v Input	3.15A
Product Dimensions	/	218mm89mm150mm
Product Weight	/	1.2KG
