RIGOL High Voltage Differential Probes RP1025D RP1050D RP1100D 25MHz 50MHz 100MHz Osciloscopio Tester Accessories

$549.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Model RP1025D RP1050D RP1100D

Cantidad

Overview

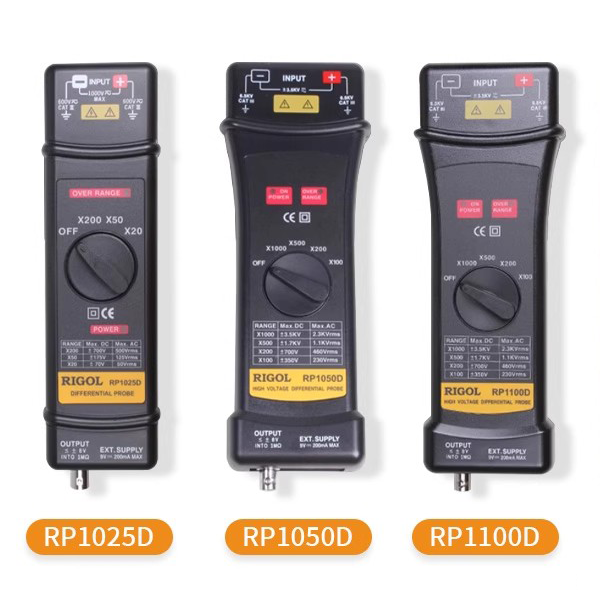

The RIGOL's RP1025D, RP1050D, and RP1100D are high - performance high - voltage differential probes, ideal for precise signal measurement in electronics, power engineering, and research.

Key Features

Wide Bandwidth: Different bandwidth options to meet various frequency measurement needs.

High Precision: ±2% accuracy for reliable measurement results.

High Voltage Handling: Capable of handling high differential and input - to - ground voltages.

Good Common - Mode Rejection: >50dB at 60Hz, 100Hz, and 1MHz for accurate differential signal acquisition.

Suitable Impedance: Proper input and output impedance for signal integrity.

Technical Specifications

Parameter	RP1025D	RP1050D	RP1100D
Bandwidth	DC - 25MHz (-3dB)	DC - 50MHz (-3dB)	DC - 100MHz (-3dB)
Attenuation Ratio	X20, X50, X200	X100, X200, X500, X1000	X100, X200, X500, X1000
Accuracy	±2%	±2%	±2%
Max Input Voltage	Differential: 1400V (DC + AC peak) or 500Vrms; Input - to - ground: 240Vrms	Differential: 7000V (DC + AC peak) or 2300Vrms; Input - to - ground: 1200Vrms	Differential: 7000V (DC + AC peak) or 2300Vrms; Input - to - ground: 1200Vrms
Input Impedance	Differential: 4MΩ/1.2pF; Single - ended to ground: 2MΩ/2.3pF	Differential: 16MΩ/1pF; Single - ended to ground: 8MΩ/2pF	Differential: 16MΩ/1.2pF; Single - ended to ground: 8MΩ/2.3pF
Output Voltage	≤ ±6.5V	≤ ±7.0V	≤ ±8.0V
Output Impedance	50Ω	50Ω	50Ω
Rise Time	14ns	7ns	3.5ns
Common - Mode Rejection	60Hz: >50dB; 100Hz: >50dB; 1MHz: >50dB	60Hz: >50dB; 100Hz: >50dB; 1MHz: >50dB	60Hz: >50dB; 100Hz: >50dB; 1MHz: >50dB
Power Supply	Designated external 9V DC power supply (must be RIGOL - approved)	Designated external 9V DC power supply (must be RIGOL - approved)	Designated external 9V DC power supply (must be RIGOL - approved)
Power Consumption	<300 mA	<300 mA	<300 mA

Selection Tips

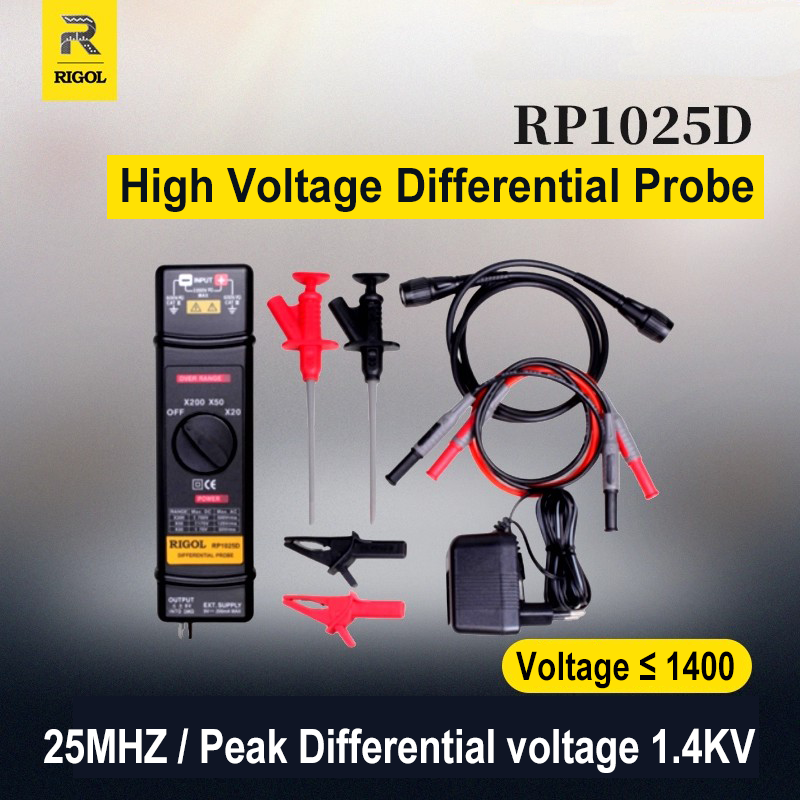

Choose RP1025D if your measurement needs are within 25MHz bandwidth and require attenuation ratios X20, X50, X200.

Opt for RP1050D for 50MHz bandwidth measurement with attenuation ratios X100, X200, X500, X1000.

Select RP1100D when you need 100MHz bandwidth measurement with attenuation ratios X100, X200, X500, X1000.

Application Scenarios

Power Electronics: Measure high - voltage signals in power converters and inverters.

Automotive Electronics: Test high - voltage systems in electric vehicles.

Research Labs: Conduct precise high - voltage signal analysis in scientific experiments.

Industrial Control: Monitor high - voltage signals in industrial control systems.

Aerospace: Measure signals in aerospace - related high - voltage electronics.

Electronics Manufacturing: Quality control testing of high - voltage electronic devices.

Get RIGOL high - voltage differential probes now for accurate high - voltage signal measurement!
