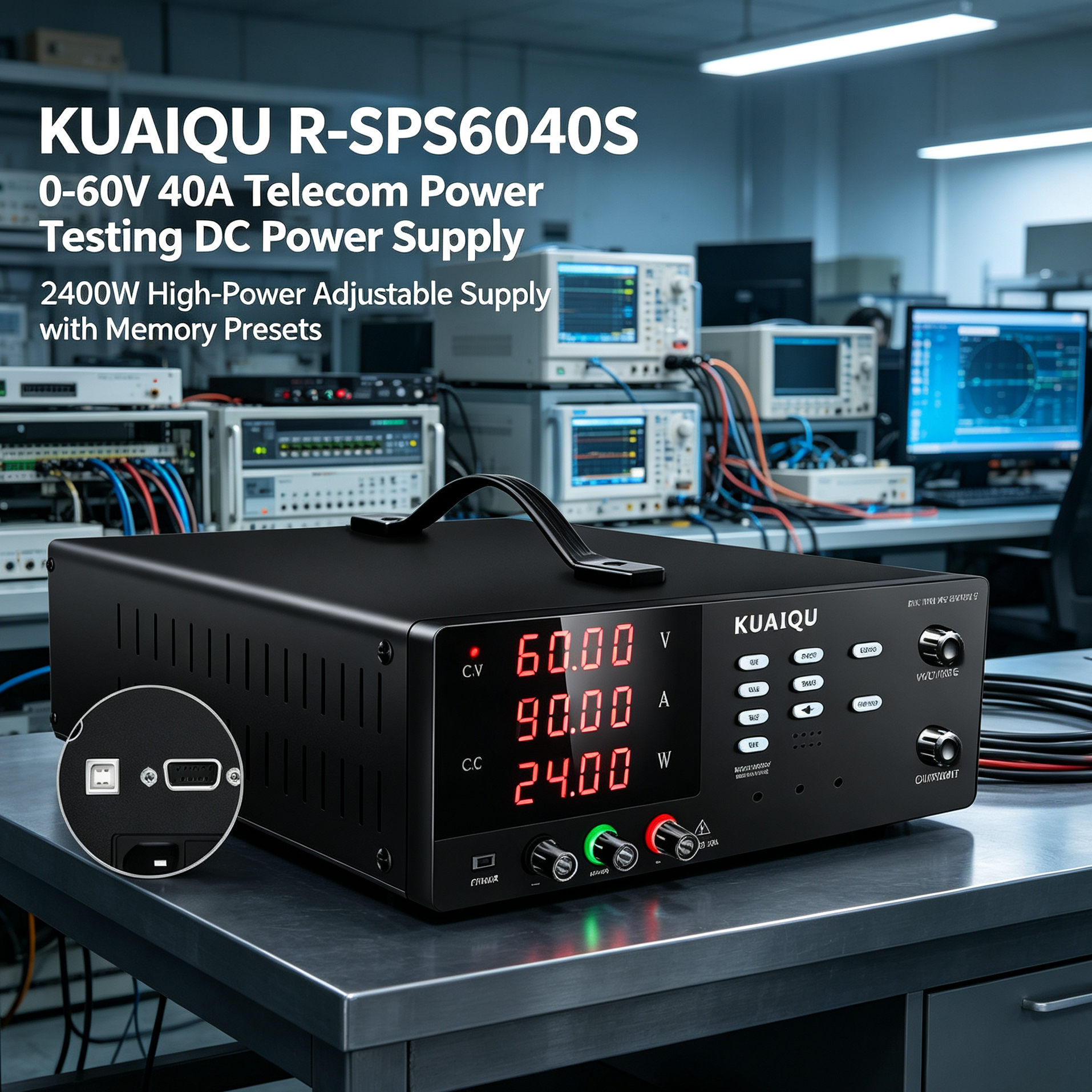

KUAIQU R-SPS6040S 0-60V 40A Telecom Power Testing DC Power Supply
Description
The KUAIQU R-SPS6040S is a 60V 40A 2400W telecom power testing DC power supply designed for communication power systems, telecom equipment maintenance, DC power module testing, and high-power electrical system development. With adjustable output, 4-digit voltage/current/power display, memory presets, encoder adjustment, output ON/OFF control, and OCP/OVP protection, it provides stable and precise DC power for demanding telecommunication power testing applications.
Key Features
60V 40A 2400W High-Power DC Output
Provides adjustable output up to 60V and 40A, delivering up to 2400W for demanding telecom power testing, DC power system testing, and communication equipment maintenance.
Telecom Power Testing DC Source
Designed as a dedicated telecom power supply testing source for communication power modules, DC power systems, telecom equipment, power distribution modules, and related electrical equipment.
4-Digit Voltage, Current & Power Display
The 4-digit LED display provides real-time voltage, current, and power readings, allowing technicians to monitor power consumption and output conditions during telecommunication equipment testing and maintenance.
High-Current Rear Output Terminals
The rear high-current terminals support the full rated output current. For currents above 5A, use the rear high-current terminals to ensure reliable connections during high-power telecom power testing.
Independent Output ON/OFF Control
The output switch allows the operator to configure voltage and current before applying power to the connected telecom equipment or power module, helping reduce accidental power delivery during testing.
4 Memory Presets M1–M4
Four memory groups allow commonly used voltage and current parameters to be stored and recalled quickly. This is useful for repeated communication power supply testing procedures and maintenance workflows.
Precision Encoder Adjustment
The encoder knob provides smooth coarse and fine adjustment, allowing technicians to precisely set output parameters during DC power module testing and telecom equipment development.
OCP & OVP Protection
Integrated over-current and over-voltage protection helps protect the power supply and connected communication equipment against abnormal output conditions, overloads, and incorrect settings.
Panel Lock & Buzzer Mute
The panel lock helps prevent accidental parameter changes after configuration, while the buzzer mute function provides quieter operation in testing and maintenance environments.
USB & RS232 Control
Standard USB and RS232 interfaces support programmable operation and integration with automated test systems. RS485 is available as an optional interface when required.
Applications
- Telecom power supply testing
- Communication power system testing
- Telecommunication equipment maintenance
- DC power module testing
- Telecom equipment development
- Communication equipment power testing
- DC power distribution system testing
- Backup power module testing
- Telecom power equipment maintenance
- Communication infrastructure equipment testing
- High-power DC system testing
- Power supply module development
- Telecom equipment production testing
- Communication equipment repair and maintenance
Notes
-
If the DC power supply becomes overheated, stop using it and allow it to cool down before resuming operation to avoid irreversible damage to the device.
-
The front panel is only suitable for output currents below 5A. To avoid damaging the power supply or load and ensure more accurate output, please connect the high-current terminals on the rear panel for currents above 5A. The rear panel supports the full rated current of your model: for example, if you purchased a 60V 40A power supply, the current can reach 40A when using the rear high-current terminals.
Product Parameters
| Item | Parameter | Specification |
|---|---|---|
| Rated Value (0℃~40℃) | Voltage | 0-60V |
| Current | 0-40A | |
| Power | 2400W | |
| Load Regulation | Voltage | ≤0.1%+10 mV |
| Current | ≤0.1%+2.5 mA | |
| Line Regulation | Voltage | ≤0.01%+2.5 mV |
| Current | ≤0.1%+2.5 mA | |
| Setting Resolution | Voltage | 10mV |
| Current | 10mA | |
| Readback Resolution | Voltage | 10mV |
| Current | 10mA | |
| Setting Accuracy | Voltage | ≤0.05%+10mV |
| Current | ≤0.01%+10mA | |
| Readback Accuracy | Voltage | ≤0.05%+10mV |
| Current | ≤0.01%+10mA | |
| Ripple (20Hz~20MHz) | Voltage | ≤400 mVp-p
|
| Current | ≤20 mArms | |
| Rise Time (No Load) | Time | ≤100mS |
| Rise Time (Full Load) | Time | ≤150mS |
| Fall Time (No Load) | Time | ≤15S |
| Fall Time (Full Load) | Time | ≤50mS |
| Dynamic Response | Time | ≤20mS |
| Efficiency | - | ≥85% |
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
