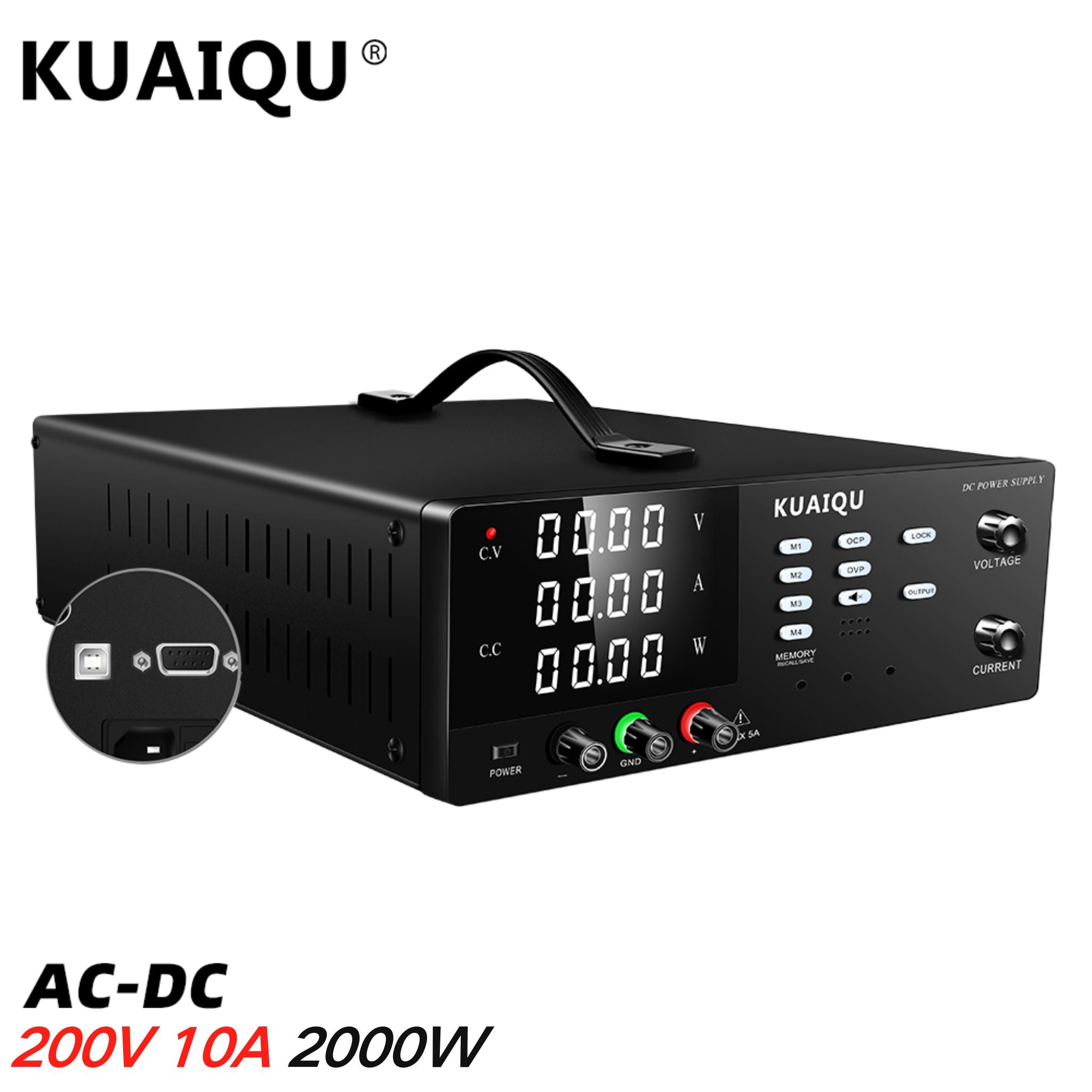

KUAIQU SPS20010S 200V 10A 2000W High-Voltage DC Power Supply
The KUAIQU SPS20010S 200V 10A DC Power Supply provides a 0–200V adjustable output with up to 10A current and 2000W power for power electronics, semiconductor, inverter, and high-voltage circuit testing. As a 200V 10A DC power supply, it is designed for engineers who need a controllable high-voltage DC source for MOSFET testing, IGBT testing, DC-DC converter evaluation, inverter development, and power semiconductor research.
Key Features
0–200V / 0–10A / 2000W High-Voltage Output:
The SPS20010S provides up to 200V DC, allowing engineers to reproduce higher-voltage operating conditions during power electronics and semiconductor testing.
Designed for Power Semiconductor Testing:
The 200V range is suitable for MOSFET and IGBT testing, switching circuit evaluation, power semiconductor development, and related laboratory applications.
DC-DC Converter & Inverter Testing:
The adjustable output provides a controllable DC input source for DC-DC converter testing, inverter development, and power conversion research.
2000W Output Capacity:
The 2000W rating provides additional power capability for demanding power electronics test systems while maintaining a 200V maximum voltage.
4-Digit LED Monitoring:
Voltage, current, and power can be monitored directly during high-voltage testing.
Independent Output Control:
Allows engineers to enable or disable the high-voltage output from the front panel.
OVP, OCP & Short-Circuit Protection:
Protection functions help reduce the risk of damage to the power supply and connected test equipment.
Panel Lock & Memory Presets:
Panel lock prevents accidental changes to high-voltage settings, while M1–M4 memory presets allow frequently used test conditions to be recalled.
Precision Coarse/Fine Adjustment:
Provides controlled adjustment of voltage and current for repeatable power electronics experiments.
Applications
The SPS20010S is optimized for:
- MOSFET testing
- IGBT testing
- Power semiconductor evaluation
- DC-DC converter testing
- Inverter testing
- Power electronics R&D
- High-voltage circuit testing
- Switching power supply development
- Power conversion testing
- Industrial electronics research
Best fit: Applications where voltage range is the primary requirement, particularly power semiconductor and power electronics testing requiring up to 200
Package includes
-
Output Power Cord *1
-
Input Power Cord *1
-
User Manual *1
-
Warranty Card *1
Notes
-
If the DC power supply becomes overheated, stop using it and allow it to cool down before resuming operation to avoid irreversible damage to the device.
-
The front panel is only suitable for output currents below 5A. To avoid damaging the power supply or load and ensure more accurate output, please connect the high-current terminals on the rear panel for currents above 5A. The rear panel supports the full rated current of your model: for example, if you purchased a 200V 10A power supply, the current can reach 10A when using the rear high-current terminals.
Product Parameters
| Item | Parameter | Specification |
|---|---|---|
| Rated Value (0℃~40℃) | Voltage | 0-200V |
| Current | 0-10A | |
| Power | 2000W | |
| Load Regulation | Voltage | ≤0.1%+10 mV |
| Current | ≤0.1%+2.5 mA | |
| Line Regulation | Voltage | ≤0.01%+2.5 mV |
| Current | ≤0.1%+2.5 mA | |
| Setting Resolution | Voltage | 10mV |
| Current | 10mA | |
| Readback Resolution | Voltage | 10mV |
| Current | 10mA | |
| Setting Accuracy | Voltage | ≤0.05%+10mV |
| Current | ≤0.01%+10mA | |
| Readback Accuracy | Voltage | ≤0.05%+10mV |
| Current | ≤0.01%+10mA | |
| Ripple (20Hz~20MHz) | Voltage | ≤3500 mVp-p
|
| Current | ≤200 mArms | |
| Rise Time (No Load) | Time | ≤100mS |
| Rise Time (Full Load) | Time | ≤150mS |
| Fall Time (No Load) | Time | ≤15S |
| Fall Time (Full Load) | Time | ≤50mS |
| Dynamic Response | Time | ≤20mS |
| Efficiency | - | ≥85% |
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
