PK8200 Oscilloscope Probe: Struggling with Inadequate Signal Testing?
Tired of probes that fumble diverse frequencies or lack safety? The PK8200 transforms signal analysis with precision and protection!

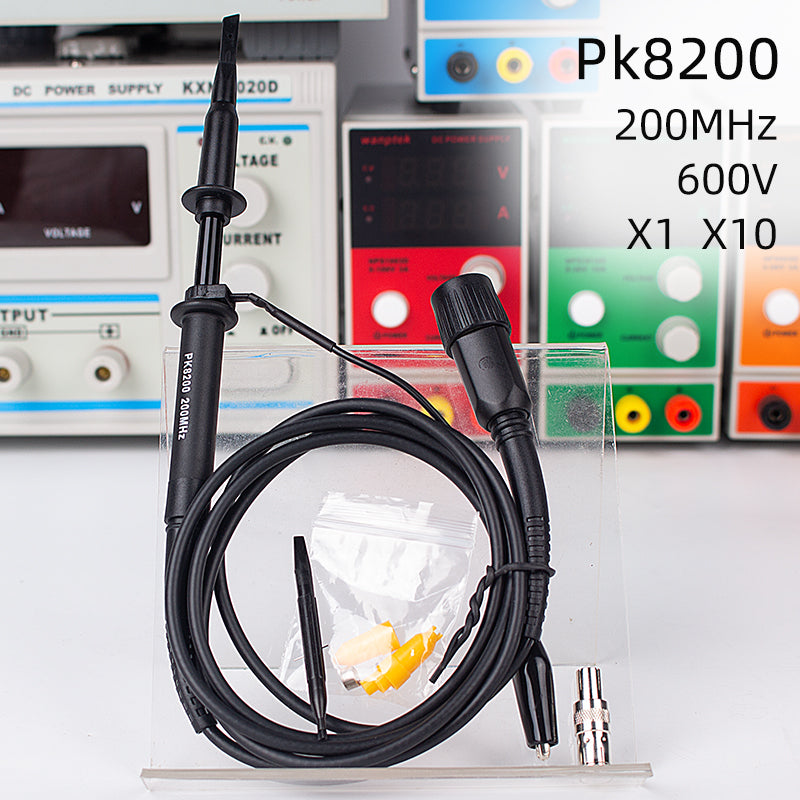

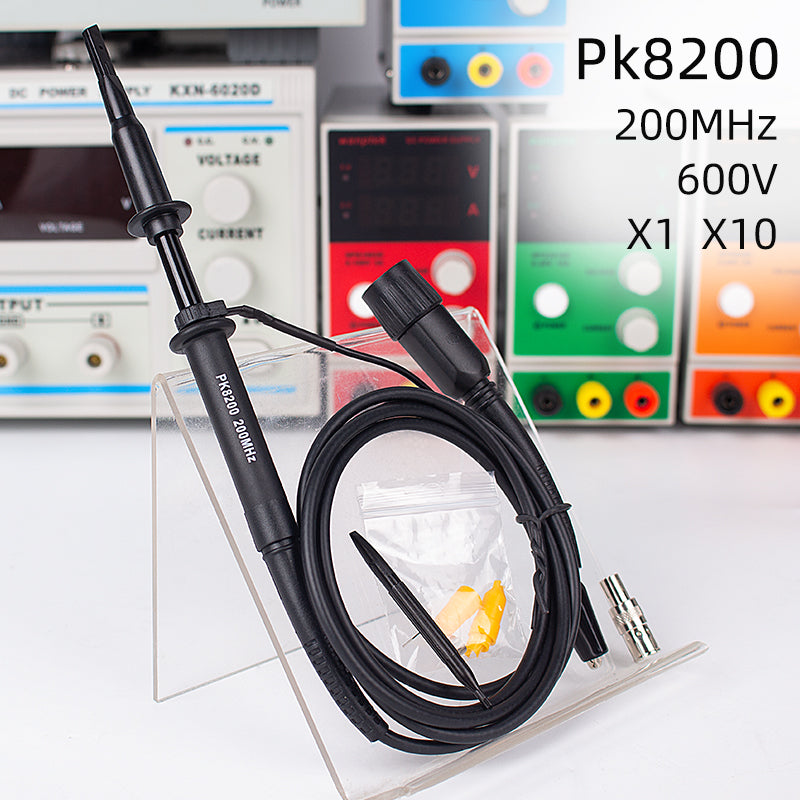

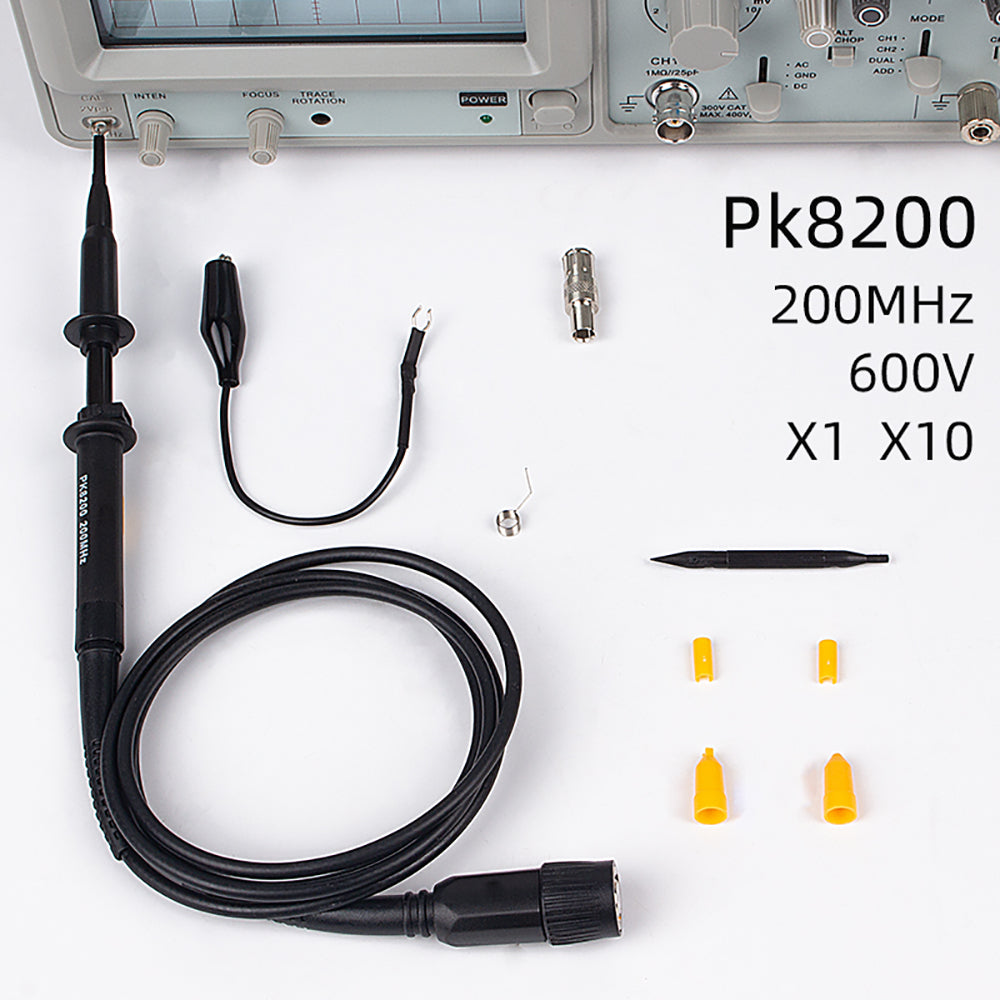

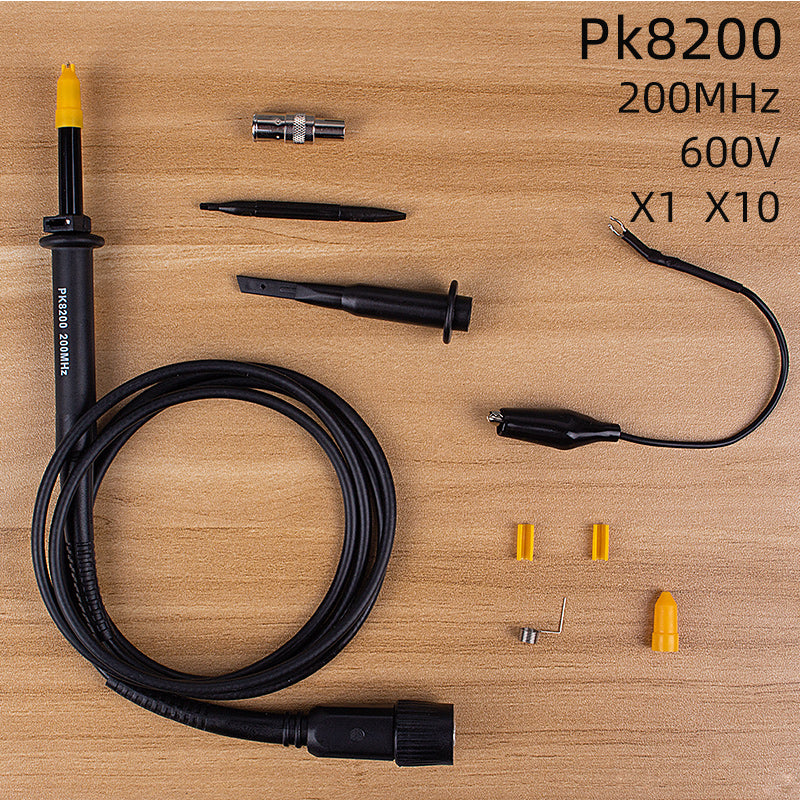

Appearance & Structure
Ergonomic design for comfortable extended use. Durable 1.2m cable offers flexibility in lab/field settings. Easy to connect to oscilloscopes, built to withstand regular use.
Product Parameters
Parameter
Detail
Model
PK8200
Attenuation Ratio
1X / 10X
Bandwidth
200MHz (@3dB)
Rise Time
1.75ns
Input Resistance
1X: 1MΩ / 10X: 10MΩ
Input Capacitance
1X: 57pF / 10X: 12pF
Compensation Range
10 - 35pF (10X mode)
Max Input Voltage
600VDC + PKAC
Safety Standard
IEC - 61010 CATI compliant
Cable Length
1.2m
Function Introduction
Dual Attenuation: Switch 1X for precise low-voltage measurements or 10X for safe 600VDC+ high-voltage testing without distortion.
200MHz High-Bandwidth: Captures high-frequency signals with 1.75ns rise time, ideal for digital circuits and RF modules.
