P7200 Oscilloscope Probe: Frustrated by Signal Testing Limits?
Tired of probes that can’t handle high - speed signals or precise voltage measurements? The P7200 steps in – 200MHz bandwidth + dual attenuation for pro - level signal analysis!
Appearance & Structure

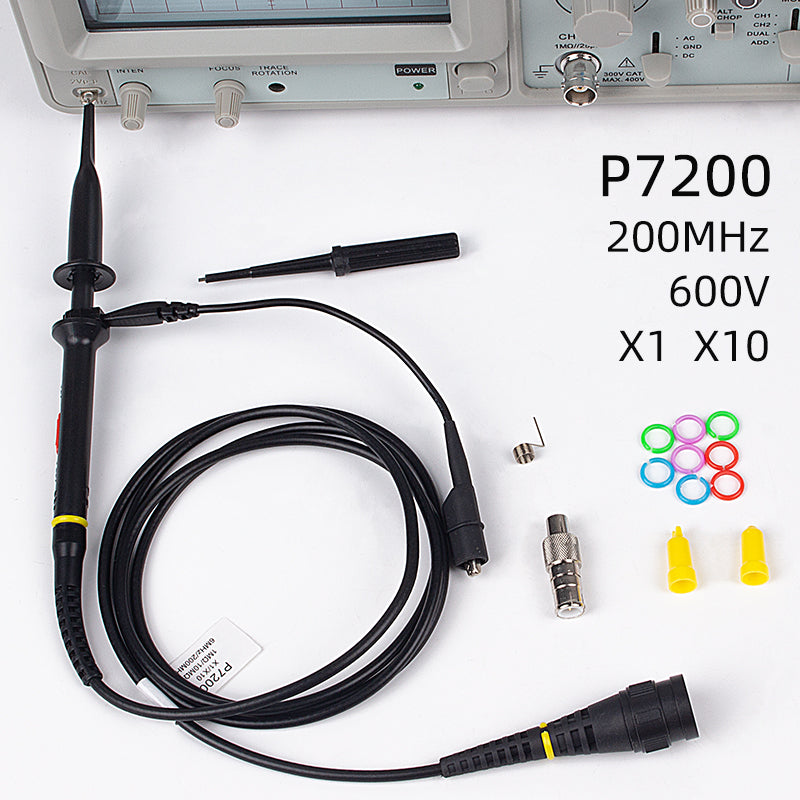

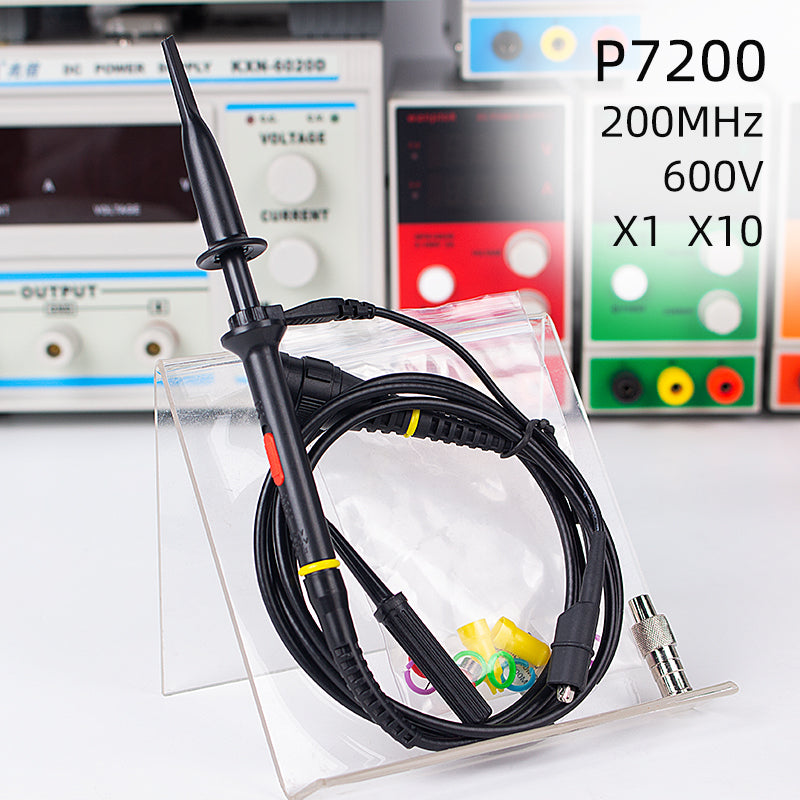

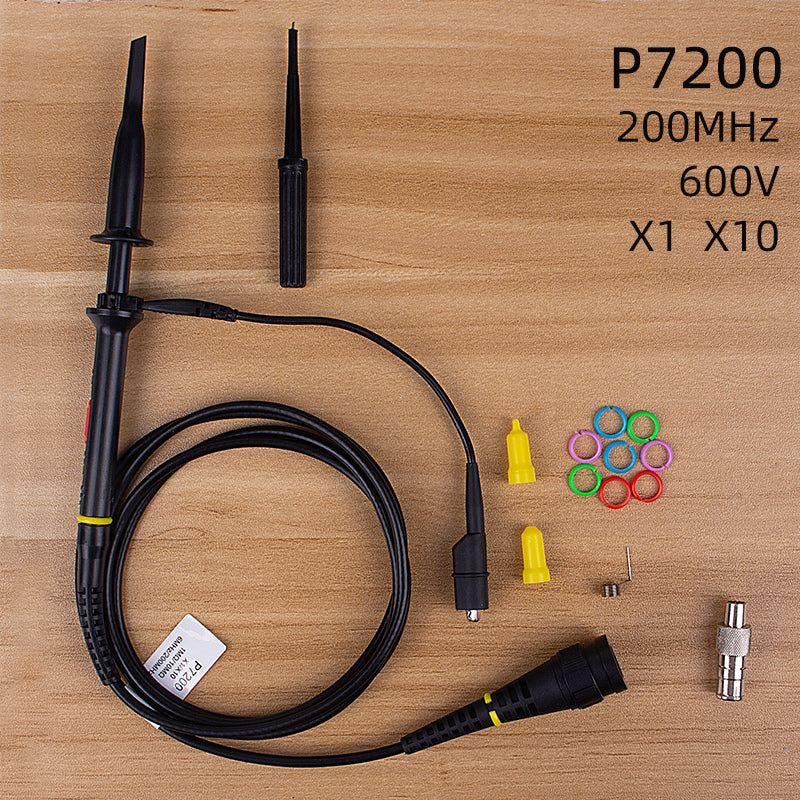

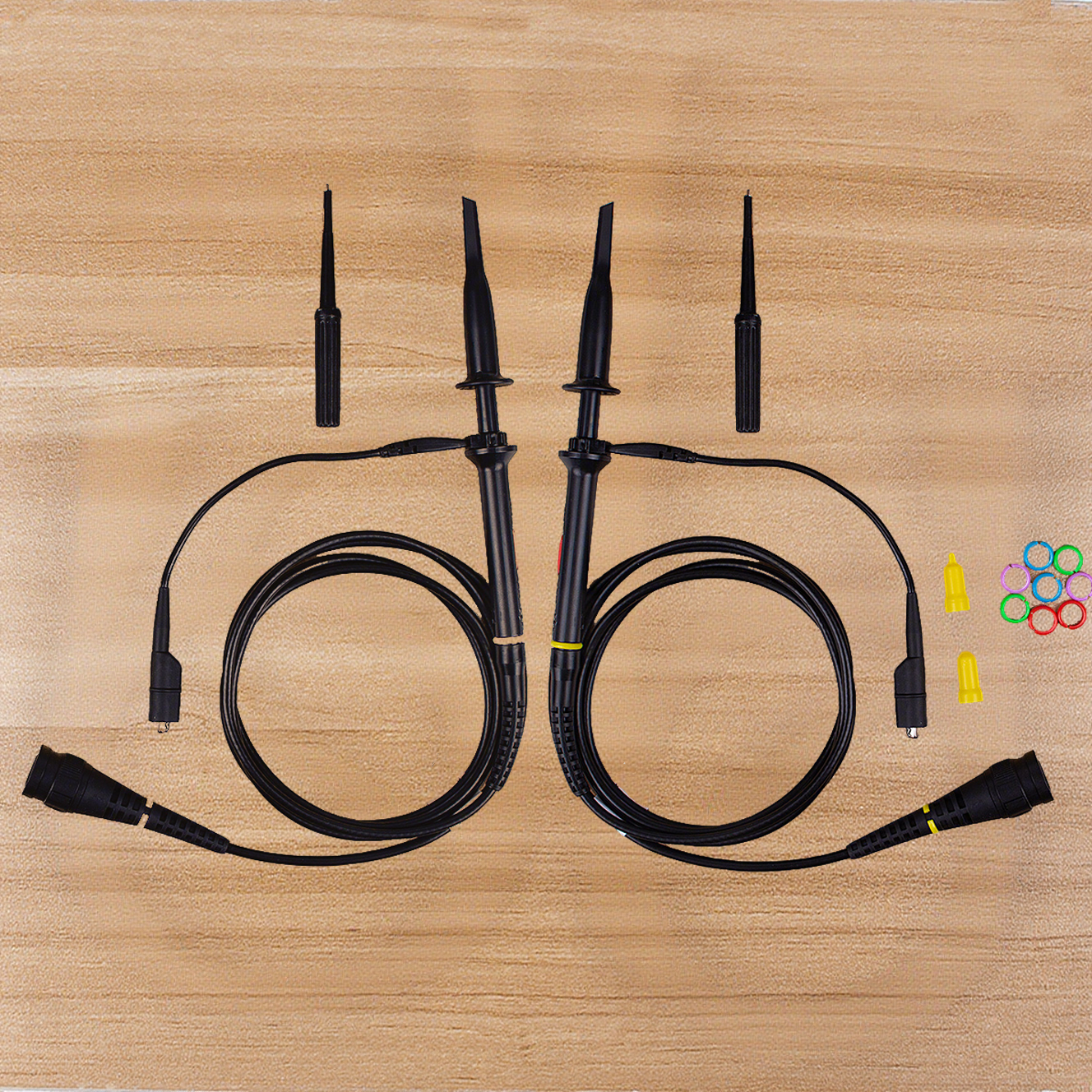

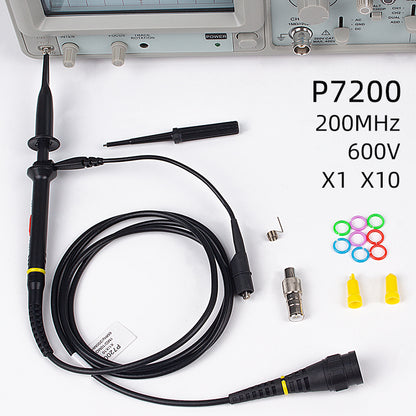

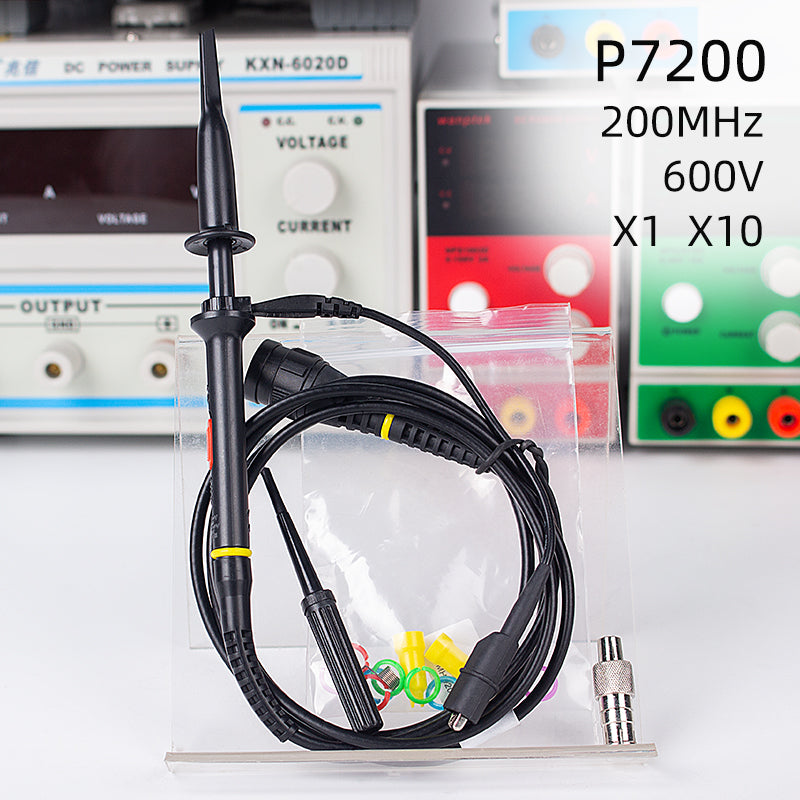

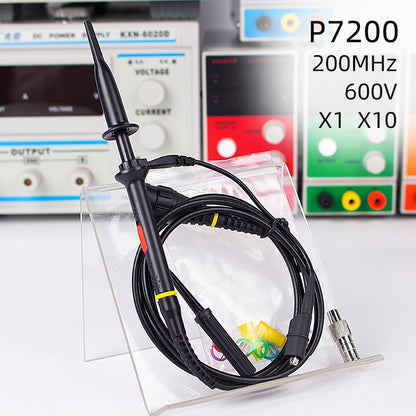

Sleek black ergonomic design fits comfortably in hand. Durable 130±2cm cable + flexible leads navigate tight spaces easily. Lightweight (≈55g) for fatigue - free use, with colorful test rings to organize connections.
Product Parameters
Parameter
Detail
Model
P7200
Bandwidth
200MHz
Rise Time
1.75ns
Attenuation Ratio
1X / 10X
Input Resistance
1X: 1MΩ±2% / 10X: 10MΩ±2%
Input Capacitance
1X: 85pF - 135pF / 10X: 14pF - 18pF
Max Input Voltage
1X: 300V (Vp - p) / 10X: 600V (Vp - p)
Compensation Range
9 - 30pF
Cable Length
130±2cm
Weight
≈55g
Function Introduction
200MHz High - Speed Testing: Captures fast - rising signals (1.75ns rise time) for high - frequency circuits, perfect for telecom, industrial, or advanced R&D projects.
Dual Attenuation Modes: Switch 1X for low - voltage precision (up to 300V) or 10X for safe high - voltage testing (up to 600V) – no signal distortion, versatile for diverse voltages.
Precise Input Tuning: Compensate 9 - 30pF to match oscilloscope inputs, ensuring waveform accuracy. Adjustable resistance/capacitance handles complex signal environments.
Durable & Reliable: Built for - 10~50℃ operation (storage: - 20~75℃), resisting temperature/humidity shifts. Stable readings for lab and field use.
Applicable Scenarios
High - Speed Electronics R&D: Test 200MHz+ signals in RF, digital, or power circuits – 1.75ns rise time captures ultra - fast transients.
Industrial Equipment Troubleshooting: Diagnose motors, inverters, or automation systems – 600V max input handles heavy - duty industrial voltages.
Telecom Infrastructure: Monitor high - frequency signals in base stations, routers, or fiber networks – 200MHz bandwidth ensures signal integrity.
Automotive Electronics: Test EV chargers, ADAS sensors, or engine control units – dual attenuation covers low/high - voltage subsystems.
Why Choose P7200?
Speed & Precision: 200MHz bandwidth + 1.75ns rise time handle high - speed signals; dual modes ensure voltage accuracy.
Durability: Built for harsh environments (temp/humidity), reliable for lab and field use.
Versatility: Compensate 9 - 30pF, adjust resistance – adapts to any oscilloscope, any project.
Ready to upgrade your signal testing? Click “Add to Cart” – the P7200’s 200MHz precision and rugged design make pro - level analysis easy. Stock limited – grab yours for flawless measurements today!
