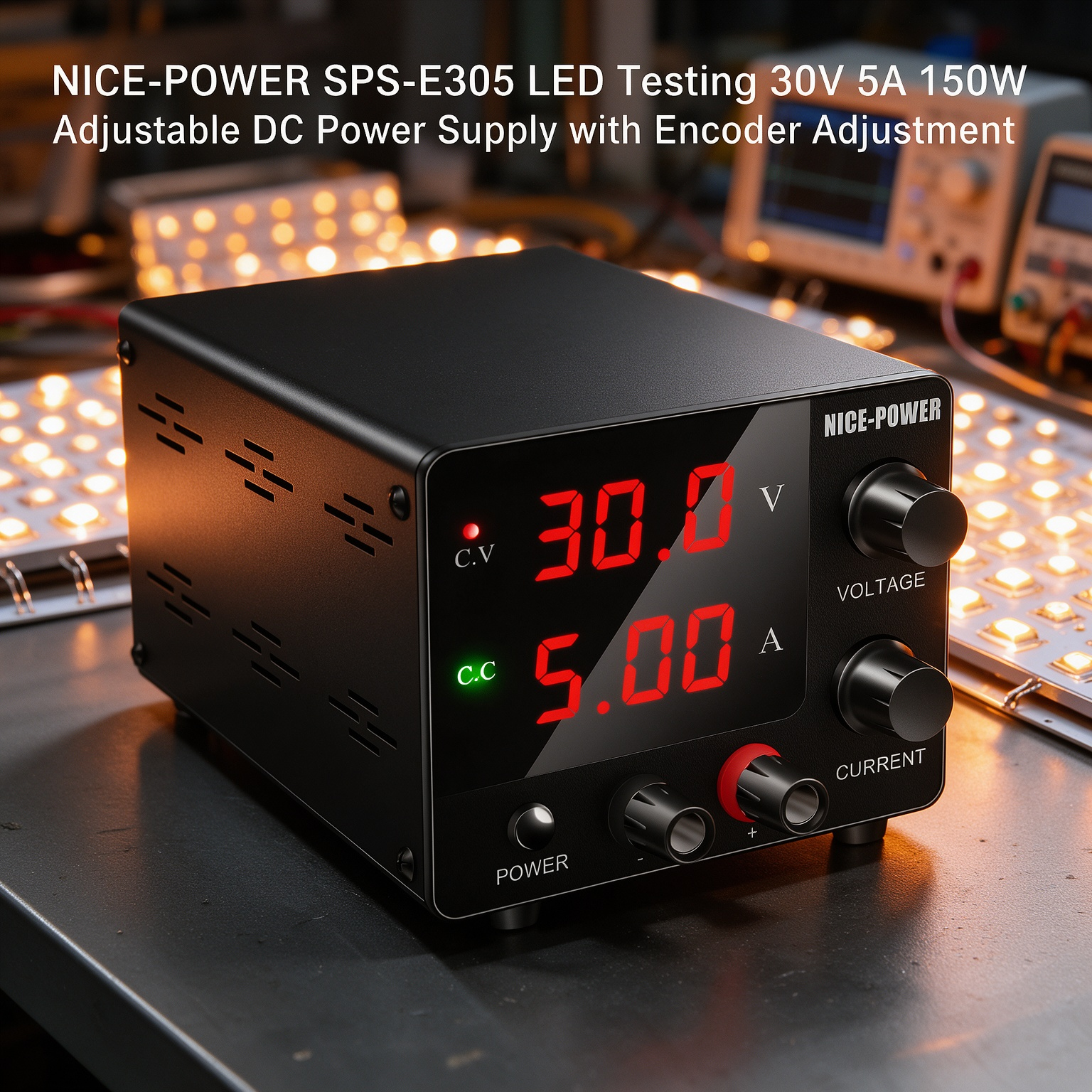

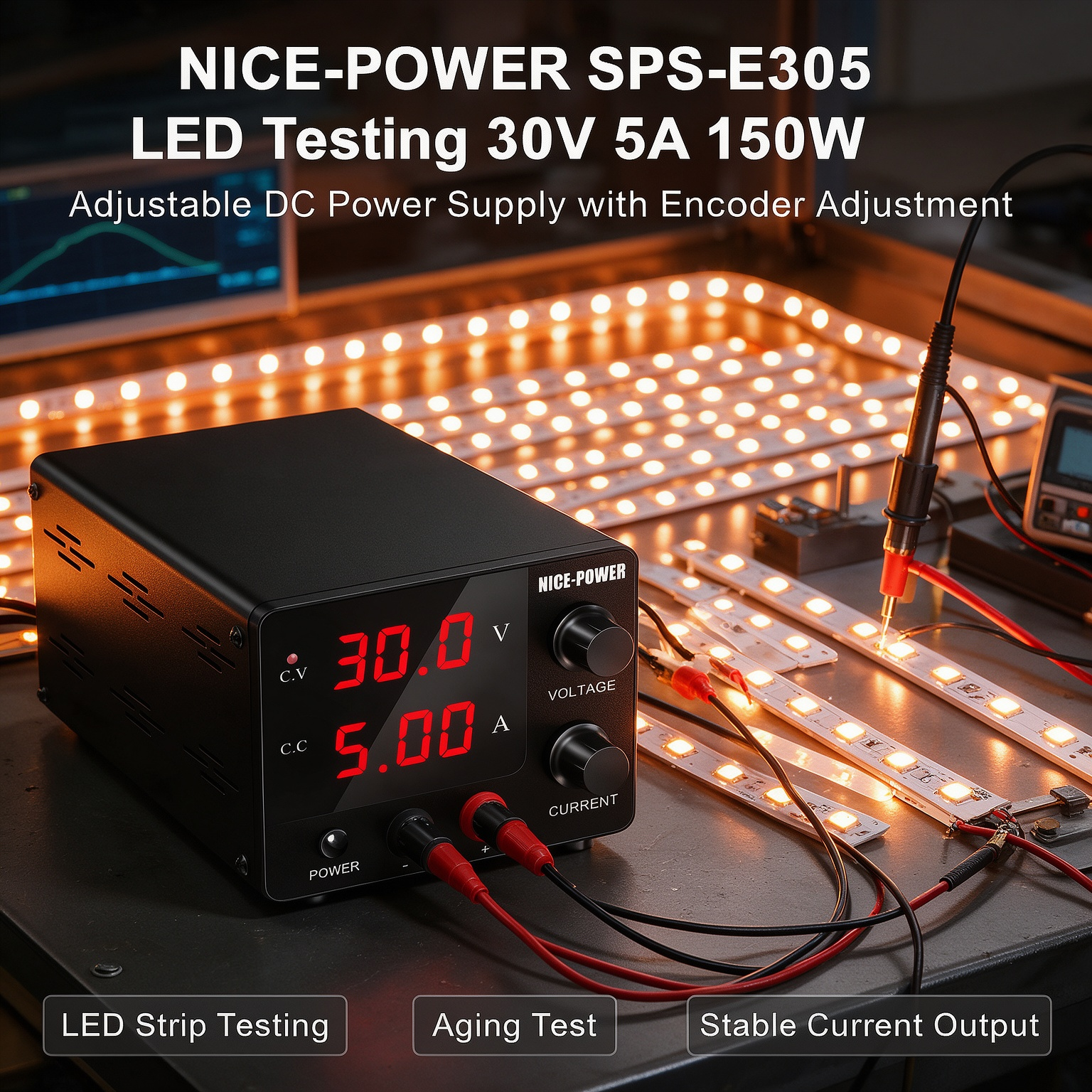

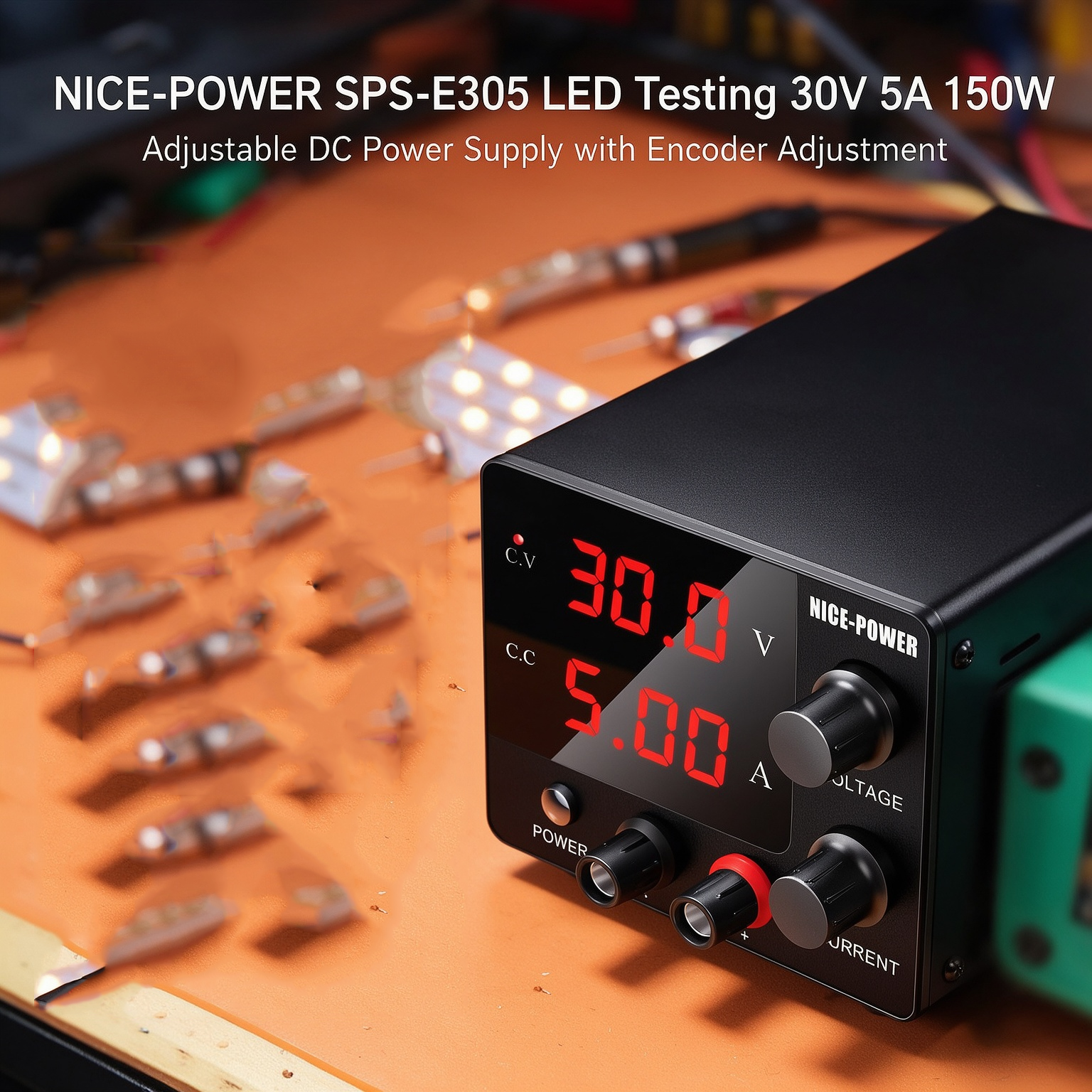

NICE-POWER SPS-E305 LED Testing 30V
5A 150W Adjustable DC Power Supply
with Encoder Adjustment
NICE-POWER SPS-E305 is a compact 30V 5A 150W Adjustable DC Power Supply designed for LED Testing and other low-voltage electronic evaluation tasks. Its adjustable voltage and current output allows users to establish suitable DC operating conditions for LED components, LED modules, indicator circuits, and small lighting circuits. The Encoder Adjustment provides controlled setting of voltage and current, while the 3-digit display makes the configured output values easy to monitor during bench testing.
Key Features
0-30V Adjustable DC Output
The SPS-E305 provides a 0-30V adjustable DC output, allowing users to set different voltage levels according to the requirements of LED Testing. This range is suitable for evaluating individual LED devices, LED modules, and low-voltage LED circuits within the power supply's operating range.
Up to 5A Adjustable Current
With an adjustable current output of up to 5A, the Adjustable DC Power Supply can provide different current conditions for LED Testing. Users can adjust the current setting when evaluating LED brightness, operating conditions, or circuit response.
150W Output Capability
The 150W output capability provides sufficient power for a wide range of bench-level LED Testing tasks. It can support individual components as well as small LED modules and prototype lighting circuits when their voltage and current requirements are within the SPS-E305's specifications.
Precision Encoder Adjustment
The Encoder Adjustment design provides a more controlled way to set voltage and current compared with simple fixed-step controls. This is useful when LED Testing requires repeated adjustment of operating conditions during component or circuit evaluation.
3-Digit Display
The 3-digit display provides a direct view of the power supply's adjustable output settings. During LED Testing, users can monitor the configured voltage and current values while making adjustments to the test conditions.
Fine Voltage and Current Setting
The SPS-E305 supports a voltage setting resolution of 10mV and a current setting resolution of 1mA. This allows users to make relatively fine adjustments when establishing test conditions for LED components and low-voltage LED circuits.
Constant Voltage and Constant Current Operation
The SPS-E305 supports constant voltage and constant current operation, making it suitable for LED Testing where controlled electrical conditions are important. The operating mode can correspond to the voltage or current requirements of the connected test circuit.
Low Ripple Output for Bench Testing
The SPS-E305 provides voltage ripple of ≤60 mVp-p / ≤10 mVrms and current ripple of ≤10 mArms according to the specified product data. This makes the Adjustable DC Power Supply suitable for controlled bench testing of LED components and small electronic circuits.
Compact Mini Bench Design
The compact mini design makes the SPS-E305 convenient for electronics workbenches where space is limited. Its small form factor allows it to be positioned close to LED test fixtures, prototype boards, and other equipment used during repeated LED Testing.
Applications
Individual LED Testing
Use the SPS-E305 to establish adjustable DC voltage and current conditions for evaluating individual LED components within the 30V and 5A output range.
LED Module Testing
The Adjustable DC Power Supply can provide adjustable operating conditions for small LED modules, helping users evaluate their electrical response under different supply settings.
LED Brightness Evaluation
Different voltage and current settings can be established to observe changes in LED operating conditions and brightness during controlled bench testing.
Indicator LED Circuit Testing
The SPS-E305 can be used to supply adjustable DC power to indicator LED circuits in electronic prototypes, allowing voltage and current conditions to be adjusted during circuit verification.
LED Prototype Testing
During early-stage LED circuit development, the SPS-E305 provides an adjustable DC source for testing prototype LED circuits before final power-system integration.
Low-Voltage Lighting Circuit Testing
For low-voltage lighting circuits that fall within the SPS-E305's 0-30V and 0-5A output range, the power supply can be used to establish adjustable test conditions on the workbench.
LED Current Condition Testing
The adjustable current setting allows users to establish different current conditions when evaluating LED components and LED circuits, supporting repeated comparison during bench testing.
LED Voltage Condition Testing
The 0-30V adjustable output allows users to change the applied voltage when testing LED components or circuits and observing their response to different voltage conditions.
LED Circuit Development
The SPS-E305 can serve as a compact Adjustable DC Power Supply during LED circuit development, providing a controllable DC source for prototype evaluation and circuit adjustment.
Electronics Education and Training
Its compact design, Encoder Adjustment, adjustable 0-30V output, and 3-digit display make the SPS-E305 suitable for educational LED Testing and basic electronic circuit experiments.
Quality Check and Terms of Service
-
Package includes: 1 × DC Power Supply
-
1 × Power Cord
-
1 × Output Test Lead
-
1 × User Manual
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS-E305 |
| Product Type |
Adjustable DC Power Supply |
| Output Voltage |
0-30V |
| Output Current |
0-5A |
| Rated Power |
150W |
| Adjustment Method |
Encoder Adjustment |
| Display |
3-Digit Display |
| Input Voltage |
AC100-240V |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
1mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
1mA |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Load Regulation |
≤0.3% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Voltage Ripple |
≤60 mVp-p / ≤10 mVrms |
| Current Ripple |
≤10 mArms |
| Rise Time, No Load |
≤200ms |
| Rise Time, Full Load |
≤300ms |
| Fall Time, Full Load |
≤300ms |
| Fall Time, No Load |
≤15S |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| Rated Operating Temperature |
0-40°C |
| Size |
About 18.5 × 10 × 7.8 cm |
| Net Weight |
About 0.7KG |
| Package Size |
23 × 19 × 11 cm |
| Package Weight |
1.1KG |
Why Choose NICE-POWER SPS-E305?
NICE-POWER SPS-E305 combines a 30V 5A 150W Adjustable DC Power Supply with Encoder Adjustment in a compact mini form factor. For LED Testing, its adjustable voltage and current output provides flexible test conditions, while the 3-digit display and fine setting resolution help users monitor and adjust operating parameters on the bench. The compact design also makes it practical for LED component evaluation, LED module testing, prototype development, and electronics education where a small adjustable DC power source is required.
