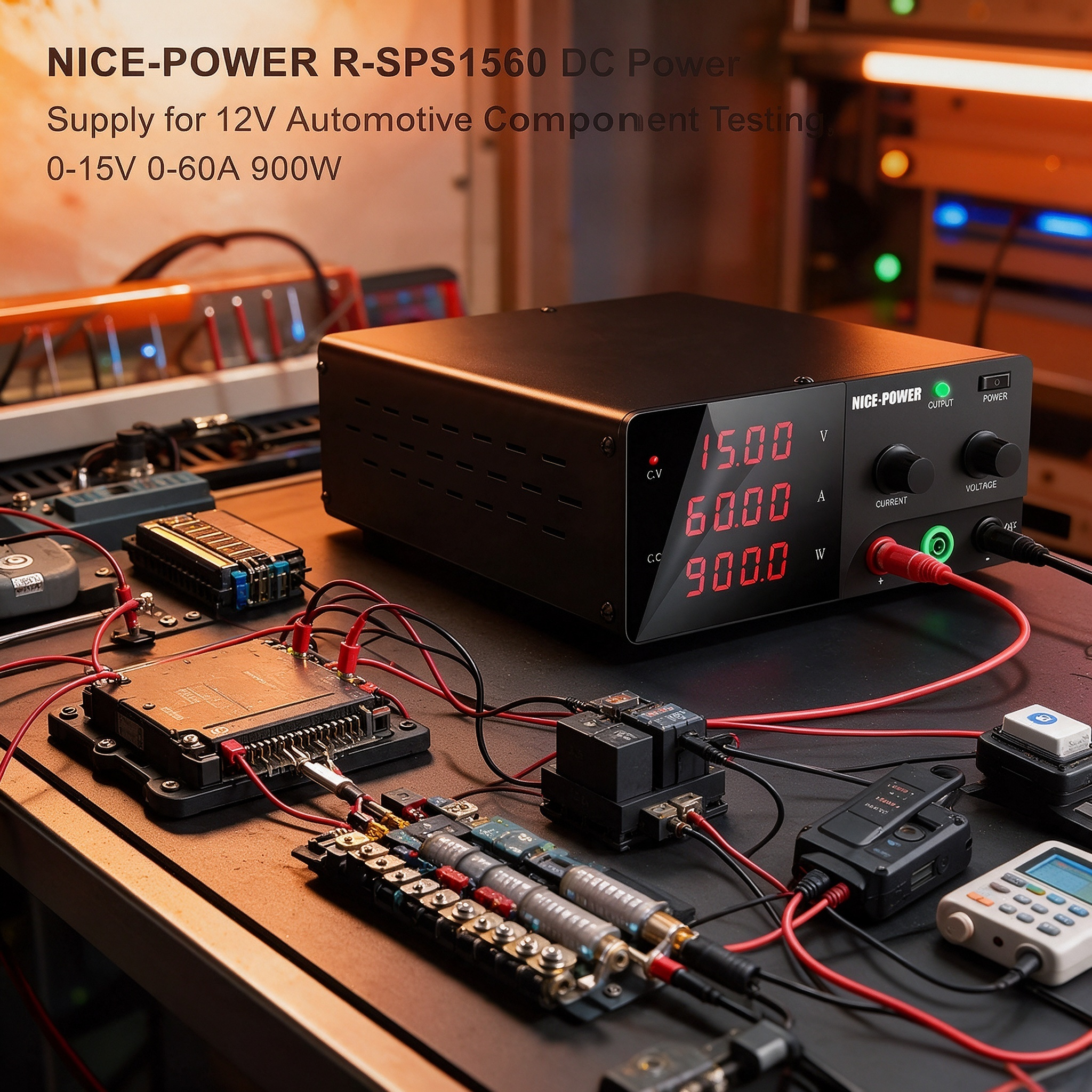

NICE-POWER R-SPS1560 DC Power Supply for 12V

Automotive Component Testing, 0-15V 0-60A 900W

When an automotive electronic component is removed from a vehicle for inspection or development, technicians need a suitable DC source to power it on the workbench. The NICE-POWER R-SPS1560 is an adjustable DC power supply for compatible automotive components operating within a 0–15V input range. Its 900W rated output and maximum current of 60A make it suitable for selected low-voltage, high-current bench applications, provided the component's actual power requirements fall within the supply's ratings.

For 12V automotive component testing, the ability to adjust the supply voltage and observe output readings is useful when checking a module's power input, investigating unexpected current draw, or comparing operating conditions during troubleshooting. The R-SPS1560 includes four-digit voltage and current displays, a power display, an encoder adjustment knob, and an Output ON/OFF control.

Two versions are available: R-SPS1560 standard and R-SPS1560-R programmable. USB, RS-232, and RS-485 communication interfaces are optional configurations rather than standard inclusions. Confirm the selected version and interface options before placing an order.

This DC power supply is intended to provide DC power to compatible components. It is not a dedicated automotive battery simulator, vehicle diagnostic scanner, or transient-test system. Before connecting an automotive module, consult its wiring diagram and rated input specifications, verify the power and ground pins, and select an appropriate output voltage.

Key Features

A Wide Adjustable Voltage Range for 12V Component Evaluation

The 0–15V adjustable DC output accommodates compatible components whose specified input voltage falls within this range, including selected 12V automotive electronics. This flexibility is useful when technicians need to set a supply voltage to match the component's documented bench-test requirements rather than rely on a fixed-voltage source.

900W Output Capacity for Compatible High-Current Loads

The R-SPS1560 delivers up to 60A, with a rated output power of 900W. This capacity can support compatible low-voltage automotive assemblies with relatively high current requirements. The available current depends on the voltage and power limits of the supply, and the component will draw current according to its own electrical characteristics. Check startup demand and continuous consumption before testing.

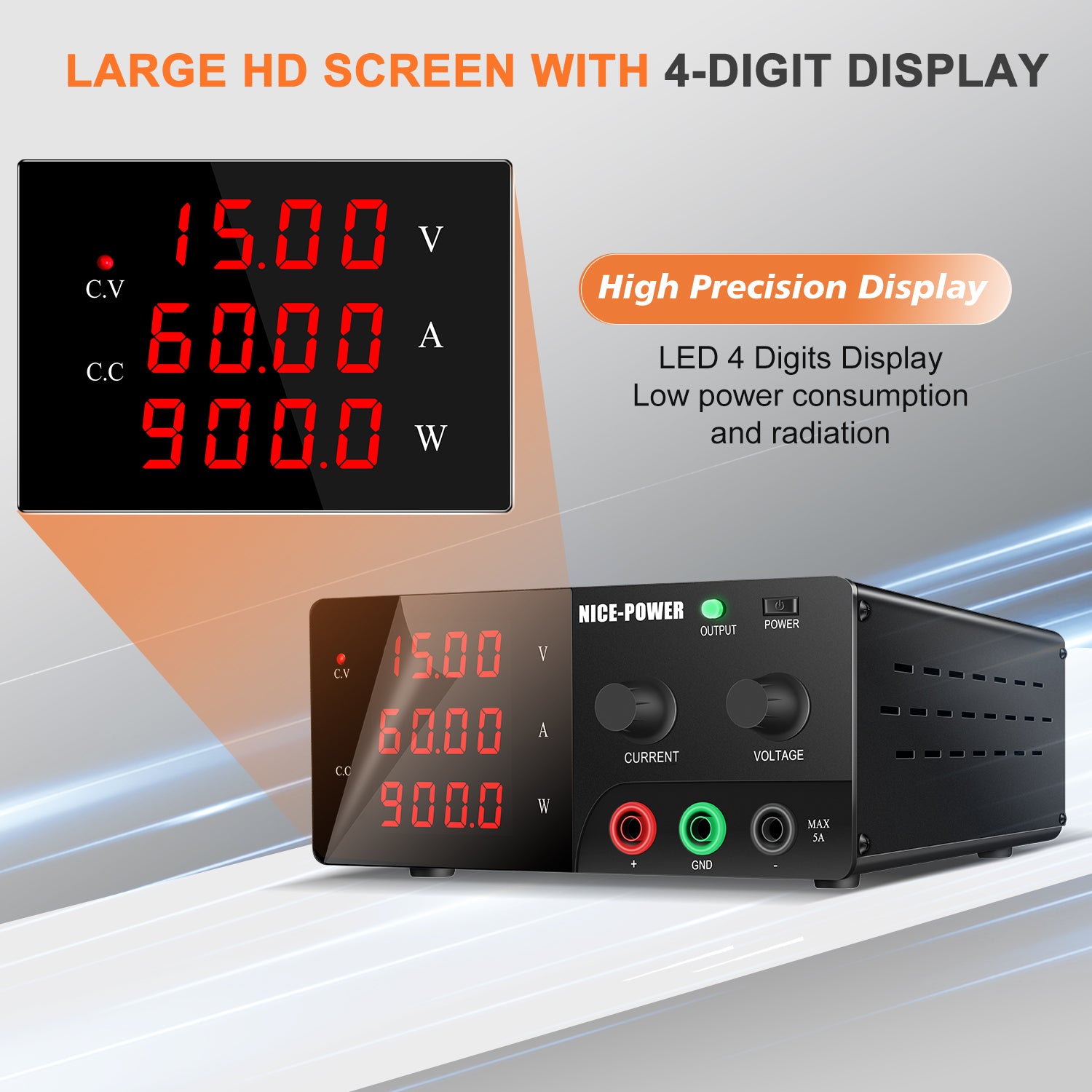

Readable Voltage, Current, and Power Values

During component evaluation, observing the supply's output readings can help technicians identify changes in power consumption as a module is powered or its operating state changes. The R-SPS1560 provides four-digit voltage and current displays plus a power display. These readings are useful for routine observation but do not replace a multimeter, oscilloscope, or dedicated automotive diagnostic instrument.

Output Switching for Organized Test Setup

The Output ON/OFF control allows the user to switch the DC output on or off during a bench procedure. Technicians can prepare the wiring, check connections, and set the required output before enabling power. Turn the output off before changing connections, and follow the component manufacturer's handling and electrical safety instructions.

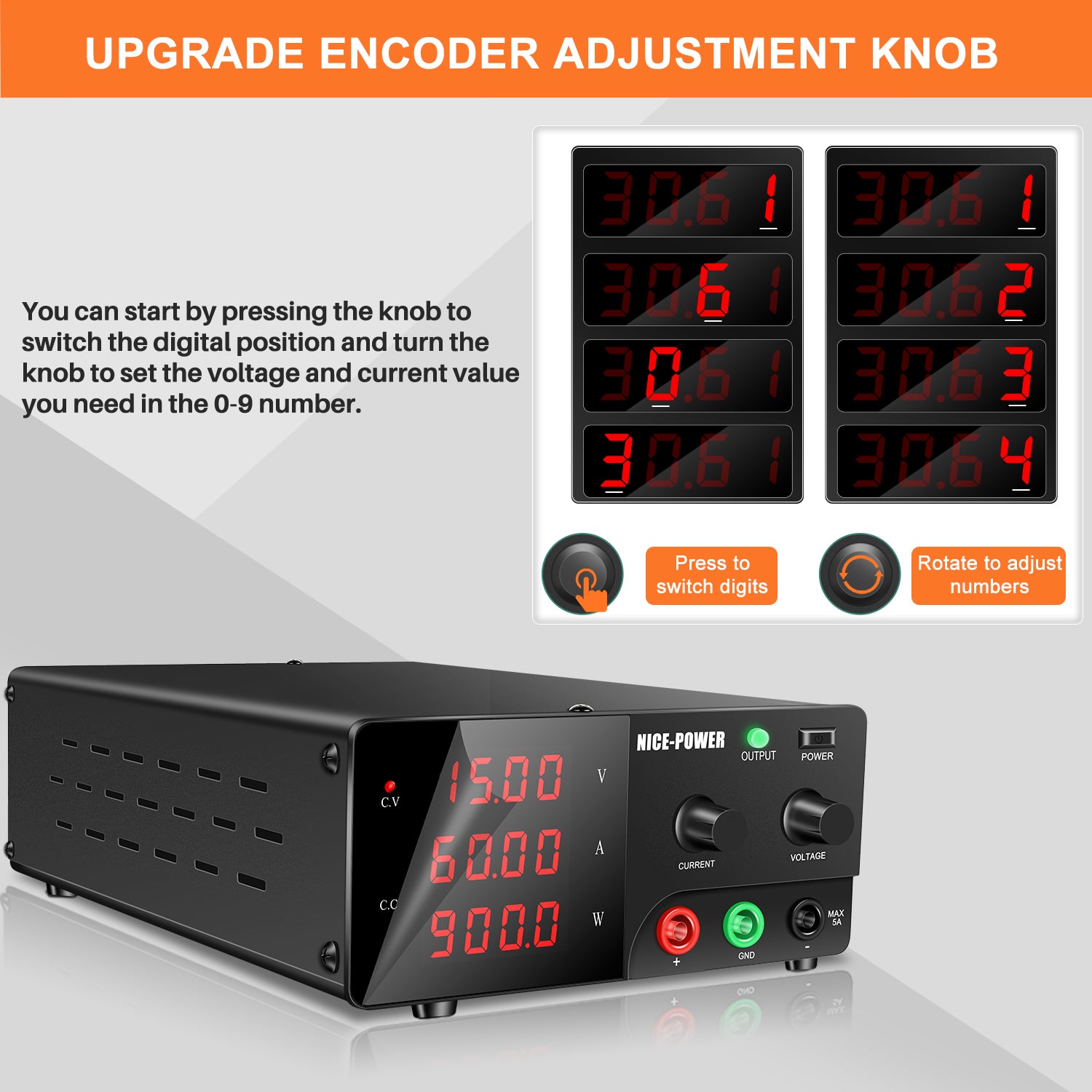

Manual Adjustment for Different Test Requirements

The encoder knob provides access to output adjustment, allowing technicians to set the supply according to the documented voltage requirements of different compatible components. This is useful when a workbench is used for more than one type of automotive electronic module. The feature should not be confused with an automatic test sequence or programmable voltage profile.

Two Versions to Match Bench Power Needs

The R-SPS1560 is the standard model, while the R-SPS1560-R is the programmable model. USB, RS-232, and RS-485 interfaces are optional configurations for the programmable version. Interface availability and supported communication functions depend on the configuration ordered; verify these details if your test setup requires computer communication.

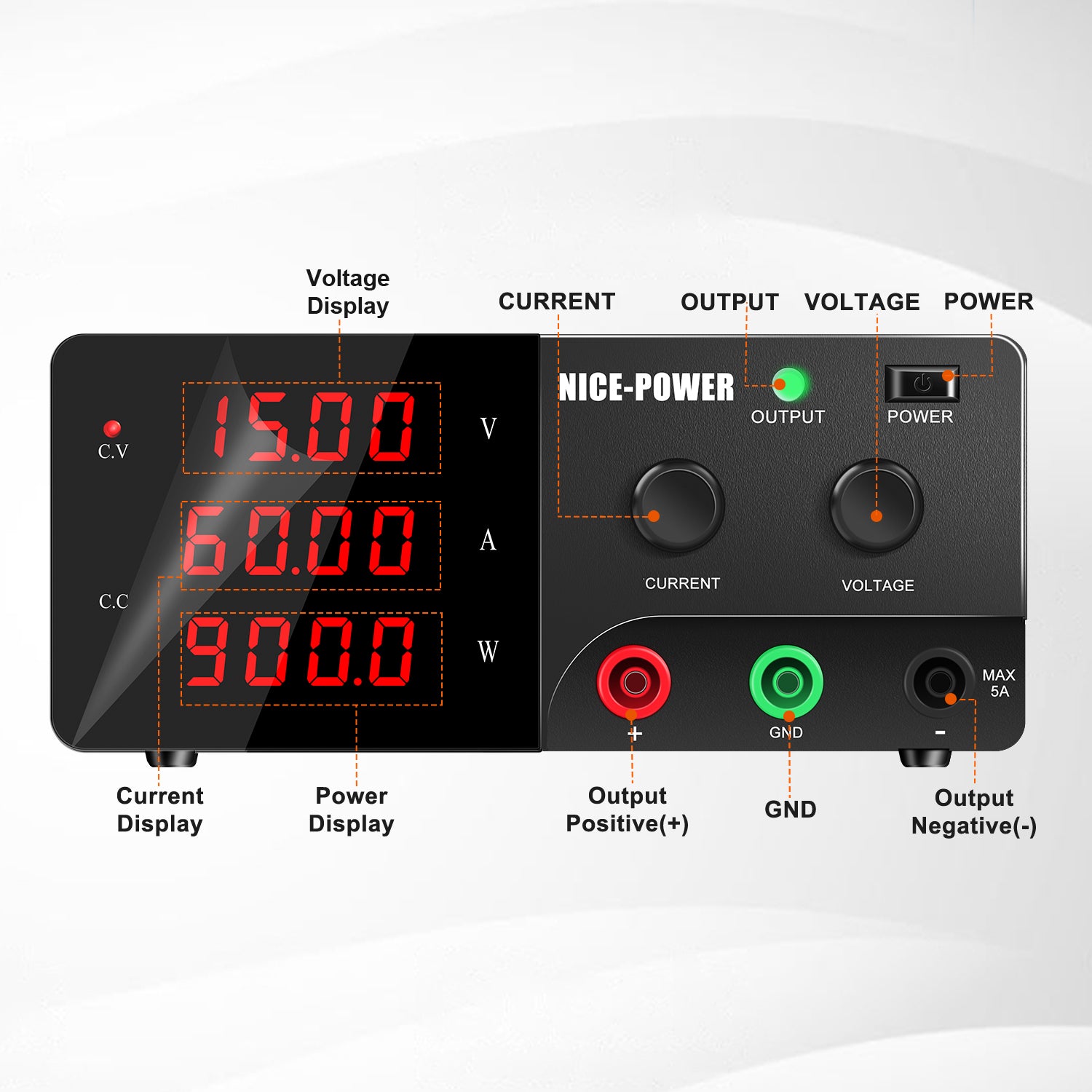

Front and Rear Output Connections

The power supply has front-panel and rear-panel output ports. The front-panel output current is limited to less than 5A, while the rear-panel output supports full-rated-power operation. For a compatible automotive component that requires more than the front-panel current limit, use the specified rear output and properly rated cables and connectors.

Applications

Bench Power-Up Checks for Automotive Control Modules

The R-SPS1560 can supply DC power to compatible automotive control modules during bench power-up checks. Technicians can set the required input voltage, observe the displayed output readings, and investigate whether the module's power consumption appears consistent with the expected test conditions. Correct pin identification and the module's service documentation are essential before power is applied.

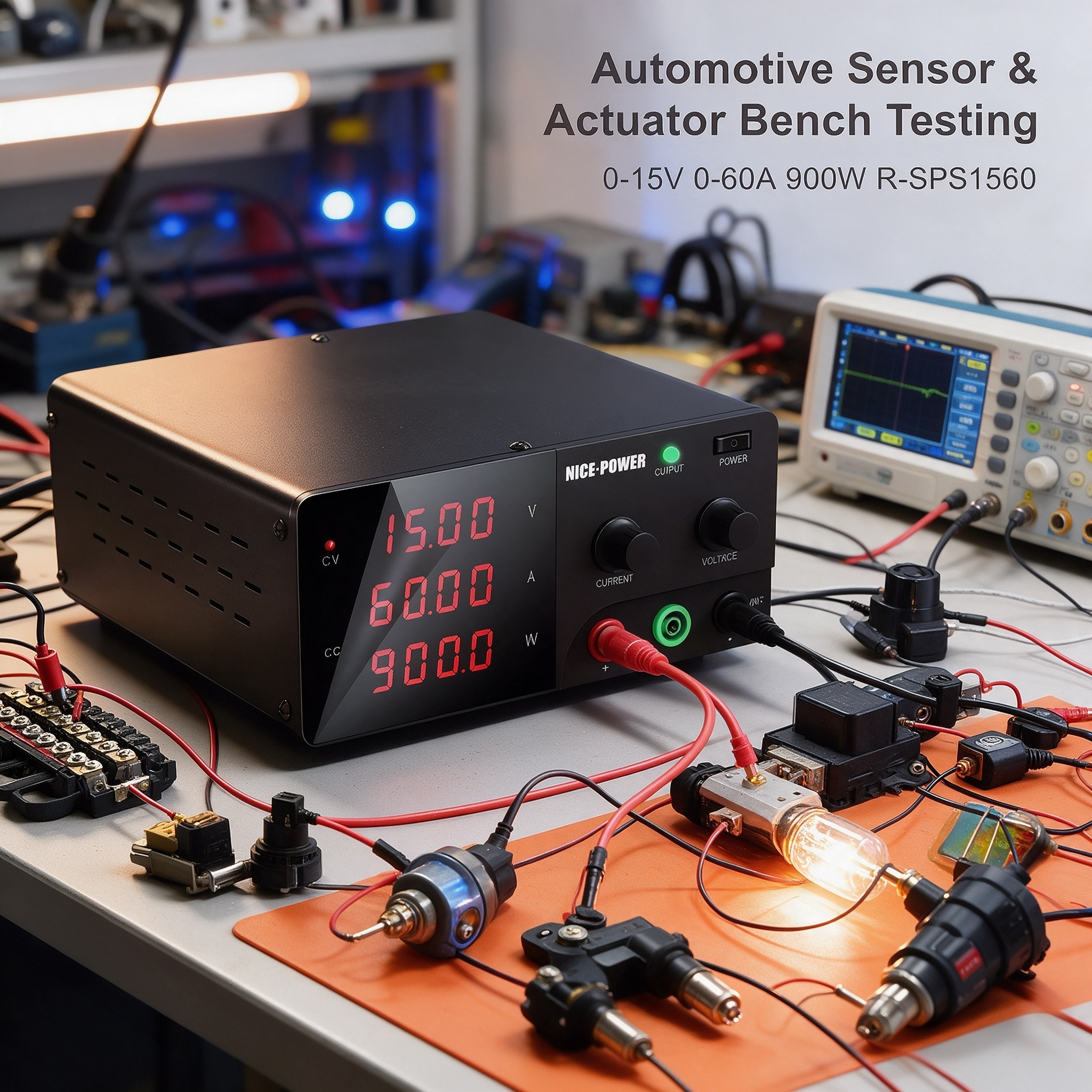

Automotive Sensor Electronics Evaluation

Some automotive sensor assemblies contain electronic circuits that require a suitable DC supply during development or troubleshooting. The adjustable output of the R-SPS1560 can power compatible sensor electronics within the specified voltage and current limits. Signal simulation, sensor calibration, and measurement of sensor outputs require appropriate external test equipment where applicable.

Automotive PCB and Module Repair

During repair work, technicians may need to power an automotive electronic board separately from the vehicle to investigate a reported fault. The R-SPS1560 provides adjustable DC input power for compatible boards and modules, while its voltage, current, and power displays help users observe the supply readings during testing. Inspect the board, check for shorts, and confirm its power-input pinout before connecting the supply.

Low-Voltage Automotive Component Development

For automotive electronics developers working with compatible low-voltage assemblies, the R-SPS1560 can provide bench power during prototype evaluation and design troubleshooting. Its 0–15V output range supports components whose specified input voltage falls within that range. Loads with current demand beyond the supply's capabilities, or applications requiring automotive transient simulation, need other appropriately specified equipment.

Quality Check and Terms of Service:

• Package includes: DC Power Supply × 1, Output Power Cord × 1, Input Power Cord × 1, User Manual × 1, Warranty Card × 1.

• Has passed CE & FCC Certification.

• All DC power supplies and accessories are inspected before shipment to ensure good quality.

• Customer support: Contact us with any questions, and we'll respond within 24 hours.

Technical Specifications

Why Choose NICE-POWER R-SPS1560?

Automotive component bench work often involves checking a module outside the vehicle, where the technician needs a suitable power source and a clear view of its output readings. The NICE-POWER R-SPS1560 combines adjustable 0–15V DC output, a maximum current of 60A, and 900W rated power for compatible loads. Its voltage, current, and power displays provide practical feedback during routine bench power-up and troubleshooting.

The R-SPS1560 standard version suits ordinary adjustable DC power applications, while the R-SPS1560-R programmable version is an option for users whose workflow requires the programmable model. Optional communication interfaces should be confirmed separately. For 12V automotive component testing, the most important selection criteria remain the component's rated input voltage, continuous current, startup demand, connector arrangement, and total power consumption.

Choose this DC power supply when the component's requirements fall within the unit's output ratings. It provides DC power and basic output readings; specialized functions such as battery simulation, automotive transient testing, CAN/LIN diagnostics, and automated pass/fail testing require separate equipment unless independently specified.
