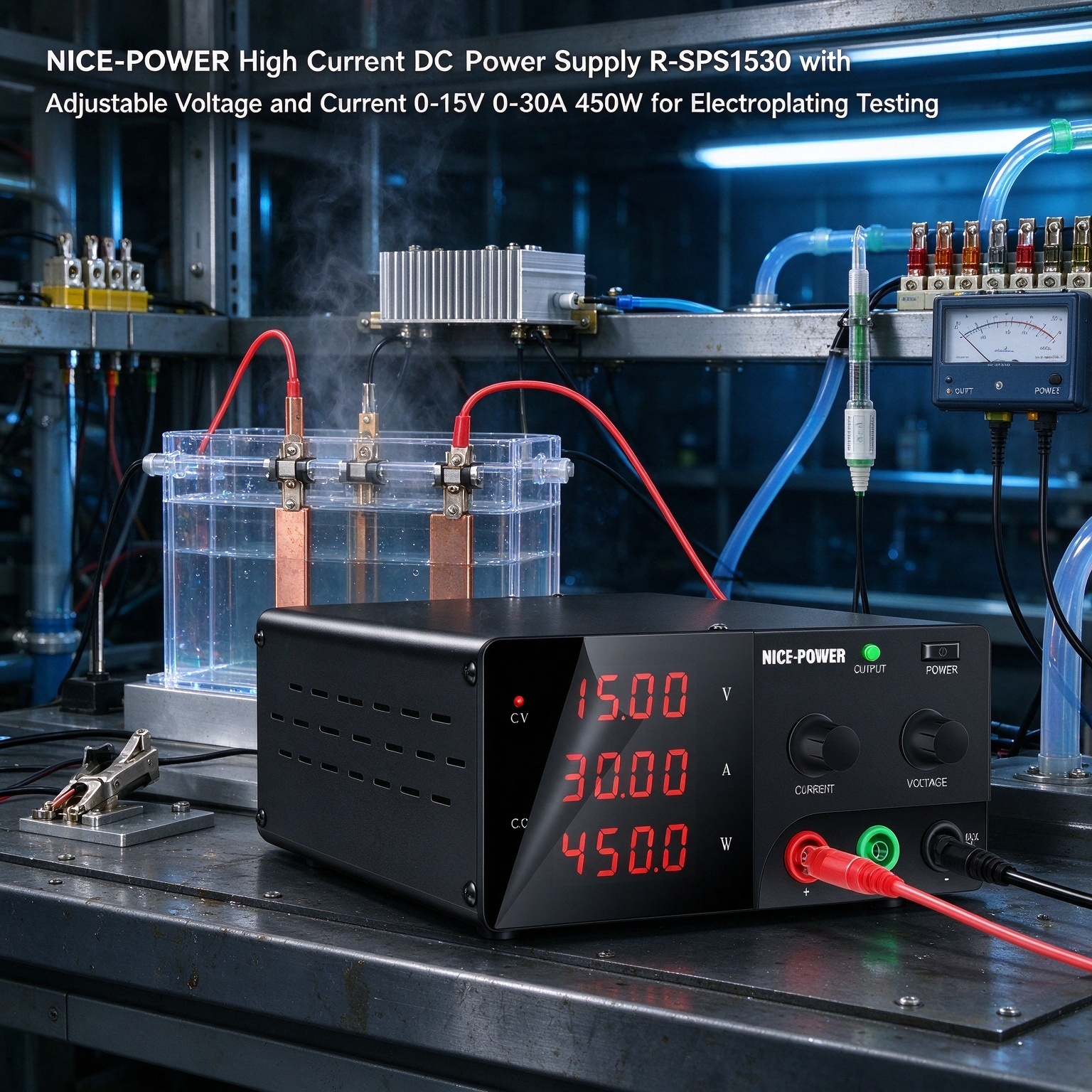

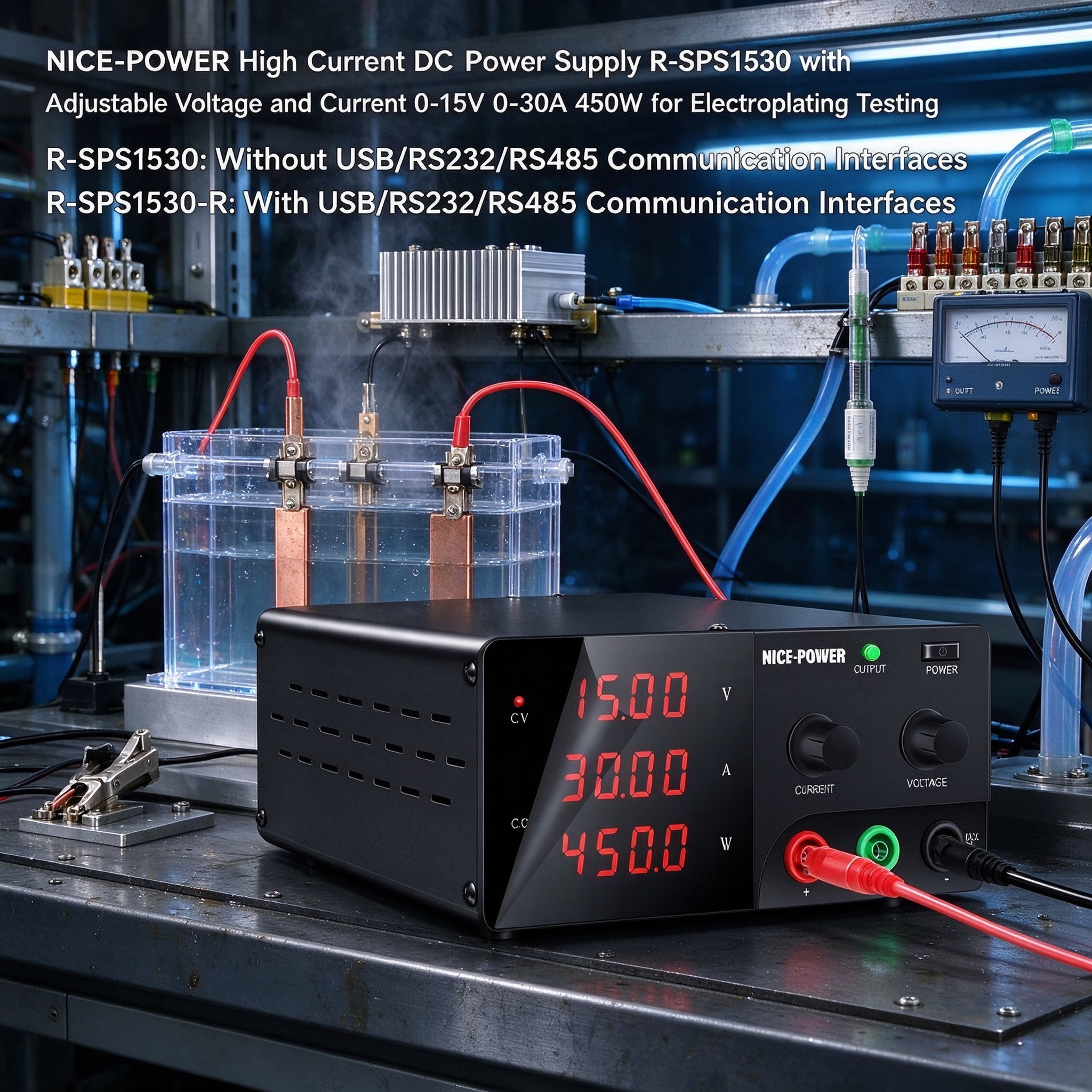

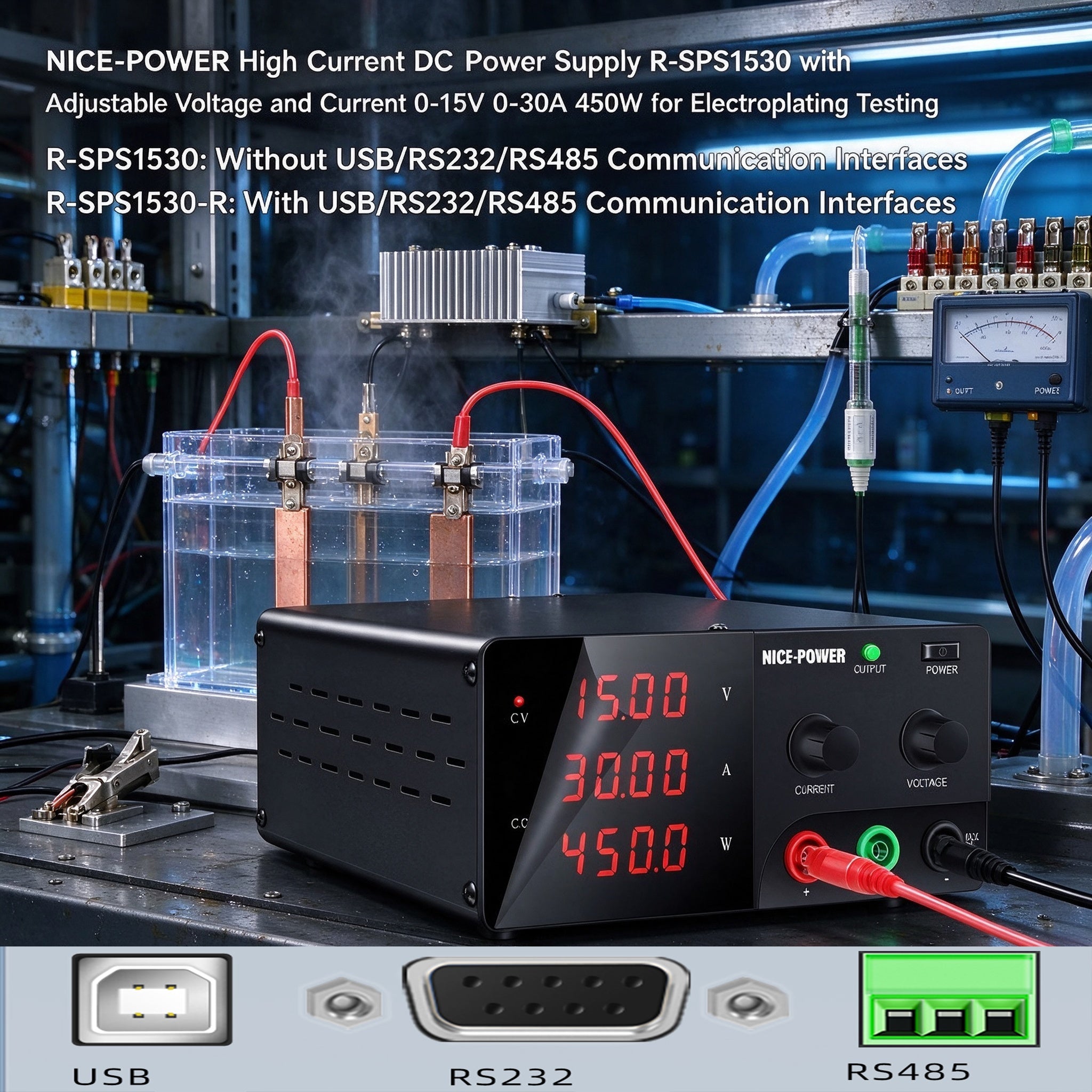

NICE-POWER High Current DC Power

Supply R-SPS1530 with Adjustable

Voltage and Current 0-15V 0-30A 450W

for Electroplating Testing

Electroplating testing often requires a controllable DC power source so engineers can establish different electrical conditions for a test piece, electrode, or laboratory fixture. The NICE-POWER R-SPS1530 combines a 0-15V adjustable voltage range, up to 0-30A output current, and 450W rated power for low-voltage, high-current electroplating test applications.

Instead of providing only a fixed DC output, the R-SPS1530 allows voltage and current settings to be adjusted directly with the encoder knob. During operation, the four-digit display provides voltage and current readback, allowing users to observe the electrical output supplied to the electroplating setup. The Output ON/OFF function provides a direct way to control when DC power is delivered.

Key Features

0-15V and 0-30A Output Range

The R-SPS1530 covers an adjustable voltage range from 0 to 15V and an output current range up to 30A, with 450W rated power. This operating range makes the power supply suitable for electroplating test setups that require relatively high current at low DC voltage.

Direct Adjustment of Test Power Conditions

The encoder knob provides direct adjustment of the voltage and current settings from the power supply panel. During electroplating experiments, users can change the configured DC output according to the requirements of different test conditions.

Output Voltage and Current Readback

The four-digit display shows voltage and current values during operation. This gives users a direct reference for the electrical conditions being supplied to the electroplating test setup and helps them monitor changes made during the experiment.

Controlled DC Output Activation

The Output ON/OFF function separates output activation from the adjustment process. Users can prepare or modify the test connections with the DC output disabled and then activate the output when the electroplating test setup is ready.

Flexible Test Bench Connections

The R-SPS1530 includes output connections on both the front and rear panels. The front panel output is suitable for applications below 5A, while the rear output can be used when the test setup requires the full rated output capability.

Compact 450W Bench Power Supply

With a rated power of 450W and a product size of approximately 26.5 × 18.5 × 8cm, the R-SPS1530 provides a compact solution for laboratory electroplating benches and engineering test environments where bench space and accessible controls are important.

Applications

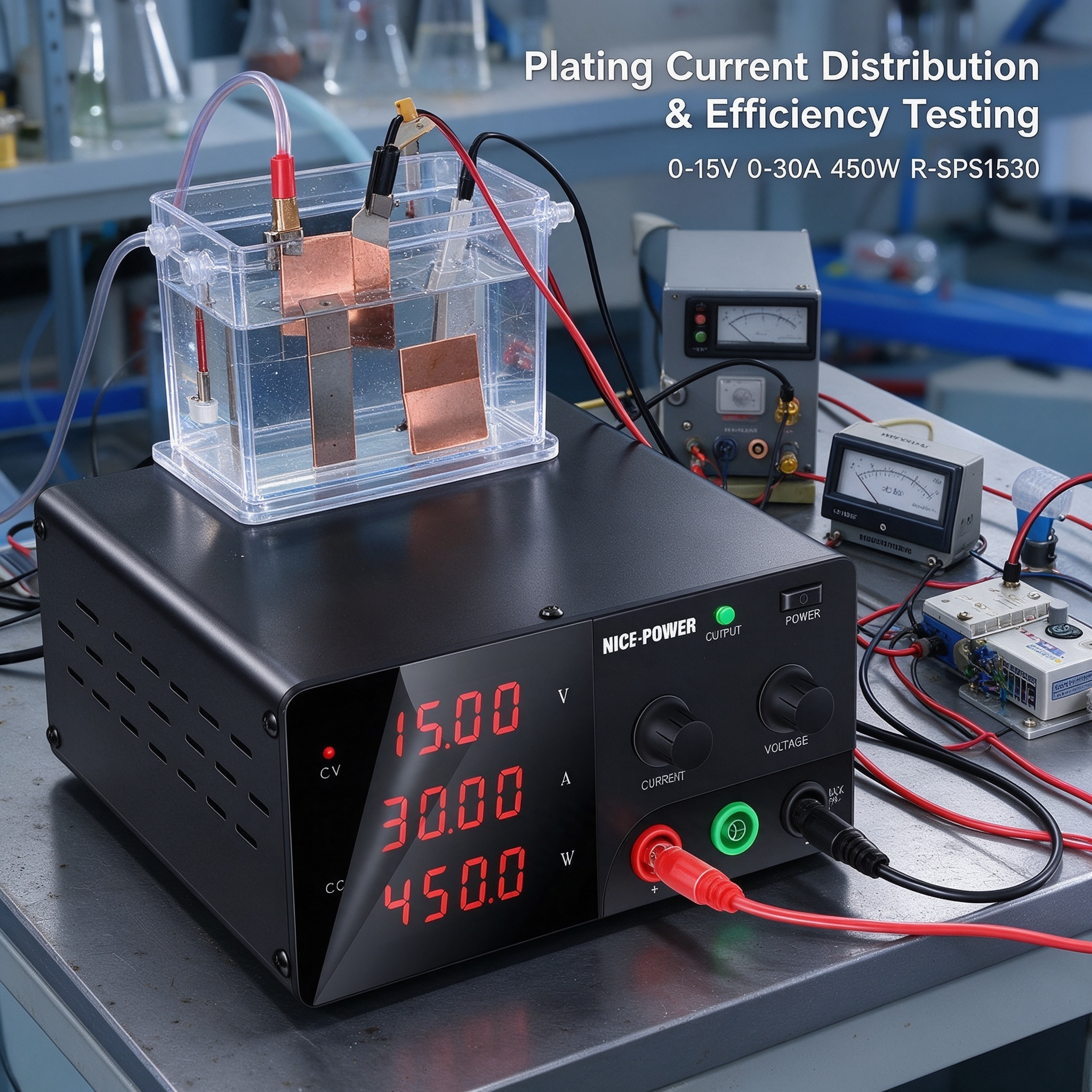

Laboratory Electroplating Experiments

For laboratory experiments, the R-SPS1530 can supply adjustable DC power to a compatible electroplating fixture while the user changes voltage and current settings according to the experimental requirements. The display provides voltage and current readback throughout the test.

Electroplating Test Fixture Power

The R-SPS1530 can serve as the DC power source connected to a compatible electroplating test fixture. The adjustable output allows the electrical input supplied to the fixture to be configured before and during testing within the power supply's rated range.

Low Voltage High Current Plating Tests

Some electroplating test setups require higher current while operating at relatively low DC voltage. The 0-15V and 0-30A range of the R-SPS1530 provides an appropriate output range for compatible tests that fall within its 450W rated power.

Electroplating Process Development

During process development, engineers may need to evaluate a test setup under different electrical input conditions. The R-SPS1530 allows voltage and current settings to be adjusted manually, while the display provides direct voltage and current readback for each test condition.

Quality Check and Terms of Service:

The R-SPS1530 is intended to provide adjustable DC power for laboratory, engineering, and electronic testing applications within its specified operating range.

Before using the power supply for electroplating testing, confirm the voltage, current, and power requirements of the connected test fixture and ensure they remain within the R-SPS1530 specifications. The maximum output capability is 0-15V, 0-30A, and 450W.

The R-SPS1530 provides the DC power source for an electroplating test setup. It does not provide dedicated electroplating process control functions such as plating-time control, current-density measurement, bath-condition monitoring, automatic polarity switching, or process analysis. External equipment should be used when these functions or measurements are required.

For connections requiring the full rated output capability, use the rear output connection according to the product specifications. The front panel output is suitable for applications below 5A.

Technical Specifications

Why Choose NICE-POWER R-SPS1530?

The R-SPS1530 is built around a practical combination for electroplating testing: adjustable low voltage, high current capability, direct panel adjustment, and visible voltage and current readback. Its 0-15V range, 0-30A maximum current, and 450W rated power provide the electrical output range needed by compatible low-voltage, high-current test setups.

For engineers working with electroplating test fixtures and laboratory experiments, the R-SPS1530 makes it straightforward to establish and change DC input conditions without adding unnecessary control functions to the power supply. The encoder knob provides direct adjustment, the four-digit display shows the output condition, and Output ON/OFF control allows the DC output to be activated when the test setup is ready.

The result is a compact high current DC power supply that can serve as the adjustable power source at the center of an electroplating testing bench, while specialized measurement and process-control equipment can be added separately when required.
