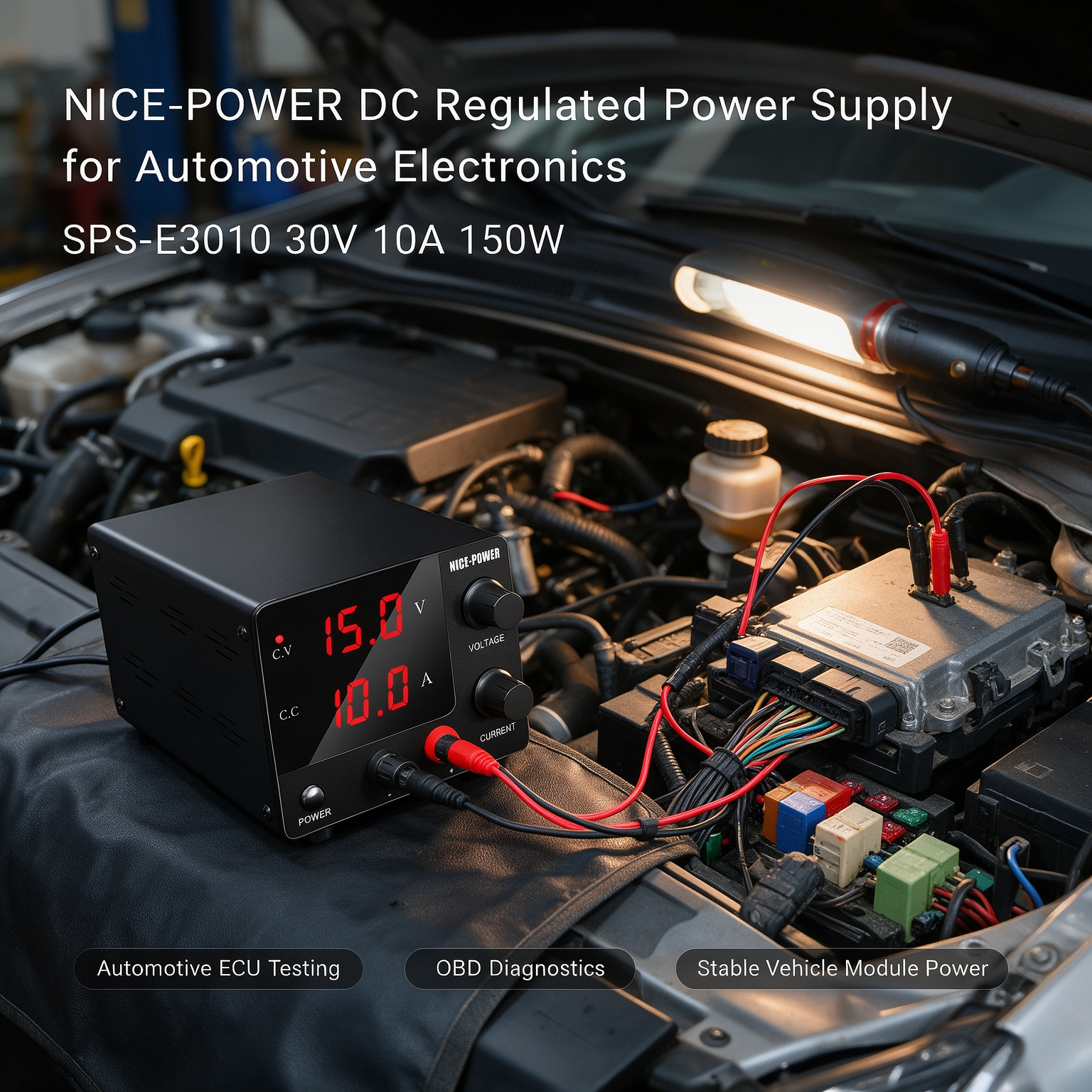

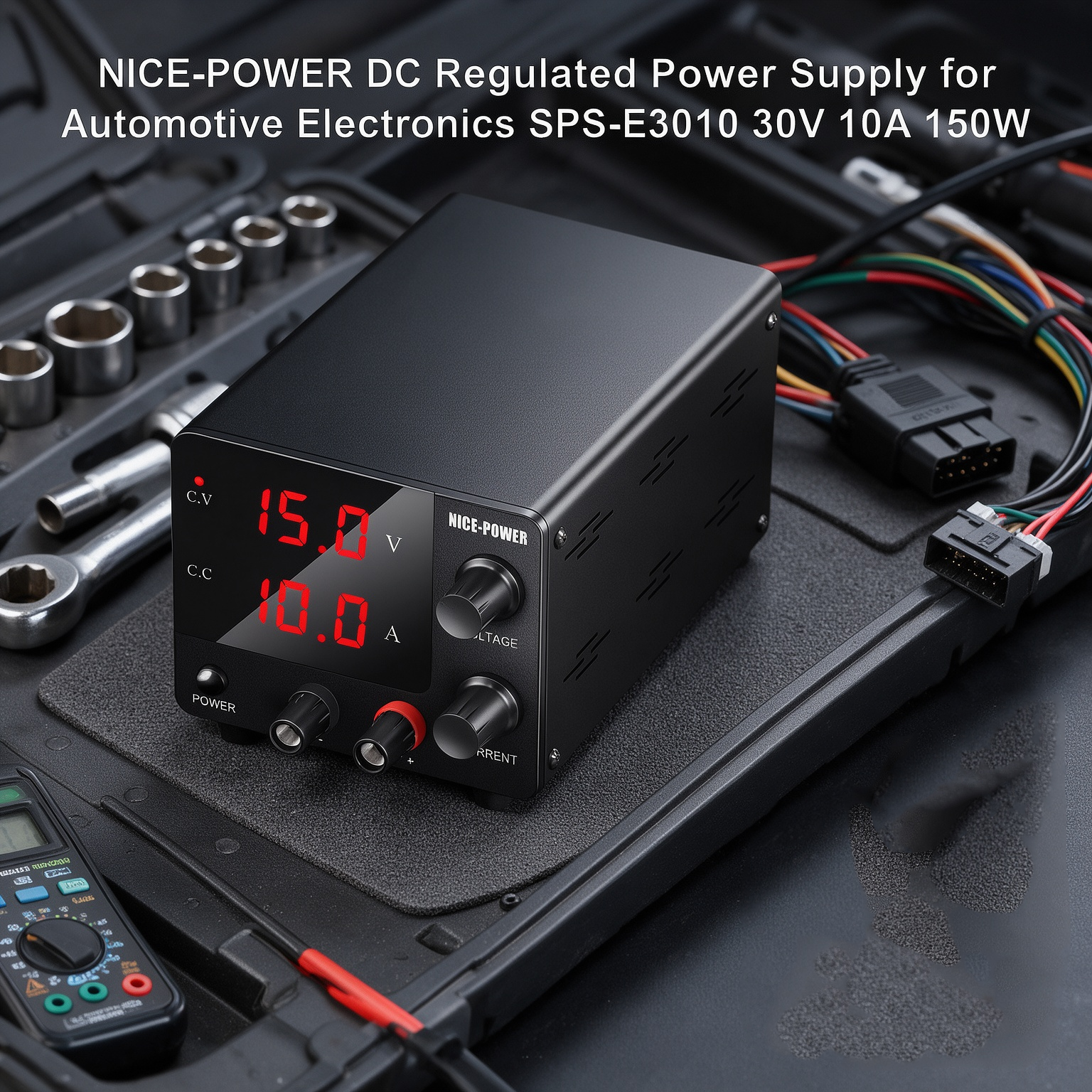

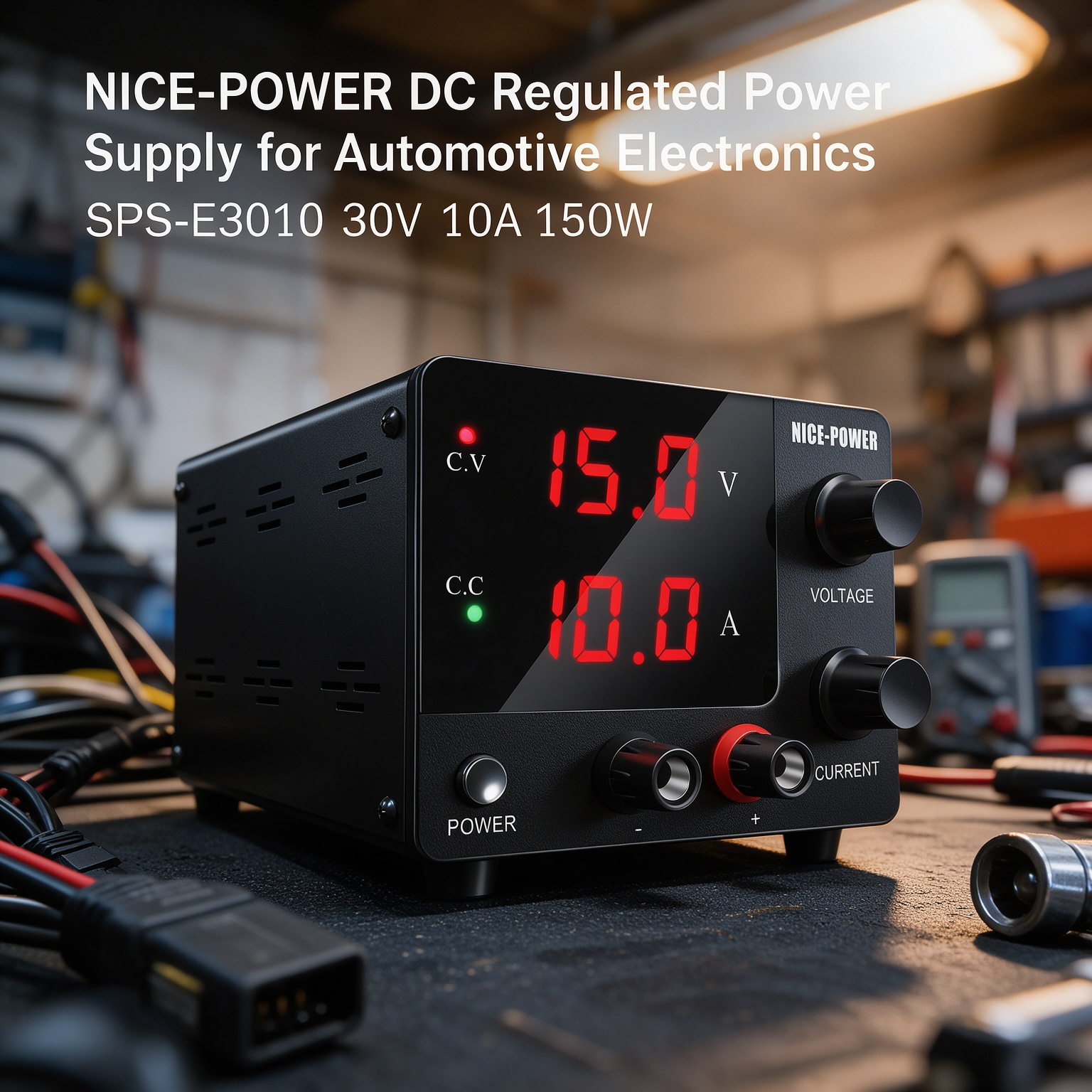

NICE-POWER DC Regulated Power Supply
for Automotive Electronics SPS-E3010 30V
10A 150W
NICE-POWER SPS-E3010 is a compact DC Regulated Power Supply designed for bench-level Automotive Electronics Testing, automotive circuit development, component evaluation, and low-voltage electronic system verification. With a 0-30V adjustable DC output, up to 10A adjustable current capability, and 150W maximum output power, it provides a flexible DC source for establishing controlled electrical conditions during automotive electronics development and testing.
Automotive electronic systems can involve different supply requirements depending on the circuit, component, or test stage. The SPS-E3010 allows users to adjust voltage and current rather than relying on a fixed DC source. Its Encoder Adjustment, 3-digit display, fine setting resolution, and compact Mini Series design make it practical for test benches where automotive electronic components, prototype circuits, and small electronic modules need to be evaluated individually or as part of a test setup.
Key Features
0-30V Adjustable DC Output
The SPS-E3010 provides a 0-30V adjustable DC output for establishing suitable supply conditions during Automotive Electronics Testing. Users can change the voltage according to the requirements of the automotive electronic circuit or component being evaluated, provided the test conditions remain within the device specifications.
Up to 10A Adjustable Current Capability
The DC Regulated Power Supply provides an adjustable current range up to 10A, giving users flexibility when testing automotive electronic circuits with different current requirements. The actual voltage and current combination is limited by the 150W maximum output power.
150W Maximum Output Power
The SPS-E3010 has a 150W maximum output power rating. This allows users to establish different voltage and current combinations for automotive electronics test setups while keeping the connected equipment within the available power range. For example, the supply can provide up to 30V at 5A or up to 15V at 10A.
Encoder Adjustment for Test Parameter Changes
Automotive Electronics Testing may require repeated changes to supply conditions when comparing different components or checking different operating points. The Encoder Adjustment provides a practical way to modify the voltage and current settings during these repeated test procedures.
3-Digit Display
The 3-digit display provides a direct numerical reference for the selected voltage and current settings. This is useful when establishing repeatable test conditions for automotive electronic components, prototype circuits, and low-voltage modules.
10mV Voltage Setting Resolution
The voltage setting resolution is 10mV, allowing users to make relatively fine adjustments to the DC output. This can be useful when evaluating an automotive electronic circuit at different supply voltage conditions during development and verification.
1mA Current Setting Resolution
The 1mA current setting resolution provides fine adjustment of the current setting. Users can establish different current conditions when evaluating suitable automotive electronic components or small circuits within their specified operating range.
Constant Voltage and Constant Current Operation
The SPS-E3010 supports constant voltage and constant current operation. These operating modes provide controlled DC output conditions for test procedures where voltage or current needs to remain controlled according to the connected load and selected settings.
Controlled DC Supply for Electronic Modules
The adjustable output allows the SPS-E3010 to serve as a controlled DC source for suitable automotive electronic modules during bench testing. Users can establish the required test supply condition before evaluating the module with external measurement equipment.
Compact Mini Bench Design
The compact Mini Series design allows the SPS-E3010 to be positioned close to automotive electronic test fixtures, prototype boards, multimeters, oscilloscopes, and other laboratory instruments. Its approximately 18.5 × 10 × 7.8 cm size helps conserve valuable bench space.
Applications
Automotive Electronic Component Testing
The SPS-E3010 can provide adjustable DC power for suitable automotive electronic components during development and verification. Users can establish controlled voltage and current conditions before evaluating component behavior.
Automotive Circuit Development
During automotive circuit development, individual circuit sections may need to be tested before they are integrated into a complete system. The SPS-E3010 can provide an adjustable DC source for these bench-level development tasks.
Automotive Sensor Circuit Testing
Suitable low-voltage sensor circuits can be supplied with adjustable DC power during basic bench evaluation. Users can establish the required supply condition while observing circuit behavior with external test instruments.
Automotive Control Circuit Testing
The DC Regulated Power Supply can provide adjustable DC input to suitable automotive control circuits and prototype boards. Different voltage conditions can be established during development and circuit verification.
Automotive Electronic Module Evaluation
For appropriate low-voltage electronic modules within the SPS-E3010's voltage, current, and power limits, the supply can be used to establish a controlled DC source during module-level evaluation.
Automotive Prototype Verification
When developing automotive electronic prototypes, engineers can use the SPS-E3010 to supply individual circuit sections before integration into a larger system. The adjustable output makes it possible to change test conditions during the development process.
Automotive Circuit Troubleshooting
During troubleshooting, technicians may need to evaluate a particular circuit section separately from the complete vehicle or system. The SPS-E3010 provides an adjustable DC source for suitable bench-level troubleshooting and verification work.
Electronic Control Unit Bench Testing
Suitable low-voltage electronic control circuits can be supplied by the SPS-E3010 during bench development and evaluation. The adjustable voltage and current settings allow users to establish different test conditions for individual test procedures.
Automotive Indicator and Lighting Circuit Testing
Suitable low-voltage indicator or lighting circuits can be evaluated using the adjustable DC output when their electrical requirements fall within the SPS-E3010's operating range. Users can establish different supply conditions while observing circuit response.
Automotive Electronics Repair
The compact DC Regulated Power Supply is suitable for electronics repair benches where technicians need an adjustable DC source for checking automotive electronic circuits and components outside the vehicle.
Repeated Automotive Electronics Testing
Automotive electronics development often requires repeated testing under different supply conditions. The Encoder Adjustment, 3-digit display, and adjustable voltage and current settings allow users to modify test parameters between different test samples or procedures.
Automotive Electronics Education and Training
The SPS-E3010 can also be used in laboratory training involving automotive electronic circuits, adjustable DC sources, component evaluation, and basic automotive electronics testing concepts.
Quality Check and Terms of Service
-
Package includes: 1 × DC Power Supply
-
1 × Power Cord
-
1 × Output Test Lead
-
1 × User Manual
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS-E3010 |
| Product Type |
DC Regulated Power Supply |
| Output Voltage |
0-30V |
| Output Current |
0-10A |
| Maximum Output Power |
150W |
| Adjustment Method |
Encoder Adjustment |
| Display |
3-Digit Display |
| Input Voltage |
AC100-240V |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
1mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
1mA |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Load Regulation |
≤0.3% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Voltage Ripple |
≤100 mVp-p / ≤15 mVrms |
| Current Ripple |
≤15 mArms |
| Rise Time, No Load |
≤200ms |
| Rise Time, Full Load |
≤300ms |
| Fall Time, Full Load |
≤300ms |
| Fall Time, No Load |
≤20S |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| Rated Operating Temperature |
0-40°C |
| Size |
About 18.5 × 10 × 7.8 cm |
| Net Weight |
About 0.7KG |
| Package Size |
23 × 19 × 11 cm |
| Package Weight |
1.1KG |
Why Choose NICE-POWER SPS-E3010?
NICE-POWER SPS-E3010 combines a DC Regulated Power Supply, 0-30V adjustable output, up to 10A adjustable current, and 150W maximum power in a compact Mini Series design. For Automotive Electronics Testing, this combination provides flexibility when different electronic components, circuit sections, and prototype modules require different DC supply conditions during development.
The 150W power rating allows different voltage and current combinations to be used according to the requirements of the test setup. For example, the supply can operate at up to 30V with 5A or at up to 15V with 10A, while the selected operating point must remain within the 150W maximum output capability.
The Encoder Adjustment, 3-digit display, 10mV voltage setting resolution, and 1mA current setting resolution provide practical control when automotive electronic test conditions need to be adjusted or repeated. The compact design also allows the SPS-E3010 to work alongside common bench instruments and automotive electronic test fixtures.
For automotive electronics development, the SPS-E3010 can support component evaluation, circuit verification, prototype testing, module testing, troubleshooting, and repeated bench testing where an adjustable DC source is required. Its capabilities are focused on providing controlled adjustable DC power rather than adding unsupported automotive-specific functions, making the description and application scope consistent with the actual SPS-E3010 product specifications.
