NICE-POWER DC Motor Testing Laboratory
Power Supply SPS3010-2KD 0-30V 0-10A
300W×2 Dual Output Bench Supply
The NICE-POWER SPS3010-2KD is a dual output Laboratory Power Supply designed for DC Motor Testing, motor driver evaluation, startup testing, and controlled bench testing of DC motor systems. With two independent 0-30V 0-10A outputs, the DC Bench Power Supply allows engineers and technicians to power separate motor circuits or test related control circuits simultaneously.
For applications requiring a higher voltage or current range, the SPS3010-2KD provides one-key Series and Parallel modes. The Series Mode provides up to 0-60V at 0-10A, while the Parallel Mode provides up to 0-30V at 0-20A. Its precision encoder adjustment and dedicated Series-Parallel Output Port simplify power configuration during DC Motor Testing without complicated external wiring.
Key Features
Dual Independent Outputs for Motor and Control Circuit Testing
The SPS3010-2KD provides two independently controlled DC output channels, with each channel supporting 0-30V and 0-10A. This configuration allows a DC motor and an associated control circuit to be powered separately during laboratory testing, helping users adjust the required voltage and current for different parts of a motor test setup.
One-Key Series Mode for Higher Voltage Motor Testing
When a DC Motor Testing application requires a higher operating voltage, the One-Key Series Mode combines the two outputs into a 0-60V 0-10A supply. The dedicated Series-Parallel Output Port avoids complicated wiring and provides a convenient configuration for motor systems or test circuits requiring a higher DC voltage range.
One-Key Parallel Mode for Higher Current Requirements
The One-Key Parallel Mode combines the two outputs to provide up to 0-30V and 0-20A. This configuration is useful for DC motor testing applications that require a higher available current during motor startup or other operating conditions within the power supply's rated range.

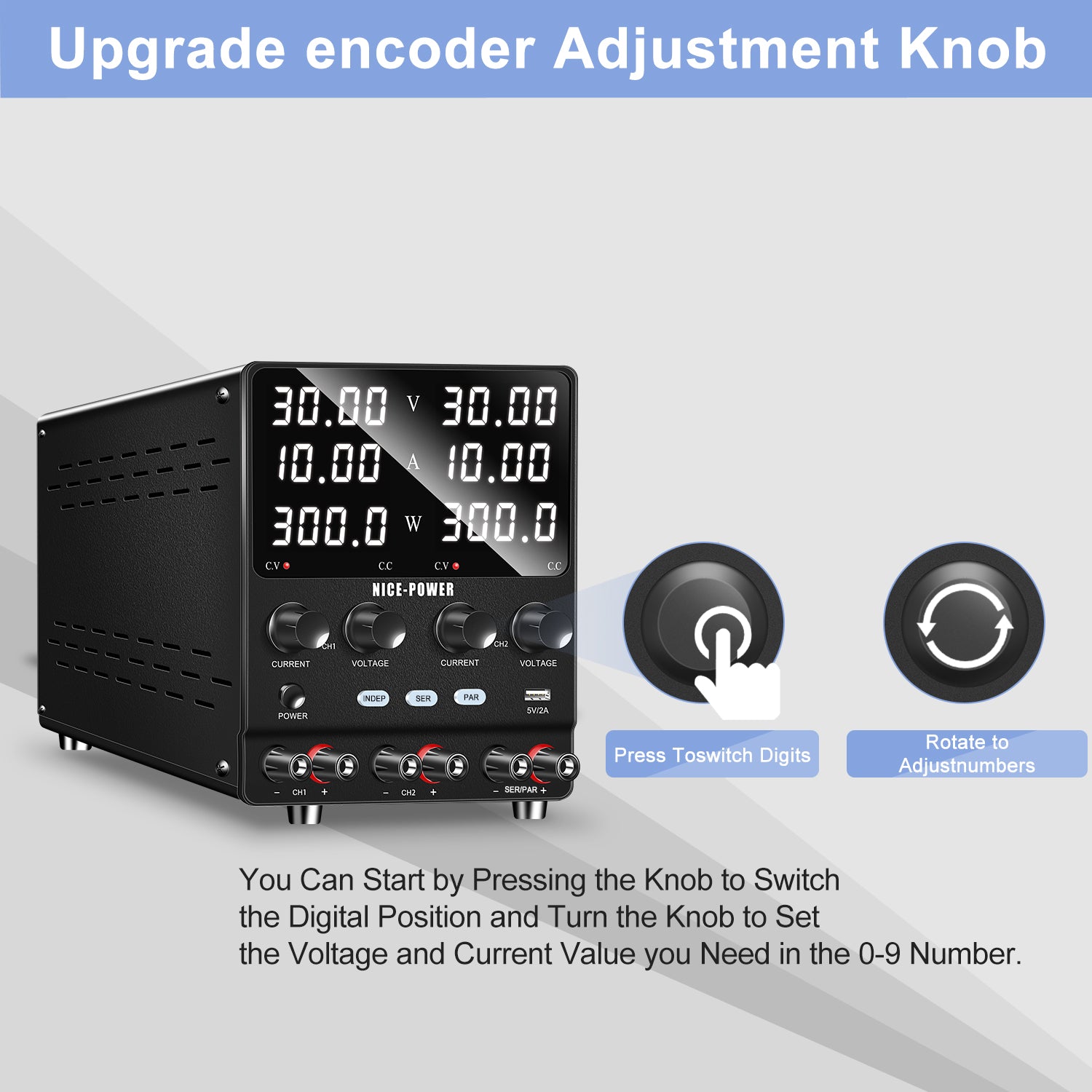

Precision Encoder Adjustment
The Laboratory Power Supply uses a precision encoder for voltage and current adjustment. The encoder provides more controlled parameter setting during DC Motor Testing, making it easier to establish repeatable test conditions when evaluating different motor operating points.

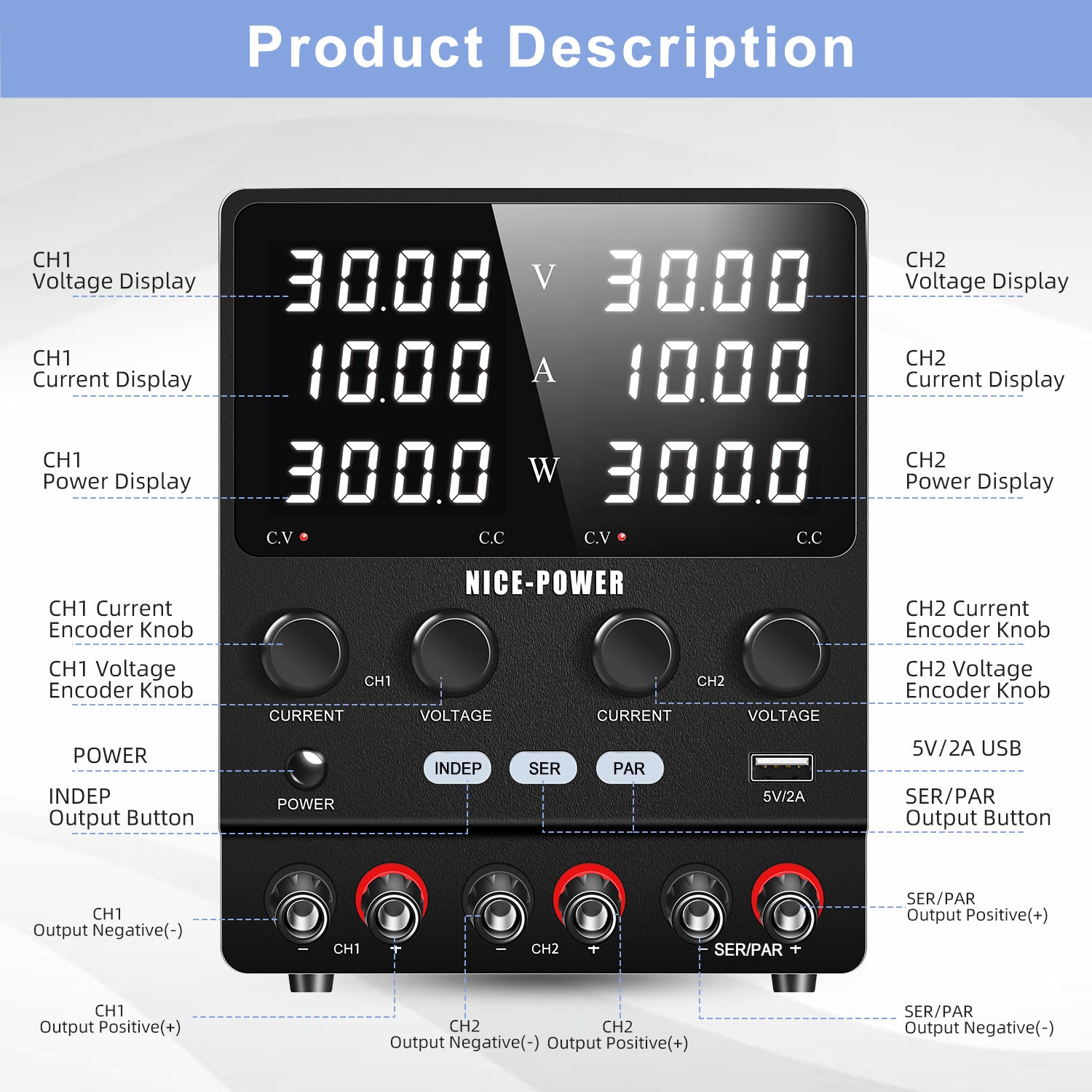

Dedicated Series-Parallel Output Port
The dedicated Series-Parallel Output Port simplifies connections when changing between independent, series, and parallel configurations. This design reduces the need for complicated external wiring and helps keep the bench setup organized when different DC Motor Testing requirements call for different output configurations.
Negative-Voltage to Positive-Voltage Output Capability
The SPS3010-2KD supports negative-voltage to positive-voltage output configurations. This capability can be useful when a DC Motor Testing setup requires bipolar power arrangements or a positive and negative supply relationship for a motor-related control circuit.
Applications

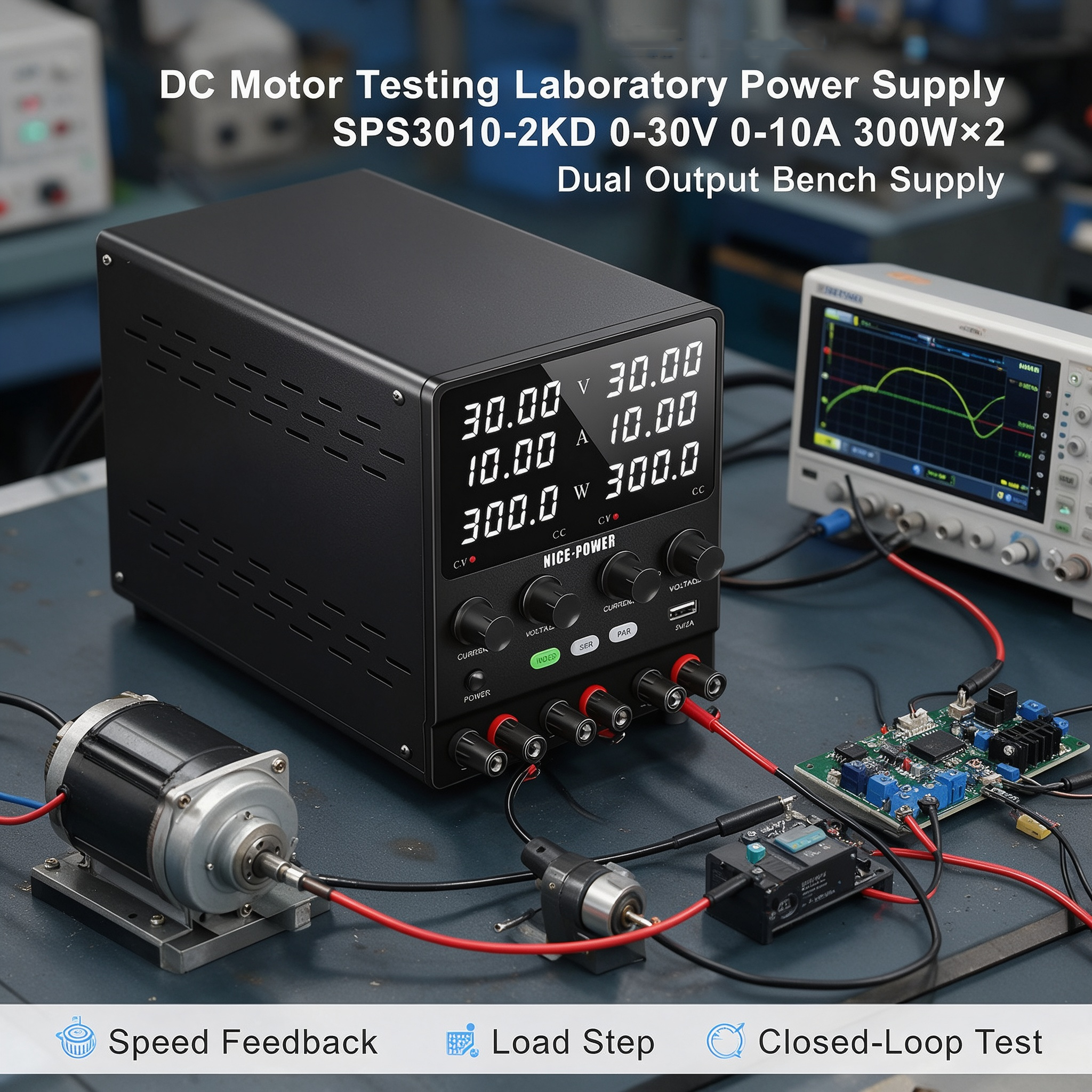

DC Motor Startup Testing

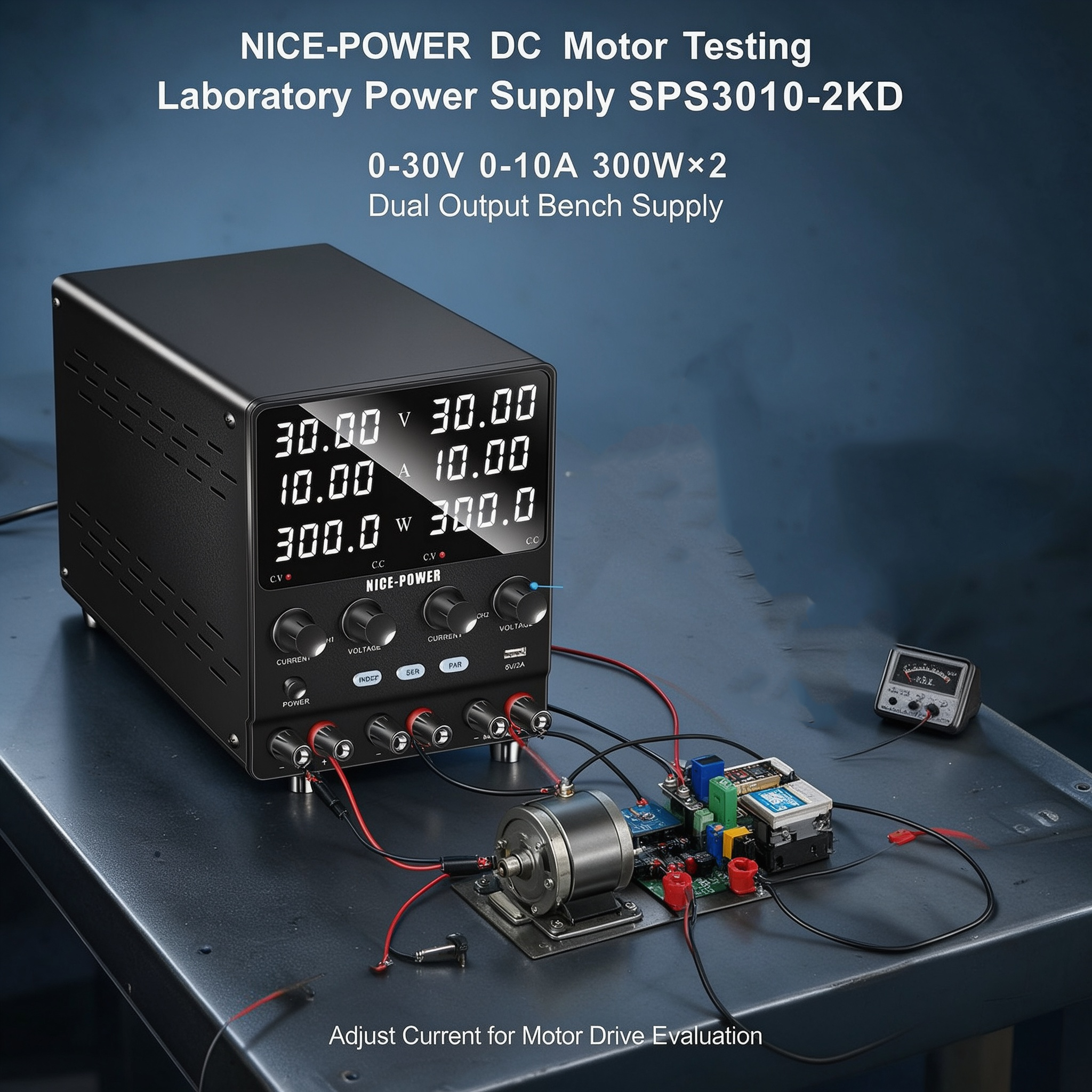

Use the two independent outputs to establish controlled DC power conditions for motor startup tests. The adjustable voltage and current ranges allow users to configure the supply according to the requirements of the motor and test circuit within the rated output range.

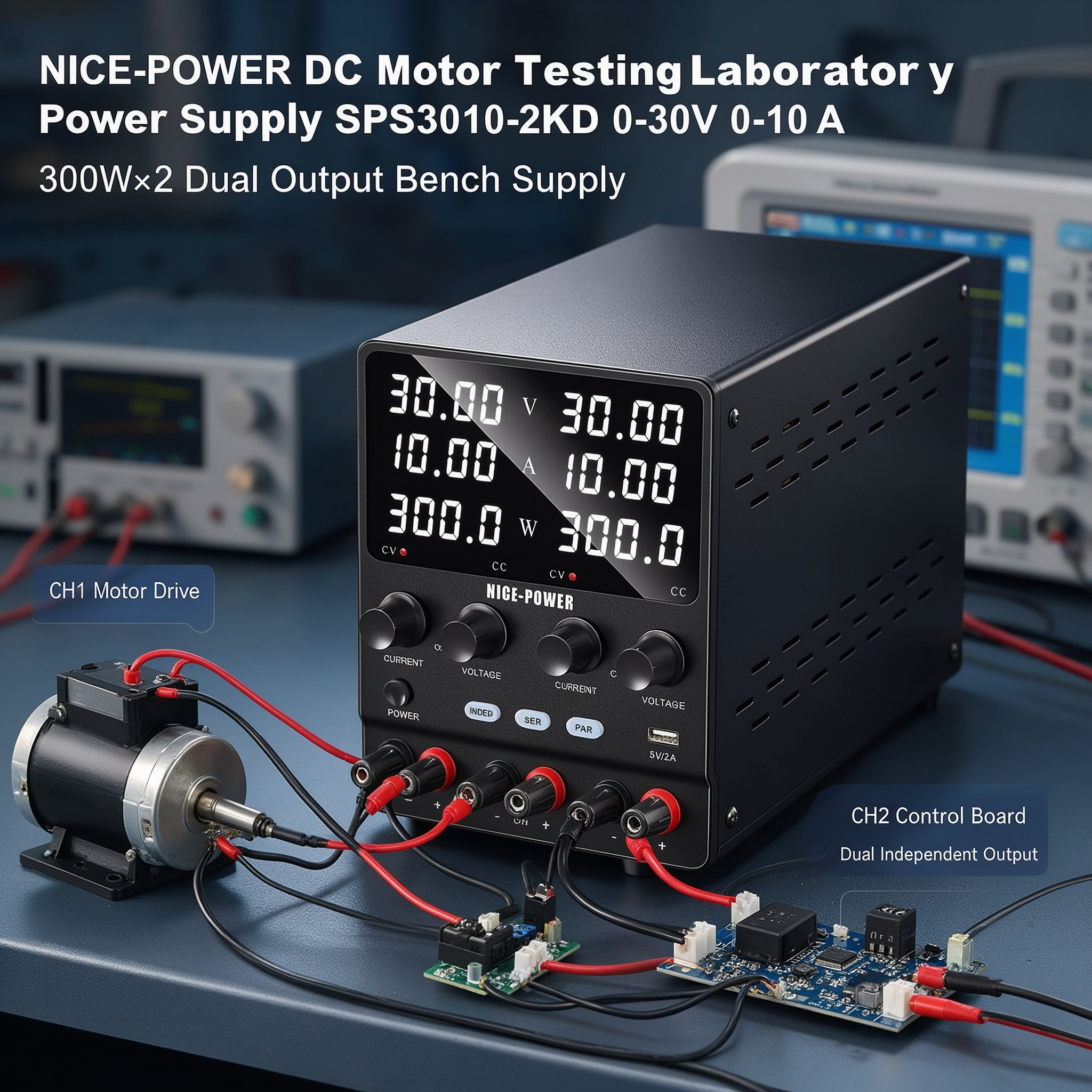

Motor Driver and Control Circuit Testing
The dual output configuration allows a motor-related circuit and its associated control circuit to be supplied from separate channels. This can simplify bench testing when different voltage or current settings are required for the motor system and its control section.
Higher Current Motor Testing
For test setups that require more available current, the Parallel Mode provides up to 0-30V and 0-20A. This configuration can support DC motor test conditions requiring higher current capacity within the SPS3010-2KD rated operating range.
Bipolar Motor System Testing
The negative-voltage to positive-voltage output capability supports test arrangements that require bipolar power configurations. It can be used when evaluating DC motor related circuits that require both positive and negative voltage relationships.
Quality Check and Terms of Service
The SPS-2KD series is inspected before shipment to help ensure that the DC Power Supply and included accessories are in good condition.

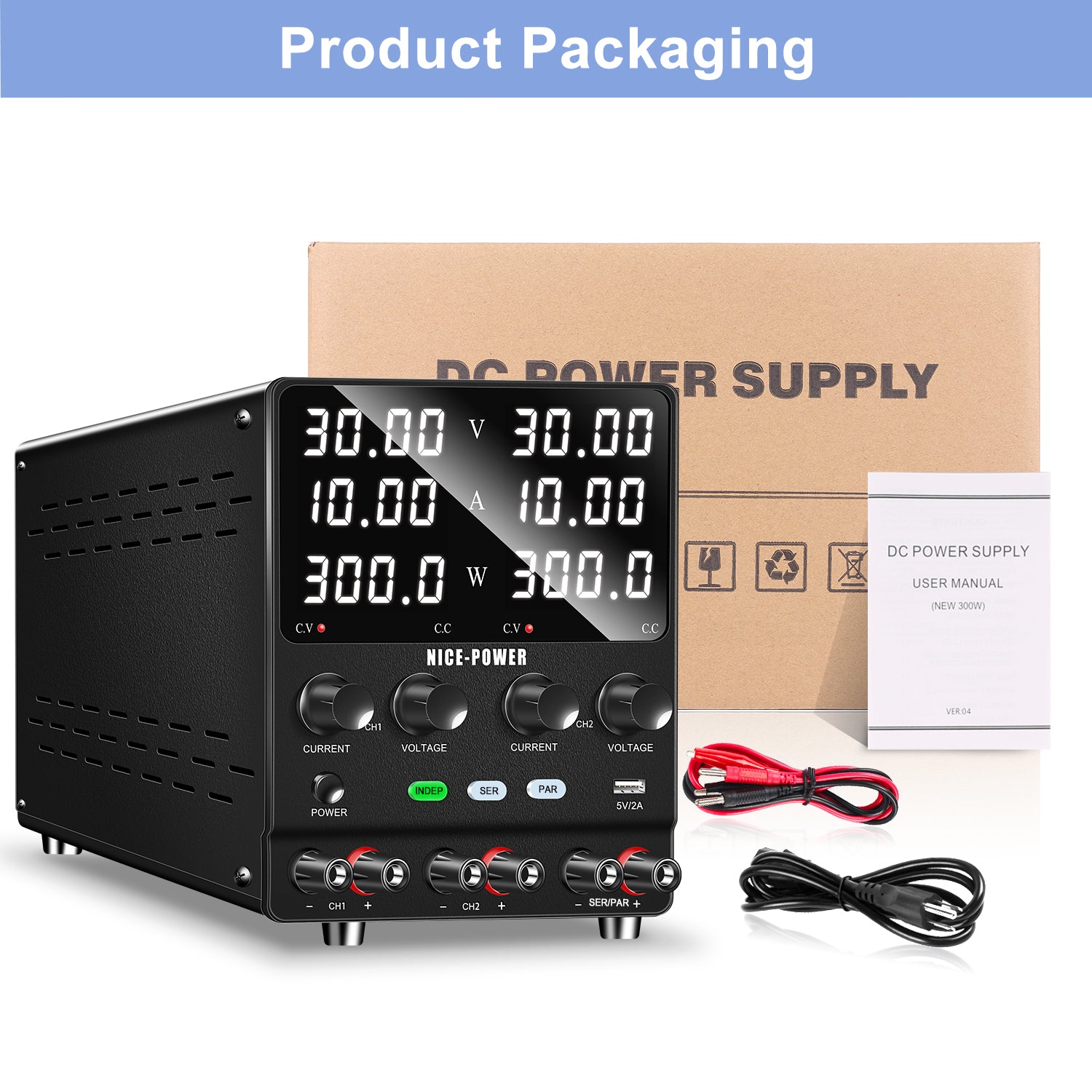

Package Includes:
-
DC Power Supply ×1
-
Output Power Cord ×1
-
Input Power Cord ×1
-
User Manual ×1
-
Warranty Card ×1
Quality Assurance:
-
Passed CE and FCC Certification.
-
All DC power supplies and accessories are inspected before shipment.
-
Contact us with any questions, and our customer support team will respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS3010-2KD |
| Product Type |
Dual Output DC Bench Power Supply |
| Independent Output |
0-30V, 0-10A, 300W ×2 |
| Series Output |
0-60V, 0-10A, 600W |
| Parallel Output |
0-30V, 0-20A, 600W |
| Load Regulation Voltage |
≤0.3%+10mV |
| Load Regulation Current |
≤0.1%+2.5mA |
| Line Regulation Voltage |
≤0.01%+2.5mV |
| Line Regulation Current |
≤0.1%+2.5mA |
| Setting Resolution Voltage |
10mV |
| Setting Resolution Current |
1mA |
| Readback Resolution Voltage |
10mV |
| Readback Resolution Current |
1mA |
| Setting Accuracy Voltage |
≤0.05%+10mV |
| Setting Accuracy Current |
≤0.01%+10mA |
| Readback Accuracy Voltage |
≤0.05%+10mV |
| Readback Accuracy Current |
≤0.01%+10mA |
| Ripple Voltage, Independent |
≤180mVp-p, ≤15mVrms |
| Ripple Voltage, Series/Parallel |
≤200mVp-p, ≤20mVrms |
| Ripple Current, Independent |
≤15mArms |
| Ripple Current, Series/Parallel |
≤30mVrms |
| Rise Time, No Load |
≤200mS |
| Rise Time, Full Load |
≤300mS |
| Fall Time, No Load |
≤20S |
| Fall Time, Full Load |
≤300mS |
| Dynamic Response |
≤200mS |
| Programming Response |
≤200mS |
| Sense Compensation |
None |
| Efficiency |
≥85% |
| Power Factor |
0.68 |
| Maximum Input Current |
110V/8A, 220V/5A |
| Rated Temperature |
0℃-40℃ |
| Product Size |
Approx. 27.5 × 12 × 15cm |
| Net Weight |
Approx. 2.36KG |
| Package Size |
Approx. 37.5 × 18.5 × 22cm |
| Package Weight |
Approx. 2.9KG |
| Carton Quantity |
6 pcs/carton |
Why Choose NICE-POWER SPS3010-2KD?
The NICE-POWER SPS3010-2KD combines two independent 0-30V 0-10A outputs with convenient Series and Parallel operating modes in one Laboratory Power Supply. For DC Motor Testing, this flexible configuration allows users to select independent outputs for separate motor and control circuits, Series Mode for higher voltage requirements, or Parallel Mode for higher current requirements.
With precision encoder adjustment, a dedicated Series-Parallel Output Port, and negative-voltage to positive-voltage output capability, the SPS3010-2KD provides a practical DC Bench Power Supply solution for laboratory motor testing, motor-related circuit evaluation, and other adjustable DC power testing applications.
