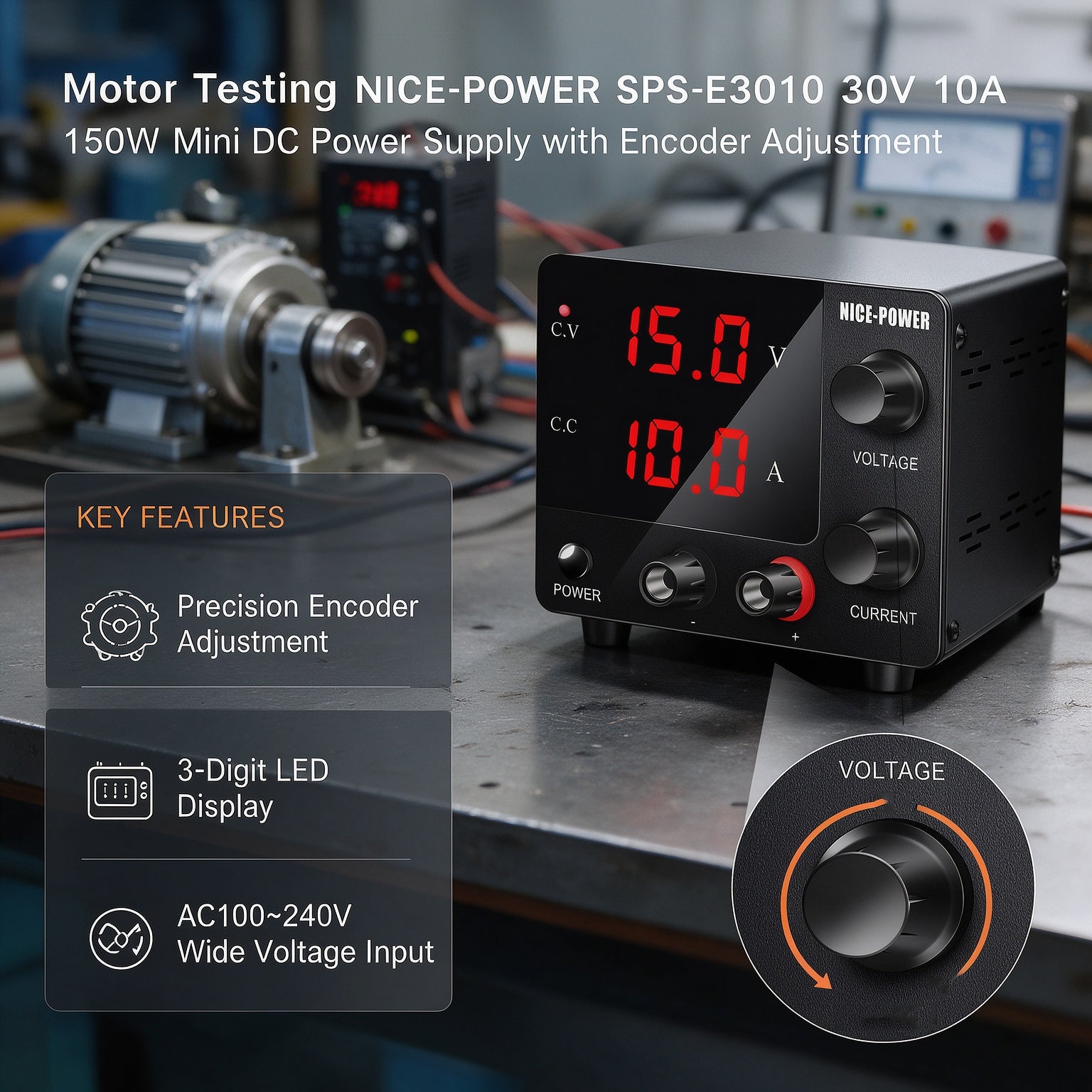

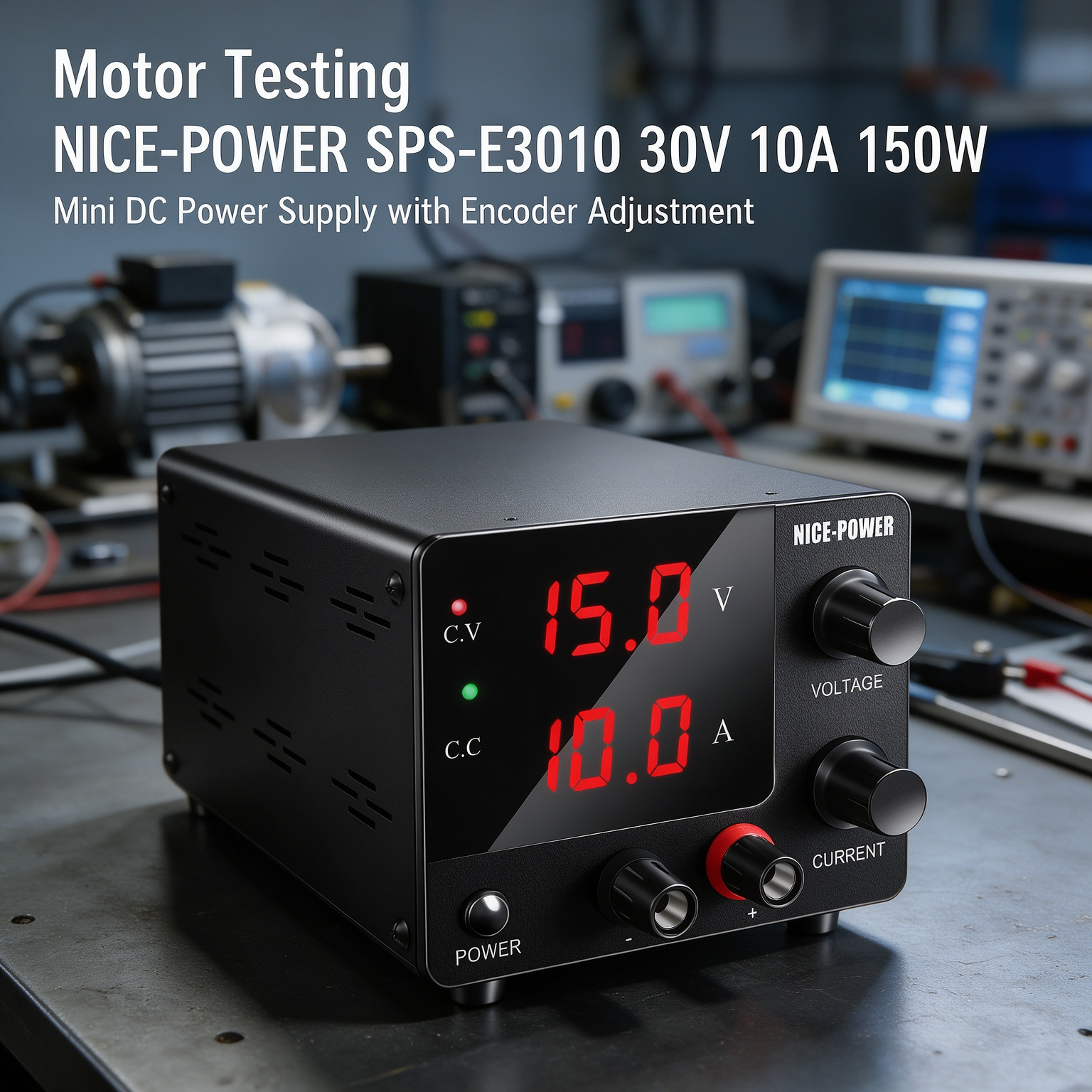

Motor Testing NICE-POWER SPS-E3010
30V 10A 150W Mini DC Power Supply with
Encoder Adjustment
NICE-POWER SPS-E3010 is a compact Mini DC Power Supply designed for bench-level Motor Testing, motor prototype evaluation, small motor drive experiments, and low-voltage DC motor applications. With an adjustable 0-30V DC output, up to 10A adjustable current capability, and a 150W maximum output power rating, it provides a flexible DC source for establishing different operating conditions during motor evaluation. The Encoder Adjustment allows convenient changes to voltage and current settings, while the 3-digit display provides a direct reference during testing. The SPS-E3010 supports both constant voltage and constant current operation, making it suitable for controlled DC motor test setups within its rated output range.
For motor testing, the required supply condition can vary according to motor type, test procedure, and operating point. The SPS-E3010 allows users to adjust the DC supply conditions instead of relying on a fixed-voltage source. Its 150W power limit also defines the available voltage and current combinations, such as up to 30V at 5A or up to 15V at 10A.
Key Features
0-30V Adjustable DC Output
The SPS-E3010 provides an adjustable 0-30V DC output for establishing different supply conditions during Motor Testing. Users can change the applied voltage when evaluating suitable low-voltage DC motors, motor prototypes, and related test circuits within the power supply's operating range.
Up to 10A Adjustable Current
The Mini DC Power Supply supports adjustable current up to 10A, providing flexibility for motor test setups with different current requirements. The available current depends on the selected output voltage and the 150W maximum power rating. For example, the supply can provide up to 10A at 15V or up to 5A at 30V.
150W Maximum Output Power
The SPS-E3010 has a maximum output power of 150W. This provides practical capacity for many low-voltage DC motor testing tasks while clearly defining the usable voltage and current combinations. Users can select an appropriate operating point according to the motor and test setup requirements.
Encoder Adjustment for Motor Test Setup
Motor Testing often involves changing the supply voltage or current between different test conditions. The Encoder Adjustment allows users to select and adjust individual displayed digits, making it convenient to change the voltage and current settings during repeated test procedures.
3-Digit Display
The integrated 3-digit LED display provides a direct numerical reference for the voltage and current settings. This allows users to monitor the selected supply conditions while adjusting the power source during motor evaluation.
Fine Voltage and Current Adjustment
The SPS-E3010 provides 10mV voltage setting resolution and 1mA current setting resolution according to the specified series data. These adjustment capabilities allow users to make relatively fine changes when establishing different test conditions for a DC motor or motor-related circuit.
Constant Voltage and Constant Current Operation
The SPS-E3010 supports constant voltage and constant current operation. In constant voltage operation, the supply maintains the set voltage while the load current remains below the selected current limit. When the load reaches the current limit, the supply can transition to constant current operation and reduce output voltage accordingly.
Adjustable Operating Conditions for Motor Evaluation
Different motor testing procedures may require different supply conditions. The adjustable voltage and current settings allow users to establish one test point, modify the settings, and then repeat the evaluation under another operating condition.
Compact Mini Bench Design
The SPS-E3010 is designed as a compact Mini DC Power Supply with an approximately 18.5 × 10 × 7.8 cm form factor based on the series data. Its small footprint makes it practical for motor development benches where the power supply needs to share space with meters, oscilloscopes, motor fixtures, prototype boards, and other test equipment.
Wide AC Input Range
The SPS-E3010 supports AC100-240V input, allowing the same power supply model to be used with compatible mains conditions across different work environments.
Applications
Small DC Motor Testing
The SPS-E3010 can provide adjustable DC power for suitable small DC motors within its 30V, 10A, and 150W operating limits. Users can establish an appropriate supply condition and observe the motor's response during bench testing.
Motor Startup Evaluation
The adjustable DC output can be used when evaluating the initial operation of a suitable DC motor. Users can establish the required test voltage and current settings before applying power to the motor test setup.
Motor Operating Condition Testing
Different voltage and current conditions can be established to evaluate how a suitable motor behaves at different supply settings. This can support basic development and comparison work during motor testing.
Motor Prototype Development
During early motor prototype development, the SPS-E3010 can provide an adjustable DC source for powering and evaluating a motor-related test setup. The Encoder Adjustment is useful when supply conditions need to be modified repeatedly during development.
Motor Drive Circuit Testing
The Mini DC Power Supply can be used to provide DC input power to suitable low-voltage motor drive or control circuits. Engineers can adjust the supply conditions while evaluating the motor-related circuit with external measurement equipment.
Motor and Circuit Response Comparison
The SPS-E3010 allows users to establish different DC supply settings for repeated comparisons. This can be useful when evaluating motor response under multiple voltage or current conditions within the applicable operating range.
Low-Voltage Motor System Testing
For low-voltage motor systems whose power requirements remain within the SPS-E3010's 150W limit, the power supply can serve as an adjustable DC source during bench-level development and verification.
Motor Repair and Troubleshooting
During electronics or motor-related repair work, an adjustable DC source can help technicians establish suitable supply conditions for a motor test setup. The compact design makes the SPS-E3010 practical for smaller repair and service workstations.
Motor Component and Subsystem Evaluation
The SPS-E3010 can provide DC power to suitable motor-related subsystems during development and troubleshooting. Users can adjust voltage and current while evaluating individual sections of a motor system.
Repeated Motor Testing
Motor development may require the same test procedure to be repeated at different voltage or current settings. The Encoder Adjustment provides a convenient method for changing test values between test cycles.
Motor Education and Laboratory Experiments
The adjustable voltage and current output makes the SPS-E3010 suitable for educational experiments involving low-voltage DC motors, motor characteristics, and basic motor power supply concepts.

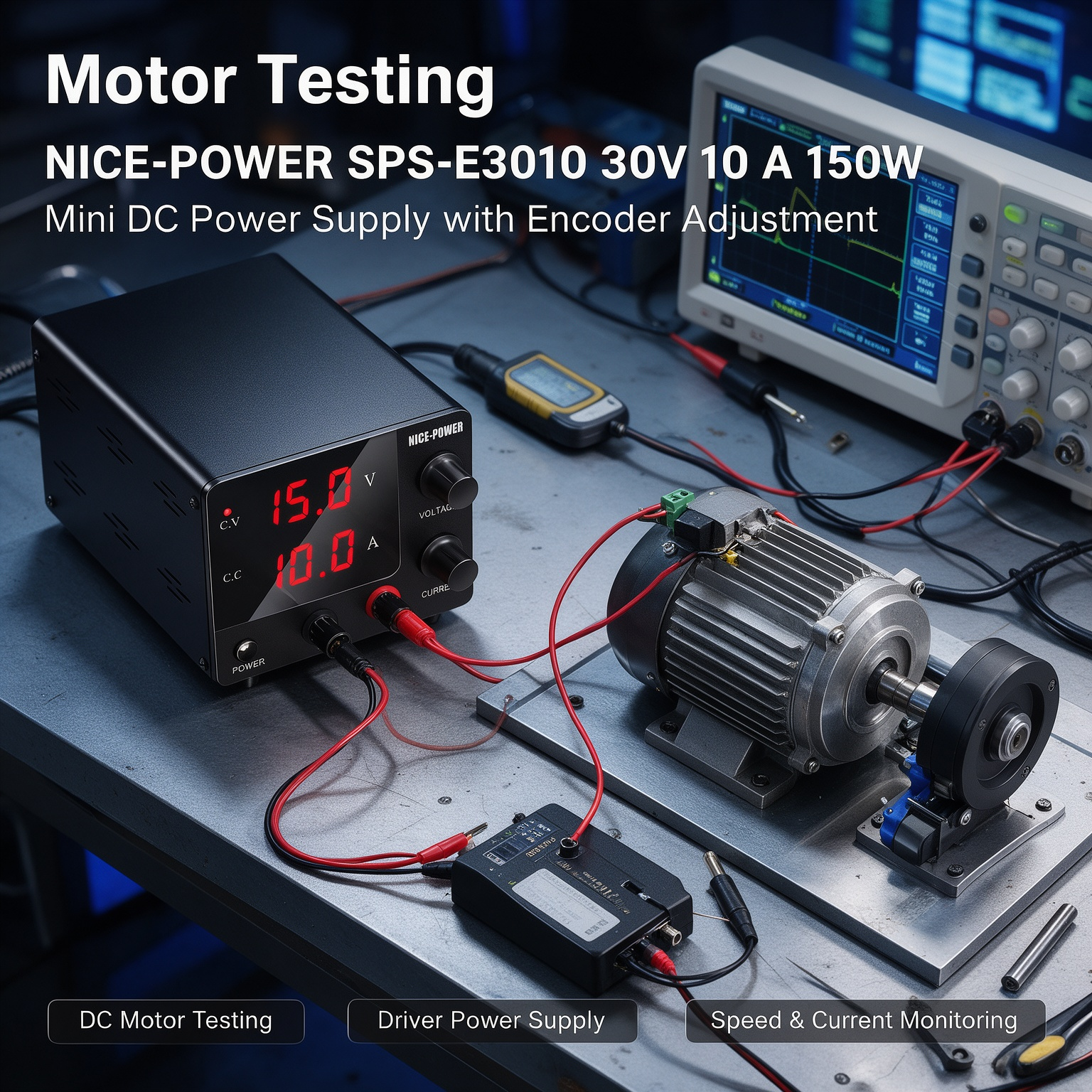

Small Motor Test Bench
The compact Mini DC Power Supply can be integrated into a small motor testing workstation together with external meters, measurement instruments, motor fixtures, and prototype circuits without occupying excessive bench space.
Quality Check and Terms of Service
-
Package includes: 1 × DC Power Supply
-
1 × Power Cord
-
1 × Output Test Lead
-
1 × User Manual
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS-E3010 |
| Product Type |
Mini DC Power Supply |
| Output Voltage |
0-30V |
| Output Current |
0-10A |
| Maximum Output Power |
150W |
| Adjustment Method |
Encoder Adjustment |
| Display |
3-Digit Display |
| Input Voltage |
AC100-240V |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
1mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
1mA |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Load Regulation |
≤0.3% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Voltage Ripple |
≤100 mVp-p / ≤15 mVrms |
| Current Ripple |
≤15 mArms |
| Rise Time, No Load |
≤200ms |
| Rise Time, Full Load |
≤300ms |
| Fall Time, Full Load |
≤300ms |
| Fall Time, No Load |
≤20S |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| Rated Operating Temperature |
0-40°C |
| Size |
About 18.5 × 10 × 7.8 cm |
| Net Weight |
About 0.7KG |
| Package Size |
23 × 19 × 11 cm |
| Package Weight |
1.1KG |
Why Choose NICE-POWER SPS-E3010?
NICE-POWER SPS-E3010 combines a 30V 10A 150W Mini DC Power Supply with Encoder Adjustment in a compact bench format for motor development and testing. Its adjustable output gives users the flexibility to establish different DC supply conditions instead of depending on a fixed-voltage power source.
The 0-30V output range is useful for different low-voltage motor test requirements, while the up to 10A current capability provides additional flexibility for lower-voltage, higher-current test conditions. Because the maximum output power is 150W, the usable voltage and current combination must remain within this limit; for example, 30V operation is limited to 5A, while 10A operation is available up to 15V.
For repeated Motor Testing, the Encoder Adjustment, 3-digit display, fine voltage and current adjustment, and constant voltage and constant current operation provide practical control over the test supply conditions. Combined with its compact Mini DC Power Supply design, the SPS-E3010 is suitable for small DC motor testing, prototype development, motor drive circuit evaluation, troubleshooting, laboratory experiments, and other low-voltage motor-related bench applications.
