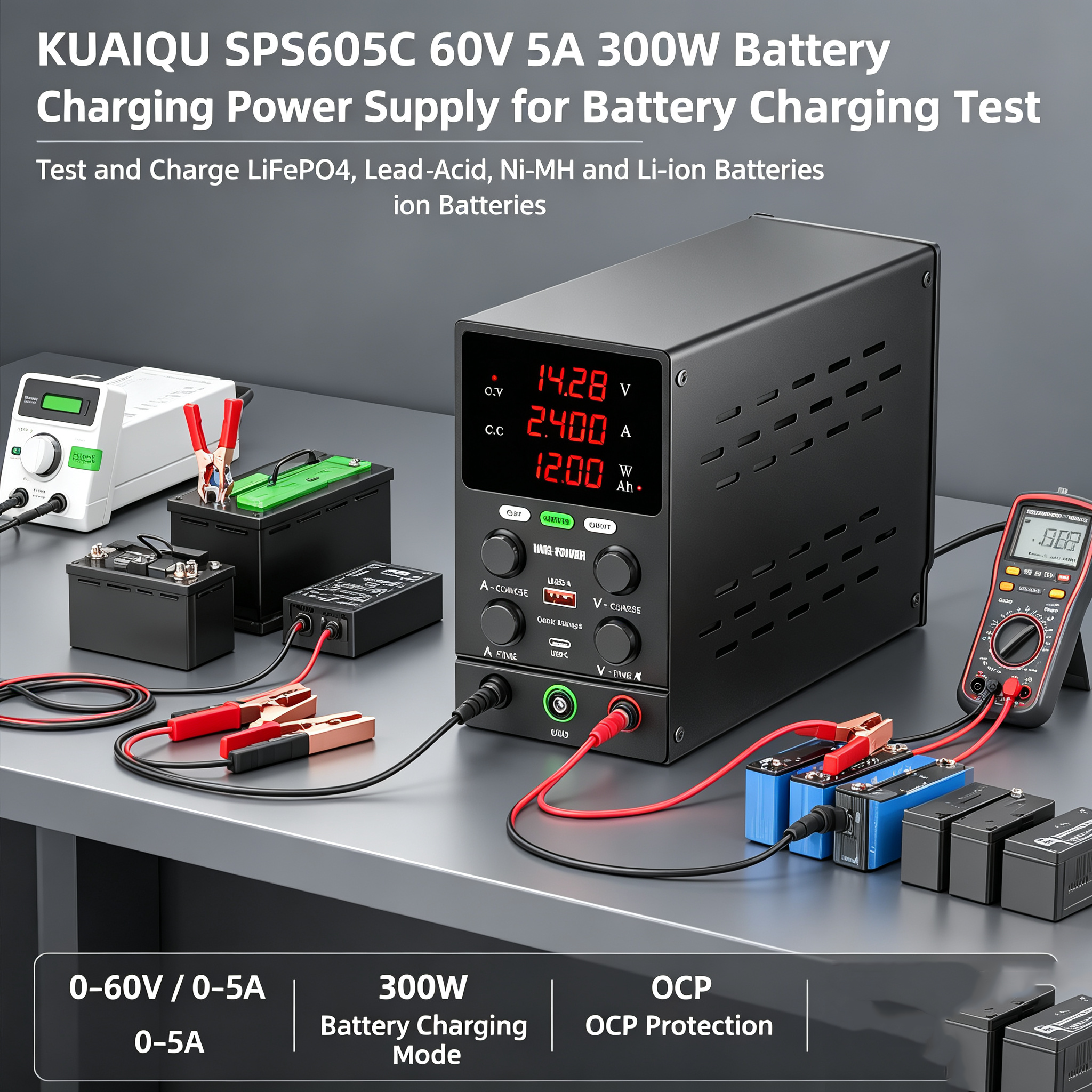

KUAIQU SPS605C 60V 5A 300W Battery

Charging Power Supply for Battery

Charging Test

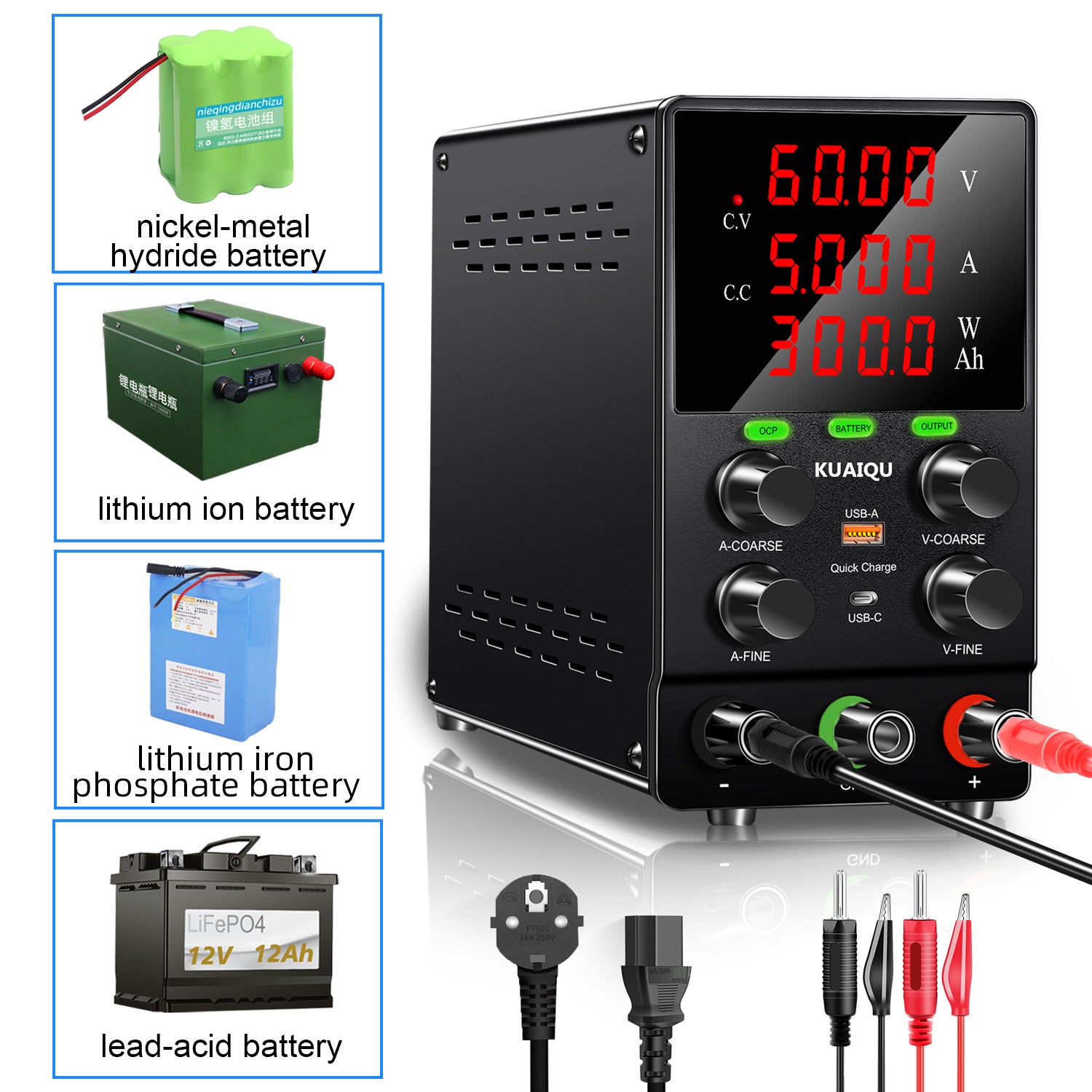

The KUAIQU SPS605C is a 60V 5A 300W battery charging power supply designed for multi-type rechargeable battery charging tests, charging parameter verification, battery capacity evaluation, and battery-powered electronics testing. With a maximum output of 0–60V, 0–5A, and 300W, the SPS605C provides adjustable DC power for compatible rechargeable batteries and related electronic systems.

The SPS605C is particularly suitable for battery charging test applications where users need adjustable charging voltage and current, clear charging status information, and protection during charging. Its adjustable output, dedicated battery charging function, CV/CC operation, and real-time Ah display provide flexibility for different rechargeable battery testing requirements.

The SPS605C is suitable for:

• Multi-type battery charging tests

• Rechargeable battery charging

• Battery charging parameter testing

• Battery capacity evaluation

• Charging amount monitoring

• Battery-powered electronics testing

• Battery charging circuit testing

• Battery maintenance

• Battery-related R&D

• Laboratory battery testing

Its combination of adjustable output, 300W power capability, battery charging function, CV/CC operation, real-time Ah monitoring, OCP protection, overcharge protection, and reverse polarity protection makes it a practical battery charging power supply for battery charging tests and rechargeable battery evaluation.

Key Features

Adjustable 60V 5A Output for Battery Charging Tests:

The SPS605C provides 0–60V adjustable output voltage and 0–5A adjustable output current, with a maximum output power of 300W. This provides flexible charging conditions for compatible rechargeable batteries with different voltage and current requirements.

The adjustable output allows users to set appropriate charging parameters according to the requirements of the battery or connected system.

The SPS605C supports:

• 0–60V adjustable output voltage

• 0–5A adjustable output current

• 300W maximum output power

• 10mV voltage setting resolution

• 1mA current setting resolution

• 10mV voltage readback resolution

• 1mA current readback resolution

CV/CC Operation for Battery Charging:

The SPS605C supports constant voltage (CV) and constant current (CC) operation, allowing users to control the charging voltage and current according to the requirements of compatible rechargeable batteries.

During battery charging tests, CV/CC operation helps provide controlled charging conditions while users monitor the output parameters.

This is useful for:

• Battery charging tests

• Charging parameter verification

• Rechargeable battery evaluation

• Battery charging circuit testing

• Battery-powered system testing

Real-Time Ah Monitoring:

The SPS605C provides a real-time Ah display for monitoring the accumulated amount of charge delivered during a charging session.

The Ah monitoring function helps users evaluate charging amount and observe charging progress during battery charging tests.

Users can monitor:

• Accumulated charging amount in Ah

• Charging status

• Output voltage

• Output current

• Output power

This provides useful charging information for battery capacity evaluation and repeated charging tests.

Dedicated Battery Charging Function:

The SPS605C includes a dedicated battery charging function for compatible rechargeable batteries.

The charging function includes:

• Battery charging mode

• Charging status indication

• Ah accumulated charge display

• Reverse polarity protection

• Overcharge protection

• Automatic output shutdown after full charge

This makes the SPS605C suitable for controlled charging tests involving different compatible rechargeable batteries.

Charging Protection for Repeated Battery Testing:

The SPS605C provides overcharge protection and reverse polarity protection during battery charging.

Overcharge protection helps prevent continued charging after the battery reaches full charge. The SPS605C can automatically turn off the output after the battery is fully charged.

Reverse polarity protection helps reduce the risk of damage caused by incorrect battery connection.

These protection functions are useful for repeated battery charging and testing operations.

Battery Charging Test Protection

OCP — Over Current Protection

The SPS605C provides OCP (Over Current Protection) to help protect the power supply and connected equipment when excessive current conditions occur.

During battery charging tests, abnormal connections or unexpected current conditions may occur. OCP provides additional protection during operation.

Reverse Polarity Protection

The SPS605C provides reverse polarity protection during its battery charging function.

Incorrect battery connection can cause abnormal charging conditions. This protection function helps reduce the risk of damage caused by reversed polarity.

It is particularly useful when testing multiple compatible rechargeable batteries with repeated connection and charging operations.

Overcharge Protection

The dedicated battery charging function provides overcharge protection.

When the battery reaches full charge, the SPS605C can automatically turn off the output to help prevent continued charging.

This provides additional convenience during battery charging tests and charging amount monitoring.

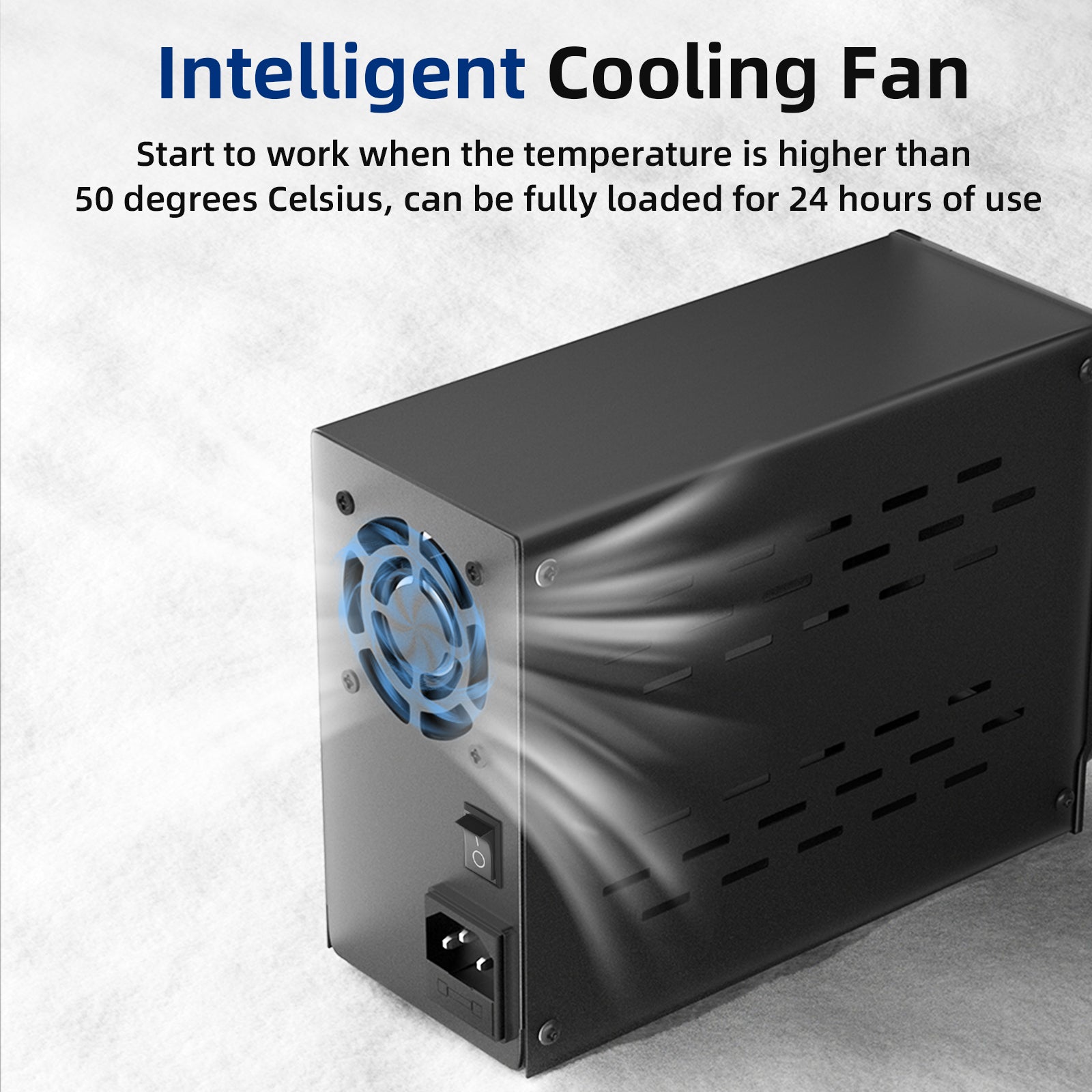

Over-Temperature Protection

The SPS605C provides over-temperature protection as an additional protection function during operation.

This provides additional protection when the power supply is operated for extended periods or under higher-output conditions during battery charging and laboratory testing.

Short-Circuit Alarm

The SPS605C provides a short-circuit alarm to alert users when a short-circuit condition is detected.

This can help users identify abnormal output conditions during battery charging, charging circuit testing, and battery-powered electronics troubleshooting.

Output Switch

The independent OUTPUT control allows users to set the required voltage and current before applying output power.

This makes it convenient to prepare charging parameters before starting a battery charging test.

✦ Real-Time Electrical Parameter Display

The SPS605C provides a digital display for monitoring important electrical parameters during operation.

Users can observe:

• Voltage

• Current

• Power

• Ah

• Charging status

• Output status

During battery charging tests, the real-time display allows users to monitor charging conditions and observe changes in voltage, current, and power.

✦ High-Precision 4-Digit Display

The SPS605C uses a 4-digit digital display for electrical parameter monitoring.

The display provides information including:

• Output voltage

• Output current

• Power

• Ah charging amount

The clear digital display makes it easier to observe charging parameters during battery testing and laboratory applications.

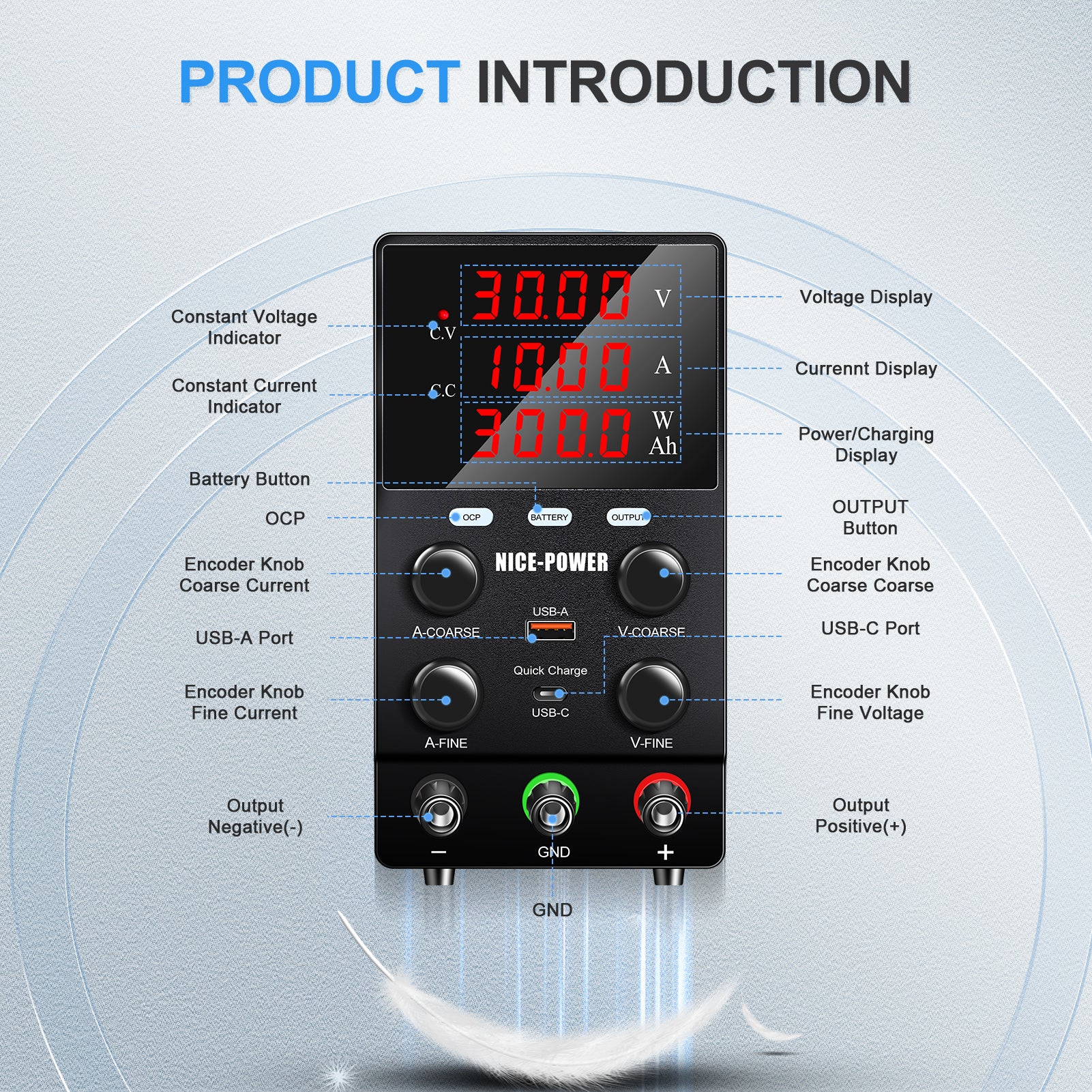

✦ Precise Encoder Adjustment

The SPS605C uses encoder controls for voltage and current adjustment.

The encoder adjustment system allows users to conveniently set charging parameters for different compatible rechargeable batteries.

With:

• 10mV voltage setting resolution

• 1mA current setting resolution

users can make fine adjustments to the output parameters during battery charging tests.

✦ USB-A & USB-C Fast Charging Output

In addition to the adjustable DC output, the SPS605C provides USB-A and USB-C charging ports for compatible USB devices.

The USB-A output supports:

• PE1.1/2.0

• Apple

• BC1.2

• AFC

• FCP

• QC2.0/QC3.0

The USB-C output supports:

• PE1.1/2.0

• Apple

• BC1.2

• AFC

• FCP

• QC2.0/QC3.0

• PD3.0

• PPS

The USB charging ports provide additional convenience at battery testing and electronics workstations.

✦ Compact 300W Power Supply

The SPS605C combines a 0–60V / 0–5A adjustable output with a maximum power rating of 300W, providing sufficient capacity for compatible rechargeable battery charging tests within its rated output range.

The SPS605C is suitable for battery testing laboratories, electronics workstations, R&D environments, battery charging benches, and engineering testing applications.

The SPS605C combines:

• Adjustable 0–60V output

• Adjustable 0–5A output

• 300W maximum power

• Battery charging function

• CV/CC operation

• Real-time Ah monitoring

• OCP protection

• Reverse polarity protection

• Overcharge protection

• Over-temperature protection

• Short-circuit alarm

• Automatic output shutdown after full charge

• Real-time voltage, current and power display

• High-precision 4-digit display

• USB-A fast charging

• USB-C fast charging

• Encoder adjustment

• Output ON/OFF control

It is particularly useful for:

• Multi-type battery charging tests

• Rechargeable battery charging

• Battery charging parameter testing

• Battery capacity evaluation

• Charging amount monitoring

• Battery charging circuit testing

• Battery-powered electronics testing

• Battery-related R&D

✦ Wide Range of Applications

The SPS605C is designed for applications requiring adjustable and regulated DC power for battery charging, charging parameter testing, capacity evaluation, and battery-powered electronics testing, especially:

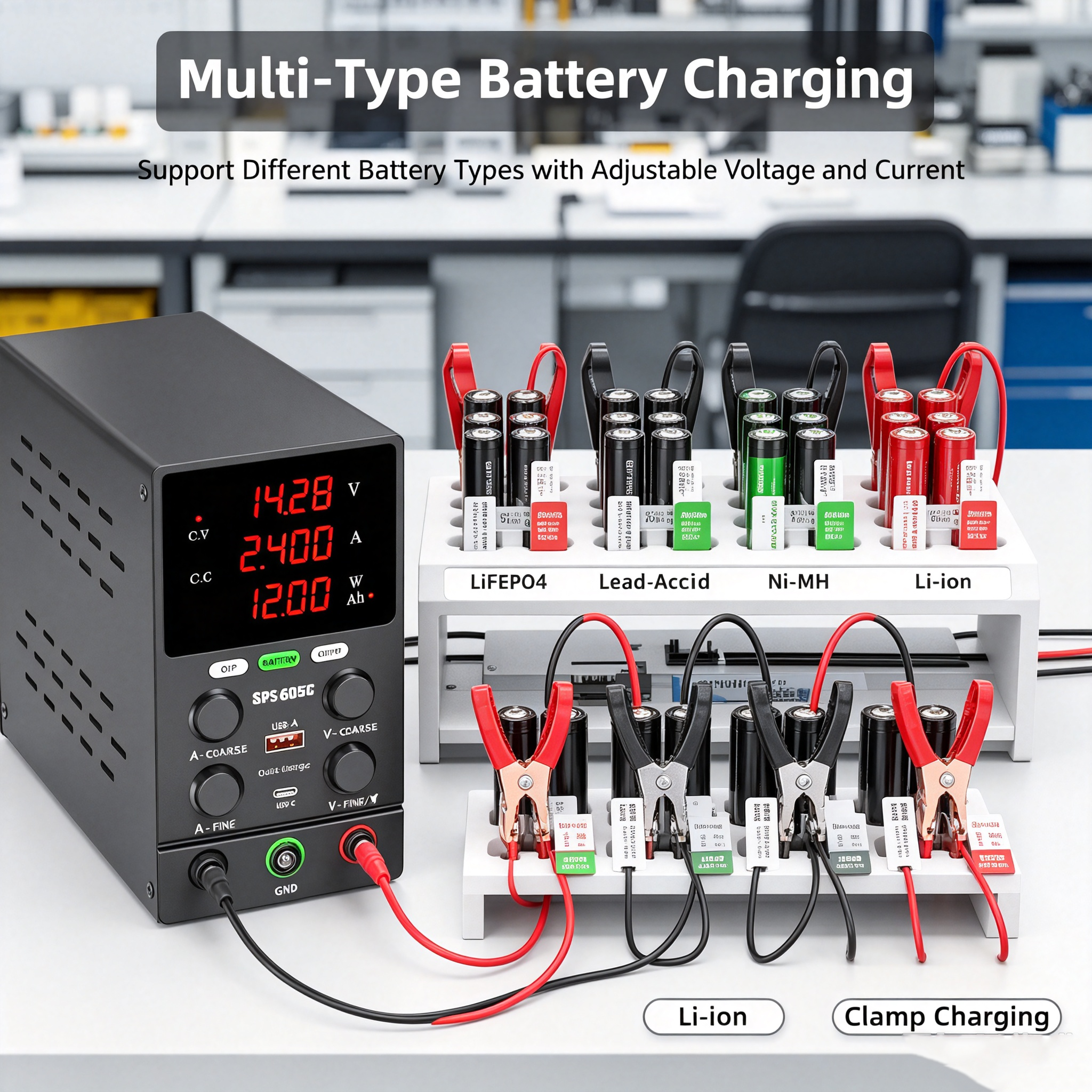

Multi-Type Battery Charging Tests

• Rechargeable battery charging tests

• Battery charging parameter verification

• Charging voltage testing

• Charging current adjustment

• Charging condition verification

• Battery charging performance evaluation

• Repeated charging tests

• Laboratory battery testing

Battery Capacity & Charging Amount Monitoring

• Battery capacity evaluation

• Ah accumulated charge monitoring

• Charging amount measurement

• Charging progress monitoring

• Battery charging condition monitoring

• Rechargeable battery evaluation

• Battery-related R&D

• Battery testing experiments

Battery Charging Circuit Testing

• Battery charging circuit testing

• Charging system evaluation

• Charging parameter adjustment

• Battery protection testing

• Electronic charging module testing

• Battery-powered system testing

• Charging circuit debugging

• Power electronics testing

Battery-Powered Electronics Testing

• Battery-powered electronic device testing

• Battery-powered module testing

• Electronic power system testing

• Battery charging system evaluation

• Electronic circuit testing

• Prototype power testing

• Battery-related electronics development

• Laboratory electronics testing

The SPS605C provides adjustable regulated DC power, 300W power capability, CV/CC operation, real-time Ah monitoring, battery charging functions, and charging protection to support multi-type battery charging tests, rechargeable battery evaluation, battery capacity testing, charging amount monitoring, battery charging circuit testing, and battery-powered electronics applications.

✦ Quality Assurance & Customer Support

Each package includes:

1 × DC power supply

1 × output power cable

1 × input power cable

1 × user manual

1 × warranty card

All DC power supplies and accessories undergo inspection before shipment to ensure reliable quality. The SPS605C has passed CE & FCC certification.

We provide professional after-sales service and technical support. If you have any questions about the SPS605C 60V 5A 300W battery charging power supply for battery charging tests, please feel free to contact us.

Technical Specifications

Why Choose KUAIQU SPS605C?

For multi-type battery charging tests, users need a power supply that provides flexible voltage and current adjustment, clear charging information, and appropriate protection for repeated charging operations.

The KUAIQU SPS605C combines:

✓ 0–60V / 0–5A adjustable output

✓ 300W power capability

✓ Adjustable regulated DC output

✓ CV/CC operation

✓ Real-time Ah accumulated charge display

✓ Dedicated battery charging function

✓ OCP protection

✓ Reverse polarity protection

✓ Overcharge protection

✓ Over-temperature protection

✓ Short-circuit alarm

✓ Automatic output shutdown after full charge

✓ Real-time voltage, current and power display

✓ High-precision 4-digit display

✓ 10mV voltage setting/readback resolution

✓ 1mA current setting/readback resolution

✓ USB-A + USB-C fast charging

✓ Precision encoder adjustment

✓ Output ON/OFF control

Providing a practical solution for multi-type battery charging tests, rechargeable battery charging, battery capacity evaluation, Ah charging amount monitoring, battery charging circuit testing, battery-powered electronics testing, and laboratory battery applications.
