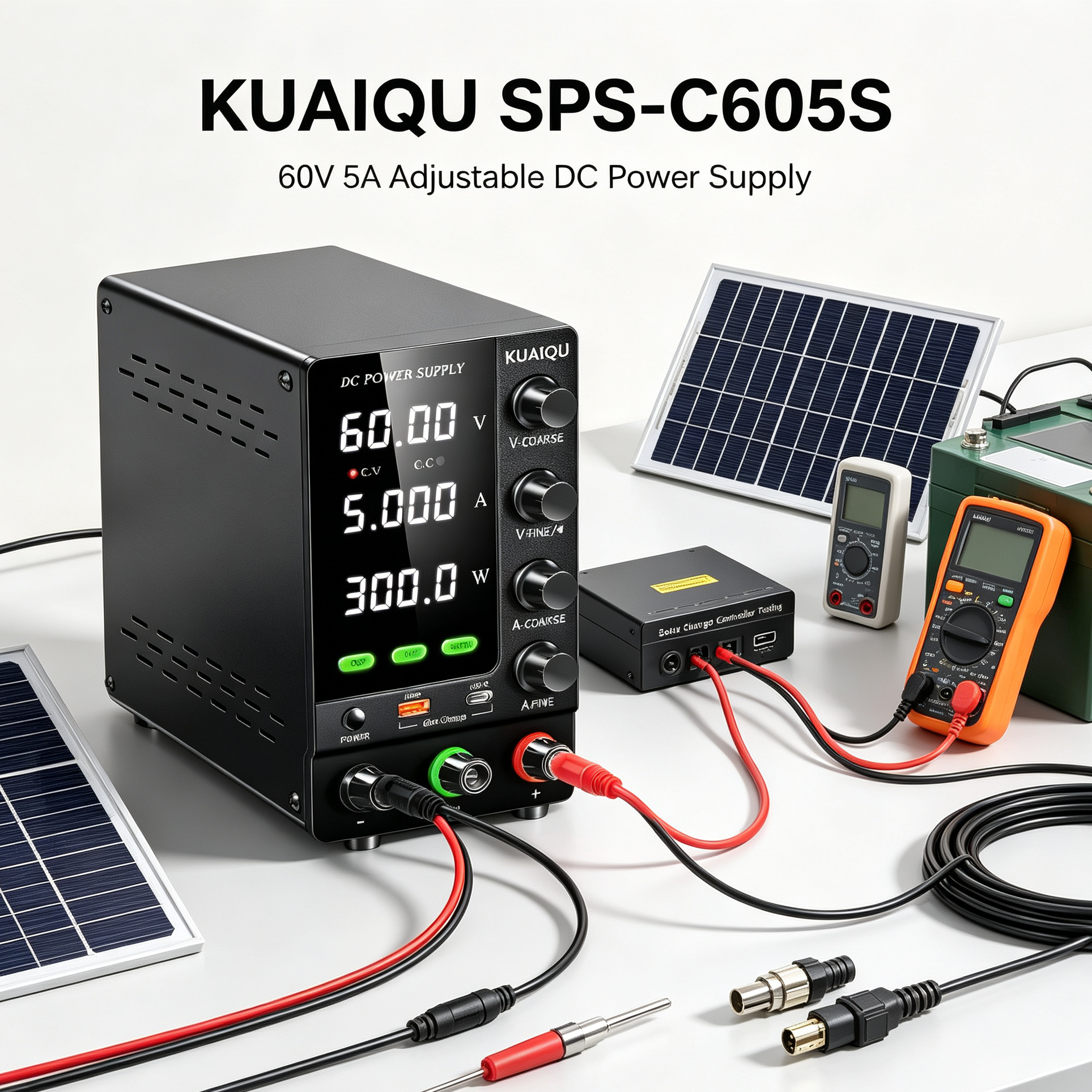

KUAIQU SPS-C605S 60V 5A Regulated DC Power Supply

Product Overview

The KUAIQU SPS-C605S 60V 5A Regulated DC Power Supply provides a 0–60V adjustable DC output, 0–5A current range, and 300W maximum power for PV electronics testing, solar electronics development, photovoltaic controller testing, and solar DC circuit evaluation.

As a PV Testing Power Supply, the SPS-C605S provides adjustable voltage and current conditions for engineers who need a controlled DC source when evaluating photovoltaic electronics. Its regulated DC output, CV/CC operation, and adjustable output make it suitable for repeatable laboratory testing of PV-related electronic components and circuits.

Key Features

PV Testing Power Supply: Provides adjustable DC power for photovoltaic electronics testing and solar circuit evaluation.
0–60V Adjustable DC Output: The wide voltage range provides flexible operating conditions for low-voltage PV electronics and solar components.
0–5A Current Adjustment: Allows engineers to establish different current conditions when testing photovoltaic controllers and electronic circuits.
300W Solar Testing Power: Provides suitable output capacity for solar controllers, converters, control boards, and PV-related prototypes.
Regulated DC Power Supply: Stable output helps maintain consistent conditions during repeated PV electronics testing.
CV/CC Power Supply: Constant Voltage and Constant Current modes provide flexible output control for different solar electronics testing requirements.
Controlled DC Power Source: Adjustable voltage and current make it easier to reproduce test conditions during solar electronics development.
OCP & OVP Protection: Helps provide additional protection for connected PV electronics.
Output ON/OFF Control: Conveniently start or stop power when connecting and testing solar electronics.

Applications

The SPS-C605S is suitable for:

PV Electronics Testing
Solar Electronics Testing
Photovoltaic Controller Testing
Solar Charge Controller Development
PV Converter Testing
Solar DC Circuit Testing
Photovoltaic Component Evaluation
Solar Control Board Testing
Small Solar System Electronics
PV Electronics R&D

Quality Check and Terms of Service

Has passed CE & FCC Certification.
All DC power supplies and accessories are inspected before shipment to ensure good quality.
Customer support: Contact us with any questions, and we'll respond within 24 hours.

Package includes

DC Power Supply ×1
Output Power Cord ×1
Input Power Cord ×1
User Manual ×1
Warranty Card ×1

Specification

Item	Sub-item	Specification
Rated Value (0℃~40℃)	Voltage	0-60V
	Current	0-5A
	Power	300W

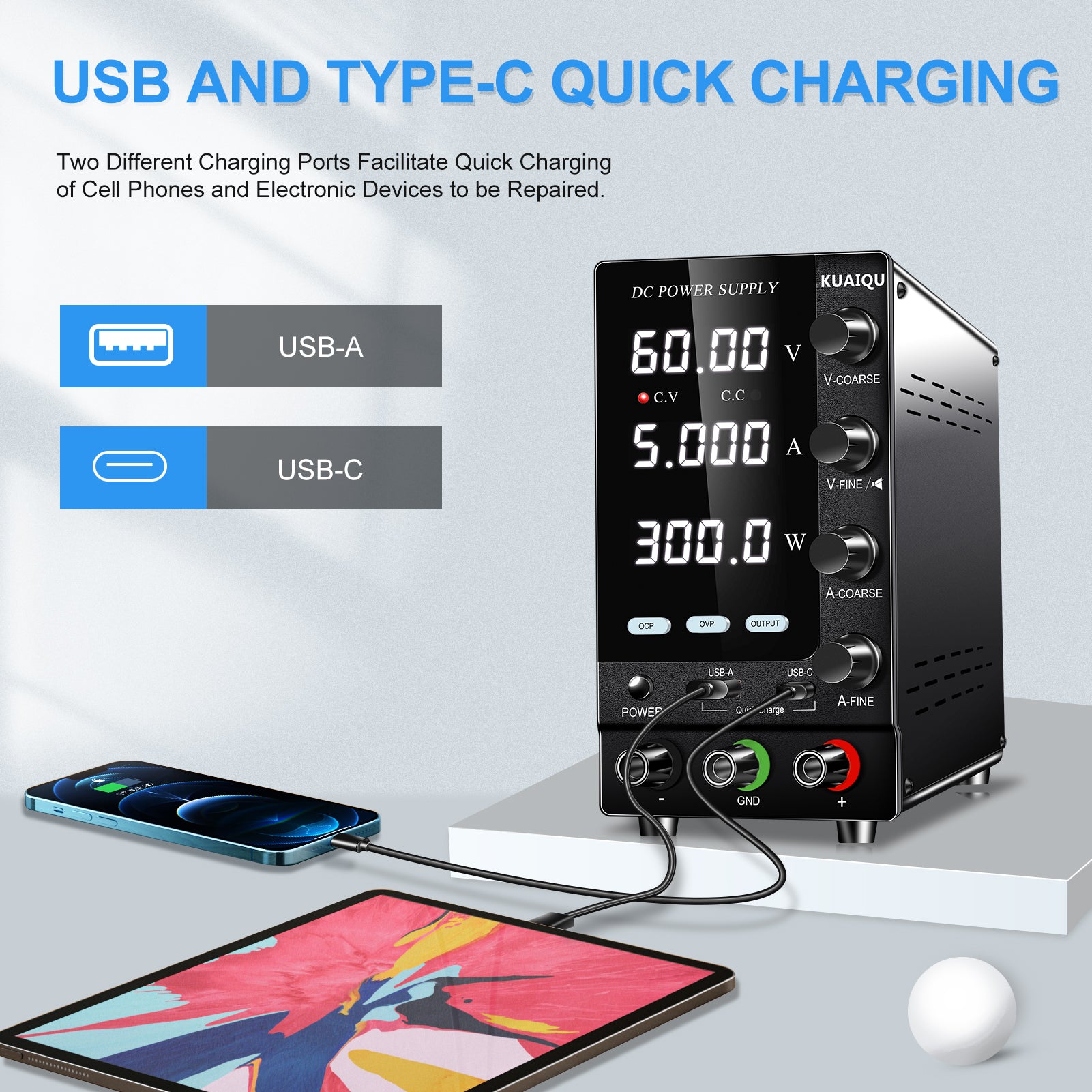

USB/Type-C Output	-	PDO: 5V/3A, 9V/2A, 12V/1.5A PPS: 3.3V-5.9V/3A, 3.3V-11V/1.6A
Load Regulation	Voltage	≤0.3%+10 mV
	Current	≤0.1%+2.5 mA
Line Regulation	Voltage	≤0.01%+2.5 mV
	Current	≤0.1%+2.5 mA
Setting Resolution	Voltage	10mV
	Current	1mA
Readback Resolution	Voltage	10mV
	Current	1mA
Setting Accuracy	Voltage	≤0.01%+15mV
	Current	≤0.01%+10mA
Readback Accuracy	Voltage	≤0.01%+15mV
	Current	≤0.01%+10mA
Ripple (20Hz~20MHz)	Voltage	≤200 mVp-p ≤20 mVrms
	Current	≤20 mArms
Rise Time (No Load)	Time	≤200mS
Rise Time (Full Load)	Time	≤300mS
Fall Time (No Load)	Time	≤20S
Fall Time (Full Load)	Time	≤300mS
Dynamic Response	Time	≤200mS
Efficiency	-	≥85%
Input Voltage/Current	-	AC 220V (AC110V optional)
