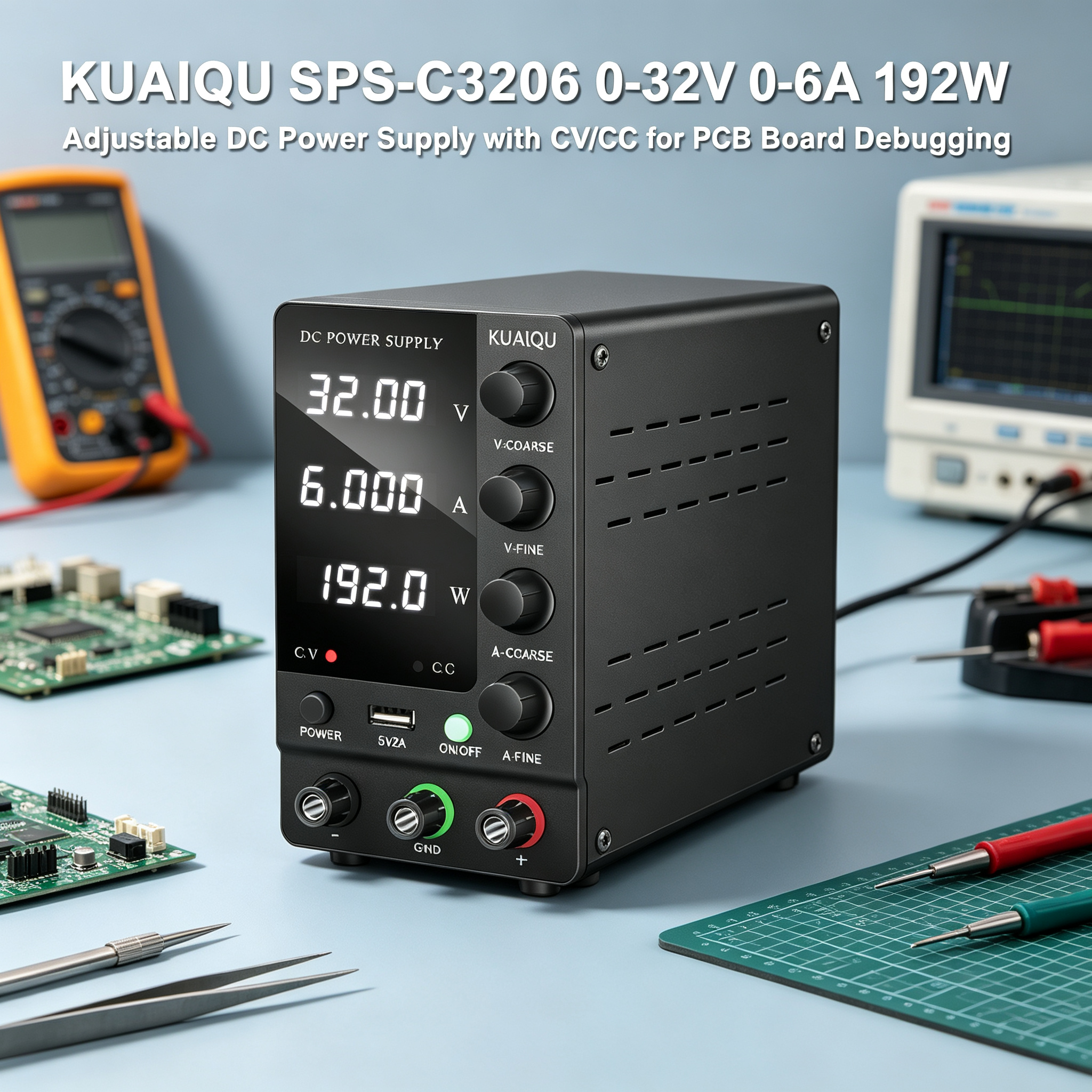

KUAIQU SPS-C3206 0-32V 0-6A 192W
Adjustable DC Power Supply with CV/CC
for PCB Board Debugging
The KUAIQU SPS-C3206 is a 0-32V, 0-6A, 192W Adjustable DC Power Supply designed for PCB Board Debugging, circuit troubleshooting, prototype testing, and electronic hardware development. With CV/CC operation, 4-Knob Adjustment, Voltage Display, Current Display, Power Display, and an Output Switch, it provides convenient control and monitoring when testing PCB boards and electronic circuits within its rated output range.
Key Features
0-32V Adjustable DC Output for PCB Board Debugging
The SPS-C3206 provides an adjustable 0-32V DC output with up to 0-6A current and 192W output power. This adjustable range allows users to set suitable power conditions for different PCB boards, electronic circuits, and hardware assemblies during debugging and testing.
For PCB Board Debugging, different circuits may require different operating voltage and current conditions. The SPS-C3206 allows users to adjust the output according to the requirements of the circuit under test while staying within the rated output range.

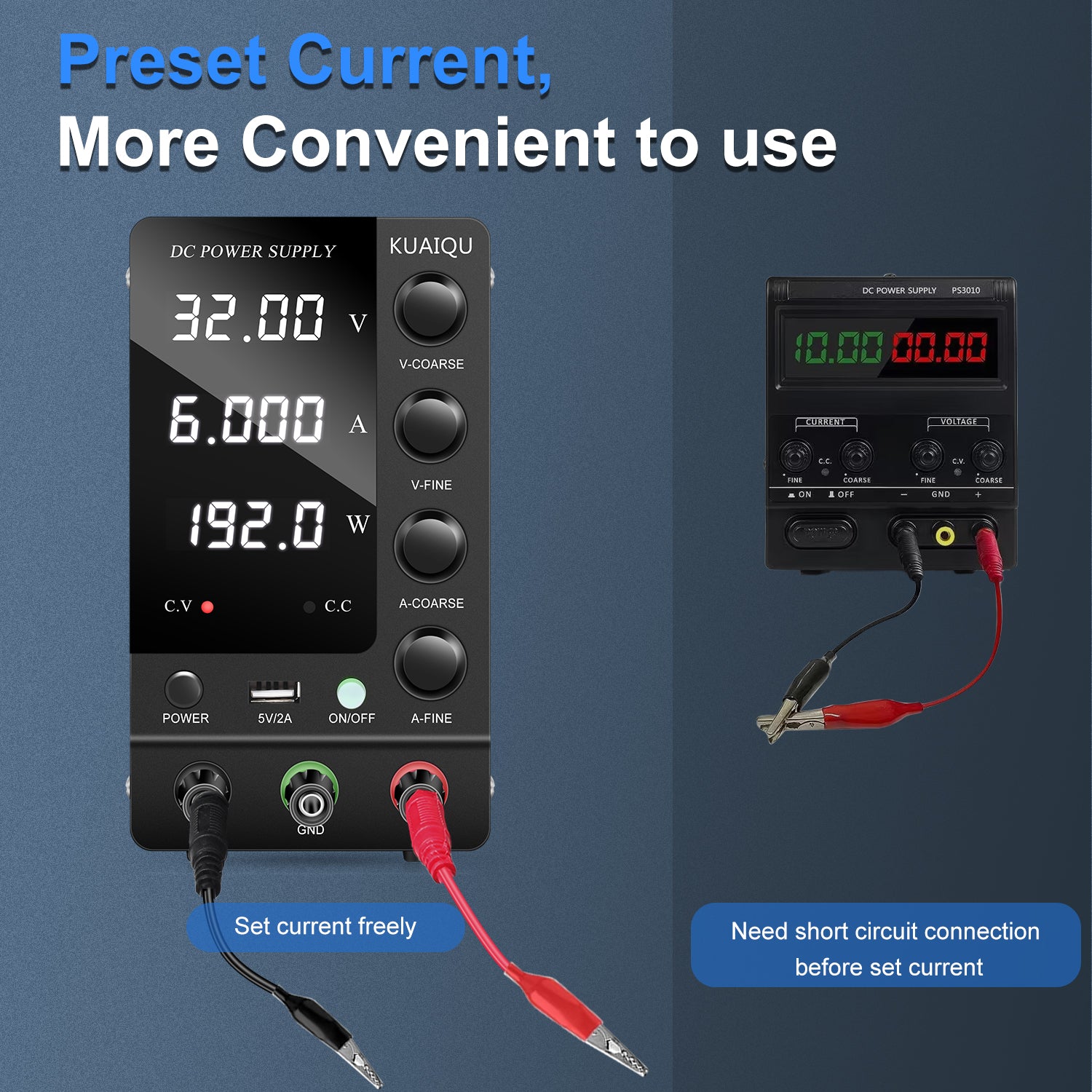

CV/CC Operation for Controlled Circuit Testing
The SPS-C3206 supports Constant Voltage (CV) and Constant Current (CC) operation for controlled DC power output during PCB Board Debugging.
CV/CC operation allows users to work with different voltage and current conditions when checking circuit behavior. This is useful when debugging a PCB and observing how the connected circuit operates under the selected power conditions.

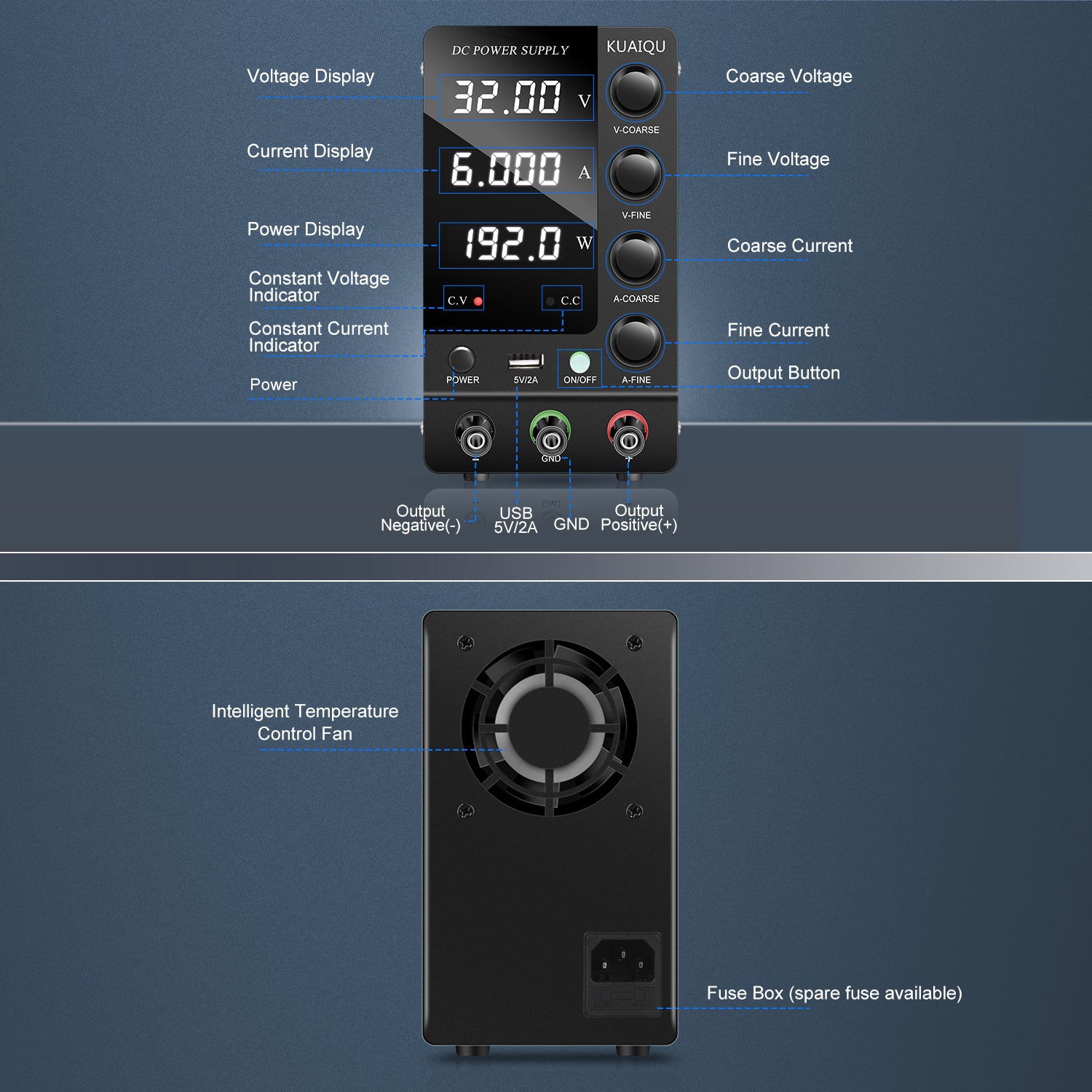

4-Knob Adjustment for Direct Parameter Control
The SPS-C3206 uses a 4-Knob Adjustment design for direct front-panel control of the power supply settings.
During PCB Board Debugging, users can conveniently adjust the required voltage and current settings from the front panel while checking circuit operation. The direct control layout is suitable for repeated adjustment during troubleshooting and circuit development.
Voltage, Current, and Power Display
The SPS-C3206 provides separate Voltage Display, Current Display, and Power Display information for monitoring the connected PCB and circuit.
During debugging, users can observe the displayed electrical values while testing the board. This helps provide immediate information about the operating condition of the connected circuit and the power being supplied by the Adjustable DC Power Supply.
Output Switch for Convenient Power Control
The Output Switch allows users to control the DC output without changing the configured voltage and current settings.
For PCB Board Debugging, this is useful when preparing a circuit for testing, changing connections, or repeating a test. Users can turn the output on or off as needed during the bench testing process.
5V/2A USB Output for Compatible Accessories
The SPS-C3206 also provides a 5V/2A USB Output for compatible USB-powered devices and accessories.
This additional USB output can provide convenient 5V power for compatible low-power accessories used around an electronics workbench, while the main adjustable DC output remains available for PCB Board Debugging.
Applications

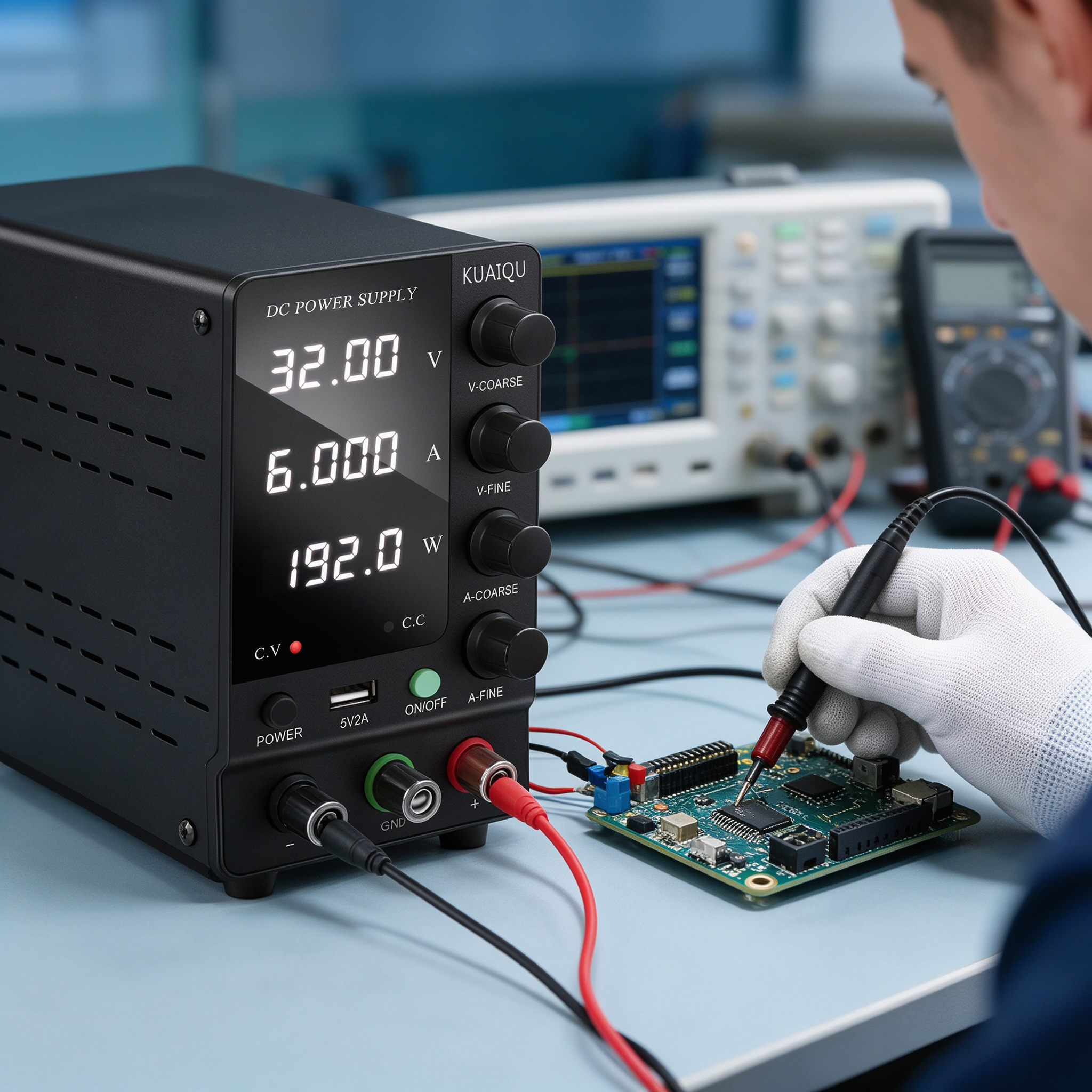

PCB Board Debugging
The SPS-C3206 provides adjustable DC power for PCB Board Debugging within its 0-32V, 0-6A, and 192W rated output range.
Users can adjust the required voltage and current, monitor Voltage Display, Current Display, and Power Display readings, and use the Output Switch to control power application while troubleshooting PCB circuits.
PCB Circuit Troubleshooting
During circuit troubleshooting, engineers and technicians may need to change the supplied voltage or current while observing how a PCB responds.
The SPS-C3206 combines adjustable DC output, CV/CC operation, direct 4-Knob Adjustment, and electrical value displays to support these routine bench troubleshooting tasks.
Prototype PCB Testing
The SPS-C3206 can be used to supply adjustable DC power during prototype PCB testing and early-stage electronic hardware development.
Users can configure the required output conditions within the power supply's rated range and monitor voltage, current, and power during circuit operation.
Electronic Hardware Development
For electronic hardware development, the SPS-C3206 provides a practical Adjustable DC Power Supply for testing compatible circuits, boards, and electronic assemblies.
The 0-32V output range, 0-6A current capability, CV/CC operation, and direct front-panel adjustment provide flexible power control for everyday development and debugging work.
Quality Check and Terms of Service
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS-C3206 |
| Product Type |
Adjustable DC Power Supply |
| Rated Voltage |
0-32V |
| Rated Current |
0-6A |
| Rated Power |
192W |
| Operating Temperature |
0-40°C |
| Operating Mode |
CV/CC |
| Voltage Setting/Readback Resolution |
10mV |
| Current Setting/Readback Resolution |
1mA |
| Setting Accuracy, Current |
≤0.01% + 10mA |
| Readback Accuracy, Voltage |
≤0.05% + 10mV |
| Readback Accuracy, Current |
≤0.01% + 10mA |
| Load Regulation, Voltage |
≤0.3% + 10mV |
| Load Regulation, Current |
≤0.1% + 2.5mA |
| Line Regulation, Voltage |
≤0.01% + 2.5mV |
| Line Regulation, Current |
≤0.1% + 2.5mA |
| Ripple, Voltage |
≤100mVp-p / ≤15mVrms |
| Ripple, Current |
≤15mArms |
| Rise Time, No Load |
≤200ms |
| Rise Time, Full Load |
≤300ms |
| Fall Time, No Load |
≤20s |
| Fall Time, Full Load |
≤300ms |
| Dynamic Response Time |
≤200ms |
| Efficiency |
≥85% |
| Input Voltage |
AC 220V (AC 110V optional) |
| Adjustment |
4-Knob Adjustment |
| Display |
Voltage Display / Current Display / Power Display |
| Output Control |
Output Switch |
| USB Output |
5V/2A |
| Dimensions |
Approx. 22 × 8.5 × 15.5 cm |
| Net Weight |
Approx. 1.2 kg |
| Application |
PCB Board Debugging |
Why Choose NICE-POWER SPS-C3206?
The SPS-C3206 combines a 0-32V adjustable DC output, up to 0-6A current, and 192W rated power with practical controls for PCB Board Debugging. CV/CC operation, 4-Knob Adjustment, Voltage Display, Current Display, Power Display, and an Output Switch provide convenient control and monitoring for PCB troubleshooting, prototype testing, and electronic hardware development.
With its compact bench-top design and adjustable output capability, the SPS-C3206 provides a practical DC power solution for engineers, technicians, laboratories, and electronics developers who need controlled power conditions for compatible PCB and circuit testing tasks.
