Product Details

Download English Manual (PDF)

Click the link above to get the full user guide for this product.


KUAIQU SPPS-K305 30V 5A Variable DC

 Bench Power Supply with Curve Display

 for Electronic Component Testing

🔥 Pain Points You’re Actually Facing

⚠️ Inconsistent voltage or current can lead to unreliable test results when evaluating electronic components under different operating conditions

⚠️ Small voltage and current variations are difficult to observe, making component characterization and troubleshooting less efficient

⚠️ Low current measurement resolution makes it difficult to identify leakage current, standby current, and abnormal consumption

⚠️ Repeatedly setting voltage and current for different components slows down comparative testing and laboratory workflows

⚠️ Incorrect voltage, excessive current, or accidental short circuits can damage sensitive electronic components during testing

⚠️ Long-duration component tests require stable output without accidental changes to test parameters

⚠️ Coarse adjustment makes it difficult to precisely set test conditions for components with narrow operating ranges

⚠️ Without visual voltage and current trend information, abnormal component behavior can be harder to identify

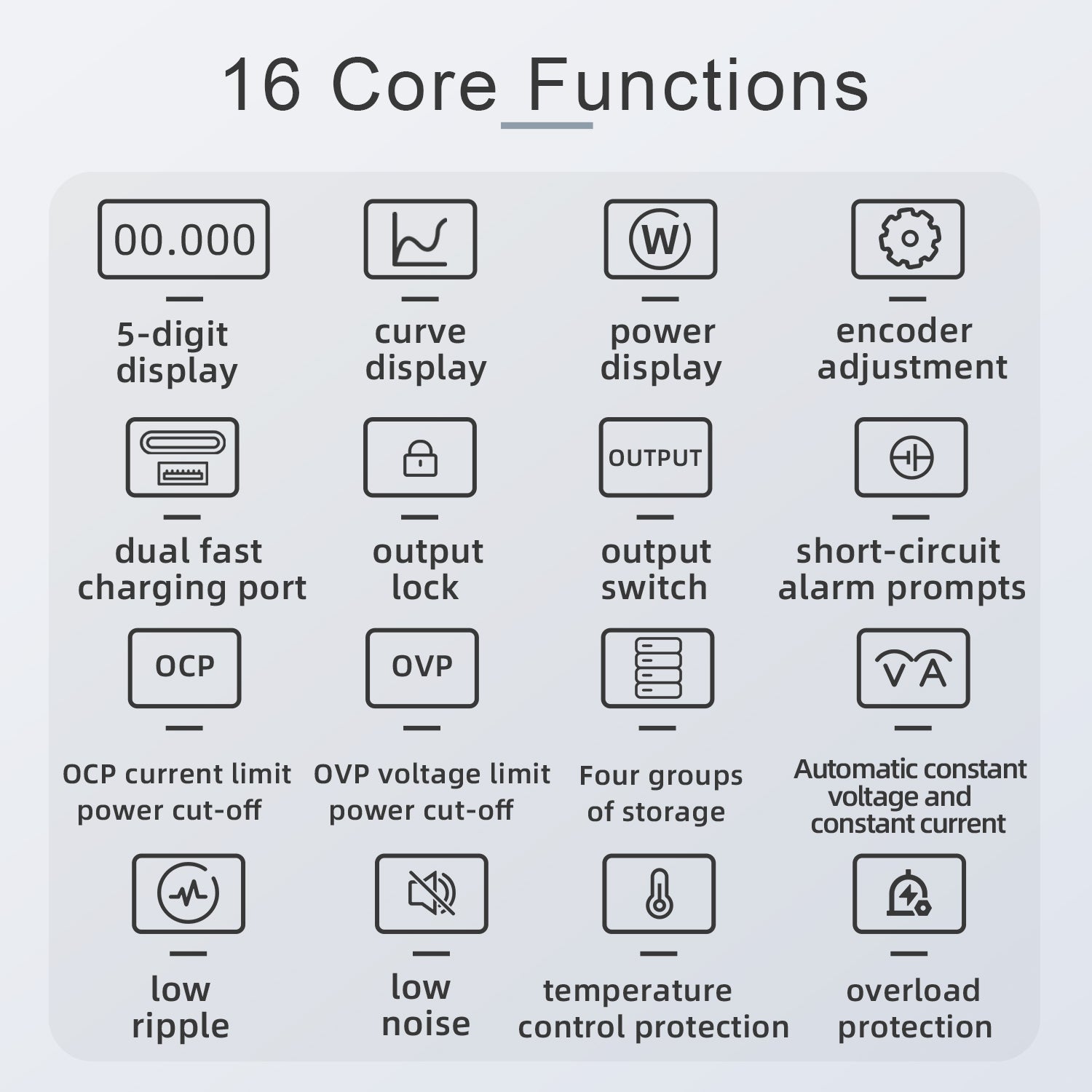

✅ Corresponding Core Solutions

✅ Stable 0–30V Adjustable DC Output
Provides flexible voltage adjustment for testing electronic components under different rated and operating conditions.

✅ 0–5A Adjustable Current Control
Allows users to configure appropriate current limits for different components and test requirements.

✅ 1mV Voltage Resolution & High-Precision Measurement
Enables precise voltage setting and monitoring for repeatable component testing and evaluation.

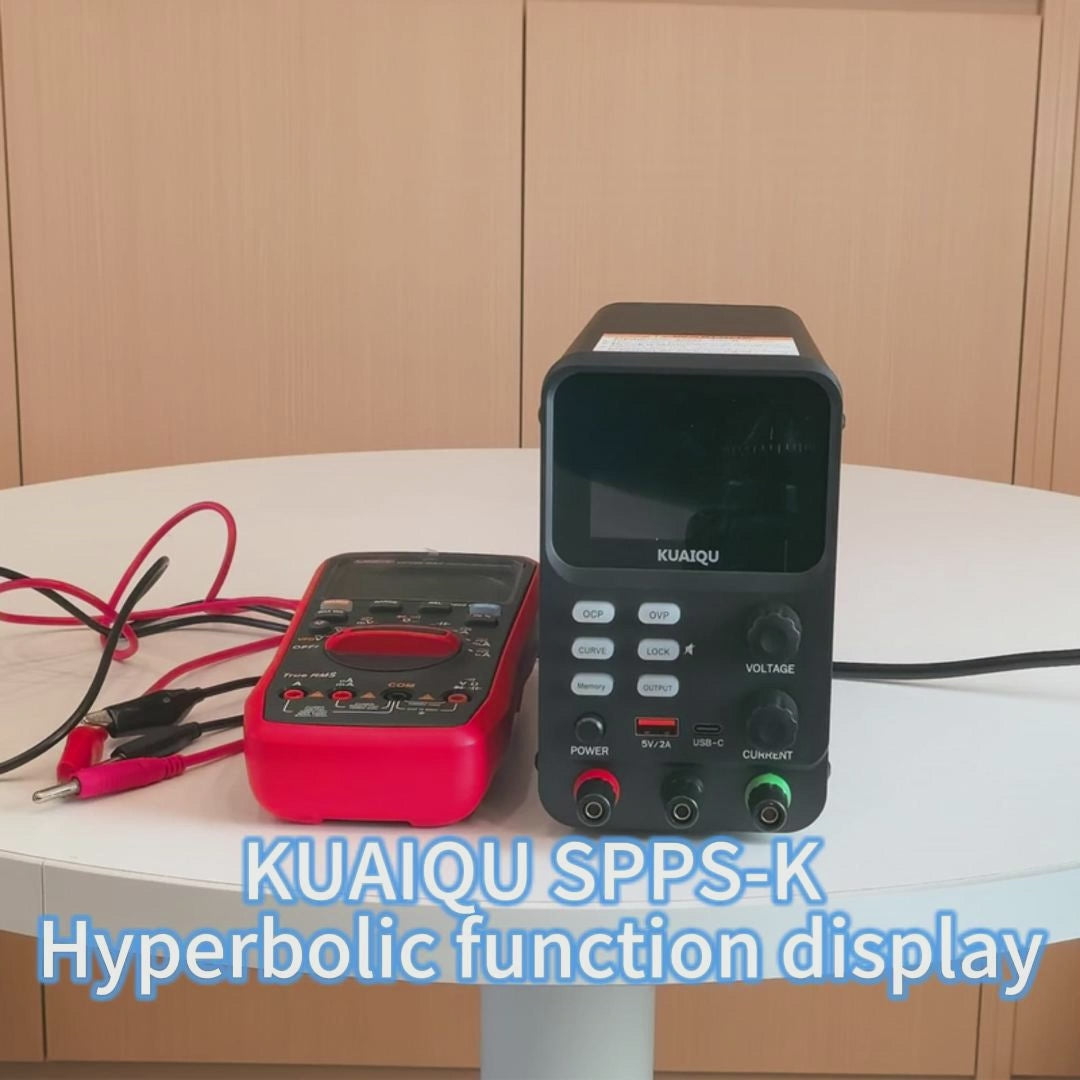

✅ Dual Curve Voltage & Current Display
Visually tracks voltage and current changes in real time, helping identify startup behavior, load response, and abnormal component characteristics.

✅ 10μA Low-Current Readback Resolution
Captures small current variations for leakage current, standby consumption, and low-current component testing.

✅ 4 Groups of Stored Parameters
Save frequently used voltage and current conditions and quickly recall them when testing different components.

✅ Complete Protection System
Includes OVP, OCP, and SCP protection to help protect sensitive components, the power supply, and connected test equipment.

✅ Panel Lock Function
Prevents accidental parameter changes during extended component testing and repeated measurement procedures.

✅ Encoder Precision Adjustment
Provides smoother and more precise voltage/current adjustment for setting accurate component test conditions.

✅ Output Enable Control
Allows users to configure voltage and current parameters before applying power to the component under test, improving testing safety and efficiency.

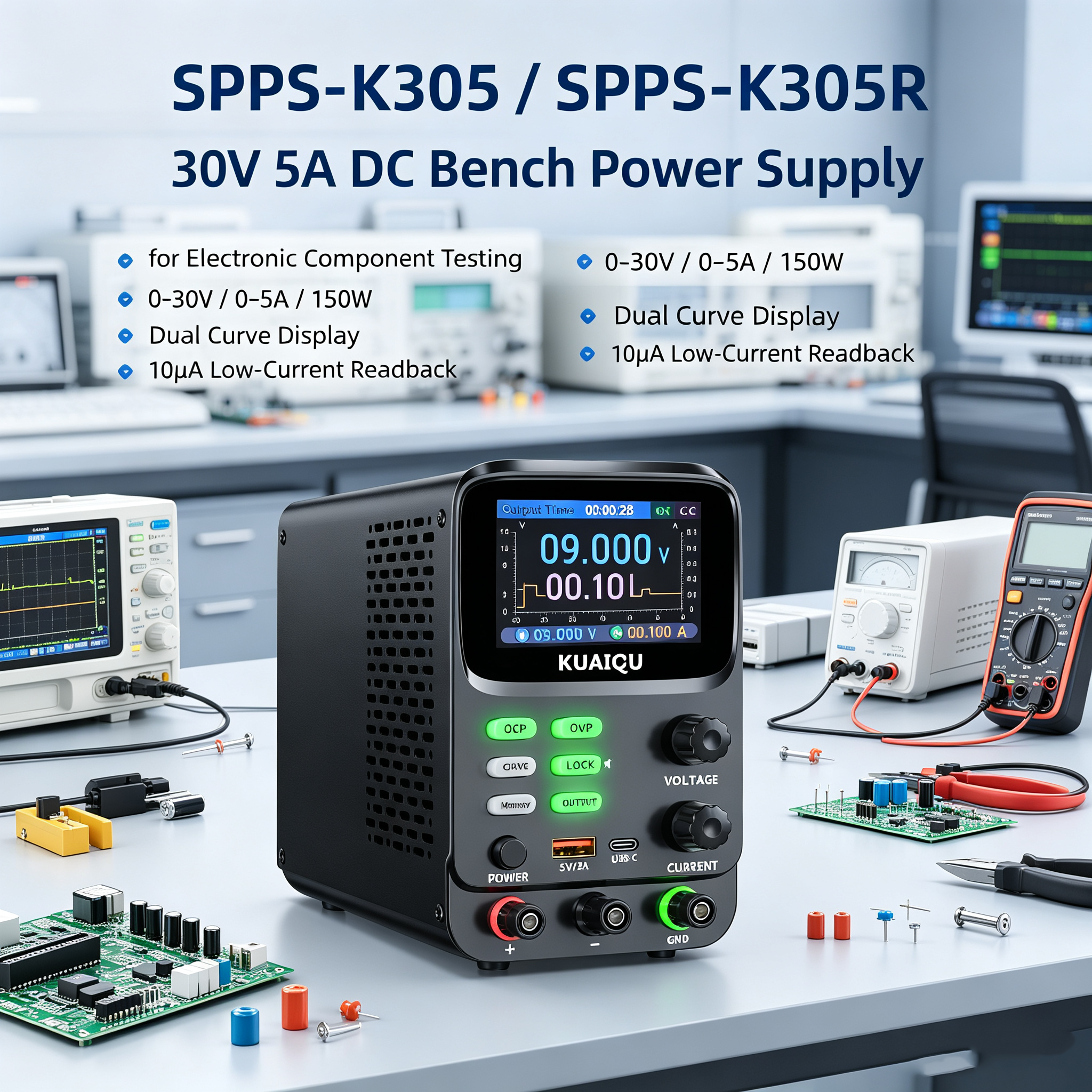

✦ Stable Power Source for Electronic Component Testing

Electronic component testing requires a controlled and repeatable power source to verify operating characteristics, current consumption, and electrical performance.

The KUAIQU SPPS-K305 provides:

  • 0–30V adjustable output voltage

  • 0–5A adjustable output current

  • 150W maximum output power

  • 1mV voltage resolution

  • 1mA current setting resolution

  • 10μA current readback resolution under low-current range

It enables engineers to evaluate:

✓ Component operating voltage
✓ Current consumption
✓ Leakage current
✓ Load response
✓ Startup behavior
✓ Electrical stability

Providing a precise and flexible power platform for electronic component testing, characterization, and verification.

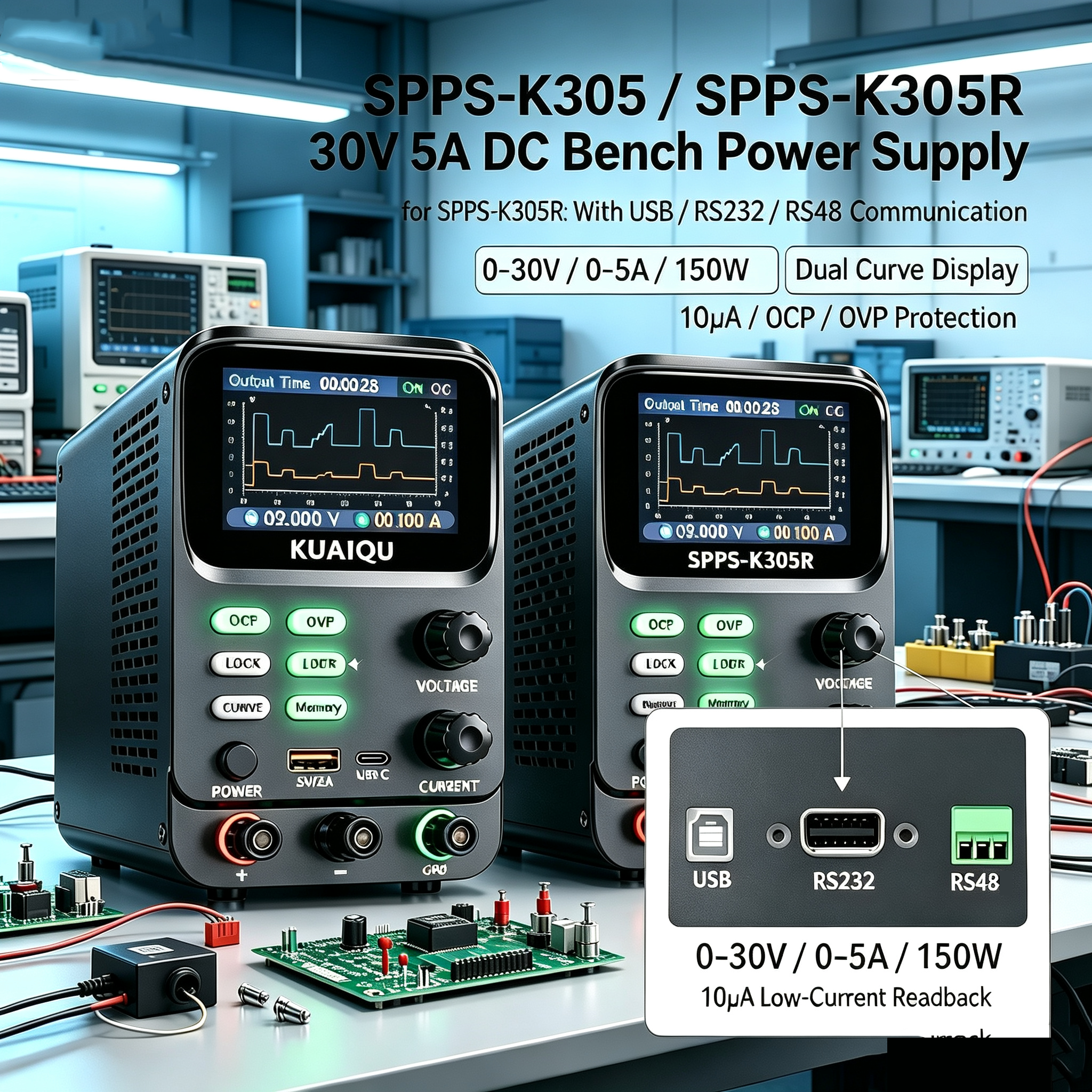

✦ Real-Time Voltage & Current Curve Display for Component Analysis

When testing electronic components, engineers need to observe how voltage and current change as operating conditions vary.

The SPPS-K305 features a real-time dual curve display that visually presents voltage and current changes during testing.

The waveform display helps analyze:

  • Startup current changes

  • Voltage response

  • Current variation

  • Load response

  • Abnormal current behavior

  • Component operating stability

This helps engineers identify:

  • Abnormal component behavior

  • Unexpected current consumption

  • Unstable electrical characteristics

  • Power-related testing issues

Improving testing efficiency during component evaluation and troubleshooting.

✦ High-Resolution Current Measurement for Component Characterization

Accurate current measurement is essential when evaluating electronic components with different operating and leakage characteristics.

The SPPS-K305 supports:

  • Automatic current unit switching

  • 10μA current readback resolution under low-current range

  • 5-digit high-resolution display

Engineers can measure:

  • Leakage current

  • Standby current

  • Low-load current

  • Component operating current

  • Abnormal current changes

Helping engineers evaluate:

  • Component electrical performance

  • Current consumption

  • Operating stability

  • Power efficiency

  • Potential abnormal behavior

✦ 4 Memory Presets for Efficient Component Testing

Electronic component testing often requires different voltage and current conditions for different component types or test procedures.

The SPPS-K305 provides 4 groups of stored parameters, allowing engineers to quickly recall commonly used test settings.

Example applications:

M1: Low-voltage component test
M2: Rated operating condition test
M3: High-current component test
M4: Low-current or leakage current test

With quick parameter switching, engineers can reduce repetitive setup work and maintain consistent test conditions across multiple components.

✦ Protection Functions for Safe Component Testing

Sensitive electronic components can be damaged by excessive voltage, abnormal current, or accidental wiring errors.

The SPPS-K305 provides:

OVP — Over Voltage Protection

Helps prevent excessive output voltage from being applied to sensitive electronic components.

OCP — Over Current Protection

Limits abnormal current during overload conditions or unexpected component behavior.

SCP — Short Circuit Protection

Helps protect the power supply and connected components during accidental short circuits.

Panel Lock Function

Prevents unintended parameter adjustments during long-duration or repeated component testing.

These protection features provide safer operation when testing electronic components with different electrical characteristics.

✦ Precision Control for Electronic Component Evaluation

Different electronic components may require specific voltage and current conditions for accurate characterization and comparison.

The SPPS-K305 provides:

  • 1mV voltage adjustment resolution

  • 1mA current setting resolution

  • 10μA current readback resolution

  • 0.05% + 10mV voltage accuracy

  • 0.1% + 10mA current accuracy

Combined with encoder adjustment and a high-resolution display, the SPPS-K305 helps engineers establish repeatable test conditions and accurately monitor component behavior.

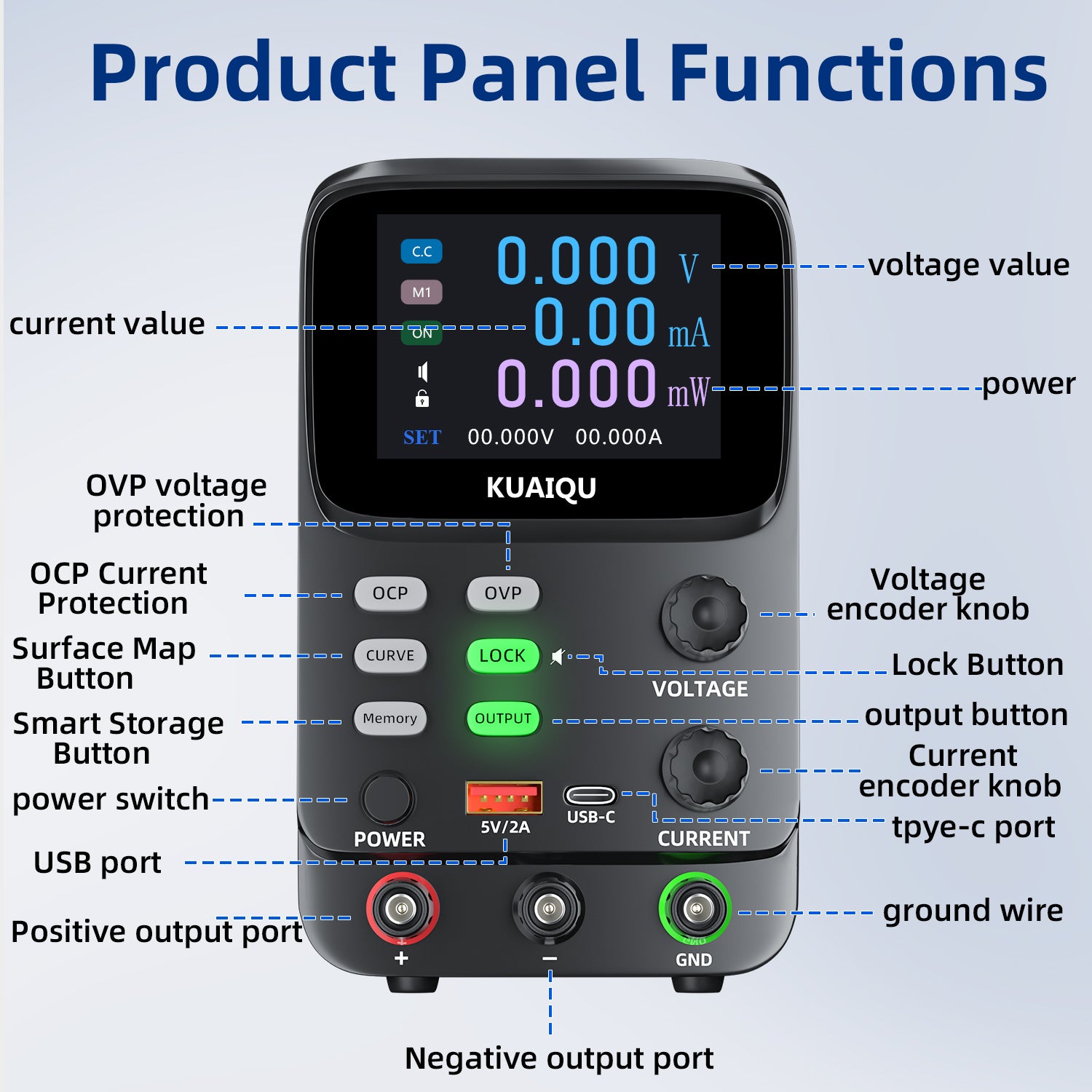

✦ Professional Operation Features for Component Testing

Designed for R&D laboratories, electronics workshops, and production testing environments, the SPPS-K305 includes:

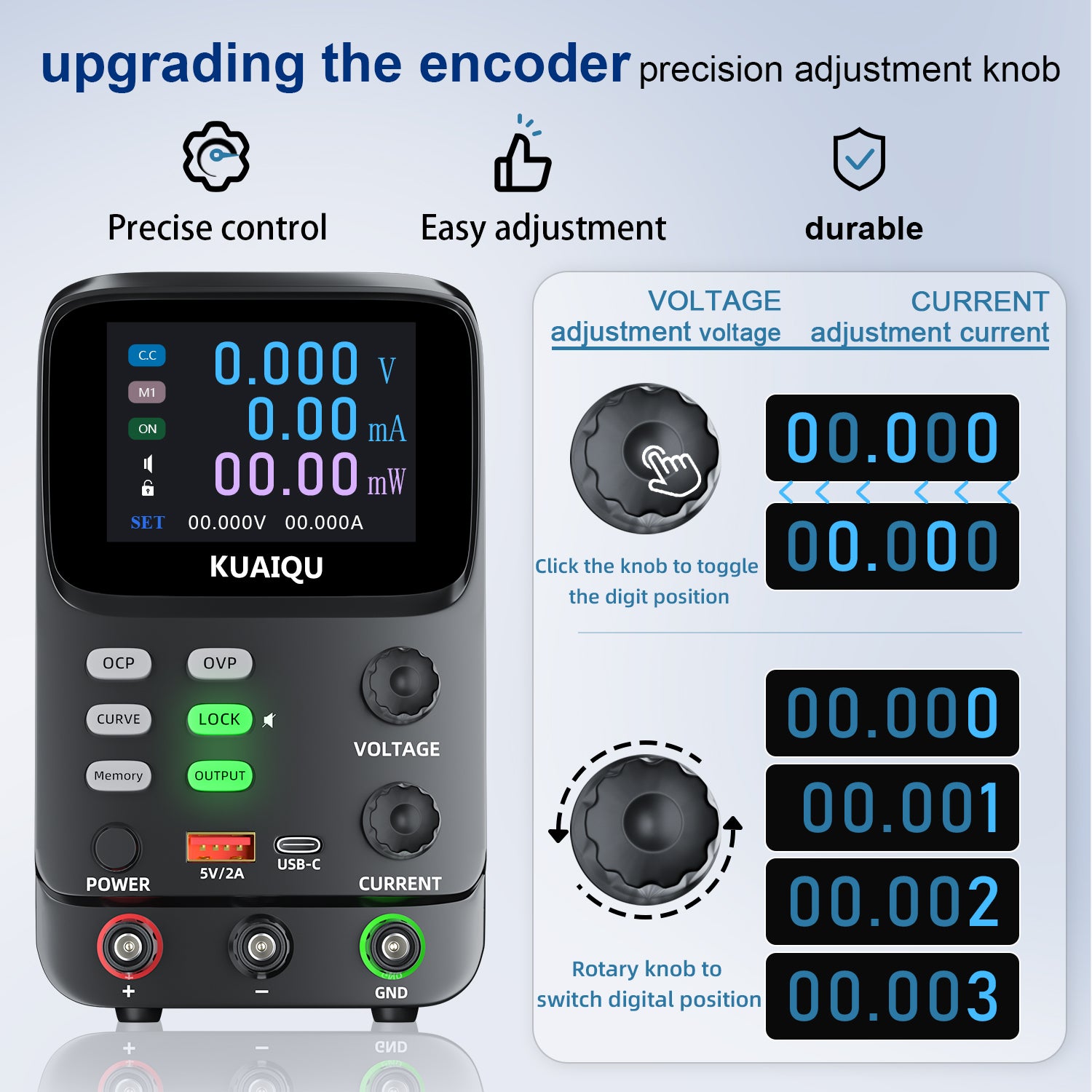

Encoder Precision Adjustment

Provides smooth and accurate voltage/current adjustment for repeatable component testing.

Output Enable Switch

Allows users to configure output parameters before powering the component under test.

Adjustable Key Tone

Supports adjustable sound feedback and mute operation for different laboratory and testing environments.

USB + Type-C Charging Ports

Provides convenient 5V/2A output for compatible electronic devices and accessories.

Intelligent Cooling System

Helps maintain stable operation during extended component testing.

✦ Applications Electronic Component Testing

  • Resistor and capacitor testing

  • Diode and LED testing

  • Transistor testing

  • Voltage regulator testing

  • Component electrical characteristic evaluation

Component Characterization

  • Leakage current measurement

  • Operating current evaluation

  • Startup behavior analysis

  • Voltage response testing

  • Electrical stability verification

R&D Laboratory Testing

  • Component comparison

  • Prototype component evaluation

  • Circuit subassembly testing

  • Electrical performance analysis

Production Testing

  • Incoming component inspection

  • Functional verification

  • Component quality control

  • Production-line electrical testing

Quality Check and Terms of Service

  • Package includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1.

  • CE & FCC Certified: The product has passed CE and FCC certification.

  • Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.

  • Customer Support: Contact us with any questions, and we'll respond within 24 hours.

Technical Specifications

Parameter SPPS-K305 Specs
Model SPPS-K305
Rated Output (0℃~40℃) 0–30V, 0–5A, 150W
USB/Type-C Output 5V/2A
Load Regulation Voltage: ≤0.01%+10mV / Current: ≤0.1%+5mA
Line Regulation Voltage: ≤0.01%+2.5mV / Current: ≤0.1%+2.5mA
Setting Resolution Voltage: 1mV / Current: 1mA
Readback Resolution Current: <20mA: 10μA
Setting Accuracy Voltage: 0.05%+10mV / Current: 0.1%+10mA
Readback Accuracy Voltage: 0.05%+10mV / Current: <20mA: 0.1%+60μA
Ripple (20Hz~20MHz) Voltage: ≤100mVp-p / 15mVrms / Current: ≤15mArms
Rise Time (No Load) ≤200mS
Fall Time (No Load) ≤3S
Input Voltage AC 220V (AC110V optional)
Net Weight 1.17KG / 2.58lb

Why Choose KUAIQU SPPS-K305?

For electronic component testing and characterization, engineers need a stable, precise, and flexible bench power supply that can provide repeatable test conditions and clearly show changes in voltage and current.

The KUAIQU SPPS-K305 combines:

✓ 0–30V / 0–5A adjustable output
✓ 150W power capability
✓ Dual voltage & current curve display
✓ 1mV voltage resolution
✓ 10μA low-current measurement
✓ 4 programmable memory presets
✓ OVP / OCP / SCP protection
✓ Precision encoder adjustment
✓ High-resolution 5-digit display

Providing an efficient testing solution for electronic component evaluation, electrical characterization, leakage current testing, prototype verification, and production inspection.

Warranty

Warranty

30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.

Please feel free to reach us with any concerns:

Email: kuaiquinstrument@163.com

We strive to reply to you within 24 hours.

Shenzhen Kuaiqu Electronic Co., Ltd. was founded in 2014 and is located in Shenzhen City, Guangdong Province. It is a scientific and technological enterprise integrating,production and sales. Specializing in the production of DC stabilized power supply, variable frequency power supply, switching power supply, program-controlled power supply and other 100 kinds of measuring teaching instruments and industrial special equipment.

We are committed to delivering premium products and exceptional customer service, striving to be your most reliable and intelligent assistant.

Price Guarantee

At KUAIQU, we are committed to providing our customers with the best value for their purchases. To ensure you always get the best price, we offer a 30-day price guarantee on all products purchased directly from kuaiquinstrument.com. This policy aims to give you confidence and peace of mind when shopping with us.

What is the 30-Day Price Guarantee?

Our 30-day price guarantee means that if you purchase a product from kuaiquinstrument.com and the price of that product drops within 30 days of your purchase date, you are eligible for a refund of the price difference of the products. (Prices are based on USD. No refunds will be given for price changes in other currencies due to exchange rate fluctuations.)

How Does the Price Guarantee Apply?

  • Eligibility: The price guarantee applies only to purchases made on kuaiquinstrument.com. Products purchased from other retailers or third-party sellers are not eligible.
  • Timeframe: The price drop must occur within 30 days of your original purchase date.
  • Product Match: The price guarantee applies to the same product (identical model, specifications, and condition).

How to Apply for a Price Difference Refund

If you notice that the price of a product you purchased from kuaiquinstrument.com has dropped within 30 days, follow these steps to apply for a refund of the price difference:

  • Documentation: Prepare your order number and proof of the price drop (such as a screenshot and link to the product page showing the reduced price).
  • Contact Us: Reach out to our customer support team at kuaiquinstrument@163.com. Include your order number, proof of the price drop, and a brief explanation of your request.
  • Verification: Our team will verify the price drop and your purchase details.
  • Refund Process: Once verified, we will process the refund for the price difference to your original method of payment. It typically takes 1-3 business days for you to receive the refund.

At KUAIQU, we strive to provide our customers with high-quality products and exceptional customer service. Our 30-day price guarantee is just one of the ways we ensure you get the best value for your investment. Shop confidently with KUAIQU, knowing that you are always getting the best deal available.

Thank you for choosing KUAIQU. If you have any questions or need further assistance, please do not hesitate to contact our customer support team at kuaiquinstrument@163.com.

FAQs

Still confused about our DC regulated power supplies after checking the FAQs? Please contact our customer service, we are ready to solve all your problems.

Use overlay text to give your customers insight into your brand. Select image and text that relates to your style and story.

Our customer service can walk you through all settings. You can also watch full operation tutorials on our YouTube channel, including OVP, OCP, memory storage function and other operation guides. Our official blog also has lots of technical articles for reference.

Partial KUAIQU power supplies support program control with USB, RS232, RS485 interfaces, based on Modbus protocol. Remote control can be realized via our self-developed PC software. If you need this function and confirm interface configuration of a model, email us: kuaiquinstrument@163.com..

The banana plug adopts cross-slot design. Pry the metal slot slightly open with a screwdriver to make the plug clamp terminals tighter and safer..

All KUAIQU DC power supplies support basic battery charging. For dedicated long-term charging, our patented battery-charging model with independent BATTERY key and full charging protection is highly recommended.

A certain amount of ripple is normal for all switching DC power supplies. Ripple is a small residual AC component superimposed on the DC output and is an inherent characteristic of switching power supply technology. The typical ripple voltage of our power supplies ranges from approximately 100 mV to 300 mV, which is suitable for most general-purpose testing, maintenance, and electronic applications.

A: Minor fluctuations in the last displayed digit are normal and are typically caused by temperature drift within the electronic components. As ambient and internal temperatures change, small variations in the readings may occur. This falls within normal industry tolerances and does not affect the power supply's suitability for everyday electronics work, home repairs, DIY projects, or general testing. For applications requiring extremely high precision and ultra-stable output, a linear DC regulated power supply may be more appropriate.

This is normal and does not indicate a malfunction. The internal capacitors continue to hold a small amount of stored energy after the power is switched off. As the capacitors discharge, the display will gradually turn off, typically within 5–8 seconds.

In CV mode, the power supply maintains a fixed output voltage while the current varies according to the load. In CC mode, the power supply limits the output current to a preset value, automatically reducing voltage if necessary. CC mode is especially useful for battery charging, LED testing, and protecting electronic components.

This is normal behavior. The power supply contains internal filter capacitors that store electrical energy. When the output voltage is reduced, these capacitors require a few seconds to discharge, causing the displayed voltage to decrease more gradually than when increasing the voltage. Q: Why does t

Contact Support

You May Also Like

Título de producto de ejemplo
De $189.00
De $189.00
Título de producto de ejemplo
De $189.00
De $189.00
Título de producto de ejemplo
De $189.00
De $189.00
Título de producto de ejemplo
De $189.00
De $189.00
Título de producto de ejemplo
De $189.00
De $189.00
Título de producto de ejemplo
De $189.00
De $189.00
Título de producto de ejemplo
De $189.00
De $189.00
Título de producto de ejemplo
De $189.00
De $189.00
Título de producto de ejemplo
De $189.00
De $189.00
Título de producto de ejemplo
De $189.00
De $189.00

Recently Viewed Products

FAQs

If you have any other questions or technical doubts about our DC power supplies, please feel free to contact us anytime. Our professional support team will reply to you as soon as possible.

Output ripple refers to small residual AC fluctuations present in the DC output. Lower ripple levels provide cleaner power, which is important when testing sensitive electronics, RF circuits, audio equipment, and precision instruments.

Yes, all DC regulated power supplies manufactured by KUAIQU support battery charging. However, if you mainly intend to charge batteries, I would highly recommend our patented DC power supply specially designed for battery charging. It comes with an exclusive dedicated BATTERY function key, and built-in specialized charging protection functions to safeguard your batteries during the whole charging process..

This is normal behavior. The power supply contains internal filter capacitors that store electrical energy. When the output voltage is reduced, these capacitors require a few seconds to discharge, causing the displayed voltage to decrease more gradually than when increasing the voltage..

This is normal and does not indicate a malfunction. The internal capacitors continue to hold a small amount of stored energy after the power is switched off. As the capacitors discharge, the display will gradually turn off, typically within 5–8 seconds..

This is a common operation issue for adjustable DC power supplies. Please follow the steps below to solve the voltage adjustment failure: Turn the current adjustment knob clockwise moderately to set the unit to constant voltage (C.V) mode; After confirming the power supply enters CV mode, turn the voltage adjustment knob clockwise, then you can freely adjust the output voltage value..

It is recommended to pre-adjust the voltage to around 5V before operation. This step prevents spark generation when connecting short-circuited loads, which effectively avoids safety accidents and other hidden electrical hazards..

A: Our banana plug adopts cross-slot design. If the plug becomes loose, use a screwdriver to slightly pry open the metal slot, which can make the plug clamp tighter and connect more safely..

Some models of our KUAIQU DC regulated power supplies support programmable control. They are equipped with USB, RS232 or RS485 communication interfaces and adopt the Modbus protocol. You can realize remote control easily by using our self-developed PC software. If you need programmable control but are unsure whether a specific model comes with your required communication interface, please feel free to contact us via email: kuaiquinstrument@163.com.

If you have any confusion about using OVP, OCP and other built-in functions, our professional customer support staff will provide targeted guidance for you. We also upload complete step-by-step tutorial videos on our official YouTube channel. Apart from OVP and OCP over-protection setup, the videos demonstrate memory storage function and all common operation skills. You can visit our channel via https://www.youtube.com/ In addition, our official blog contains a large number of popular science and technical articles about DC power supplies, you can search and browse related content to solve your problems.

In CV mode, the power supply maintains a fixed output voltage while the current varies according to the load. In CC mode, the power supply limits the output current to a preset value, automatically reducing voltage if necessary. CC mode is especially useful for battery charging, LED testing, and protecting electronic components.

Contact Support
