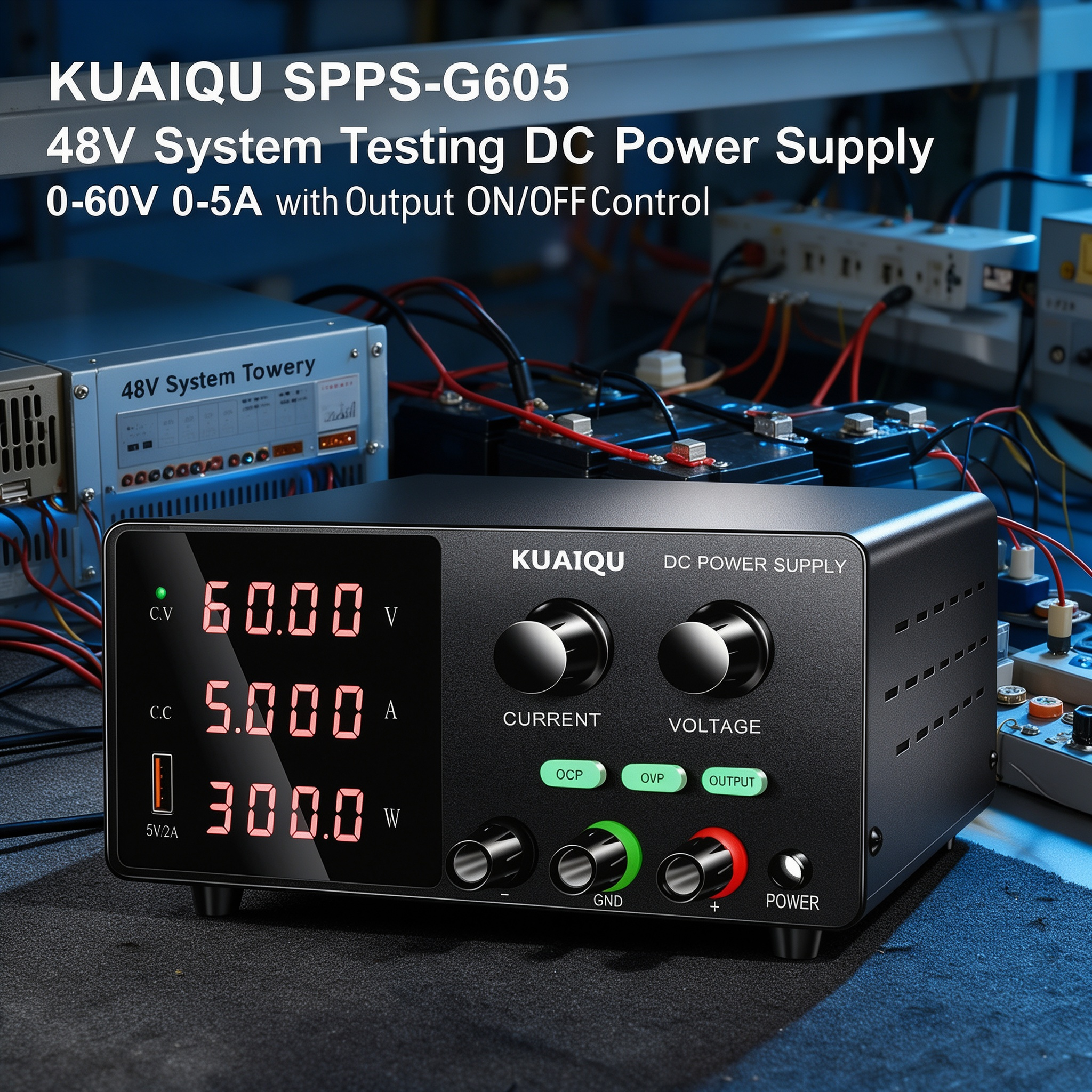

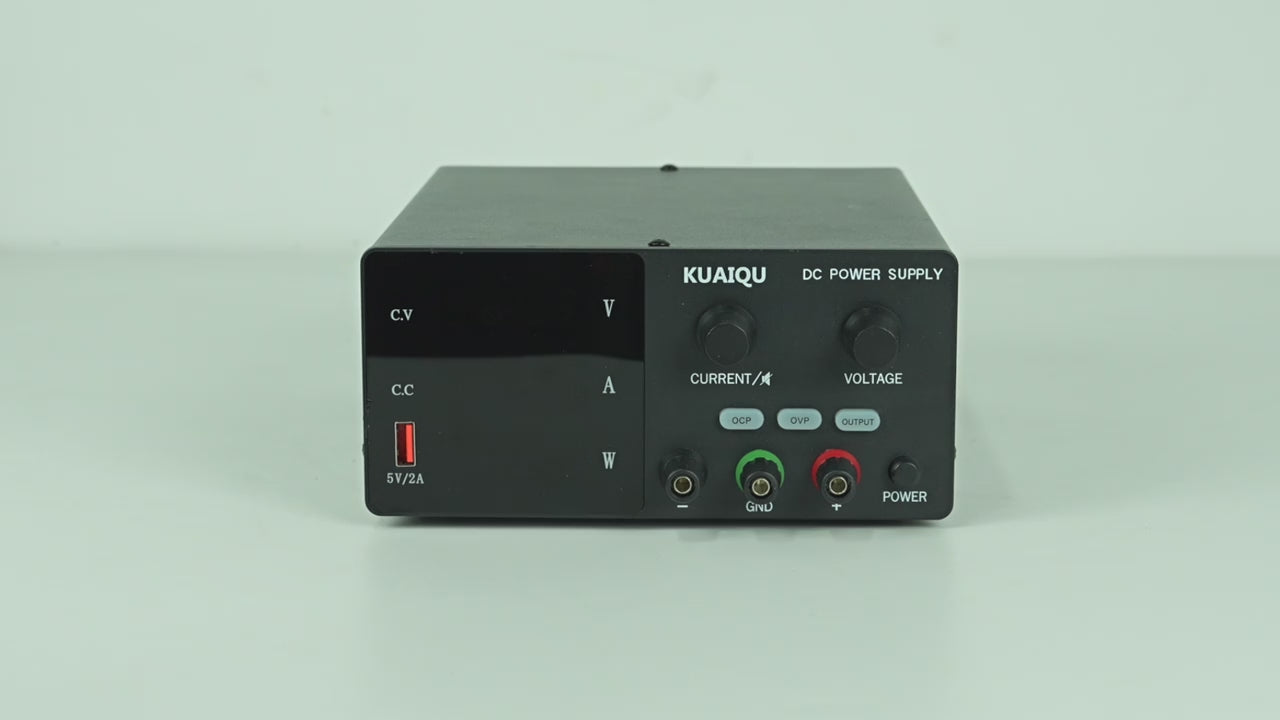

KUAIQU SPPS-G605 60V 5A 300W
48V System Testing DC Power Supply with
Output ON/OFF Control
The KUAIQU SPPS-G605 is a 48V System Testing DC Power Supply designed to provide adjustable and controlled DC power for compatible 48V electronic systems, modules, and low-voltage power applications. With a 0-60V adjustable voltage range, up to 5A output current, and 300W maximum power capacity, it provides flexible DC power conditions for system evaluation and bench testing within its rated specifications.
During 48V System Testing, engineers need reliable voltage adjustment, convenient output management, and clear monitoring of electrical parameters when evaluating different system conditions. The SPPS-G605 features encoder-based voltage and current adjustment, independent Output ON/OFF Control, real-time voltage, current, and power display, as well as OCP and OVP protection functions to support controlled testing operations.
Key Features
0-60V Adjustable DC Output for 48V System Testing
The SPPS-G605 provides a 0-60V adjustable output range, allowing users to configure suitable DC power conditions for compatible 48V systems and related electronic equipment. The adjustable voltage capability supports different test requirements within the rated output range.
Up to 5A Current Output with 300W Power Capacity
With up to 5A output current and 300W maximum power, the SPPS-G605 provides practical power support for compatible 48V system components and electronic devices. Users can adjust output parameters according to different testing conditions and connected loads.

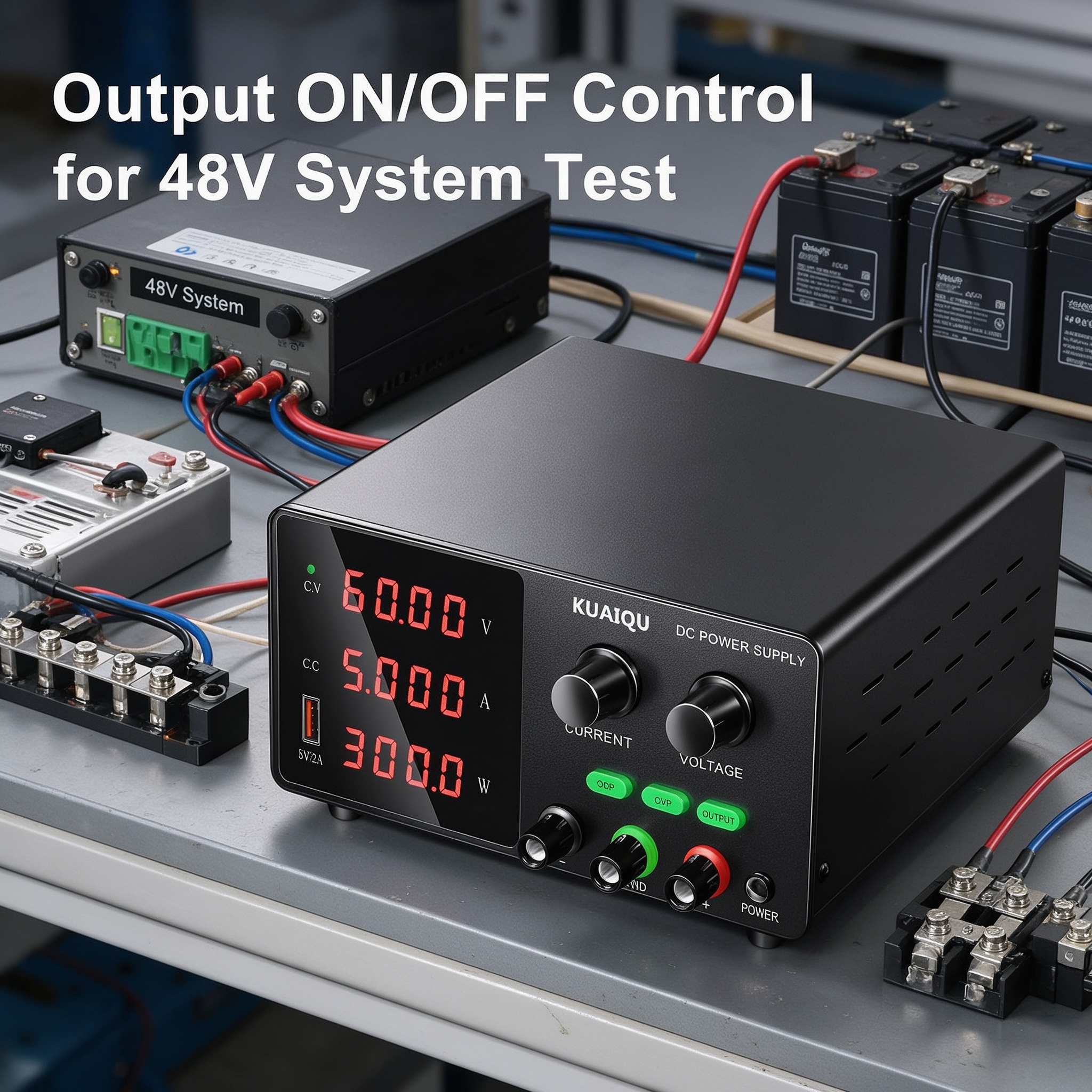

Output ON/OFF Control for Safer Test Preparation
The independent Output ON/OFF Control allows users to set voltage and current parameters before supplying power to the connected system. This helps improve the testing workflow when connecting, adjusting, or replacing compatible 48V electronic equipment.
Encoder Adjustment for Voltage and Current Control
The encoder knob provides convenient adjustment of voltage and current settings during testing. With 10mV voltage setting resolution and 1mA current setting resolution, users can configure output parameters more precisely for different 48V system evaluation requirements.

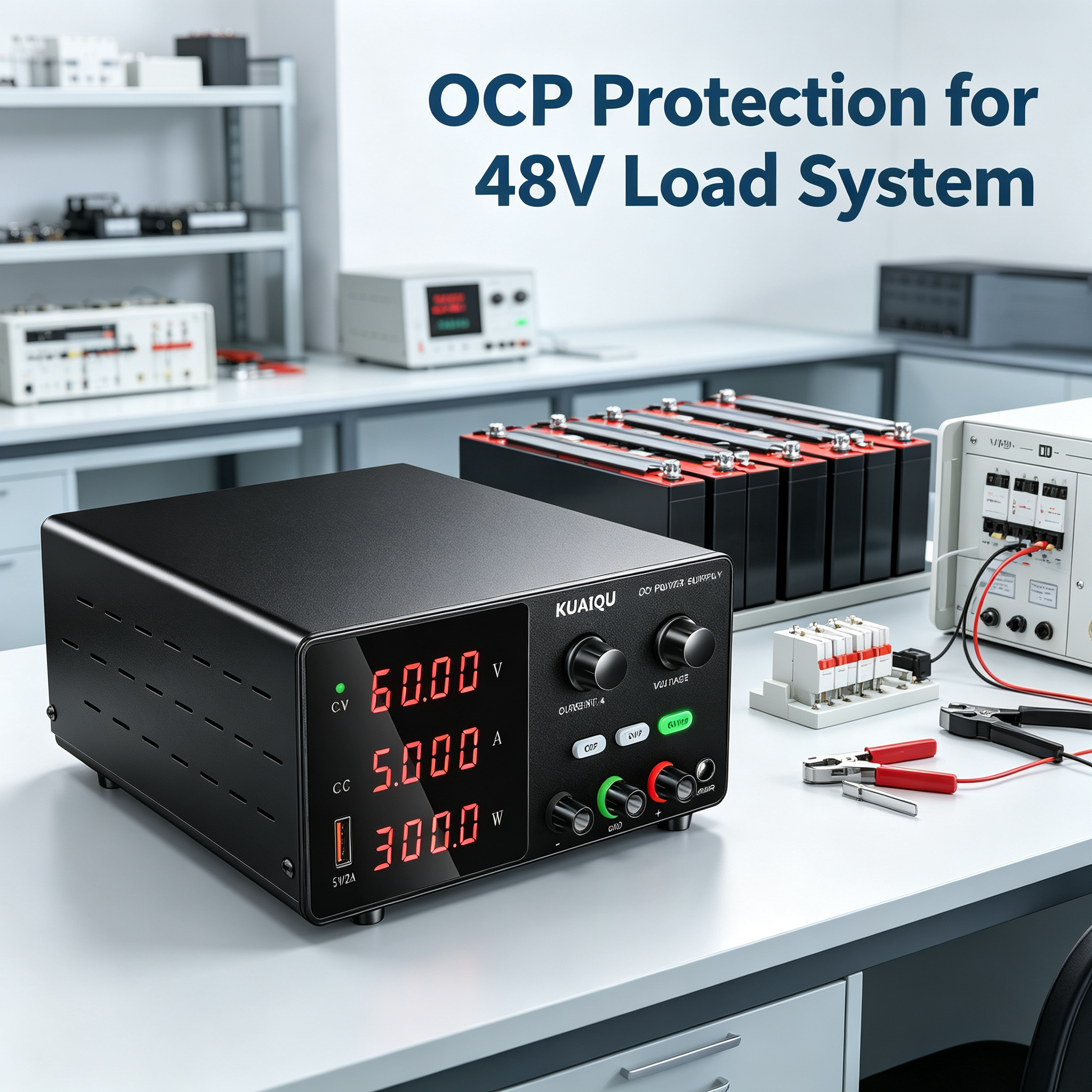

OCP and OVP Protection for System Testing
The SPPS-G605 includes Over Current Protection (OCP) and Over Voltage Protection (OVP) functions to provide additional protection during testing. These protection functions help reduce risks caused by abnormal voltage or current conditions when powering compatible electronic systems.

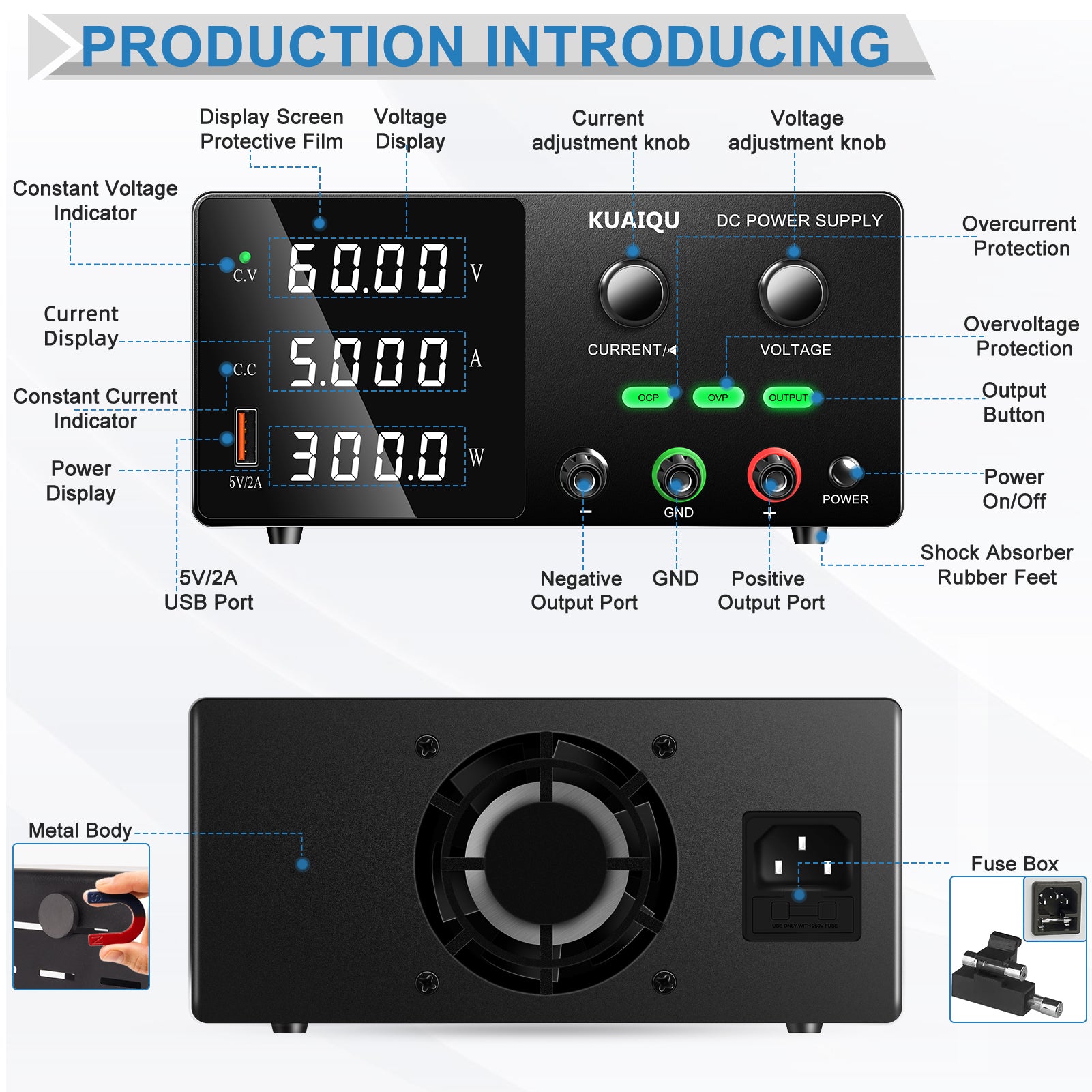

4-Digit Display for Real-Time Parameter Monitoring
The built-in display shows voltage, current, and power values in real time. During 48V System Testing, users can monitor output conditions and observe changes in connected loads directly from the power supply.
Regulated DC Output for Stable Testing Conditions
The SPPS-G605 provides regulated DC output with specified load regulation, line regulation, and ripple performance. This helps maintain controlled power conditions during normal operation and compatible system evaluation.
Adjustable Buzzer Function
The encoder knob includes buzzer feedback, and the buzzer can be muted according to different working environments.
USB 5V/2A Output
The SPPS-G605 includes a USB 5V/2A output for compatible auxiliary devices and basic power requirements at the testing workstation.
Applications
48V System Testing
The SPPS-G605 provides adjustable DC power for evaluating compatible 48V systems, electronic modules, and related low-voltage power equipment within the specified output range.
48V Electronic Module Evaluation
The adjustable voltage and current output support bench testing of compatible 48V electronic modules that require controlled DC power input.
Low-Voltage Power System Testing
The DC Power Supply can provide adjustable output conditions for testing compatible low-voltage power systems and electronic assemblies.
Power Device Functional Testing
Users can adjust output parameters and monitor voltage, current, and power during functional evaluation of compatible power-related devices.
Laboratory and Workshop Testing
The SPPS-G605 is suitable for laboratory and workshop environments requiring an adjustable 60V DC power source for compatible electronics testing applications.
Quality Check and Terms of Service

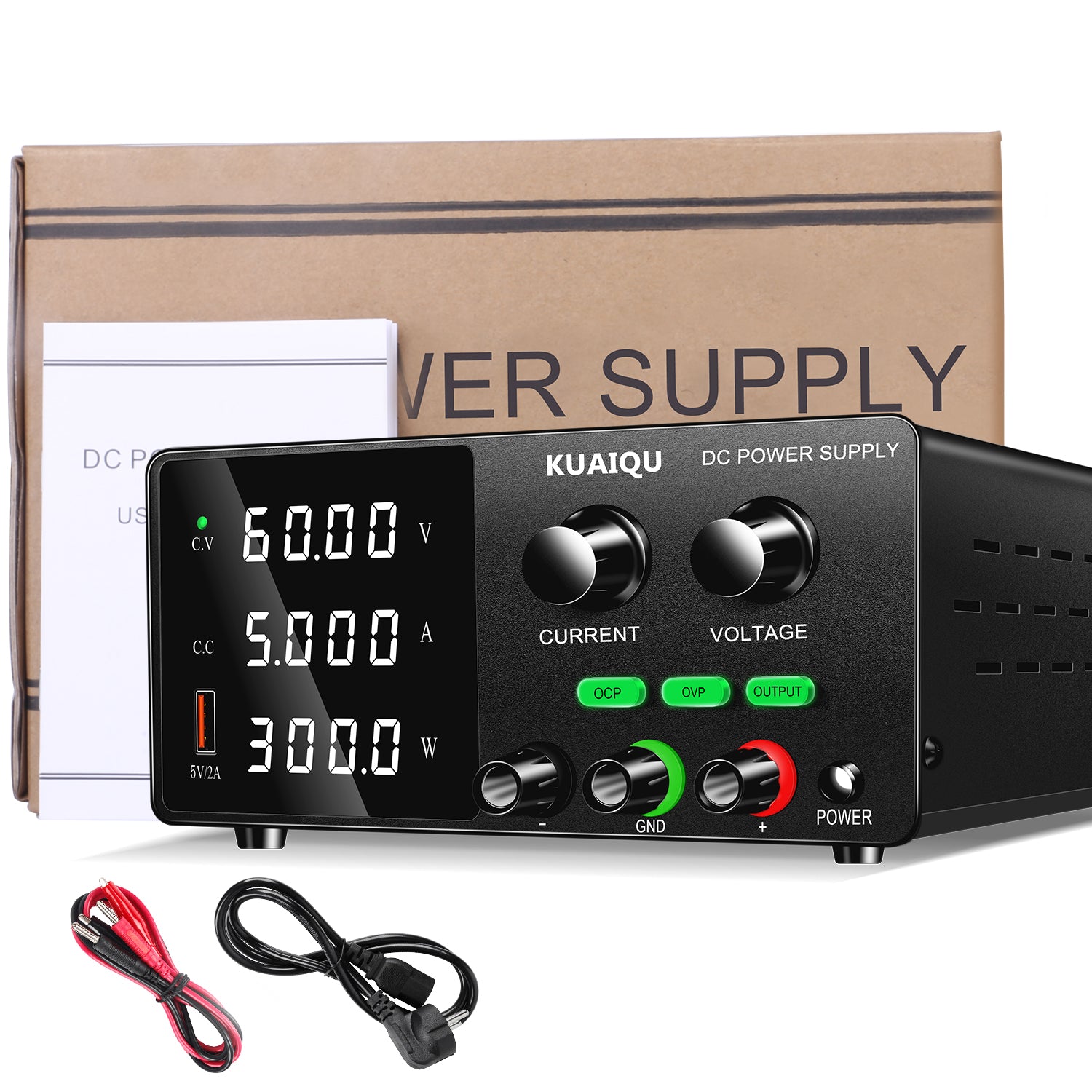

Package Includes
Each KUAIQU SPPS-G605 48V System Testing DC Power Supply package includes the necessary accessories for normal operation.
-
DC Power Supply ×1
-
Output Power Cord ×1
-
Input Power Cord ×1
-
User Manual ×1
-
Warranty Card ×1
CE & FCC Certification
The SPPS-G605 DC Power Supply is manufactured with high-quality electronic components and is FCC and CE certified to provide reliable and stable performance for compatible testing applications.
Inspection Before Shipment
All DC power supplies and accessories are inspected before shipment to help ensure proper operation and product quality.
Customer Support within 24 Hours
If you have any questions about the product, operation, or specifications, please contact us. KUAIQU customer support will respond within 24 hours.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Value (0°C~40°C) | |
| Voltage | 0-60V |
| Current | 0-5A |
| Power | 300W |
| USB Output | 5V/2A |
| Load Regulation | |
| Voltage | ≤0.3% + 10mV |
| Current | ≤0.1% + 2.5mA |
| Line Regulation | |
| Voltage | ≤0.01% + 2.5mV |
| Current | ≤0.1% + 2.5mA |
| Setting Resolution | |
| Voltage | 10mV |
| Current | 1mA |
| Readback Resolution | |
| Voltage | 10mV |
| Current | 1mA |
| Setting Accuracy | |
| Voltage | ≤0.01% + 15mV |
| Current | ≤0.01% + 10mA |
| Readback Accuracy | |
| Voltage | ≤0.01% + 15mV |
| Current | ≤0.01% + 10mA |
| Ripple (20Hz~20MHz) | |
| Voltage | ≤200mVp-p / ≤20mVrms |
| Current | ≤20mArms |
| Rise Time (No Load) | ≤200ms |
| Rise Time (Full Load) | ≤300ms |
| Fall Time (No Load) | ≤20s |
| Fall Time (Full Load) | ≤300ms |
| Dynamic Response | ≤200ms |
| Efficiency | ≥85% |
| Input Voltage | AC220V (AC110V optional) |

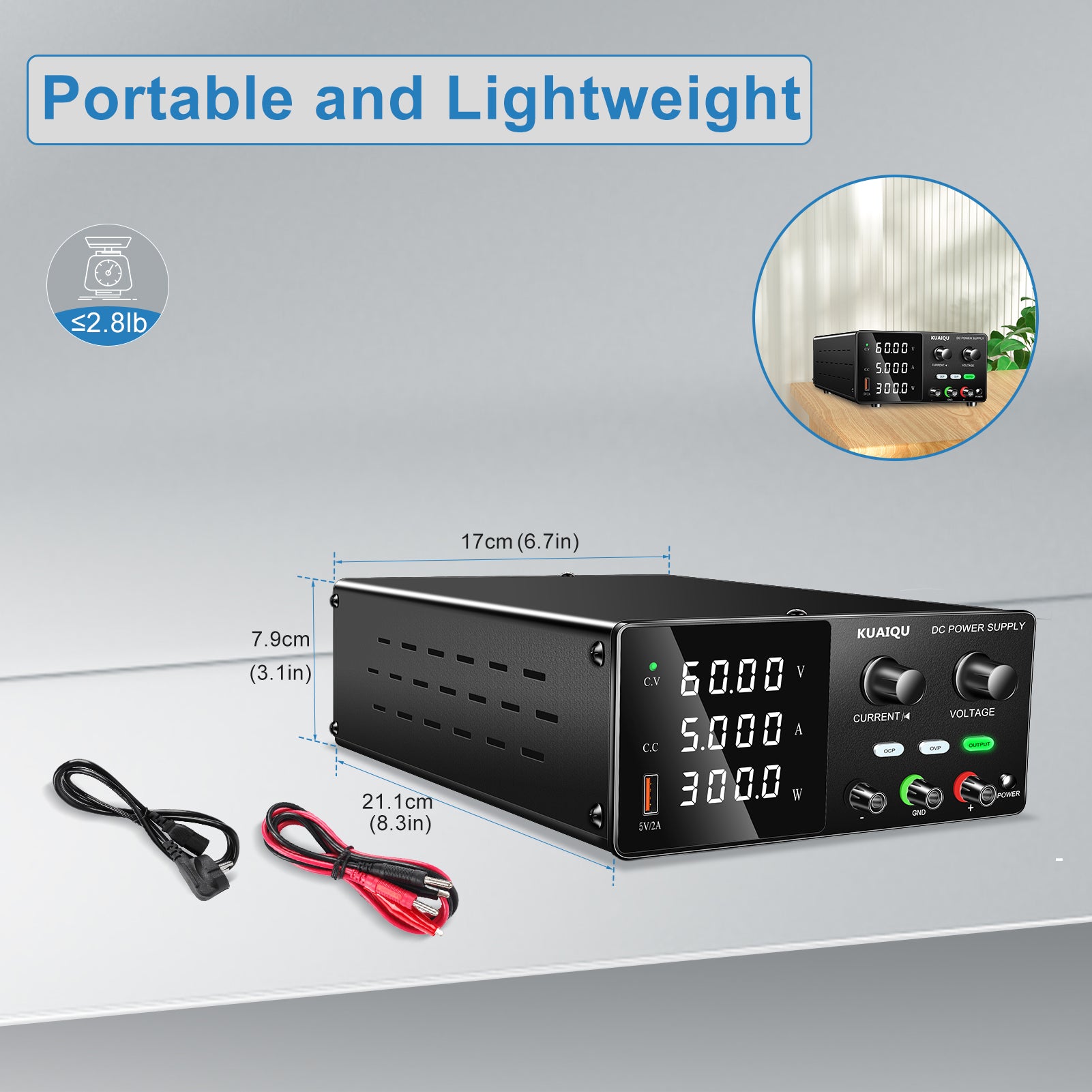

| Size / Net Weight | Approx. 21 × 17 × 8 cm / 1.3 kg |
| Package Size / Weight | Single unit: 31 × 12.5 × 22 cm / 1.72 kg |
| Carton Quantity | 8 pcs / carton |
Why Choose KUAIQU SPPS-G605?
The KUAIQU SPPS-G605 combines 0-60V adjustable output, 5A current capability, 300W power capacity, Output ON/OFF Control, encoder adjustment, and OCP/OVP protection to provide a practical DC power solution for 48V System Testing.
Its adjustable voltage and current control allow users to configure different power conditions for compatible 48V systems, while the real-time voltage, current, and power display provides convenient monitoring during testing. The independent output control helps users prepare test parameters before applying power to connected equipment.
With regulated DC output performance, protection functions, and flexible adjustment capability, the SPPS-G605 is suitable for compatible 48V system evaluation, electronic module testing, low-voltage power applications, and laboratory bench testing.
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
