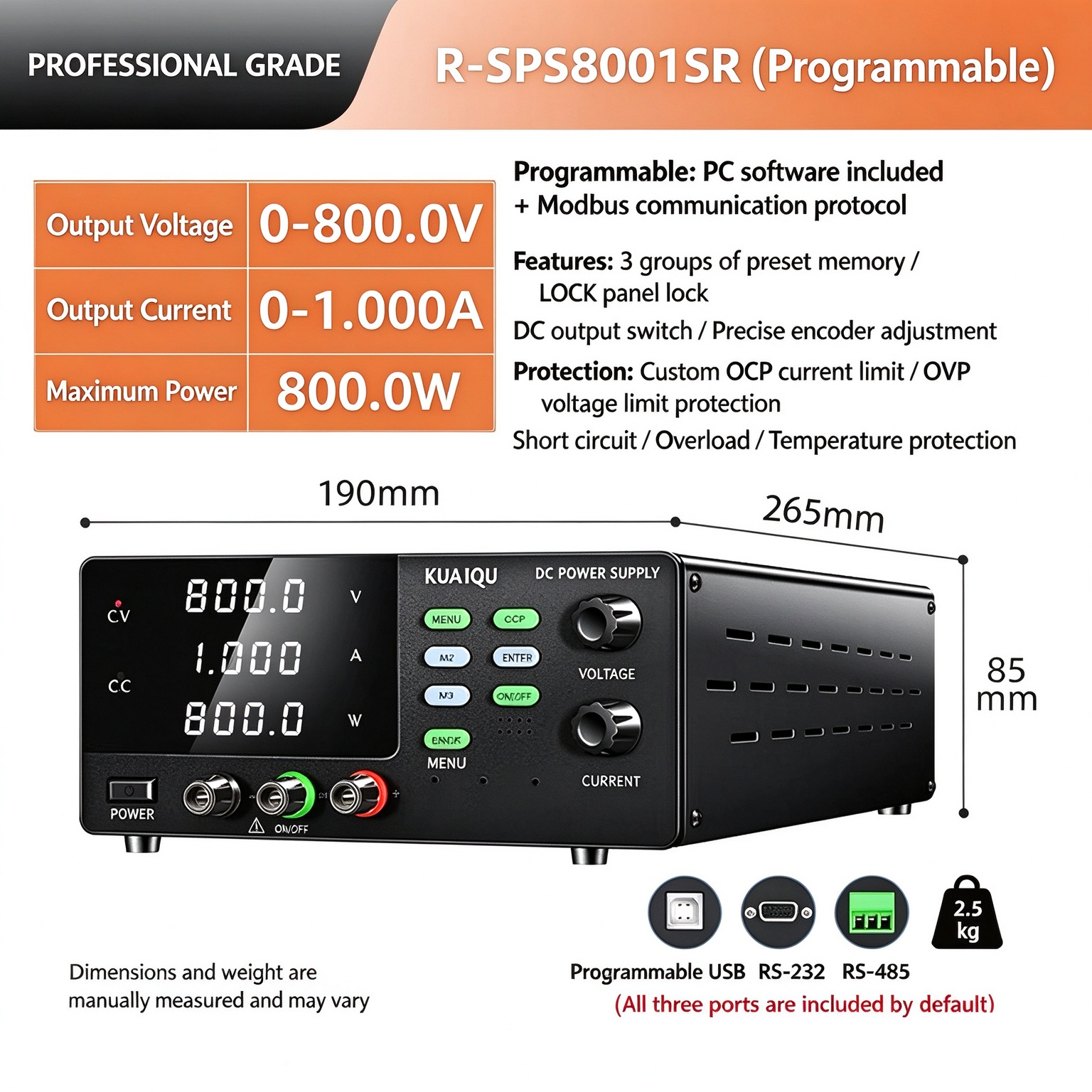

Model: R-SPS8001S (0-800V 0-1A) R-SPS8001S (0-800V 0-1A) R-SPS8001SR (0-800V 0-1A)

Variantes de producto

Cantidad:

Total parcial: $589.99

10 Los clientes están viendo este producto.

Descuentos en toda la tienda

Spend $200+ for 5% OFF | $400+ for 8% OFF | $800+ for 10% OFF. Discounts will be automatically deducted at checkout.

Envío gratis

We offer a 30-day price guarantee: if the price of your purchased item drops within 30 days, we will refund the price difference.

Devoluciones gratuitas

30-Day return and refund guarantee refer to our refund policy.

KUAIQU R-SPS8001S 800V EV Charging Power Supply,1A 800W Adjustable High Voltage DC Power Supply for EV Charging Infrastructure

$589.99

Elige opciones

Cantidad:

KUAIQU R-SPS8001S 800V EV Charging Power Supply,1A 800W Adjustable High Voltage DC Power Supply for EV Charging Infrastructure

$589.99

Input Voltage: AC220V(±10%) AC220V(±10%) AC110V(±10%)

Model: R-SPS8001S (0-800V 0-1A) R-SPS8001S (0-800V 0-1A) R-SPS8001SR (0-800V 0-1A)

Variantes de producto

Detalles del producto
Garantía
Garantía de precio

Detalles del producto

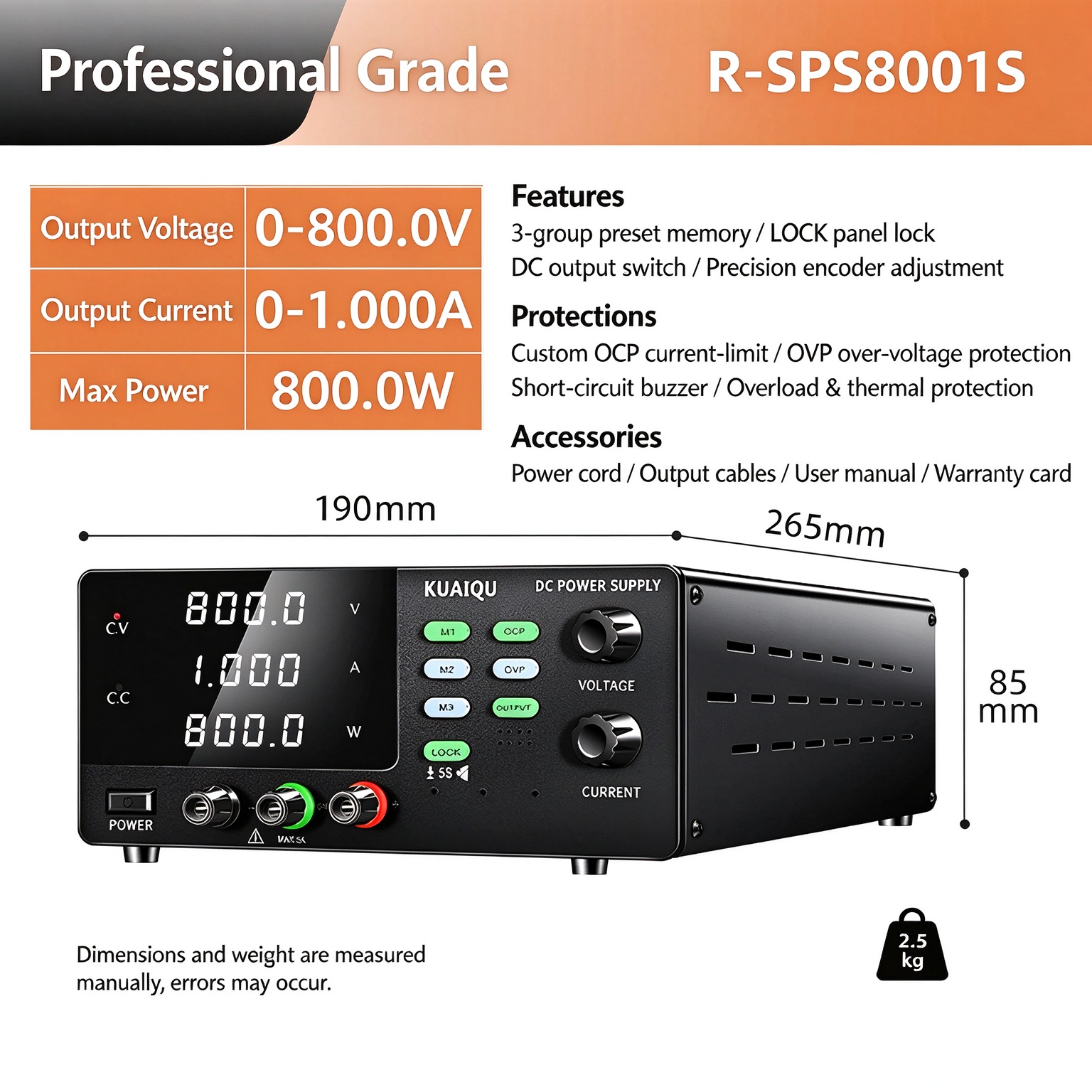

KUAIQU R-SPS8001S 800V EV Charging Power Supply,1A 800W Adjustable High Voltage DC Power Supply for EV Charging Infrastructure

Description

The KUAIQU R-SPS8001S 800V EV Charging Power Supply delivers adjustable 0–800V DC, 0–1A output and up to 800W power for EV charging infrastructure, 800V electric vehicle systems, charging equipment and high-voltage charging module development. As an 800V programmable DC power supply, it provides a controlled high-voltage DC source for charging-system development, DC bus evaluation and EV power electronics, with stable regulated output, digital monitoring, memory presets and multiple protection functions.

Key Features

800V Programmable High Voltage DC Output – Adjustable 0–800V and 0–1A output provides a controllable 800V DC power source for high-voltage EV system development.
800V EV Charging Power Supply – Designed around 800V EV charging systems, charging equipment development and high-voltage charging infrastructure applications.
EV Charging Infrastructure Development – Provides a programmable DC source for evaluating EV charging equipment, charging modules and high-voltage power architectures.
High-Voltage DC Input Simulation – The adjustable 800V output can simulate controlled high-voltage DC input conditions during charging-system development.
800V DC Bus Development – Suitable for 800V DC bus systems and high-voltage DC power architecture development.
4-Digit Digital Display – Clearly displays operating parameters for convenient voltage and current monitoring during EV power-system development.
Three Memory Presets – Save frequently used operating parameters for repeatable charging equipment and power module development.
Stable Regulated DC Output – Provides controlled output for EV power electronics and high-voltage DC development applications.
Output ON/OFF Control – Enables convenient control of the DC output during setup and equipment evaluation.
Comprehensive Protection – OVP, OCP, short-circuit and external circuit protection help protect the power supply and connected equipment.
800W High Voltage Bench Power Supply – Provides a compact programmable source for engineering laboratories and EV charging development environments.

Application

800V EV Charging Systems – Development and evaluation of high-voltage electric vehicle charging architectures.
EV Charging Equipment – Controlled DC input source for EV charger development and charging equipment engineering.
EV Charging Modules – Provides adjustable high-voltage DC power for charging module development and evaluation.
DC Fast Charging Development – Suitable for high-voltage DC source requirements in DC fast charging system development.
800V DC Bus Development – Supports development and validation of 800V DC bus systems used in high-voltage EV power architectures.
EV Power Electronics – Provides a programmable 800V DC power supply for power electronics development associated with electric vehicle systems.
Charging Infrastructure R&D – Supports controlled DC source requirements during charging infrastructure development and equipment evaluation.

Specifications

Specification	R-SPS8001S
Output Voltage	0-800V
Output Current	0-1A
Max Power	800W
Working Temperature	-10°C ~ 40°C
Storage Temperature	-20°C ~ 80°C
Relative Humidity	≤80% RH
Voltage Stability	≤0.5% +20mV
Load Stability (CV)	≤0.5% +2mV
Ripple Noise (CV)	≤1%
Current Stability	≤0.5% +30mA
Load Stability (CC)	≤0.5% +30mA
Ripple Noise (CC)	≤1%
Display Accuracy	1% +4 digits
Display Resolution	1V / 0.001A
