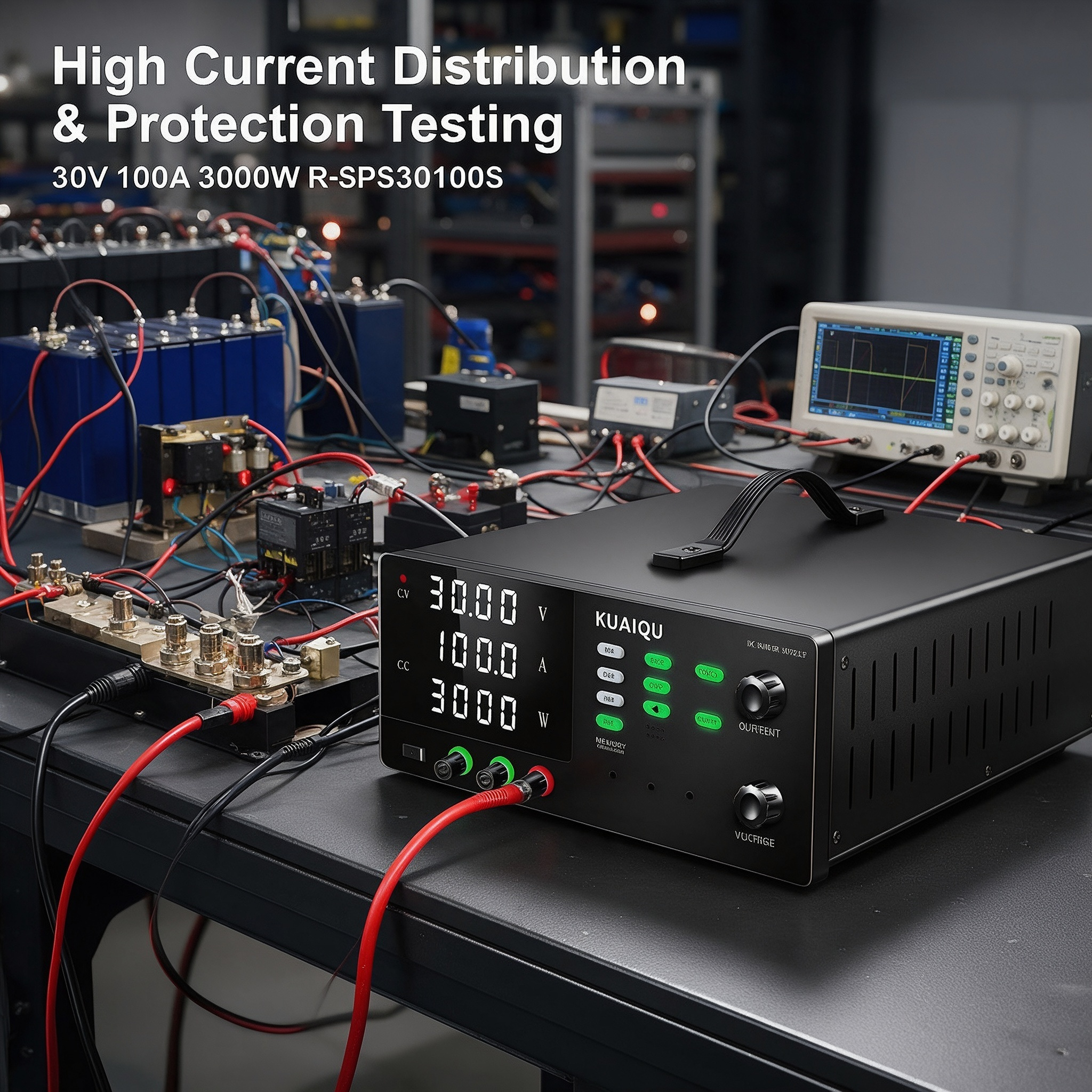

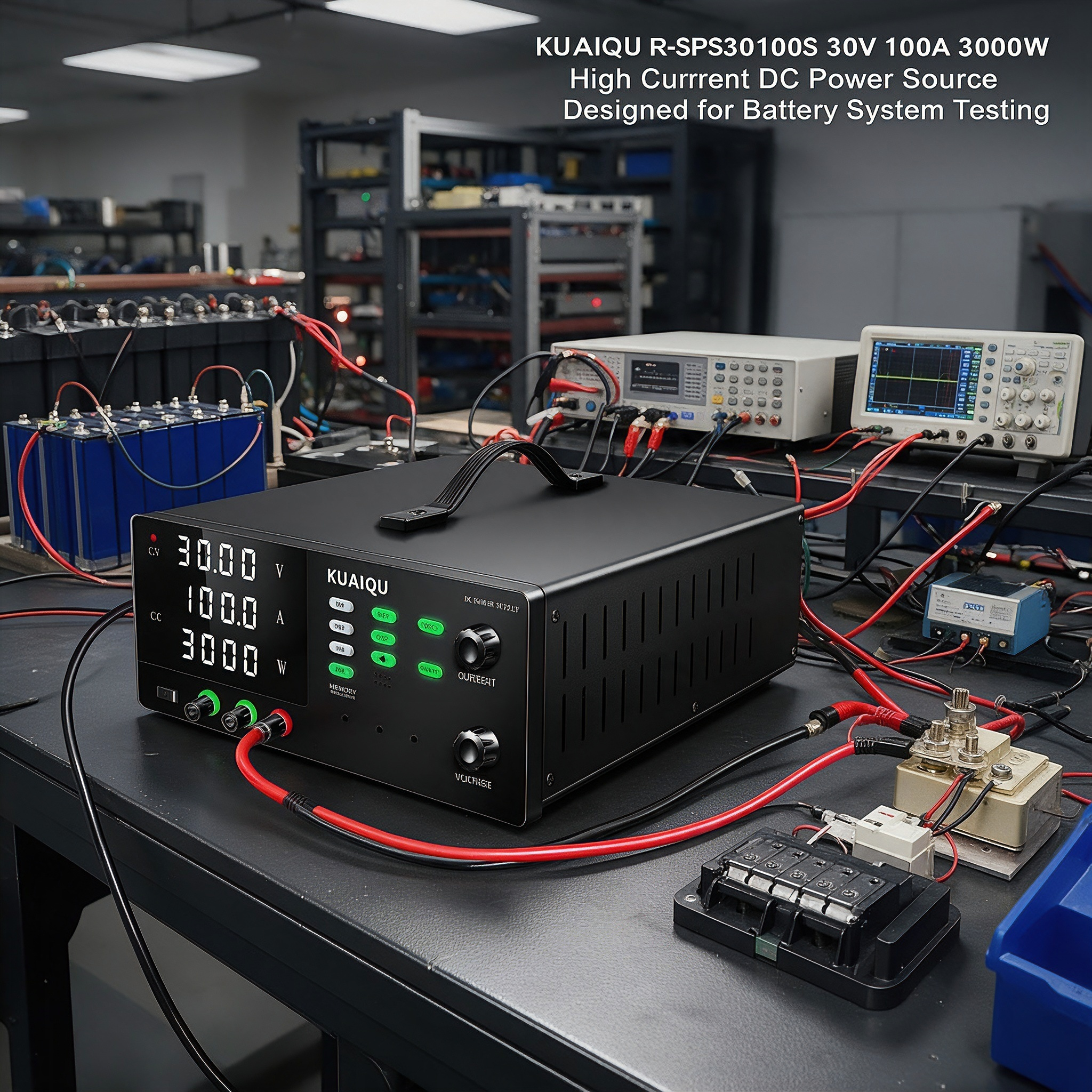

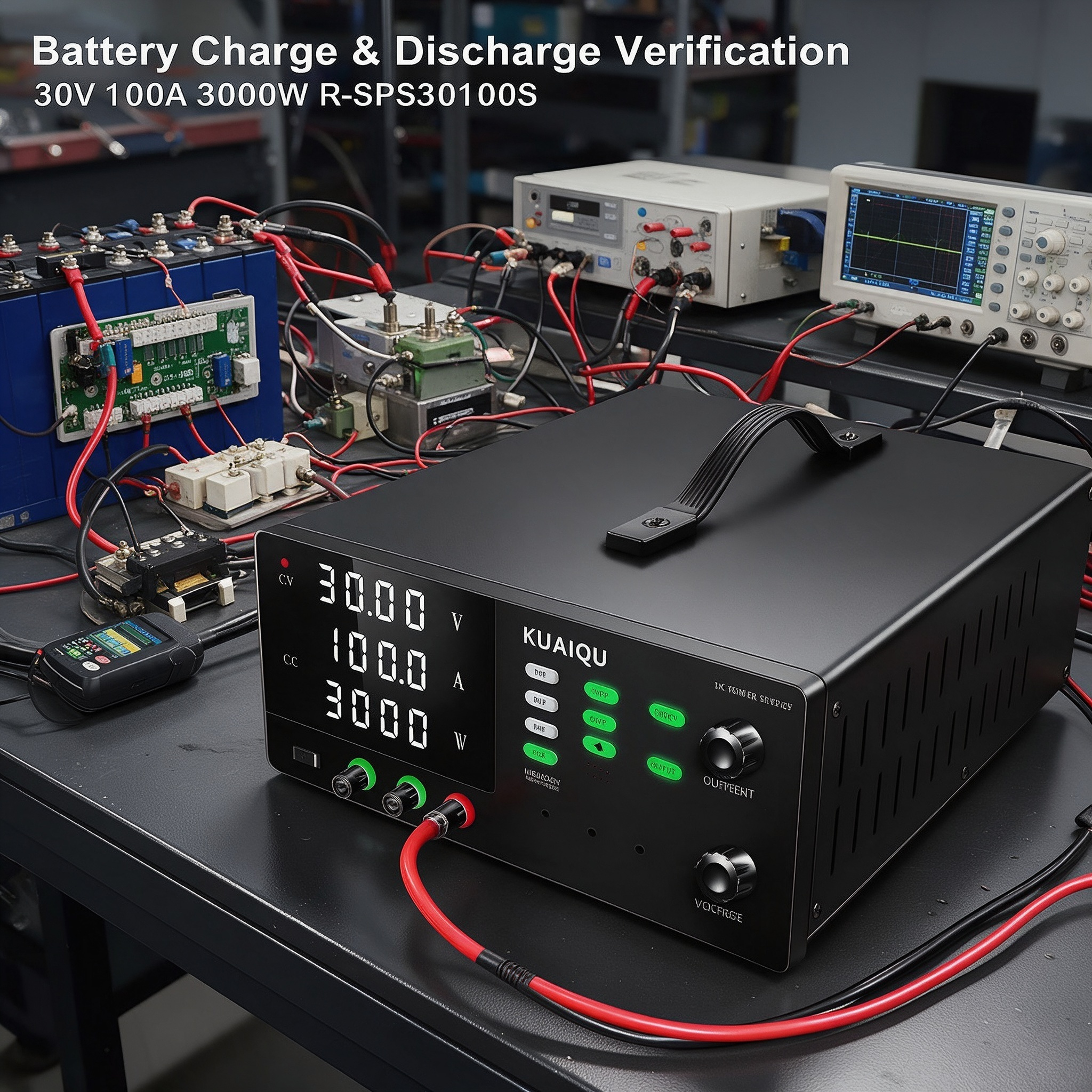

KUAIQU R-SPS30100S 30V 100A 3000W
High Current DC Power Source Designed
for Battery System Testing
The KUAIQU R-SPS30100S is a high-current DC Power Source designed for Battery System Testing, battery system development, and high-current DC equipment evaluation. With a 0-30V adjustable output, up to 100A current, and 3000W maximum output power, it provides a high-current DC source for battery systems and related test setups operating within its rated voltage range.
For Battery System Testing, the required power conditions can vary between different battery systems, test configurations, and operating stages. The R-SPS30100S allows users to adjust voltage and current according to the required test condition, monitor voltage, current, and power directly through the four-digit display, and control output activation with the Output ON/OFF function. CC/CV operation, OCP, OVP, precision encoder adjustment, M1-M4 memory, panel lock, and rear high-current output provide practical control for high-current battery system test setups.
Key Features
0-30V Adjustable DC Output for Battery System Testing
The 0-30V adjustable DC output provides flexible voltage control for battery systems and related equipment operating within the supply's rated voltage range. Users can establish different DC voltage conditions instead of being limited to a fixed output value.
100A High Current Output for Battery System Test Setups
The R-SPS30100S provides up to 100A output current, making it suitable for battery system test setups that require substantially higher current than conventional bench power supplies can provide.
3000W Power Capacity for High Current Battery Testing
With a maximum output power of 3000W, the R-SPS30100S provides a high-power DC source for battery system testing and related high-current DC equipment evaluation within its rated output range.
CC and CV Operation for Controlled Test Conditions
The Constant Current and Constant Voltage operating modes allow users to establish controlled DC output conditions according to the requirements of the battery system test setup.
Precision Encoder for Voltage and Current Adjustment
The precision encoder provides direct adjustment of voltage and current settings, allowing users to establish the required test conditions before applying power to the battery system test setup.
Four-Digit Voltage, Current, and Power Display
The four-digit display provides direct readback of voltage, current, and power, allowing users to monitor the electrical output condition during Battery System Testing.
OCP and OVP Protection for High Current Test Setups
Built-in Over Current Protection and Over Voltage Protection provide protection functions for abnormal current and voltage conditions during battery system testing.
M1-M4 Memory for Repeated Battery Test Conditions
The M1-M4 four-group memory function allows frequently used voltage and current settings to be stored and recalled, helping users repeat established battery system test conditions more efficiently.
Output ON/OFF for Controlled Power Application
The Output ON/OFF function allows users to control when DC power is delivered to the test setup after the required voltage and current parameters have been established.
Panel Lock for Stable Test Settings
The panel lock function helps prevent unintended changes to voltage and current settings after the required battery system test parameters have been established.
Rear High-Current Output for 100A Applications
The rear high-current output provides the appropriate connection for high-current applications requiring the full rated output capability of the R-SPS30100S.

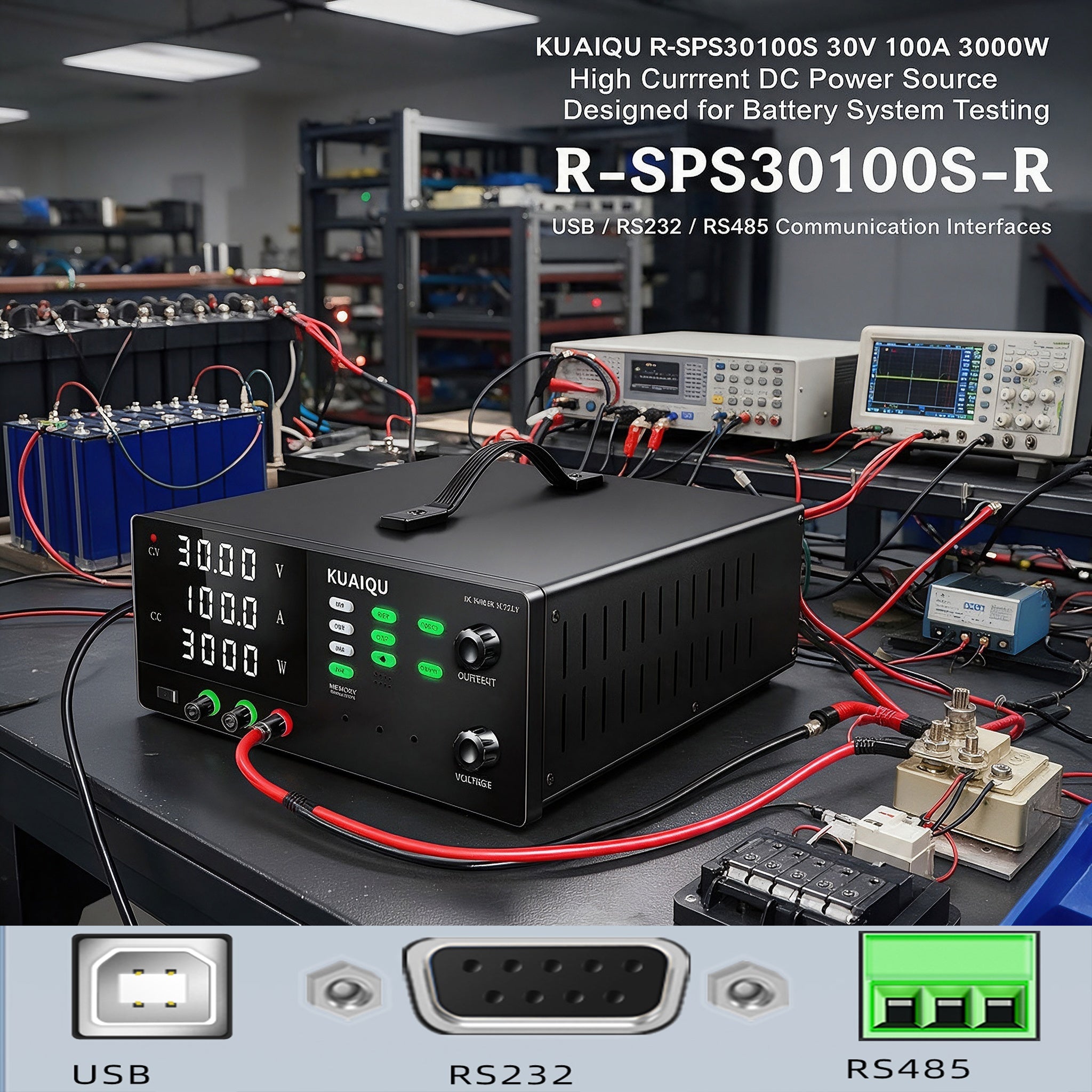

USB, RS232, and RS485 Communication Interfaces
The current product configuration includes USB, RS232, and RS485 communication interfaces, providing communication options for compatible equipment and test environments.
Applications
Battery System Testing
The R-SPS30100S provides adjustable high-current DC power for testing battery systems and related equipment operating within the 0-30V output range.
High Current Battery Testing
The 100A maximum current capability supports battery system test setups where high current is required to establish demanding DC operating conditions.
Battery System Power Condition Evaluation
The adjustable voltage and current output allows engineers to establish different DC power conditions when evaluating battery system operation within the rated output range.
Battery System Startup Testing
The adjustable output and Output ON/OFF control provide direct control over power application when testing battery system startup conditions.
Battery System Operating Condition Testing
The R-SPS30100S can provide controlled DC power while users evaluate battery system operation under different voltage and current settings.
Battery Pack Test Setup Development
The high-current DC output can be used as a power source within compatible battery pack test setups that operate within the R-SPS30100S voltage and power range.
Battery Related Equipment Testing
The 0-30V, 100A, and 3000W output capability provides a high-current DC source for compatible battery-related equipment and electrical test setups.
High Power Battery Test Bench
The 3000W output capacity makes the R-SPS30100S suitable for high-power battery test benches where substantial DC current is required.
Repeated Battery System Testing
The M1-M4 memory function allows frequently used voltage and current settings to be recalled for repeated battery system test conditions.
Battery System Laboratory Testing
The combination of adjustable DC output, CC/CV operation, high current capability, V/I/P display, OCP, OVP, and memory provides a practical DC power source for laboratory battery system evaluation.
Quality Check and Terms of Service:
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
R-SPS30100S |
| Product Type |
High Current DC Power Source |
| Application |
Battery System Testing |
| Output Voltage |
0-30V |
| Output Current |
0-100A |
| Output Power |
3000W |
| Operating Mode |
CC / CV |
| Load Regulation Voltage |
≤0.1% + 10mV |
| Load Regulation Current |
≤0.1% + 2.5mA |
| Line Regulation Voltage |
≤0.01% + 2.5mV |
| Line Regulation Current |
≤0.1% + 2.5mA |
| Setting Resolution Voltage |
10mV |
| Setting Resolution Current |
10mA |
| Readback Resolution Voltage |
10mV |
| Readback Resolution Current |
10mA |
| Setting Accuracy Voltage |
≤0.05% + 10mV |
| Setting Accuracy Current |
≤0.01% + 10mA |
| Readback Accuracy Voltage |
≤0.05% + 10mV |
| Readback Accuracy Current |
≤0.01% + 10mA |
| Ripple Voltage |
≤3500mVp-p / ≤1200mVrms |
| Ripple Current |
≤200mArms |
| Ripple Test Range |
20Hz-20MHz |
| Rise Time, No Load |
≤100ms |
| Rise Time, Full Load |
≤150ms |
| Fall Time, No Load |
≤15s |
| Fall Time, Full Load |
≤50ms |
| Dynamic Response |
≤20ms |
| Efficiency |
≥85% |
| Display |
Four-Digit Voltage / Current / Power Display |
| Adjustment |
Precision Encoder |
| Protection |
OCP / OVP |
| Memory |
M1-M4, 4 Groups |
| Output Control |
Output ON/OFF |
| Output Connection |
Front and Rear Output |
| Communication |
USB / RS232 / RS485 |
| Panel Lock |
Yes |
| Product Weight |
Approx. 6.8kg |
| Package Weight |
Approx. 7.5kg |
Why Choose KUAIQU R-SPS30100S?
100A High Current Capability for Battery System Testing
The 0-100A output is the core advantage of the R-SPS30100S for high-current battery system test setups, providing substantially more current capability than standard laboratory bench supplies.
3000W Output for High Power Battery Test Setups
The 3000W power capacity provides a high-power DC source for battery system testing and related equipment within the rated voltage and current range.
0-30V Adjustable Output for Flexible Test Conditions
The adjustable 0-30V range allows users to establish different DC voltage conditions for compatible battery systems and test equipment rather than relying on a fixed voltage.
CC CV Operation for Controlled DC Conditions
CC and CV operation provides two practical output modes for establishing the required electrical conditions during battery system testing.
Precision Encoder for Direct Parameter Adjustment
The precision encoder makes voltage and current adjustment convenient when establishing different battery system test conditions.
Direct V/I/P Monitoring
The four-digit display provides direct voltage, current, and power readback, allowing users to monitor the DC output condition during testing.
OCP and OVP Protection
OCP and OVP provide dedicated over-current and over-voltage protection functions for high-current battery system test setups.
M1-M4 Memory for Repeatable Testing
Four memory groups allow commonly used voltage and current settings to be stored and recalled, making repeated battery system tests easier to configure.
Output ON/OFF and Panel Lock
Output ON/OFF provides direct control of power application, while panel lock helps prevent accidental changes to established test parameters.
Rear High-Current Output for Full Current Capability
The rear high-current output provides the appropriate connection for high-current test setups requiring the rated output capability of the R-SPS30100S.
Professional High Current DC Power Source for Battery System Testing
With 0-30V adjustable output, 0-100A current, 3000W power, CC/CV operation, precision encoder adjustment, V/I/P display, OCP, OVP, M1-M4 memory, and Output ON/OFF control, the R-SPS30100S provides a high-current DC Power Source solution for Battery System Testing and related high-power battery test setups.
