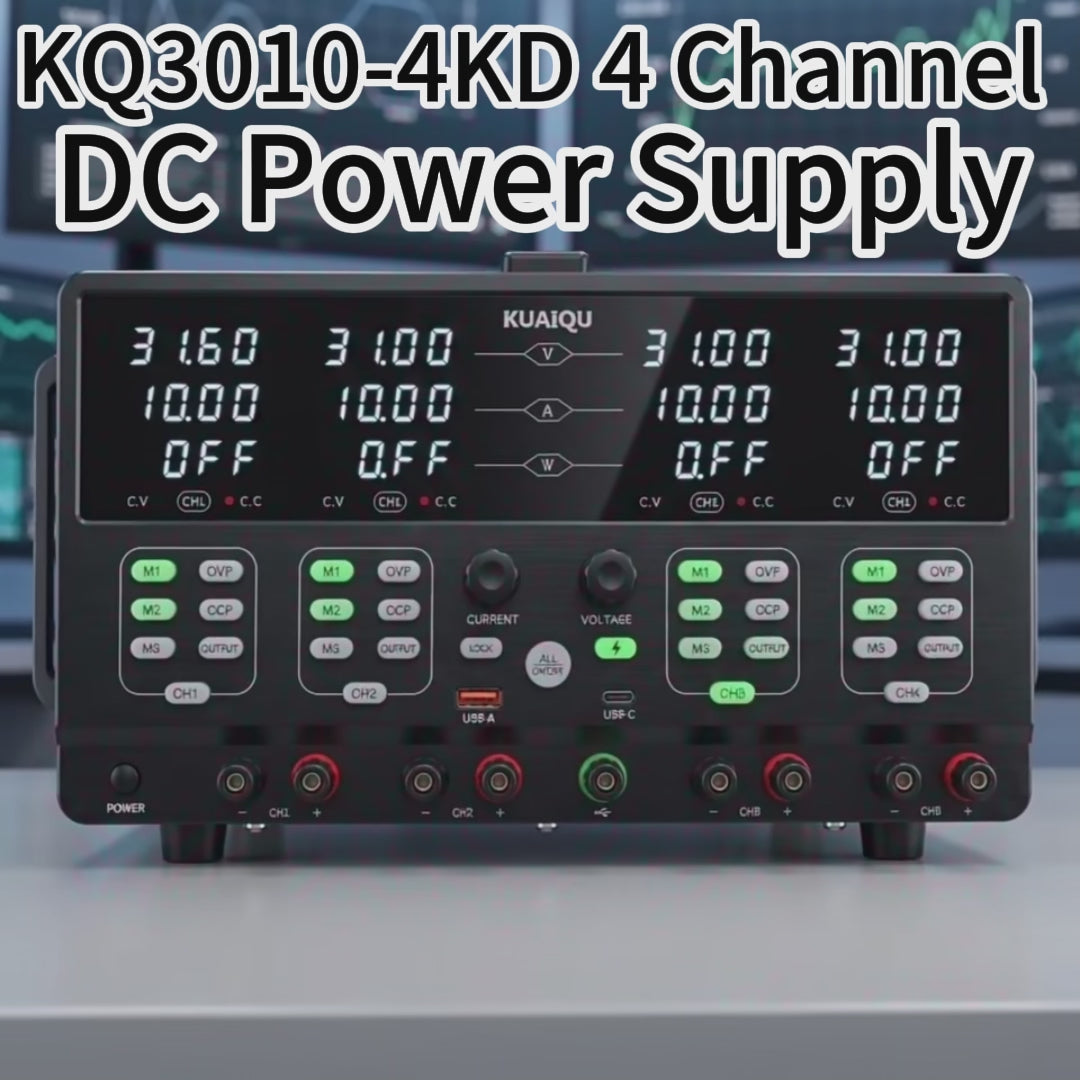

The KUAIQU KQ-4KD 4 Channel DC Power Supply is a high precision programmable DC power supply designed for electronics engineers, R&D teams, laboratories, and production testing applications.
Unlike traditional single output bench power supplies, the KQ-4KD provides four independent adjustable DC outputs, allowing engineers to power, test, and monitor multiple electronic devices simultaneously.
With advanced functions including programmable control, low ripple output, multiple protection systems, parameter storage, and USB/RS232/RS485 communication, this laboratory power supply delivers accurate and reliable power management for professional testing environments.

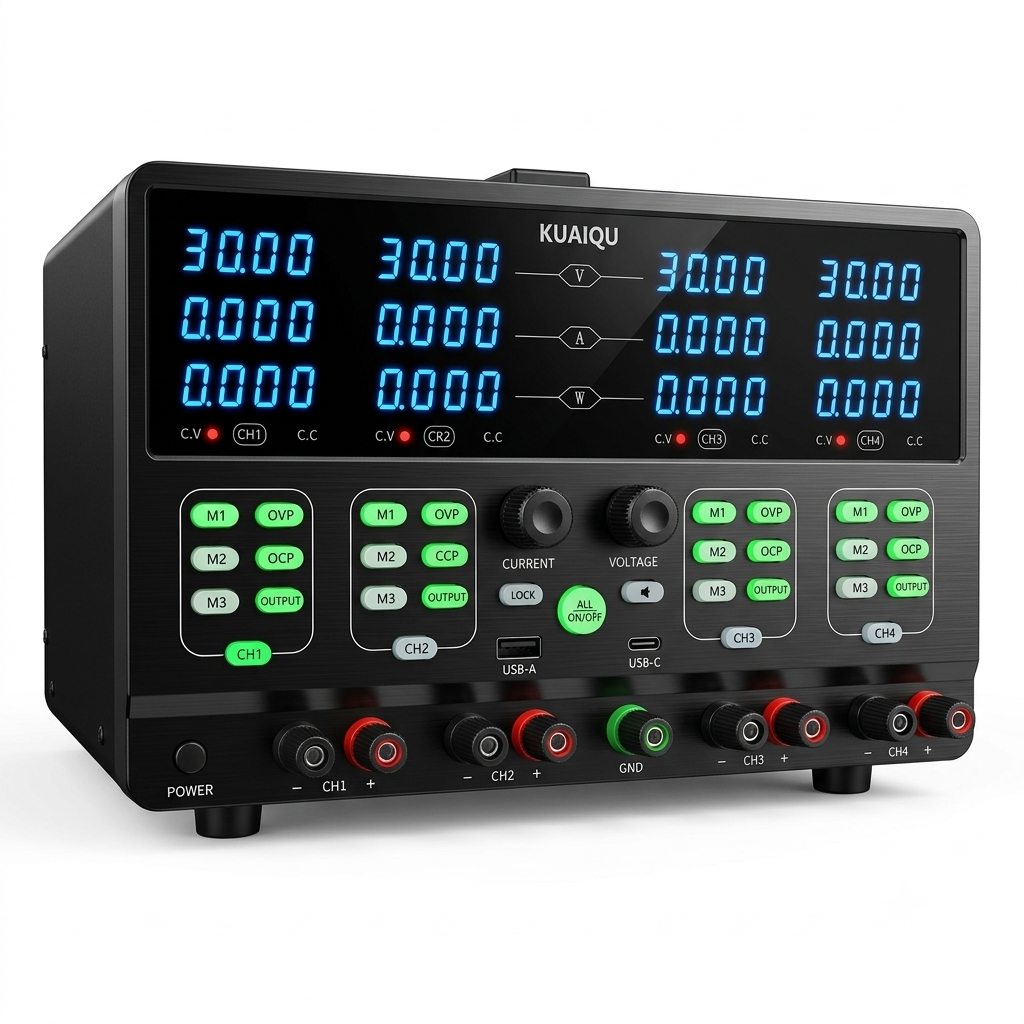

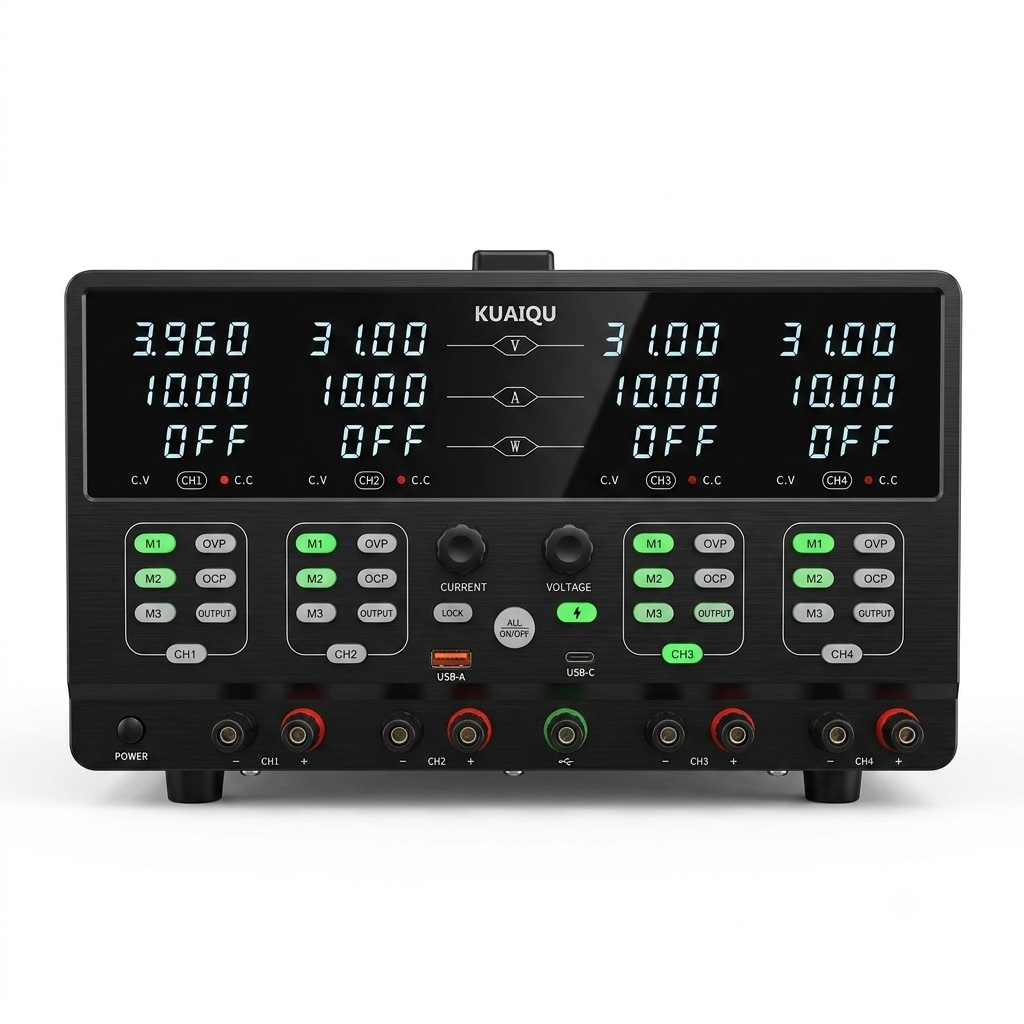

The LED display shows voltage, current, and power values for all four channels at the same time.
Engineers can monitor testing conditions instantly and improve troubleshooting efficiency.
Designed with high accuracy and high-resolution adjustment for stable DC output.
Low ripple and low noise performance provide clean power for sensitive electronic circuits and precision testing.

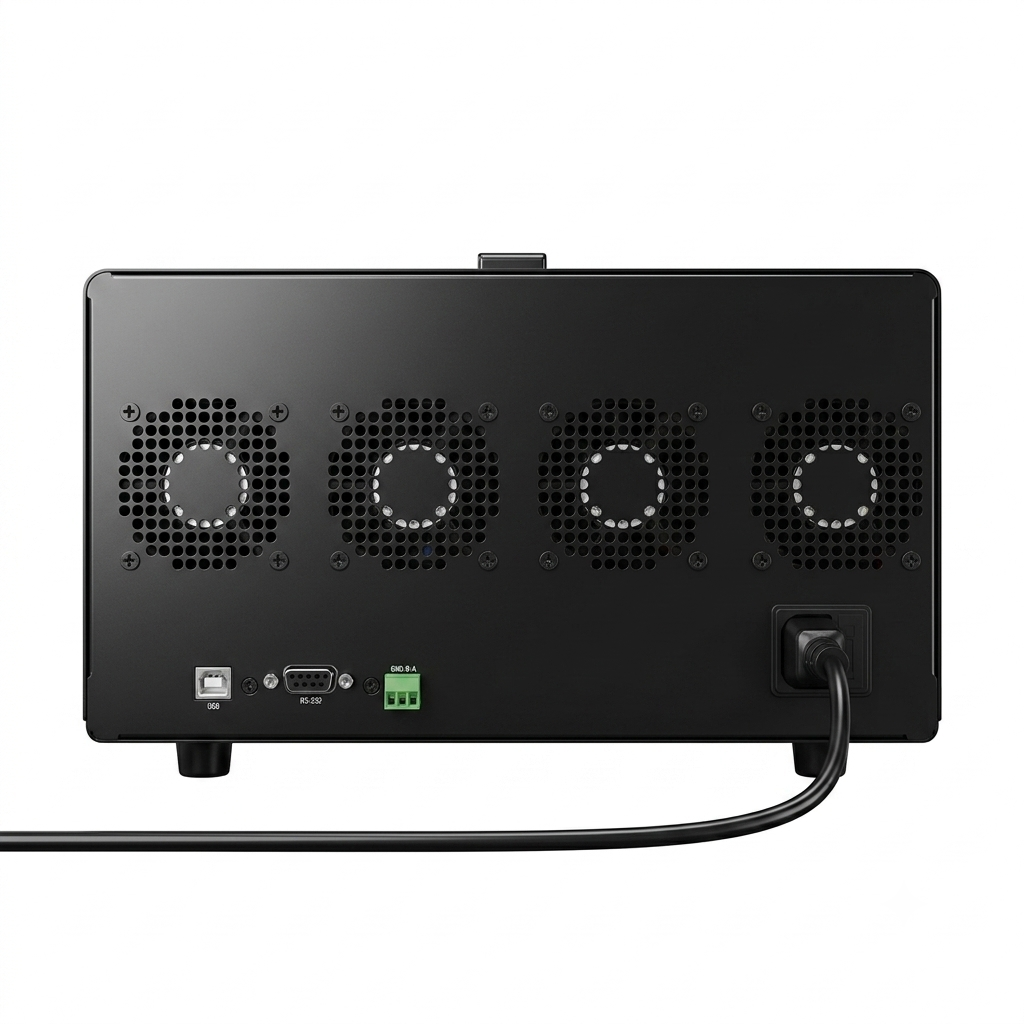

Supports USB, RS232, and RS485 communication interfaces for PC-based control and automated testing systems.
Ideal for laboratory applications, production lines, and customized test platforms.
Each output channel features independent Over Voltage Protection (OVP) and Over Current Protection (OCP).
Protect connected devices from abnormal voltage or current conditions during testing.

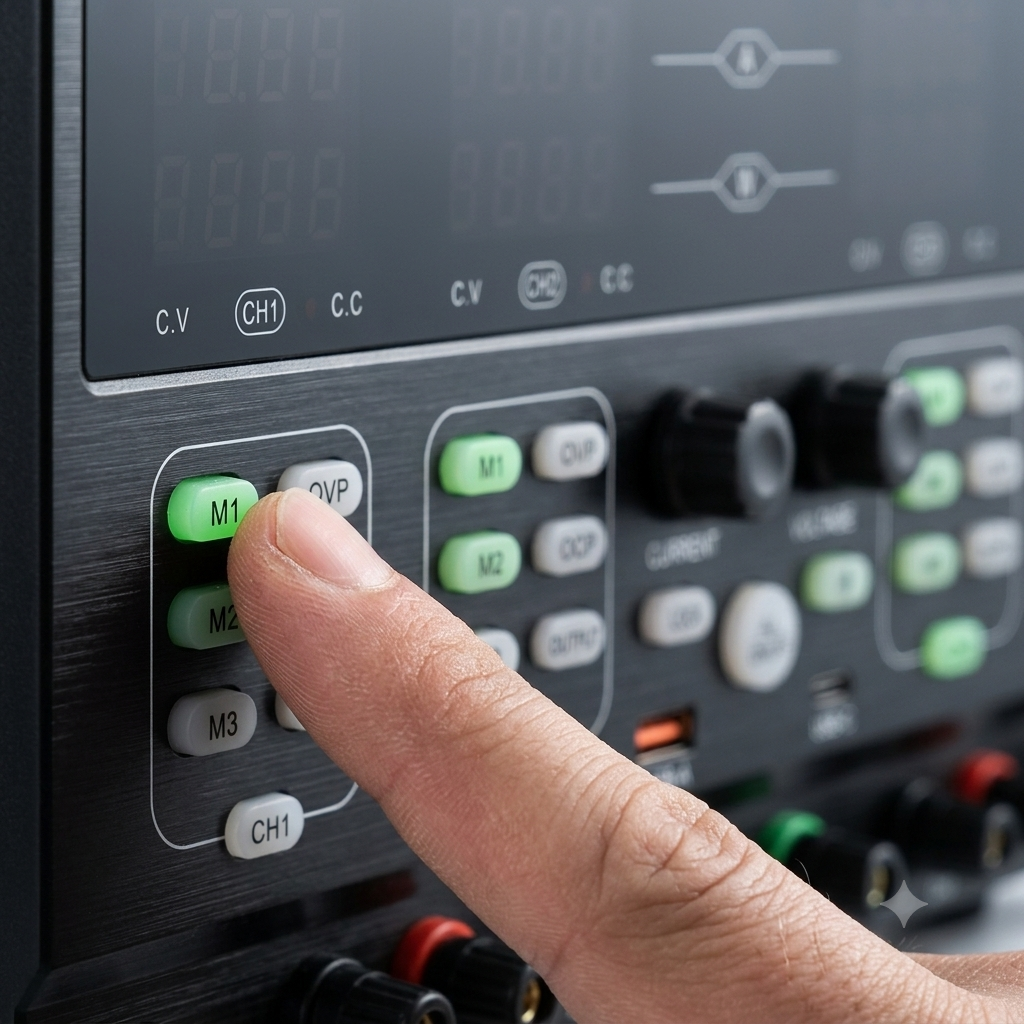

Each channel supports 3 groups of preset parameters, allowing users to save and quickly recall frequently used voltage and current settings.
Improve efficiency in repeated testing and production environments.
The smart cooling system automatically adjusts fan speed according to internal temperature.
Provides effective heat dissipation while reducing operating noise for a quieter working environment.
Each channel has an individual output switch, allowing users to activate or disable channels separately without changing preset parameters.
Provides more flexible and safer operation during testing.

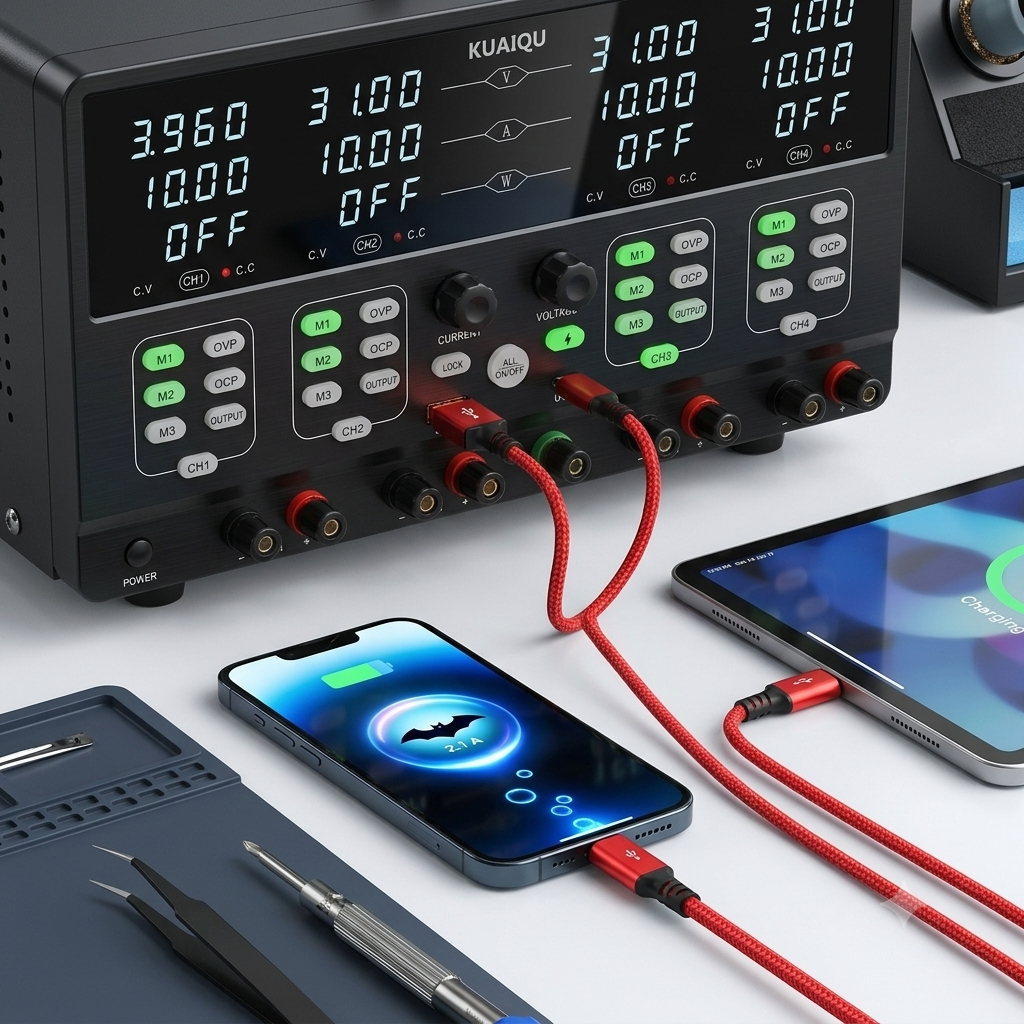

Equipped with USB-A and USB-C charging ports for convenient power supply of USB devices, development boards, and electronic accessories.
Provides precise voltage and current adjustment with excellent control accuracy.

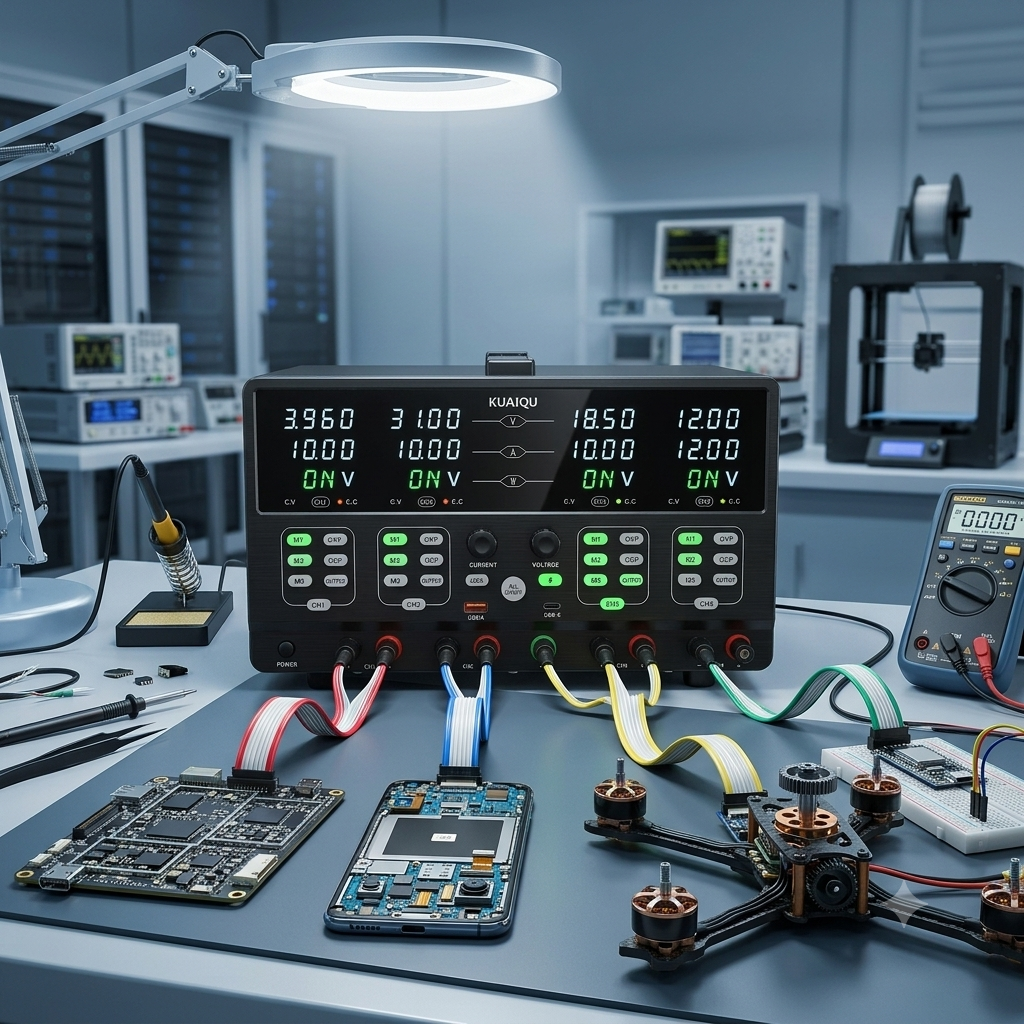

Suitable for professional applications including electronics R&D, PCB testing, laboratory experiments, and product verification.
• Electronics R&D
Prototype development, PCB testing, circuit debugging, and hardware verification.
• Laboratory Testing
Electronic experiments, engineering education, and precision measurements.
• Production Testing & Quality Control
Product inspection, functional testing, and aging tests.
• Automated Test Systems
PC-controlled testing, system integration, and production automation.
• Embedded System Development
Powering and testing MCU, sensors, communication modules, and electronic boards.
• Multi-Device Testing
Simultaneous testing of multiple circuits, modules, and electronic components.
• Communication & Industrial Electronics
Stable power supply for control systems, electronic equipment, and measurement devices.
Quality Check and Terms of Service
| SPECIFICATION | PARAMETERS | KQ305-4KD | KQ605-4KD |
|---|---|---|---|
| Rated Output | Voltage | 30V | 60V |
| Current | 5A | 5A | |
| Power | 150W | 300W | |
| Load regulation rate | Voltage | ≤0.3%+20mV | ≤0.2%+20mV |
| Current | colspan | colspan | |
| Power regulation rate | Voltage | ≤0.1%+20mV | ≤0.05%+20mV |
| Current | ≤0.1%+10mA | colspan | |
| Set value resolution | Voltage | 10mV | 10mV |
| Current | 1mA | 1mA | |
| Read back value (Display resolution) | Voltage | 10mV | 10mV |
| Current | 1mA | 1mA | |
| Set value accuracy | Voltage | ≤0.3%+10mV | ≤0.2%+10mV |
| Current | ≤0.01%+15mA | ≤0.01%+15mA | |
| Read back value (Display accuracy) | Voltage | ≤0.3%+10mV | ≤0.2%+10mV |
| Current | ≤0.1%+15mA | ≤0.1%+15mA | |
| Ripple (20Hz～20MHz) | Voltage | ≤60mV(p-p) | ≤100mV(p-p) |
| Current | ≤20mA(rms) | ≤50mA(rms) | |
| Rise time (No load) | Voltage | ≤200ms | ≤200ms |
| Rise time (Full load) | Voltage | ≤500ms | ≤500ms |
| Fall time (No load) | Voltage | ≤20s | ≤20s |
| Fall time (Full load) | Voltage | ≤200ms | ≤200ms |
| Efficiency (Full power.) | ≥83% | ≥83% | |
| Input Voltage | 200Vac～240Vac 50Hz (100Vac～120Vac 60Hz) | 200Vac～240Vac 50Hz (100Vac～120Vac 60Hz) | |
| Product Dimension | 292.9mm×280.9mm×184.2 mm | 292.9mm×280.9mm×184.2 mm | |
| Product Weight | 7 Kg | 7 Kg | |
| Fuse | 230V input | 10A | 10A |
| 115V input | 20A | 20A |
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
