Product Details

Download English Manual (PDF)

Click the link above to get the full user guide for this product.

KUAIQU EV Auxiliary System Testing 0-60V

0-5A 300W SPPS605D Bench Supply with

Encoder Adjustment

The KUAIQU SPPS605D is a 0-60V 0-5A 300W Bench Supply designed for EV Auxiliary System Testing and related DC power testing tasks. Its adjustable voltage and current output provides flexible DC test conditions for compatible auxiliary system circuits and components, while the precision encoder, M1-M4 memory function, full-color LCD display, and output switch provide convenient control and monitoring during repeated bench testing.

Key Features

0-60V 0-5A Adjustable Output for EV Auxiliary Systems

The SPPS605D provides adjustable DC output from 0-60V and 0-5A with a rated output power of 300W. This range allows users to establish different DC supply conditions for compatible EV auxiliary system circuits and components within the rated output capability of the Bench Supply.

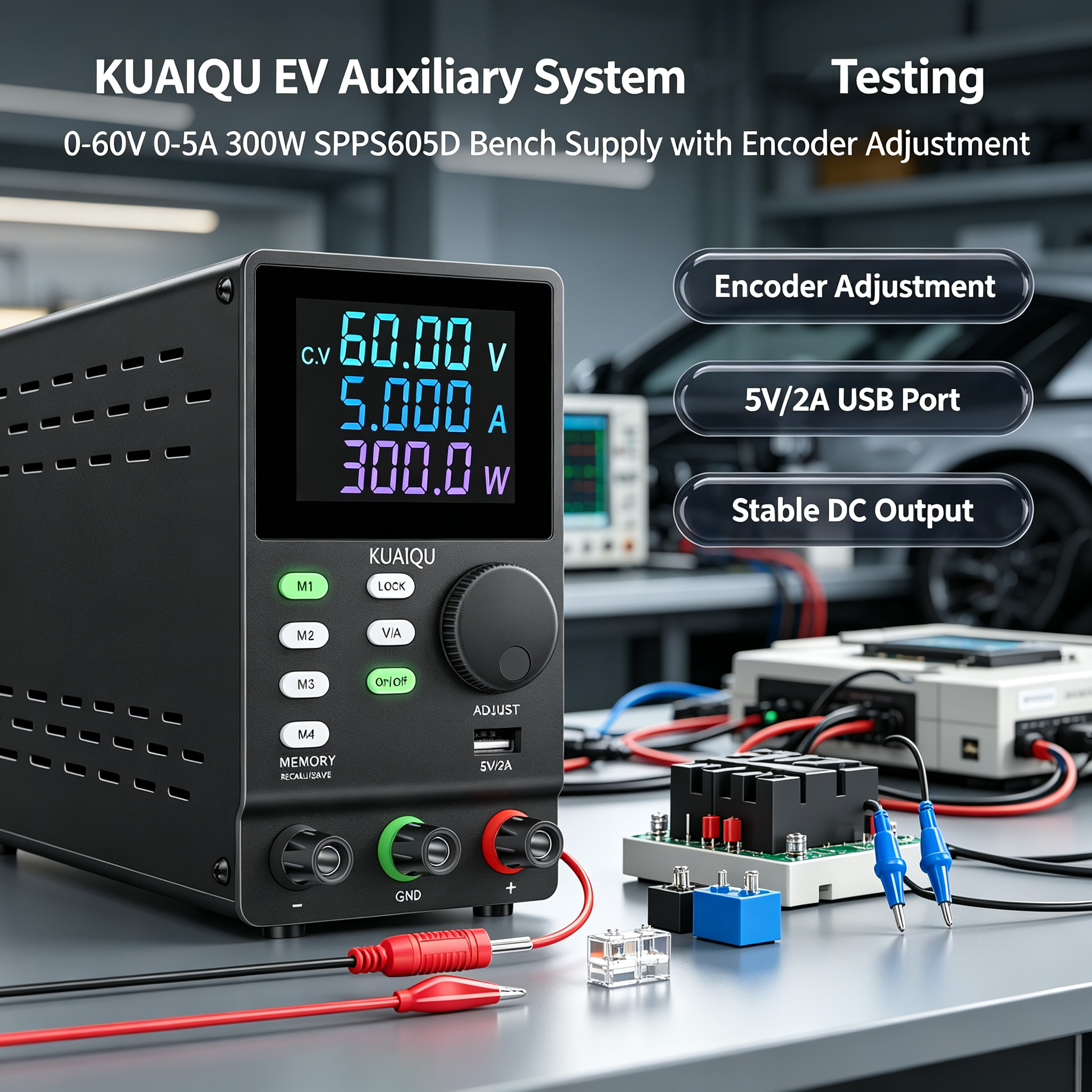

Precision Encoder Adjustment for Flexible Test Setup

The precision encoder provides convenient adjustment of voltage and current settings. When testing different EV auxiliary system circuits, users can make controlled changes to the DC output settings to establish the required test conditions within the 0-60V and 0-5A operating range.

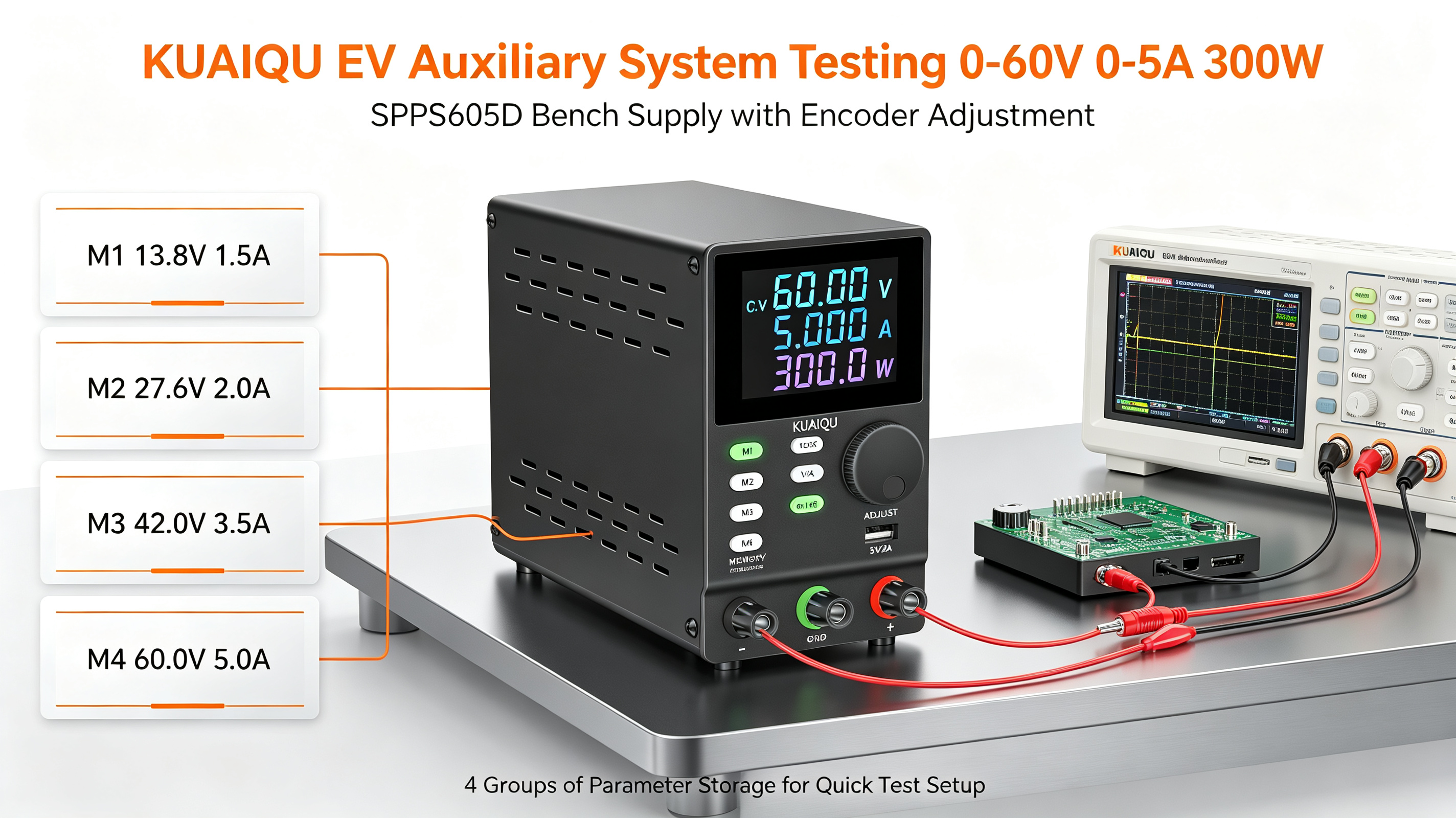

M1-M4 Memory Function for Repeated Testing

The SPPS605D includes four M1-M4 memory groups for storing commonly used voltage and current settings. For EV Auxiliary System Testing that involves repeated checks under the same conditions, the Memory Function makes it more convenient to recall frequently used test settings.

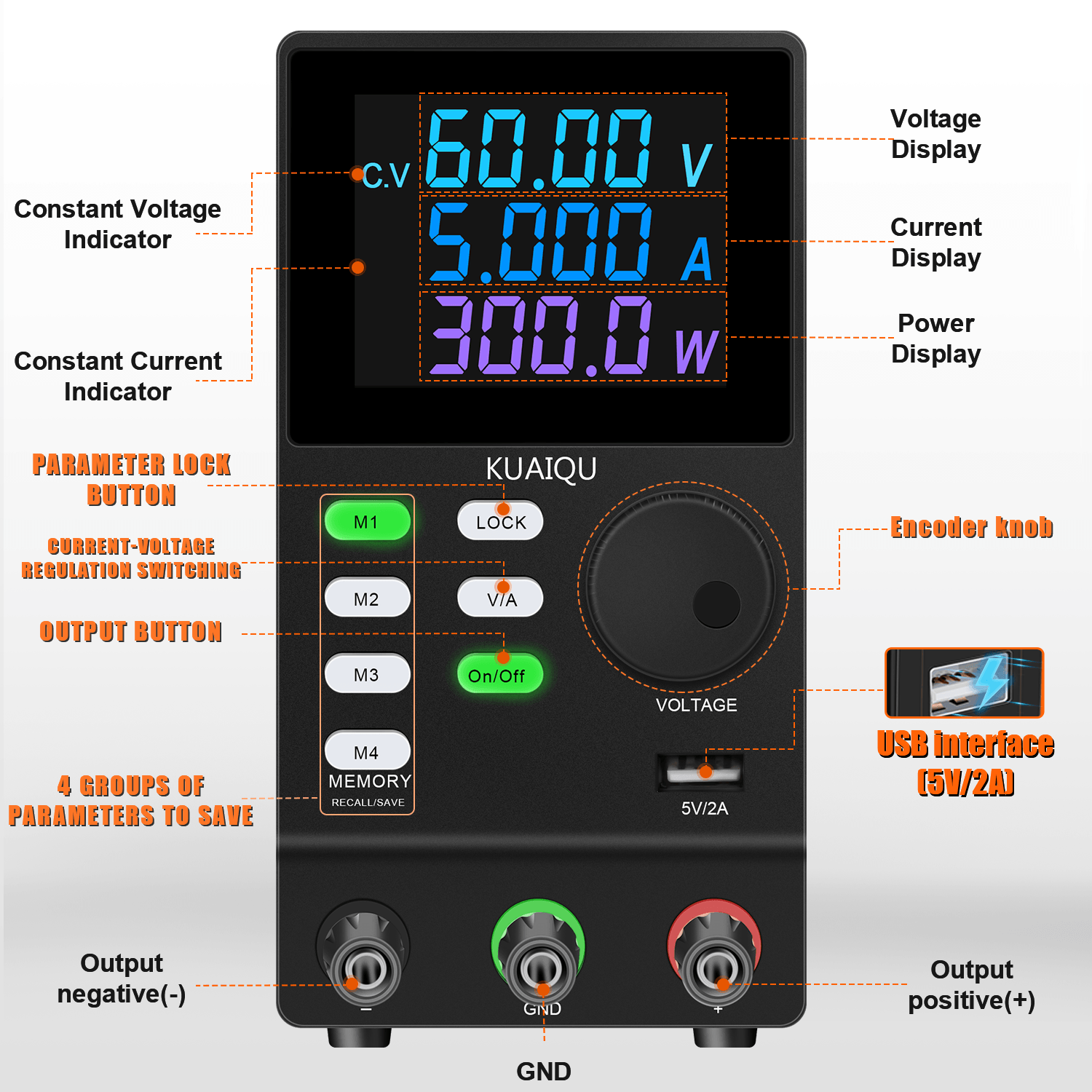

Full-Color LCD with Voltage, Current and Power Display

The full-color LCD provides four-digit voltage and current display together with power display. During EV Auxiliary System Testing, users can view the displayed electrical values while the Bench Supply is operating, making it easier to monitor the DC output conditions of the test setup.

Output Switch for Convenient Test Control

The output switch button allows the DC output to be controlled directly from the front panel. This is useful when users need to turn the output on or off while connecting, checking, or changing compatible EV auxiliary system test circuits.

Panel Lock for Stable Test Settings

The panel lock button helps prevent unintended changes to front-panel settings after the required voltage and current values have been established. This can be useful for repeated EV Auxiliary System Testing where consistent test settings are required.

5V 2A USB Output for Auxiliary Accessories

The built-in 5V 2A USB output can provide power for compatible USB-powered auxiliary devices used alongside the test setup. It provides an additional fixed 5V output without changing the main adjustable DC output range of the SPPS605D.

Applications

EV Auxiliary System Testing

The SPPS605D provides adjustable 0-60V and 0-5A DC output for compatible EV auxiliary system testing tasks. Users can establish suitable voltage and current conditions while monitoring voltage, current, and power through the full-color LCD display.

Auxiliary Circuit Bench Testing

For compatible auxiliary circuits and electronic components, the 300W Bench Supply provides adjustable DC power for establishing different test conditions. The precision encoder allows convenient adjustment when voltage or current settings need to be changed during bench testing.

Repeated Auxiliary System Verification

EV auxiliary system development and verification can involve repeated tests using the same electrical settings. The M1-M4 Memory Function provides four storage groups for commonly used voltage and current values, helping simplify repeated test setup.

DC Power Condition Testing

The SPPS605D can be used to establish controlled DC power conditions for compatible auxiliary system circuits within its rated 0-60V, 0-5A, and 300W output capability. The voltage, current, and power display provides visible information during the testing process.

Quality Check and Terms of Service:

Each KUAIQU DC Power Supply and its accessories are inspected before shipment to help ensure product quality and reliable delivery.

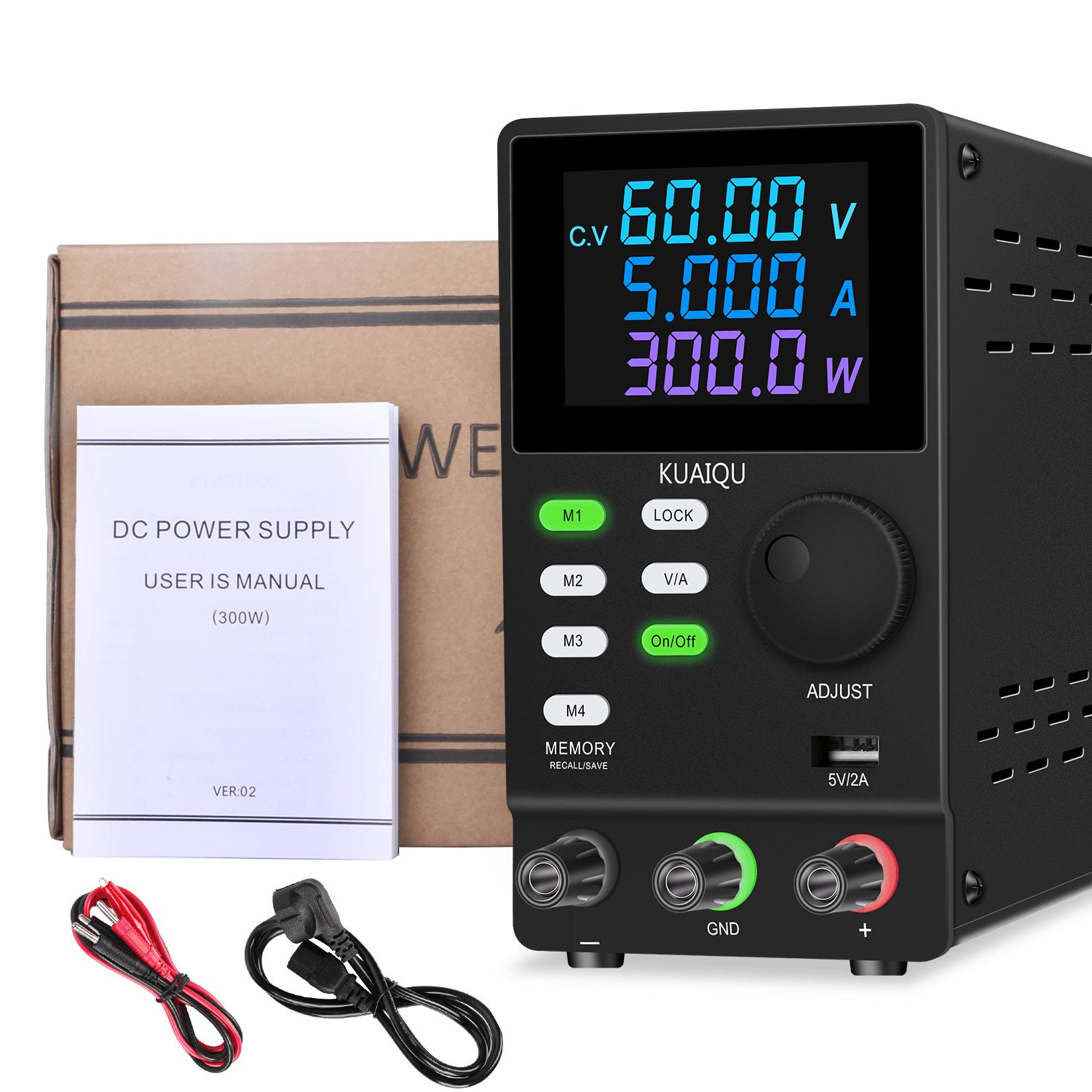

Package Includes:

  • 1 × SPPS605D DC Power Supply

  • 1 × Output Power Cord

  • 1 × Input Power Cord

  • 1 × User Manual

  • 1 × Warranty Card

Quality Assurance:

  • CE & FCC Certification

  • All DC Power Supplies and accessories are inspected before shipment

  • Customer support within 24 hours

  • Single unit package size: approx. 33.5 × 13 × 22cm

  • Single unit package weight: approx. 1.7KG

  • Standard carton: 8 pcs

Technical Specifications

Parameter Specification
Model SPPS605D
Product Type Bench Supply
Output Voltage 0-60V
Output Current 0-5A
Rated Output Power 300W
USB Output 5V 2A
Memory Function M1-M4, 4 Groups
Operating Temperature 0℃-40℃
Load Regulation, Voltage ≤0.3%+10mV
Load Regulation, Current ≤0.1%+2.5mA
Line Regulation, Voltage ≤0.01%+2.5mV
Line Regulation, Current ≤0.1%+2.5mA
Setting Resolution, Voltage 10mV
Setting Resolution, Current 1mA
Readback Resolution, Voltage 10mV
Readback Resolution, Current 1mA
Setting Accuracy, Voltage ≤0.01%+15mV
Setting Accuracy, Current ≤0.01%+10mA
Readback Accuracy, Voltage ≤0.01%+15mV
Readback Accuracy, Current ≤0.01%+10mA
Voltage Ripple ≤200 mVp-p  / ≤20 mVrms
Current Ripple ≤20mArms
Dynamic Response Time ≤200mS
Rise Time, No Load ≤200mS
Rise Time, Full Load ≤300mS
Fall Time, No Load ≤20S
Fall Time, Full Load ≤300mS
Efficiency ≥85%
Input Voltage AC 220V, AC 110V Optional

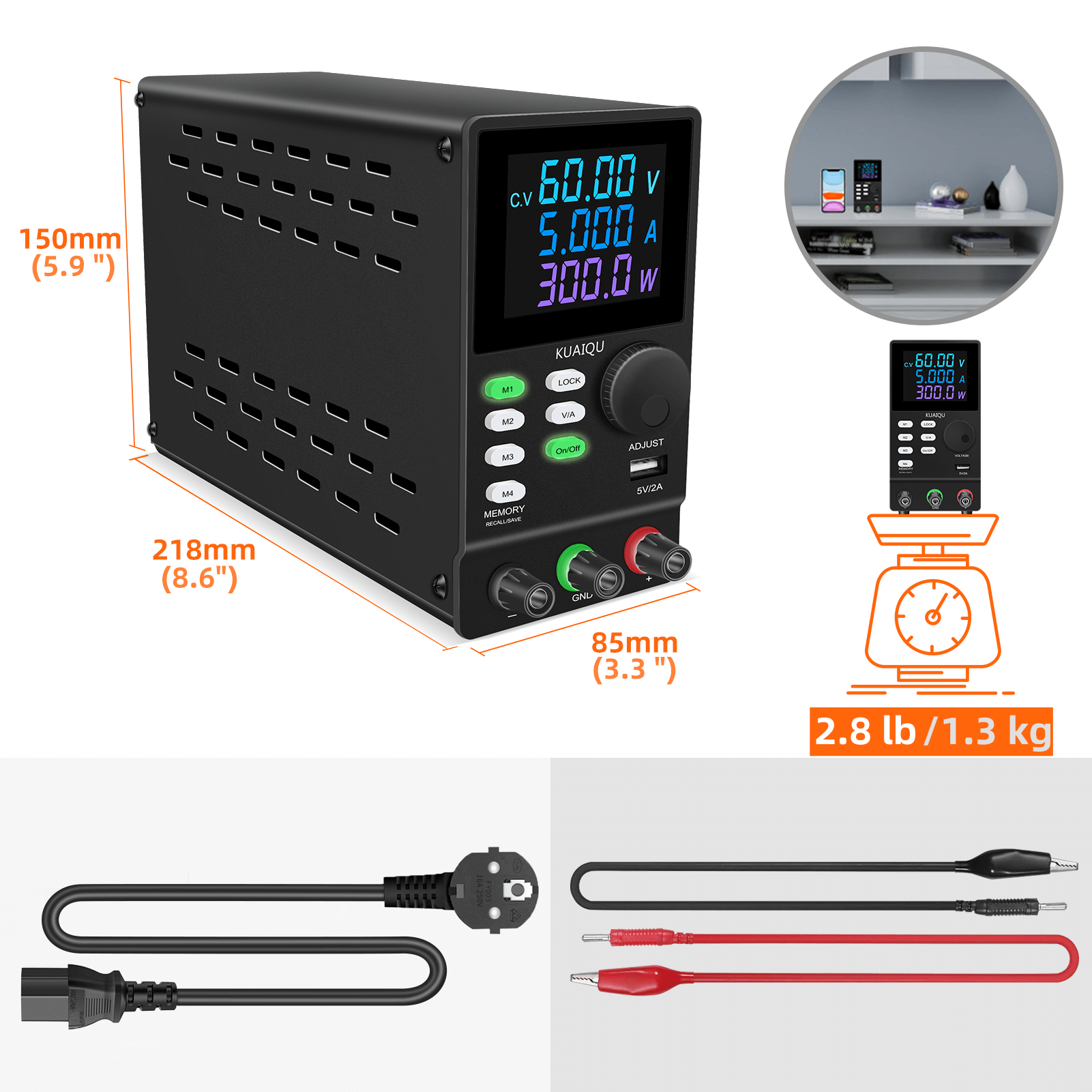

Dimensions Approx. 24 × 8.5 × 16cm
Net Weight Approx. 1.3KG
Package Dimensions Approx. 33.5 × 13 × 22cm
Package Weight Approx. 1.7KG
Standard Carton 8 pcs

Why Choose KUAIQU SPPS605D?

The KUAIQU SPPS605D combines a 0-60V 0-5A adjustable DC output, 300W rated power, precision encoder adjustment, M1-M4 Memory Function, full-color LCD display, output switch, panel lock, and 5V 2A USB output. For EV Auxiliary System Testing, these functions provide practical control of DC test conditions, convenient recall of repeated voltage and current settings, and clear monitoring of voltage, current, and power for compatible auxiliary system circuits and components within the rated output range.

Warranty

Warranty

30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.

Please feel free to reach us with any concerns:

Email: kuaiquinstrument@163.com

We strive to reply to you within 24 hours.

Shenzhen Kuaiqu Electronic Co., Ltd. was founded in 2014 and is located in Shenzhen City, Guangdong Province. It is a scientific and technological enterprise integrating,production and sales. Specializing in the production of DC stabilized power supply, variable frequency power supply, switching power supply, program-controlled power supply and other 100 kinds of measuring teaching instruments and industrial special equipment.

We are committed to delivering premium products and exceptional customer service, striving to be your most reliable and intelligent assistant.

Price Guarantee

At KUAIQU, we are committed to providing our customers with the best value for their purchases. To ensure you always get the best price, we offer a 30-day price guarantee on all products purchased directly from kuaiquinstrument.com. This policy aims to give you confidence and peace of mind when shopping with us.

What is the 30-Day Price Guarantee?

Our 30-day price guarantee means that if you purchase a product from kuaiquinstrument.com and the price of that product drops within 30 days of your purchase date, you are eligible for a refund of the price difference of the products. (Prices are based on USD. No refunds will be given for price changes in other currencies due to exchange rate fluctuations.)

How Does the Price Guarantee Apply?

  • Eligibility: The price guarantee applies only to purchases made on kuaiquinstrument.com. Products purchased from other retailers or third-party sellers are not eligible.
  • Timeframe: The price drop must occur within 30 days of your original purchase date.
  • Product Match: The price guarantee applies to the same product (identical model, specifications, and condition).

How to Apply for a Price Difference Refund

If you notice that the price of a product you purchased from kuaiquinstrument.com has dropped within 30 days, follow these steps to apply for a refund of the price difference:

  • Documentation: Prepare your order number and proof of the price drop (such as a screenshot and link to the product page showing the reduced price).
  • Contact Us: Reach out to our customer support team at kuaiquinstrument@163.com. Include your order number, proof of the price drop, and a brief explanation of your request.
  • Verification: Our team will verify the price drop and your purchase details.
  • Refund Process: Once verified, we will process the refund for the price difference to your original method of payment. It typically takes 1-3 business days for you to receive the refund.

At KUAIQU, we strive to provide our customers with high-quality products and exceptional customer service. Our 30-day price guarantee is just one of the ways we ensure you get the best value for your investment. Shop confidently with KUAIQU, knowing that you are always getting the best deal available.

Thank you for choosing KUAIQU. If you have any questions or need further assistance, please do not hesitate to contact our customer support team at kuaiquinstrument@163.com.

FAQs

Still confused about our DC regulated power supplies after checking the FAQs? Please contact our customer service, we are ready to solve all your problems.

Use overlay text to give your customers insight into your brand. Select image and text that relates to your style and story.

Our customer service can walk you through all settings. You can also watch full operation tutorials on our YouTube channel, including OVP, OCP, memory storage function and other operation guides. Our official blog also has lots of technical articles for reference.

Partial KUAIQU power supplies support program control with USB, RS232, RS485 interfaces, based on Modbus protocol. Remote control can be realized via our self-developed PC software. If you need this function and confirm interface configuration of a model, email us: kuaiquinstrument@163.com..

The banana plug adopts cross-slot design. Pry the metal slot slightly open with a screwdriver to make the plug clamp terminals tighter and safer..

All KUAIQU DC power supplies support basic battery charging. For dedicated long-term charging, our patented battery-charging model with independent BATTERY key and full charging protection is highly recommended.

A certain amount of ripple is normal for all switching DC power supplies. Ripple is a small residual AC component superimposed on the DC output and is an inherent characteristic of switching power supply technology. The typical ripple voltage of our power supplies ranges from approximately 100 mV to 300 mV, which is suitable for most general-purpose testing, maintenance, and electronic applications.

A: Minor fluctuations in the last displayed digit are normal and are typically caused by temperature drift within the electronic components. As ambient and internal temperatures change, small variations in the readings may occur. This falls within normal industry tolerances and does not affect the power supply's suitability for everyday electronics work, home repairs, DIY projects, or general testing. For applications requiring extremely high precision and ultra-stable output, a linear DC regulated power supply may be more appropriate.

This is normal and does not indicate a malfunction. The internal capacitors continue to hold a small amount of stored energy after the power is switched off. As the capacitors discharge, the display will gradually turn off, typically within 5–8 seconds.

In CV mode, the power supply maintains a fixed output voltage while the current varies according to the load. In CC mode, the power supply limits the output current to a preset value, automatically reducing voltage if necessary. CC mode is especially useful for battery charging, LED testing, and protecting electronic components.

This is normal behavior. The power supply contains internal filter capacitors that store electrical energy. When the output voltage is reduced, these capacitors require a few seconds to discharge, causing the displayed voltage to decrease more gradually than when increasing the voltage. Q: Why does t
