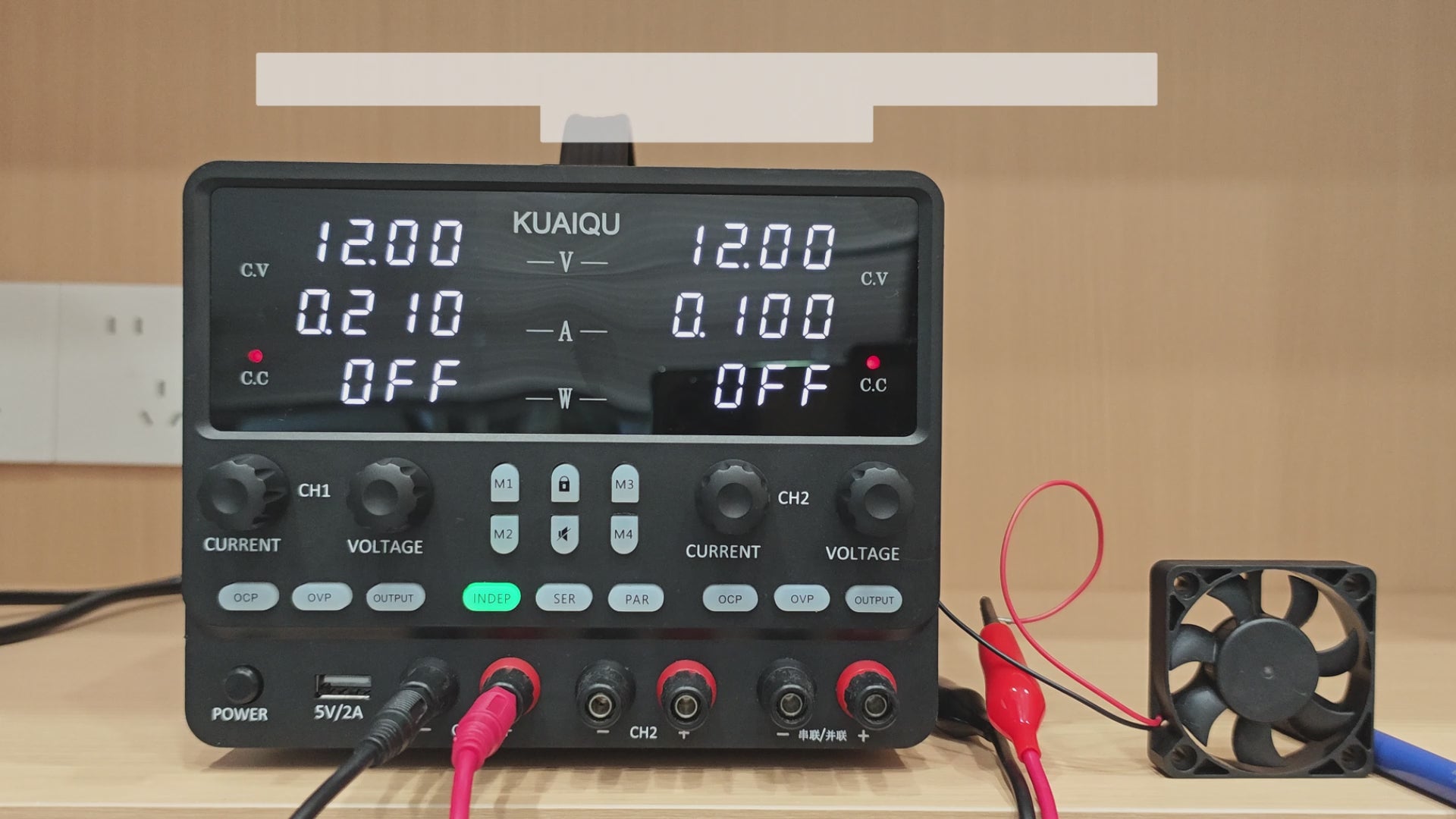

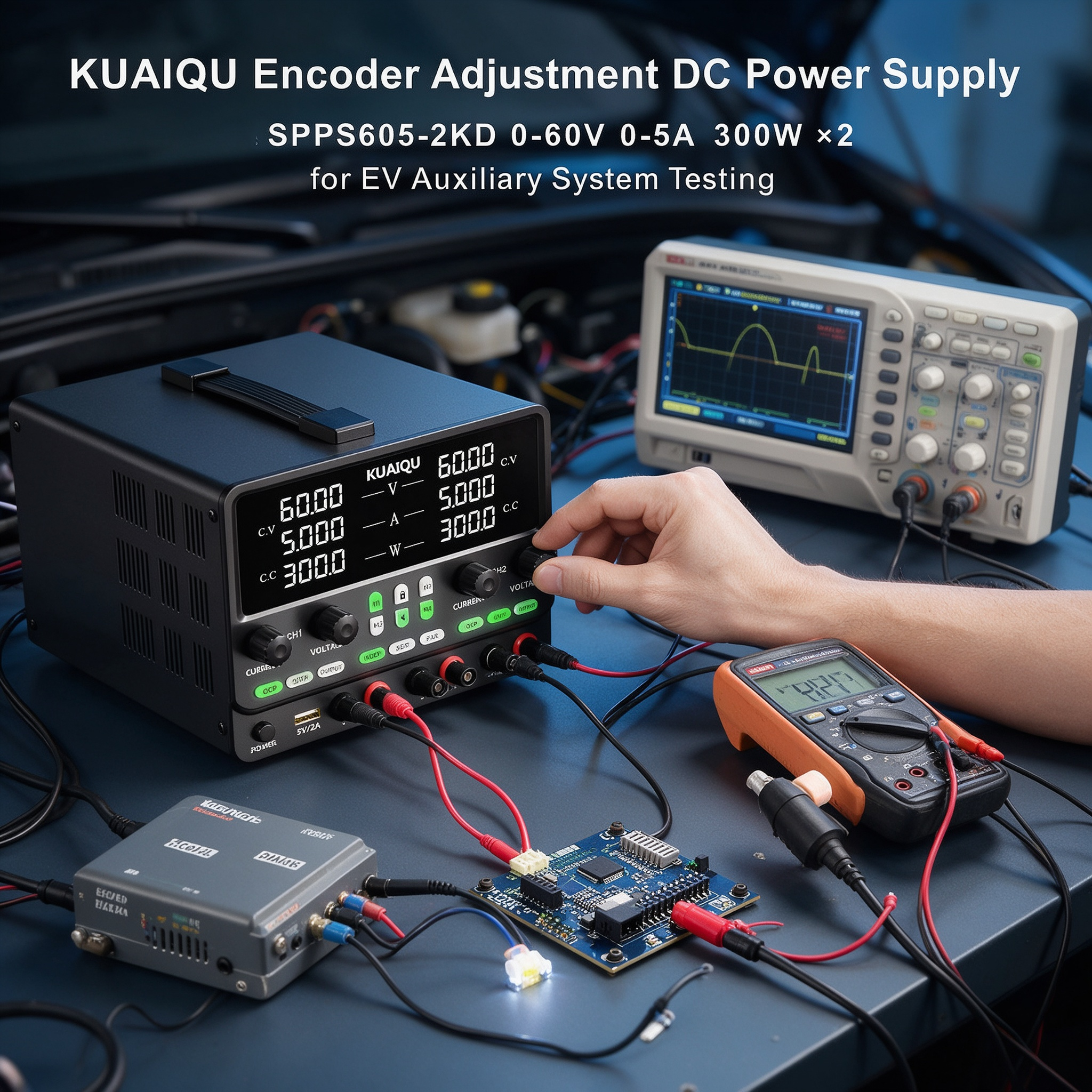

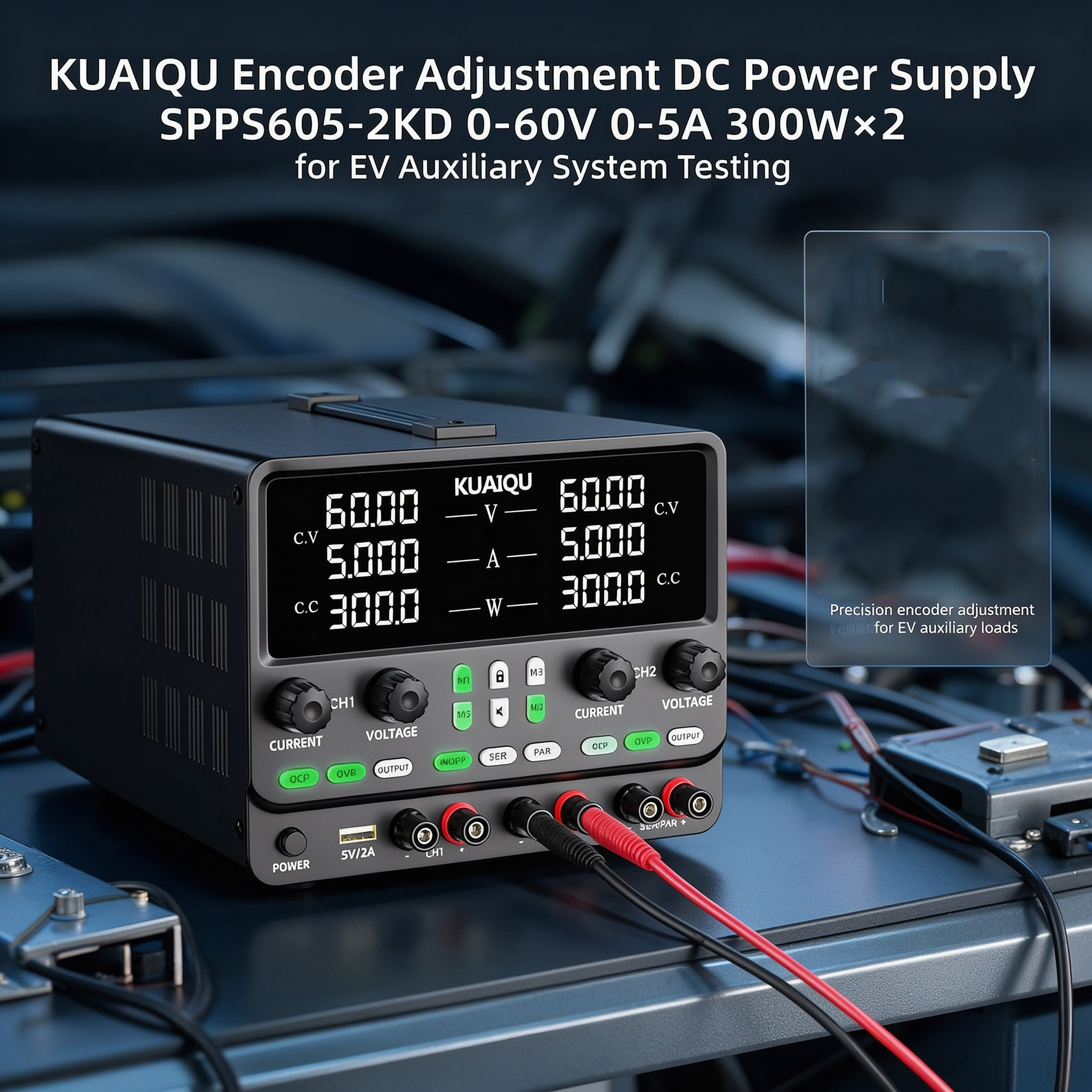

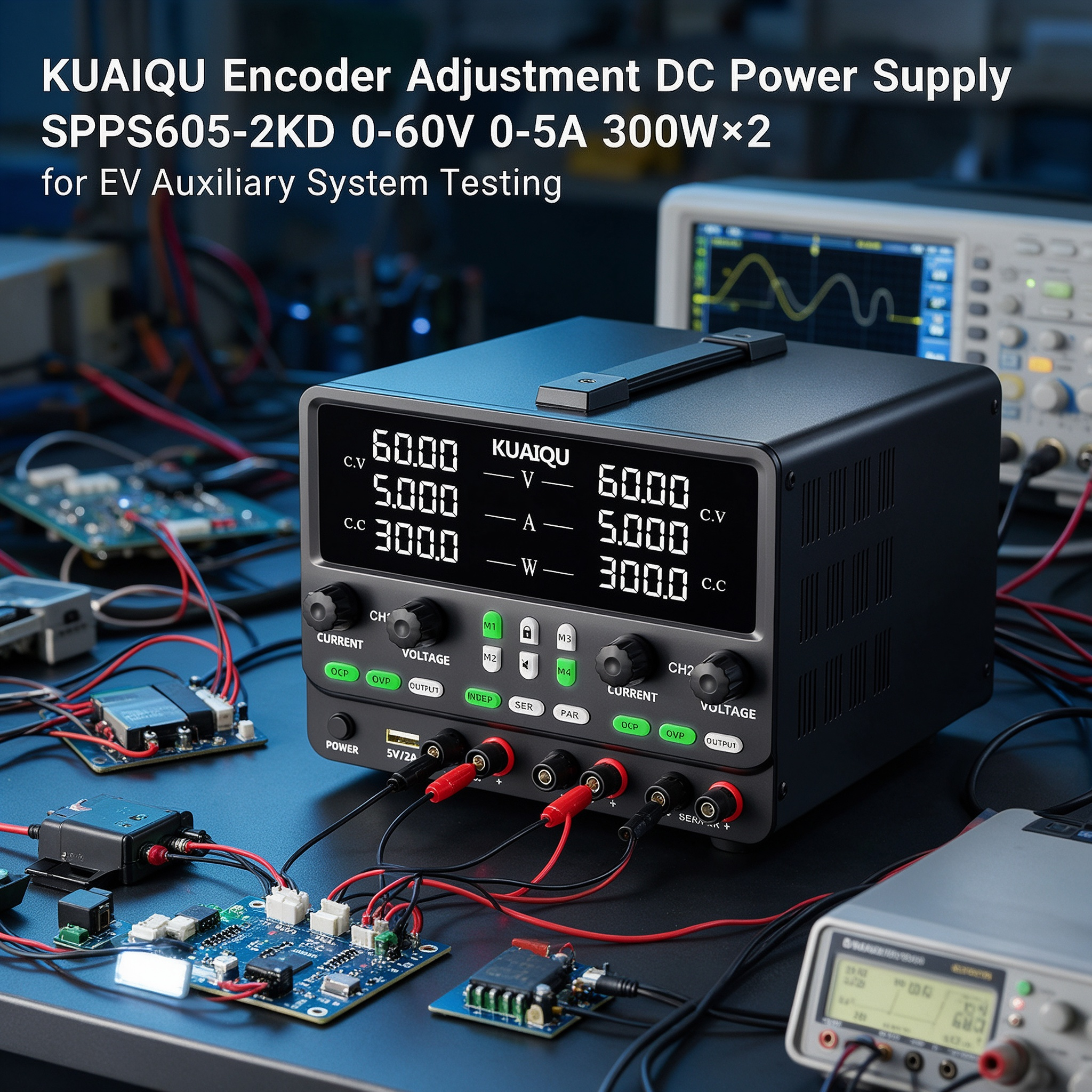

KUAIQU Encoder Adjustment DC Power
Supply SPPS605-2KD 0-60V 0-5A 300W×2
for EV Auxiliary System Testing
The KUAIQU SPPS605-2KD is a dual output DC power supply designed for controlled power testing of EV auxiliary systems and related electronic circuits. It provides two independent adjustable outputs, each supporting 0-60V, 0-5A, and up to 300W, giving engineers a flexible DC power source for testing auxiliary electronic circuits, control modules, sensors, and other low-voltage electrical subsystems within the output range. Encoder adjustment, real-time voltage and current display, OCP and OVP protection, and flexible Series and Parallel output modes support practical bench testing and debugging workflows.

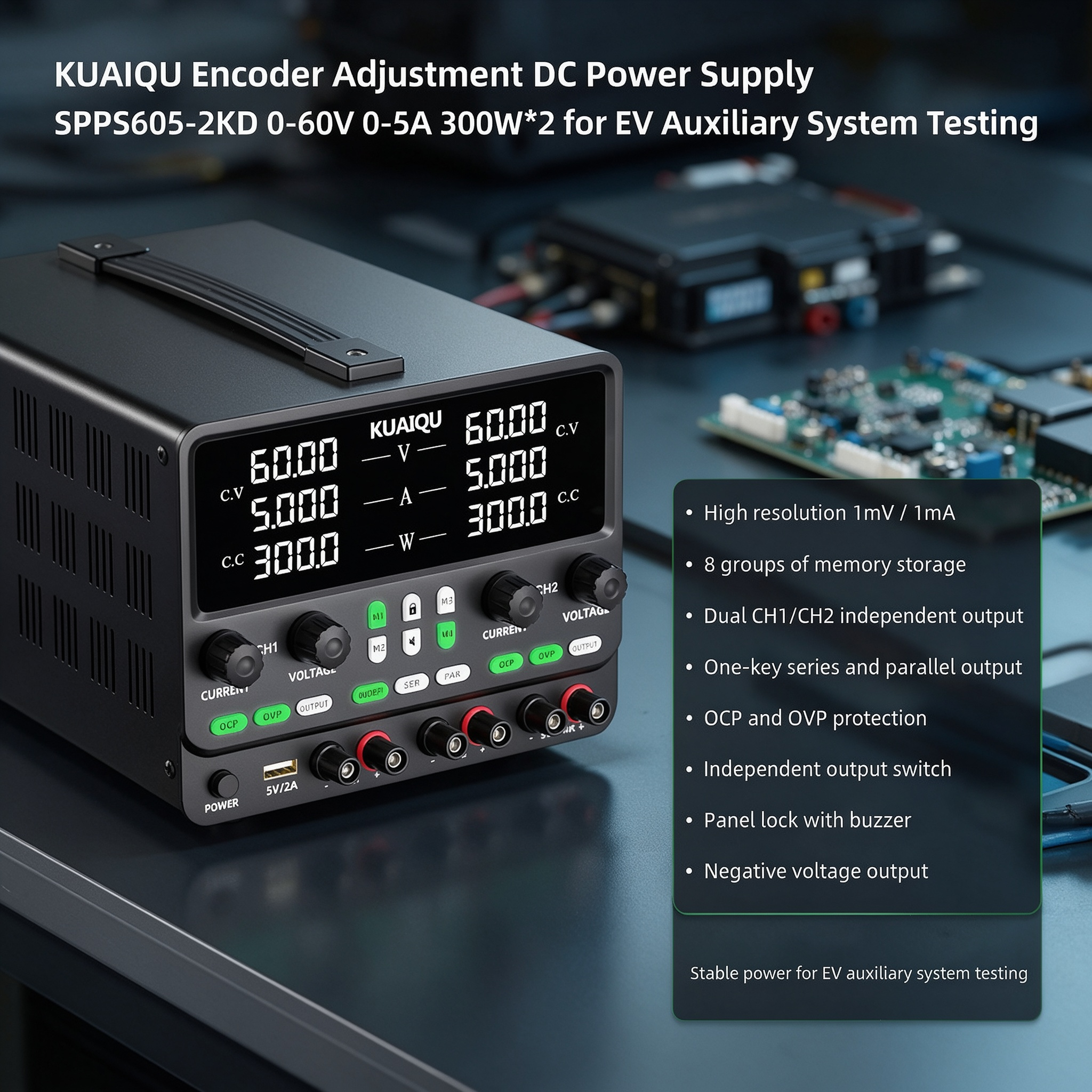

Key Features
Dual Output for EV Auxiliary System Testing
Two independent DC outputs provide 0-60V and 0-5A with up to 300W per channel. The dual output configuration allows separate power conditions to be applied to different circuits or test points when working with EV auxiliary electronic systems.

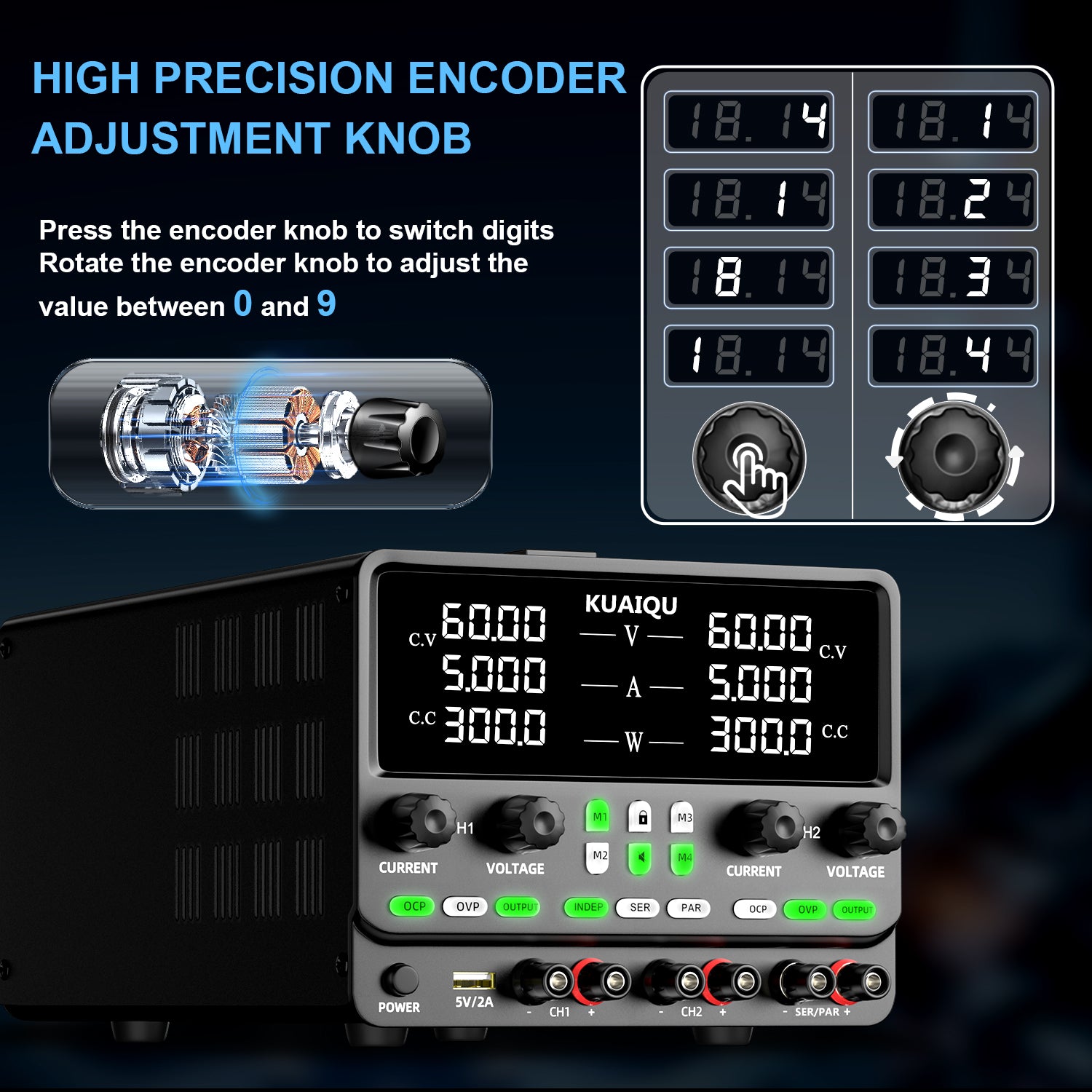

Encoder Adjustment for Precise Power Setting
The encoder adjustment design allows users to adjust voltage and current settings more conveniently during bench testing. Real-time electrical display provides direct visibility of output voltage and current while adjusting test conditions.

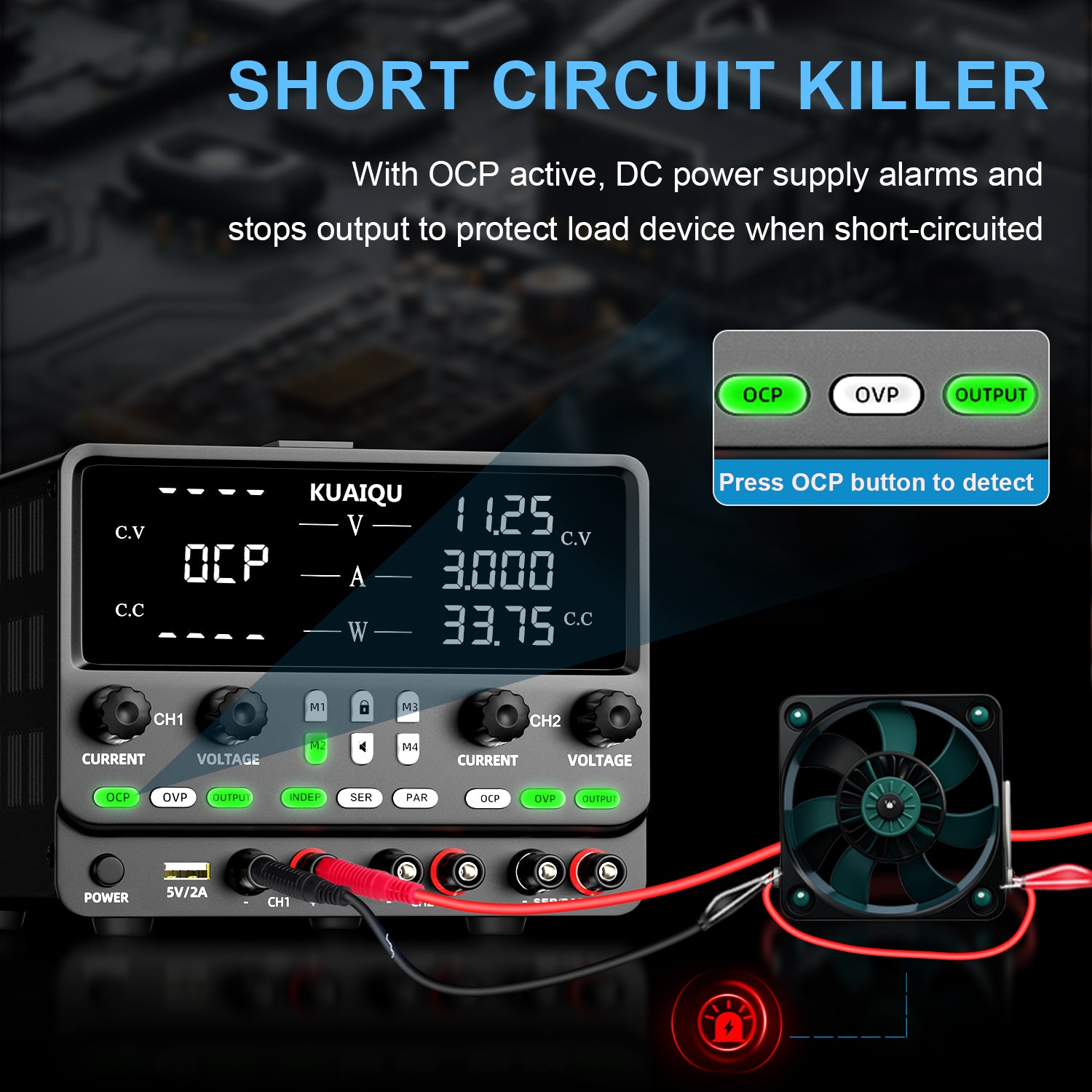

OCP and OVP Protection for Controlled Testing
Built-in Over Current Protection and Over Voltage Protection help protect the connected test setup when the output current or voltage reaches the corresponding protection conditions. This is useful when testing EV auxiliary circuits where controlled power conditions are required.
Series and Parallel Output Modes
The SPPS605-2KD supports independent, Series, and Parallel output modes. Series mode provides up to 0-120V and 0-5A with up to 600W, while Parallel mode provides up to 0-60V and 0-10A with up to 600W. These modes allow the DC power supply to be configured according to different voltage or current requirements during EV auxiliary system testing.

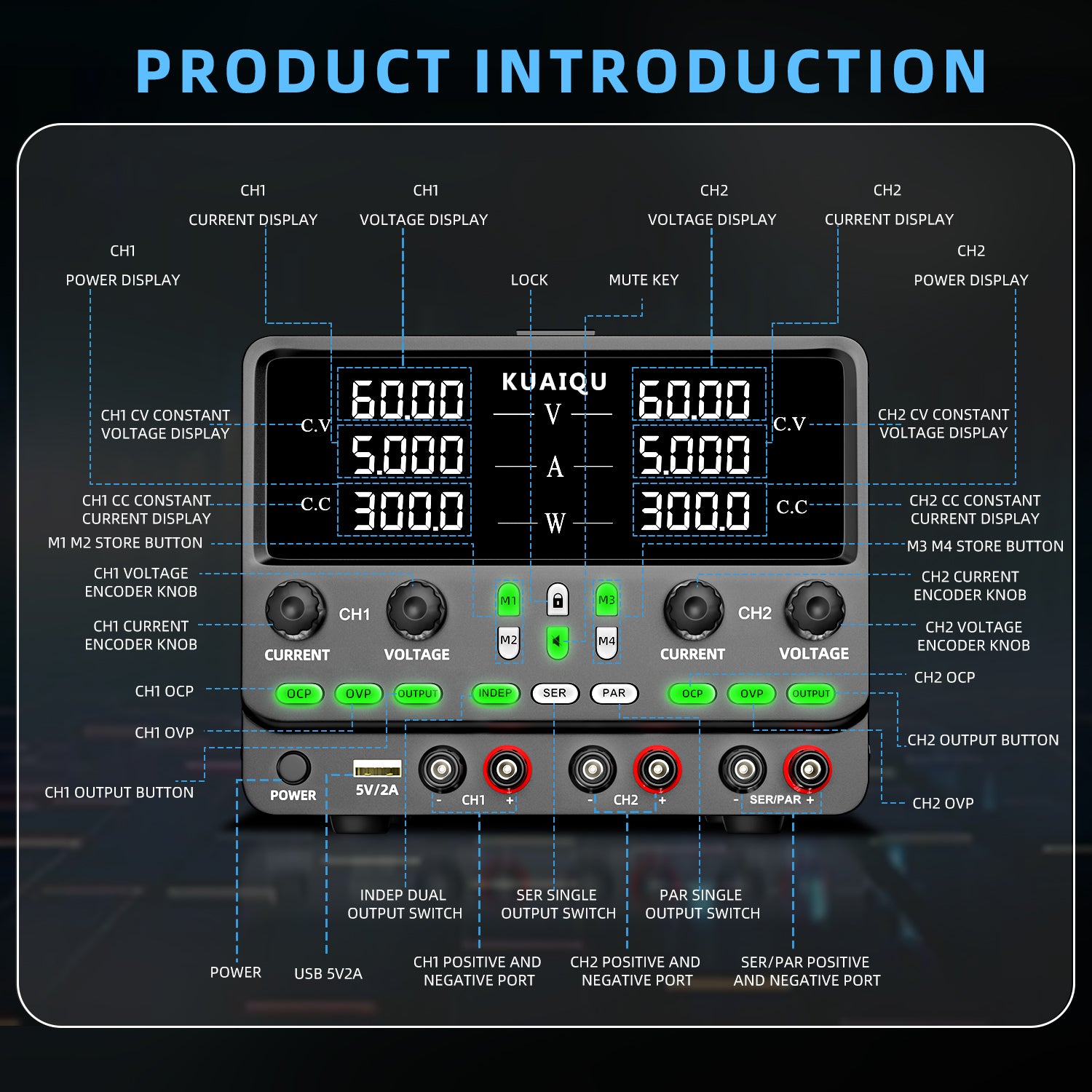

Output ON/OFF and Panel Lock Function
Output ON/OFF control allows the DC output to be enabled or disabled from the front panel during testing. The Panel Lock function helps prevent unintended changes to voltage and current settings during repeated test procedures, while the built-in buzzer provides an audible indication for supported operations.
Applications
EV Auxiliary Circuit Testing
Use the adjustable DC power supply to provide controlled DC power for testing electronic circuits used in EV auxiliary systems. The 0-60V and 0-5A independent outputs support a range of bench-level electrical test conditions.
EV Auxiliary Control Module Testing
The dual output configuration can be used when testing power inputs and related electrical circuits of EV auxiliary control modules. Independent outputs help provide separate adjustable DC power conditions for different parts of a test setup.
EV Sensor and Actuator Circuit Testing
The SPPS605-2KD can supply adjustable DC power for bench testing of EV auxiliary sensor and actuator circuits that operate within the power supply's voltage and current range. Real-time voltage and current display helps users monitor the applied electrical conditions during testing.
EV Auxiliary System Debugging
Encoder adjustment, OCP and OVP protection, Output ON/OFF control, and Series and Parallel output modes provide practical control options for troubleshooting and debugging EV auxiliary electronic circuits and test setups.
Quality Check and Terms of Service
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Package Includes:
-
DC Power Supply *1
-
Output Power Cord *1
-
Input Power Cord *1
-
User Manual *1
-
Warranty Card *1
Quality Assurance:
Technical Specifications
| Parameter |
Specification |
| Product Model |
SPPS605-2KD |
| Product Type |
Dual Output DC Power Supply |
| Independent Output |
0-60V, 0-5A, 300W × 2 |
| Series Output |
0-120V, 0-5A, 600W |
| Parallel Output |
0-60V, 0-10A, 600W |
| Output Modes |
Independent, Series, Parallel |
| Protection |
OCP and OVP |
| Output Control |
Output ON/OFF |
| Adjustment |
Encoder Adjustment |
| Memory |
8 Groups |
| Panel Lock |
Yes |
| Buzzer |
Yes |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
1mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
1mA |
| Voltage Setting Accuracy |
≤0.01% + 15mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.01% + 15mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Load Regulation Voltage |
≤0.3% + 10mV |
| Load Regulation Current |
≤0.1% + 2.5mA |
| Line Regulation Voltage |
≤0.01% + 2.5mV |
| Line Regulation Current |
≤0.1% + 2.5mA |
| Ripple Independent Voltage |
≤200mVp-p, ≤25mVrms |
| Ripple Series and Parallel Voltage |
≤300mVp-p, ≤40mVrms |
| Ripple Independent Current |
≤20mArms |
| Ripple Series and Parallel Current |
≤35mVrms |
| Rise Time No Load |
≤200mS |
| Rise Time Full Load |
≤300mS |
| Fall Time Full Load |
≤300mS |
| Fall Time No Load |
≤20S |
| Dynamic Response |
≤200mS |
| Efficiency |
≥85% |
| Input |
110V/8A, 220V/5A |
| USB Output |
5V 2A |
| Operating Temperature |
0℃~40℃ |
| Product Size |
About 28.5 × 17.5 × 13.5cm |
| Net Weight |
2.75KG |
| Package Size |
38.5 × 23.5 × 20cm |
| Package Weight |
3.4KG |
| Carton Quantity |
4 pcs/carton |
Why Choose NICE-POWER SPPS605-2KD?
The KUAIQU SPPS605-2KD combines dual independent DC outputs, encoder adjustment, OCP and OVP protection, real-time electrical display, and Series and Parallel output modes in one bench power supply. For EV Auxiliary System Testing, it provides adjustable DC power conditions for auxiliary electronic circuits, control modules, sensor and actuator circuits, and related bench debugging tasks within its 0-60V, 0-5A independent output range. Its 8-group memory, Output ON/OFF control, and Panel Lock function also support repeatable bench testing and convenient operation.
