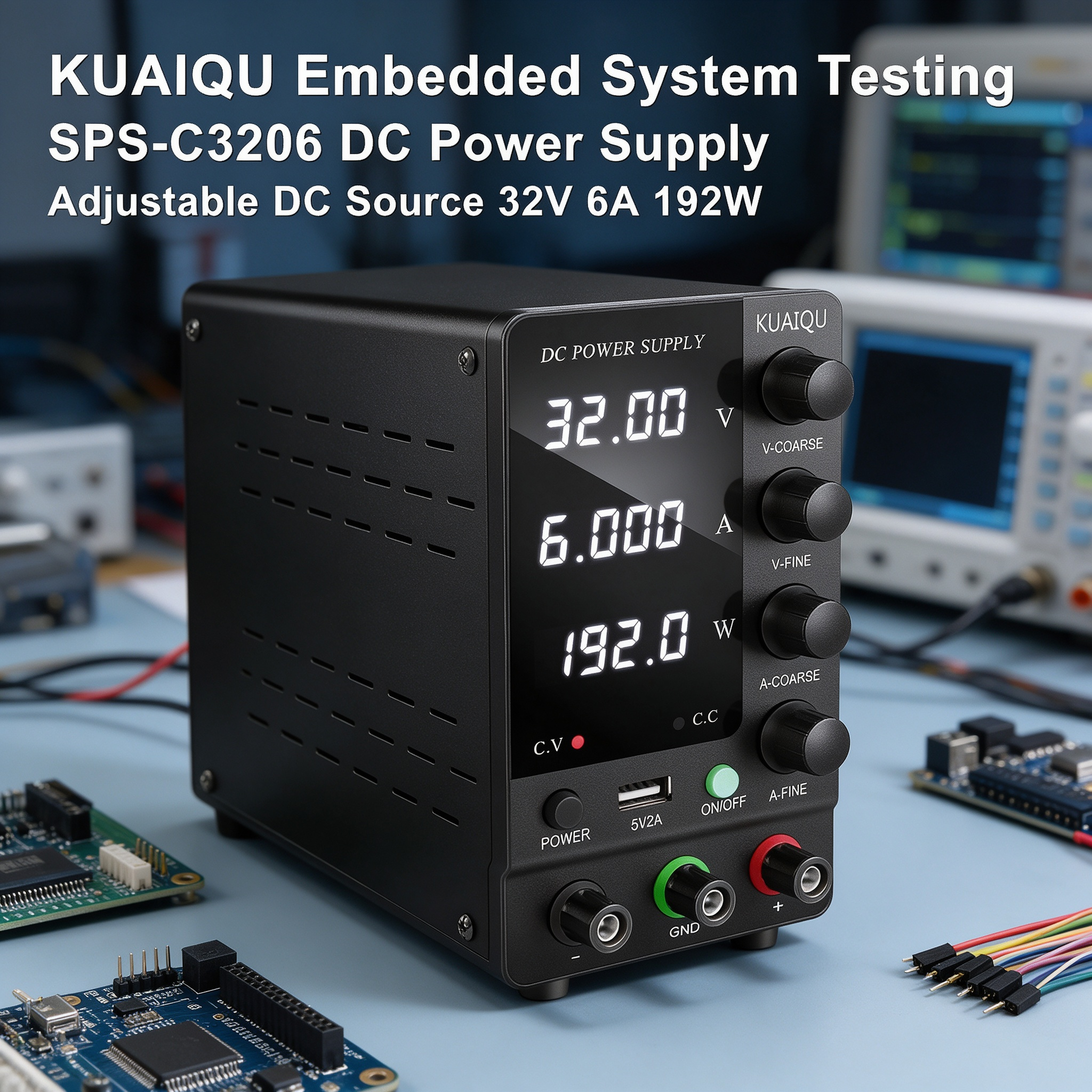

KUAIQU Embedded System Testing
SPS-C3206 DC Power Supply Adjustable
DC Source 32V 6A 192W
The KUAIQU SPS-C3206 is a 32V, 6A, 192W Adjustable DC Power Supply and DC Power Source designed for Embedded System Testing, embedded board development, circuit verification, and electronic hardware testing. With CV/CC operation, 4-Knob Adjustment, Voltage Display, Current Display, Power Display, and an Output Switch, it provides adjustable and observable DC power for testing embedded systems and related electronic circuits within its rated output range.
Key Features
Adjustable DC Power Supply for Embedded Systems
The SPS-C3206 provides an adjustable 0-32V DC output with up to 0-6A current and 192W rated power. This flexible output range allows users to configure suitable power conditions for embedded boards, development modules, control circuits, and other compatible electronic hardware during Embedded System Testing.
The adjustable DC output can be configured according to the operating requirements of the device under test, making the SPS-C3206 a practical DC Power Source for bench testing and embedded hardware development.
CV/CC Operation for Controlled Testing
The SPS-C3206 supports CV/CC operation for controlled DC power output during Embedded System Testing.
Users can configure the required voltage and current conditions according to the specifications of the embedded system under test. The CV/CC function provides the operating modes needed when testing electronic circuits with different load conditions within the rated capability of the power supply.

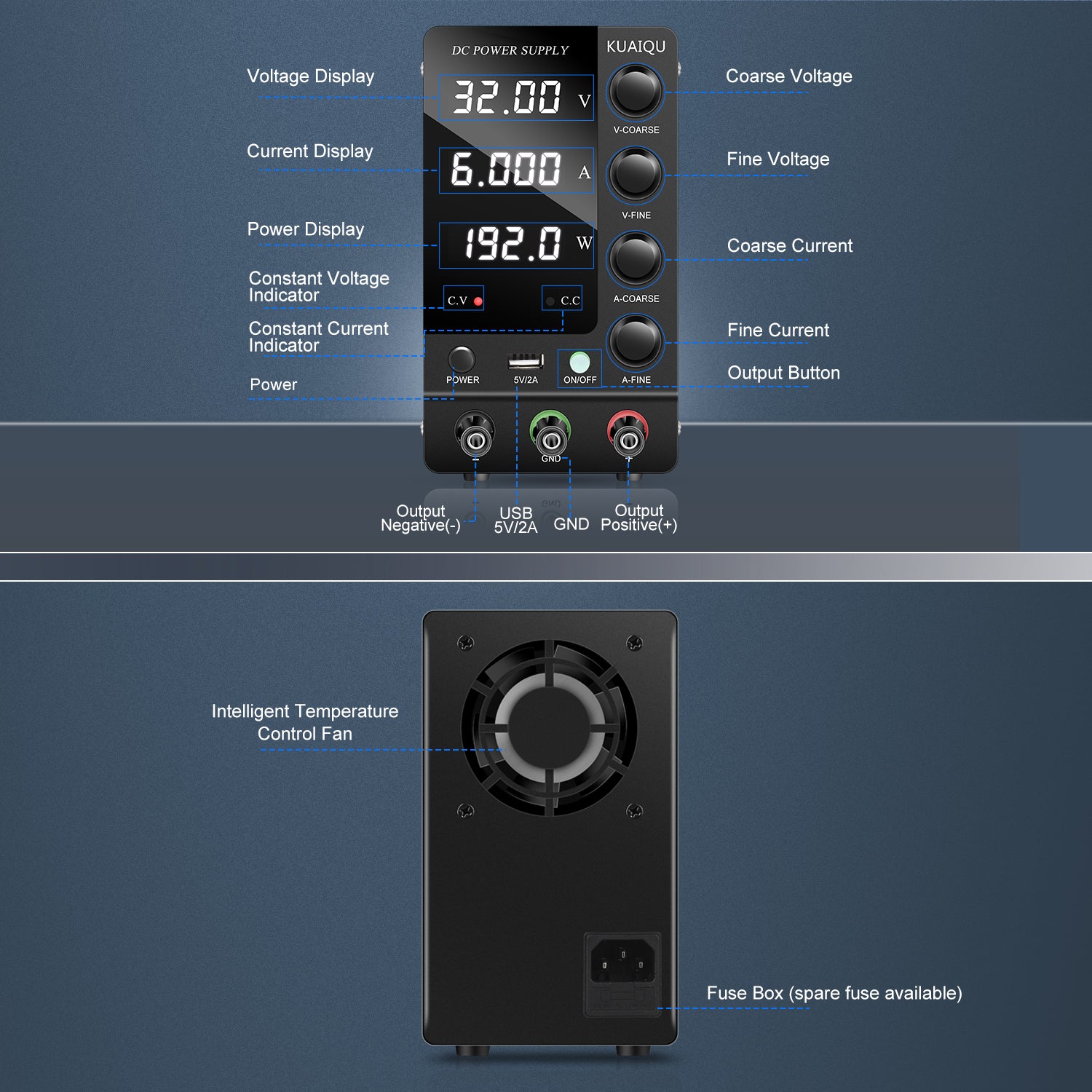

4-Knob Adjustment for Direct Control
The SPS-C3206 features 4-Knob Adjustment for direct front-panel control of voltage and current settings.
During Embedded System Testing, users can conveniently adjust the power supply settings while evaluating the operation of embedded boards, modules, and connected circuits. The direct adjustment design is suitable for repeated parameter changes during development and bench testing.

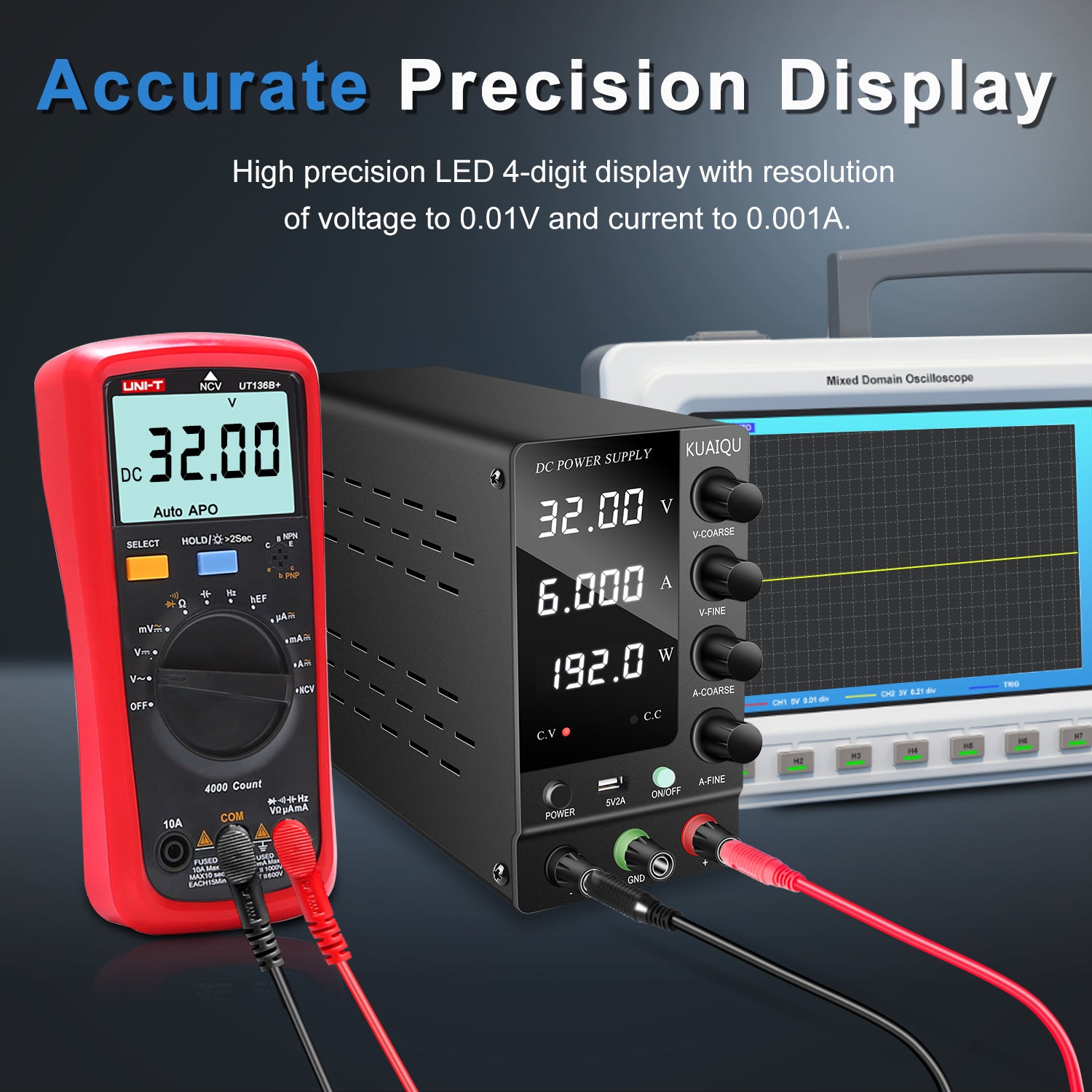

Voltage, Current, and Power Display
The SPS-C3206 provides Voltage Display, Current Display, and Power Display for monitoring the electrical values of the connected test system.
During embedded system testing, users can observe the voltage supplied to the device, the current being drawn, and the displayed power value while the system is operating. These readings provide useful information for checking the power conditions of the connected embedded hardware.
Output Switch for Convenient Test Control
The Output Switch allows users to control the DC output from the front panel after configuring the required settings.
During Embedded System Testing, users can turn the output on or off when preparing a test, changing connections, or repeating a test procedure. This provides convenient control of power application without requiring the voltage and current settings to be changed each time.
5V/2A USB Output for Compatible Devices
The SPS-C3206 includes a 5V/2A USB Output for compatible USB-powered devices and accessories.
This additional 5V output can be used to power compatible low-power USB devices around the electronics workbench while the main adjustable DC output is used for the embedded system under test.
Applications

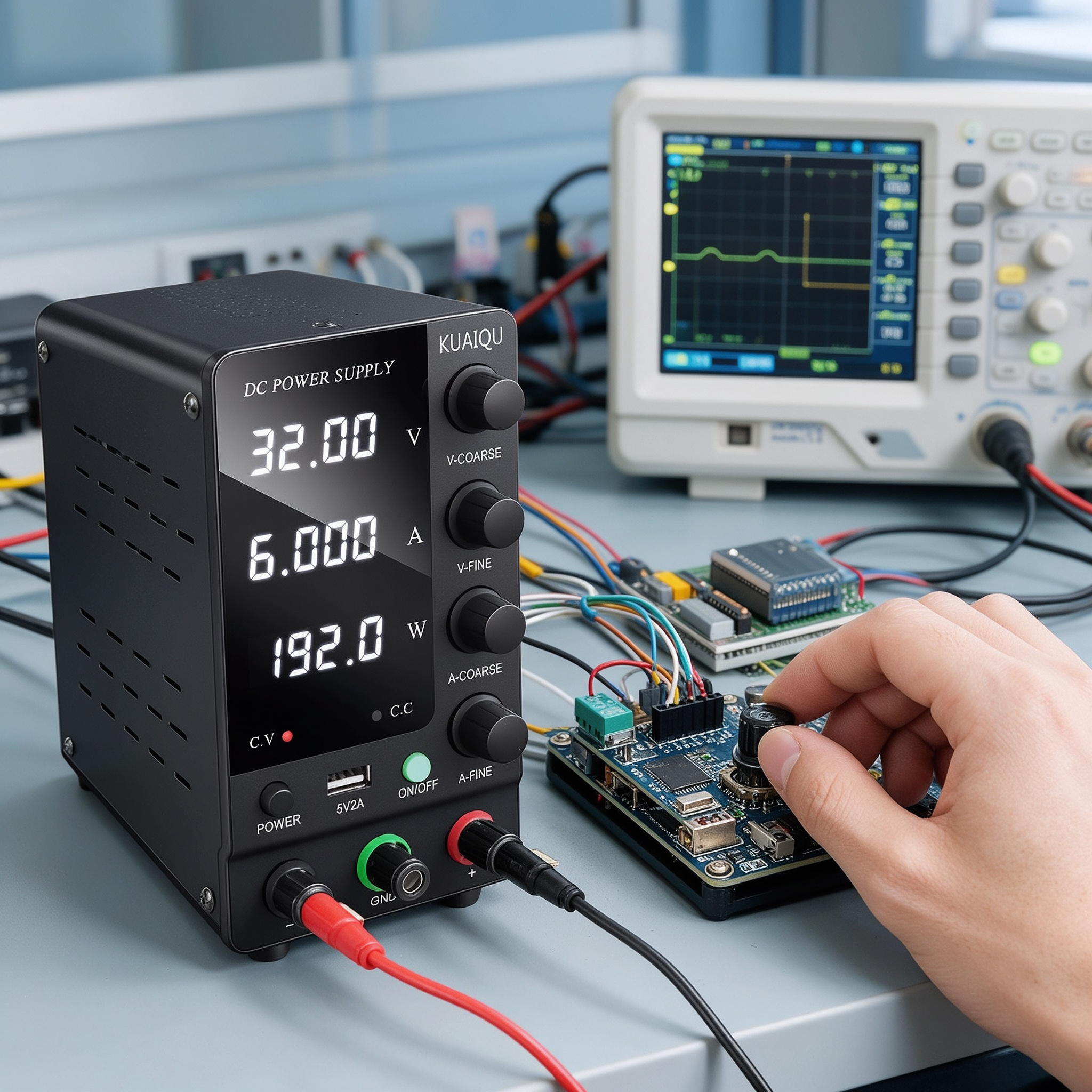

Embedded System Testing
The SPS-C3206 provides adjustable DC power for testing embedded systems within its 0-32V, 0-6A, and 192W rated output range.
Users can configure the required voltage and current, apply power to compatible embedded hardware, and monitor Voltage Display, Current Display, and Power Display readings during system operation.
Embedded Board and Module Testing
Embedded boards and development modules may require different operating power conditions during development and verification.
The SPS-C3206 provides an adjustable DC Power Source that allows users to configure suitable output conditions within its rated range while monitoring the electrical values displayed during testing.
Embedded Hardware Development
During embedded hardware development, engineers can use the SPS-C3206 to supply adjustable DC power to compatible prototype boards and electronic circuits.
The 4-Knob Adjustment design provides direct control of the power settings, while CV/CC operation and the voltage, current, and power displays provide useful information during development and bench testing.
Control Circuit and Electronic Module Testing
The SPS-C3206 can also provide adjustable DC power for compatible control circuits and electronic modules used as part of embedded systems.
Its 0-32V output range, 0-6A current capability, 192W rated power, and Output Switch make it suitable for routine power testing and verification of compatible electronic circuits within the specified operating range.
Quality Check and Terms of Service
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS-C3206 |
| Product Type |
Adjustable DC Power Supply |
| Output Voltage |
0-32V |
| Output Current |
0-6A |
| Output Power |
192W |
| Operating Temperature |
0-40°C |
| Operating Mode |
CV/CC |
| Setting Resolution, Voltage |
10mV |
| Setting Resolution, Current |
1mA |
| Readback Resolution, Voltage |
10mV |
| Readback Resolution, Current |
1mA |
| Setting Accuracy, Current |
≤0.01% + 10mA |
| Readback Accuracy, Voltage |
≤0.05% + 10mV |
| Readback Accuracy, Current |
≤0.01% + 10mA |
| Load Regulation, Voltage |
≤0.3% + 10mV |
| Load Regulation, Current |
≤0.1% + 2.5mA |
| Line Regulation, Voltage |
≤0.01% + 2.5mV |
| Line Regulation, Current |
≤0.1% + 2.5mA |
| Ripple, Voltage |
≤100mVp-p / ≤15mVrms |
| Ripple, Current |
≤15mArms |
| Rise Time, No Load |
≤200ms |
| Rise Time, Full Load |
≤300ms |
| Fall Time, No Load |
≤20s |
| Fall Time, Full Load |
≤300ms |
| Dynamic Response Time |
≤200ms |
| Efficiency |
≥85% |
| Input Voltage |
AC 220V (AC 110V optional) |
| Adjustment |
4-Knob Adjustment |
| Display |
Voltage Display / Current Display / Power Display |
| Output Control |
Output Switch |
| USB Output |
5V/2A |
| Dimensions |
Approx. 22 × 8.5 × 15.5 cm |
| Net Weight |
Approx. 1.2 kg |
| Application |
Embedded System Testing |
Why Choose NICE-POWER SPS-C3206?
The SPS-C3206 combines a 0-32V adjustable DC output, up to 0-6A current, and 192W rated power in a practical DC Power Supply and DC Power Source for Embedded System Testing. Its CV/CC operation, 4-Knob Adjustment, Voltage Display, Current Display, Power Display, and Output Switch provide direct control and monitoring during embedded board, module, and electronic circuit testing.
With its adjustable output and straightforward front-panel operation, the SPS-C3206 provides a practical power source for engineers, technicians, laboratories, and electronics developers working with compatible embedded systems and electronic hardware within the rated output range.
