Product Details

Download English Manual (PDF)

Click the link above to get the full user guide for this product.

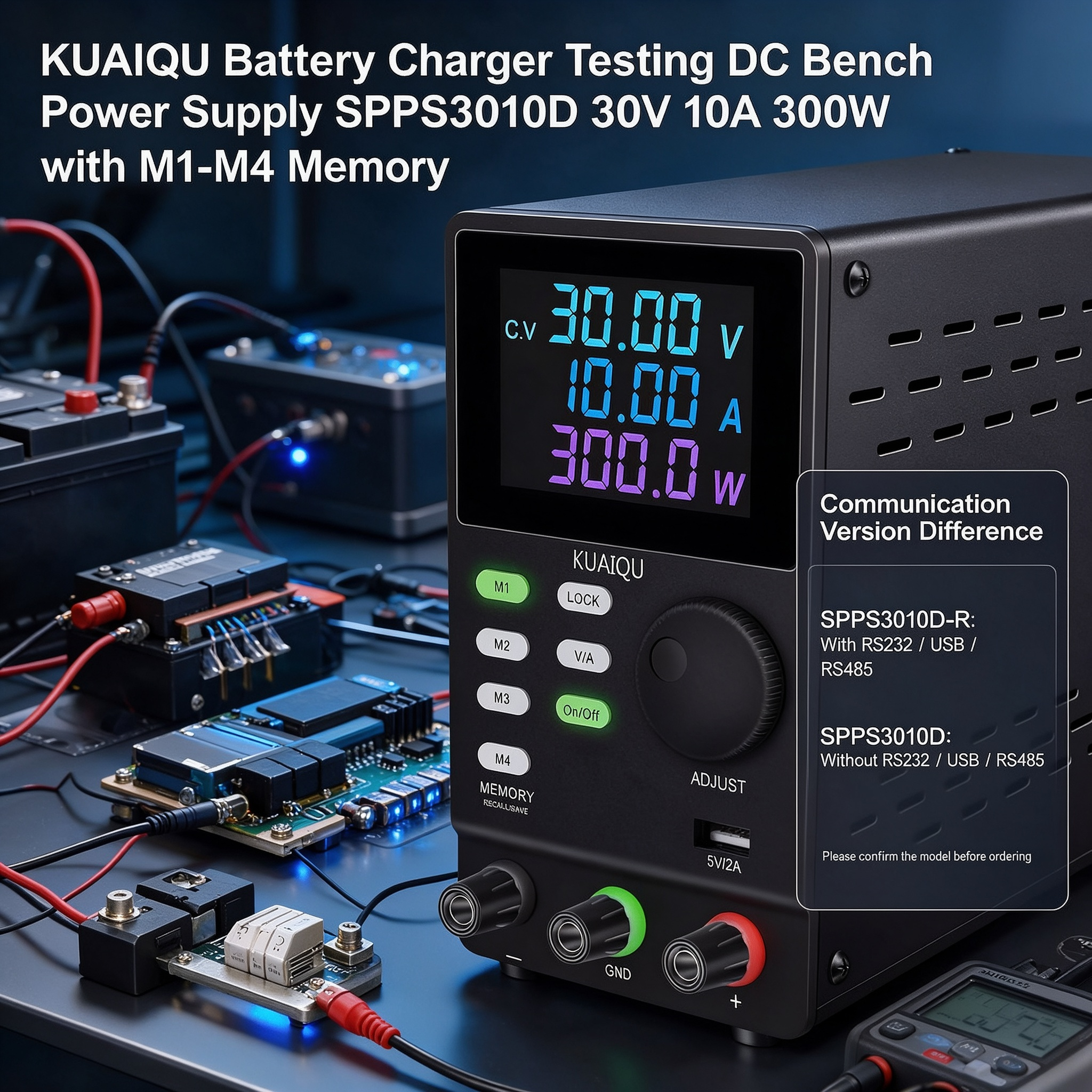

KUAIQU Battery Charger Testing DC Bench

Power Supply SPPS3010D 30V 10A 300W

with M1-M4 Memory

The KUAIQU SPPS3010D is a 30V 10A 300W DC Bench Power Supply designed for Battery Charger Testing and related DC power testing applications. With adjustable voltage and current output, M1-M4 Memory Storage, precision encoder adjustment, a full-color LCD display, and an independent output switch, it provides convenient control when setting and repeating test conditions for compatible battery chargers and charging-related circuits.

Key Features

Adjustable Voltage and Current for Charger Testing

The 0-30V and 0-10A adjustable output provides flexible DC power settings for Battery Charger Testing within the rated range of the SPPS3010D. Users can adjust voltage and current according to the requirements of different charger test procedures and connected test circuits.

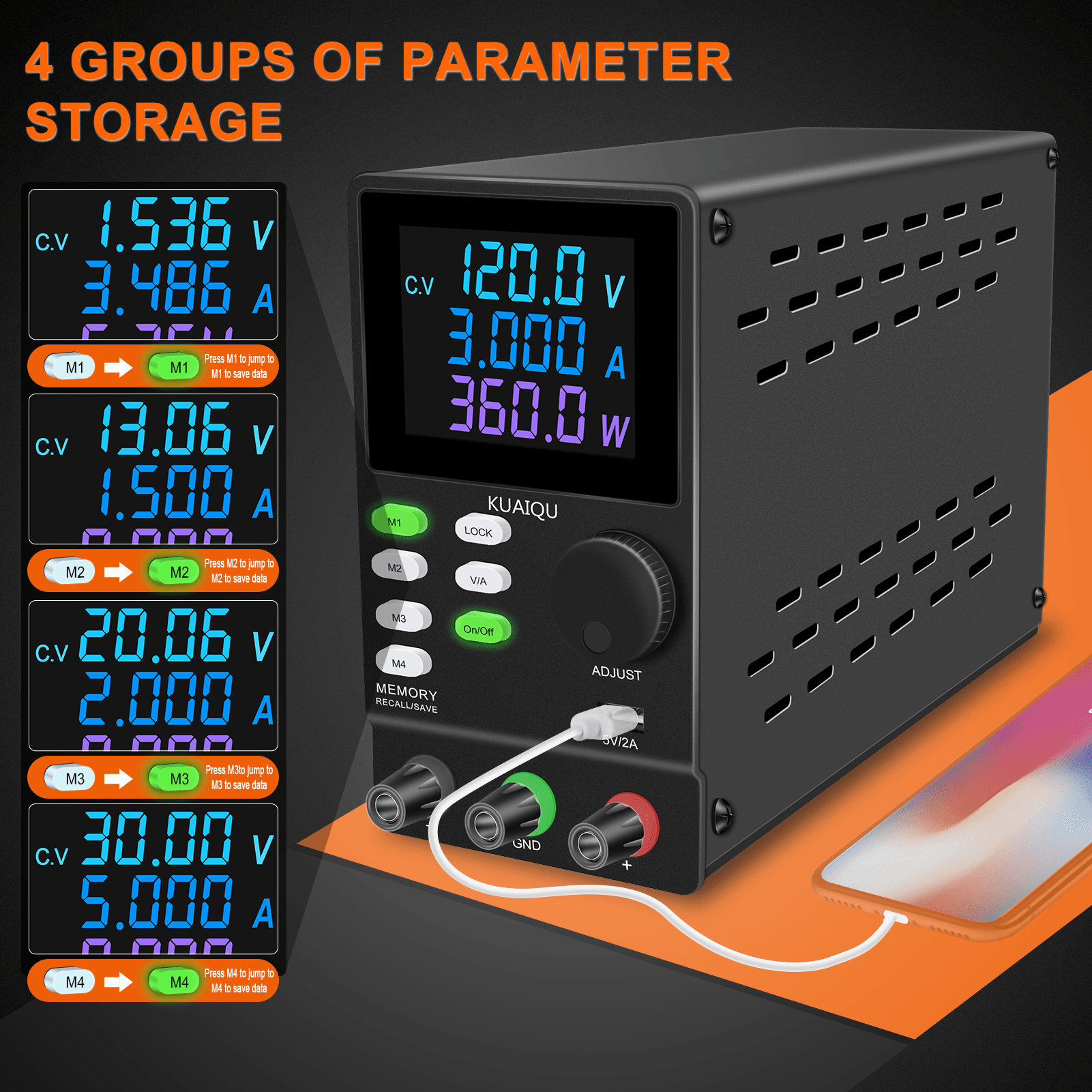

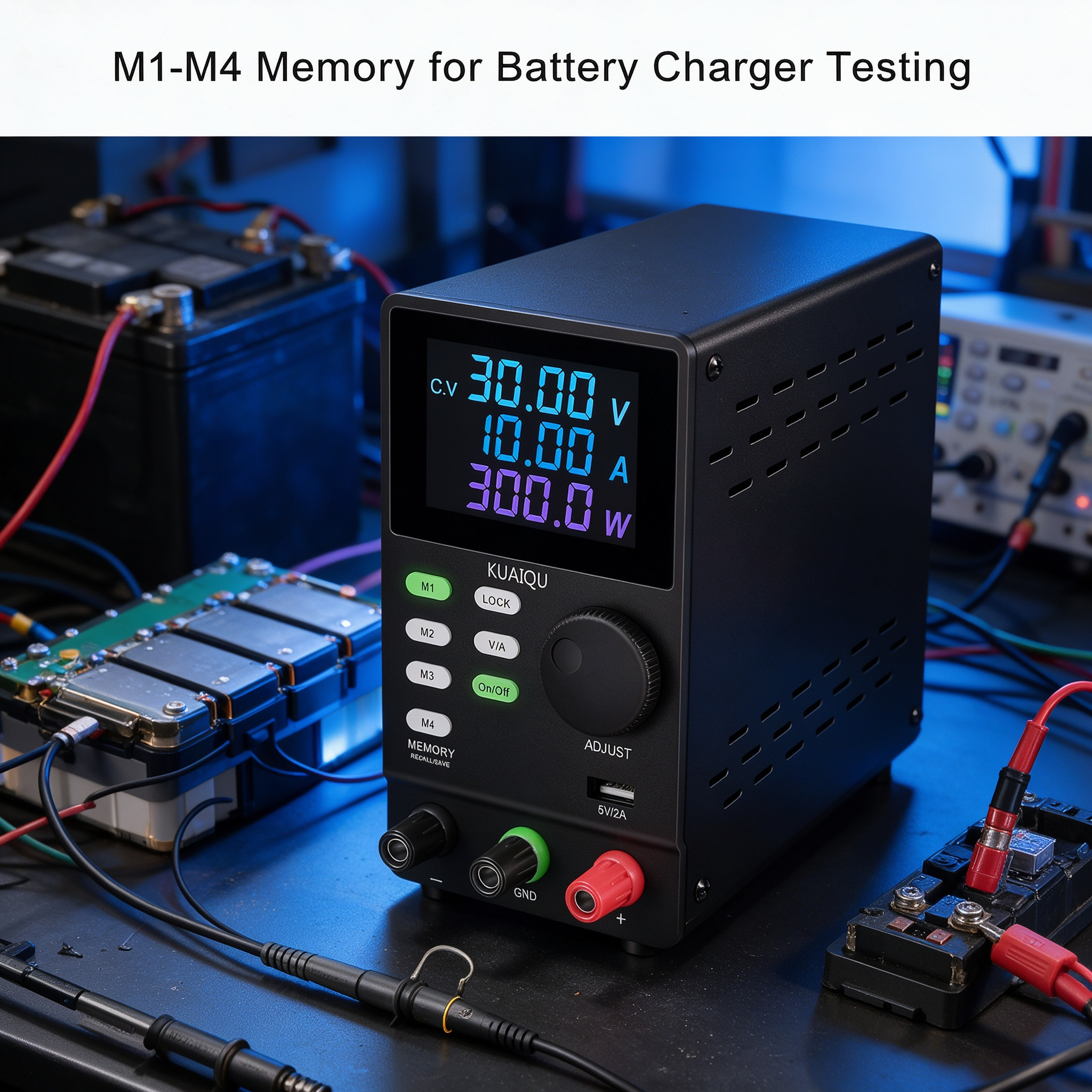

M1-M4 Memory for Repeated Test Settings

The four M1-M4 Memory Storage groups allow frequently used voltage and current settings to be stored for convenient recall. This is useful when testing multiple battery chargers or repeatedly performing charger tests that require the same DC power settings.

Precision Encoder Adjustment

The encoder provides precise adjustment of voltage and current values. During Battery Charger Testing, this allows users to make controlled changes to the DC output settings when checking different charger operating conditions within the power supply's rated range.

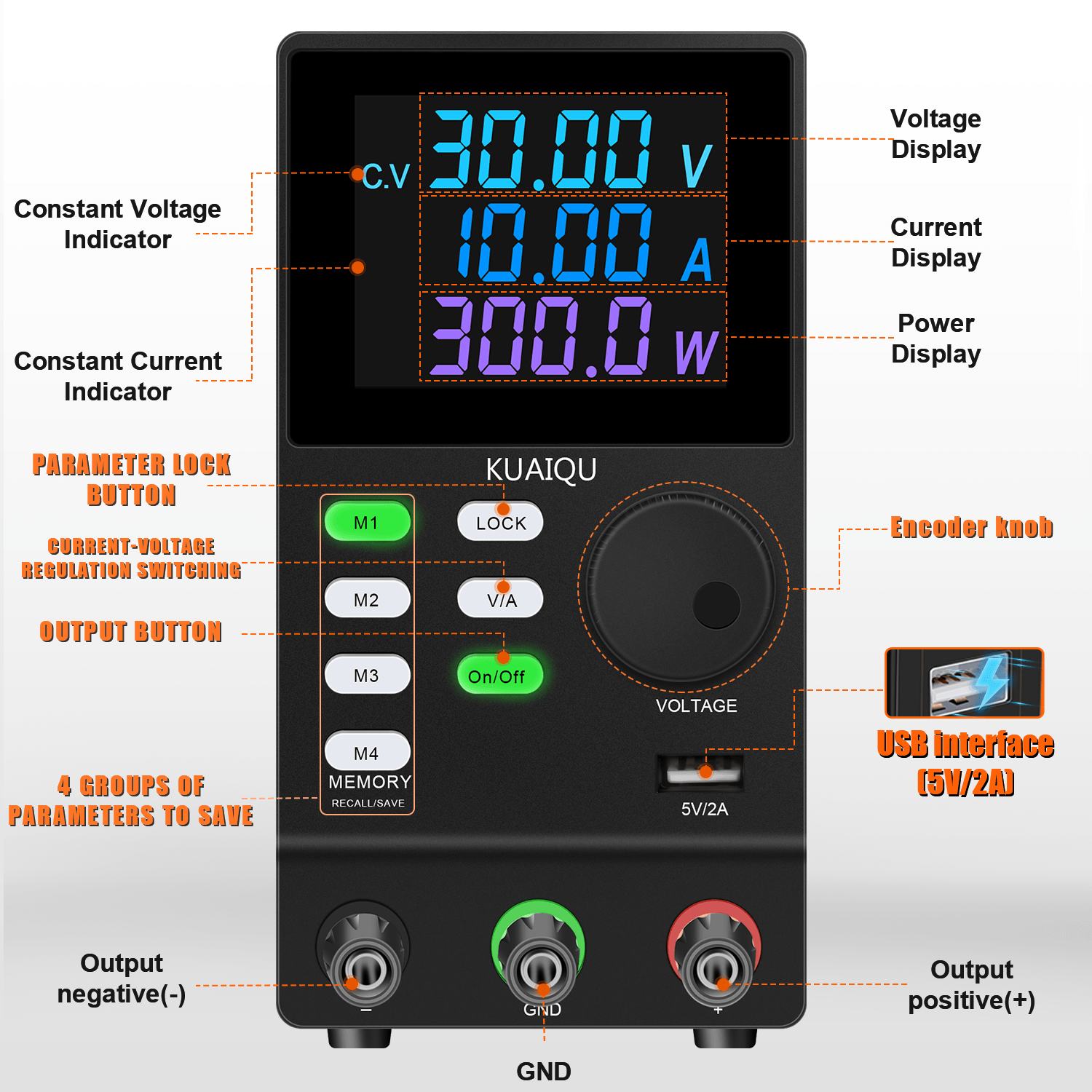

Full-Color LCD Voltage, Current and Power Display

The full-color LCD displays voltage, current, and power information during operation. Clear readout helps users monitor the DC Bench Power Supply output while performing battery charger testing and checking changes in the connected test circuit.

Independent Output Switch and Panel Lock

The independent output switch provides direct control of the DC output, while the panel lock helps prevent unintended button operation. These controls are useful for repeated test procedures where output activation and front-panel operation need to be managed conveniently.

Applications

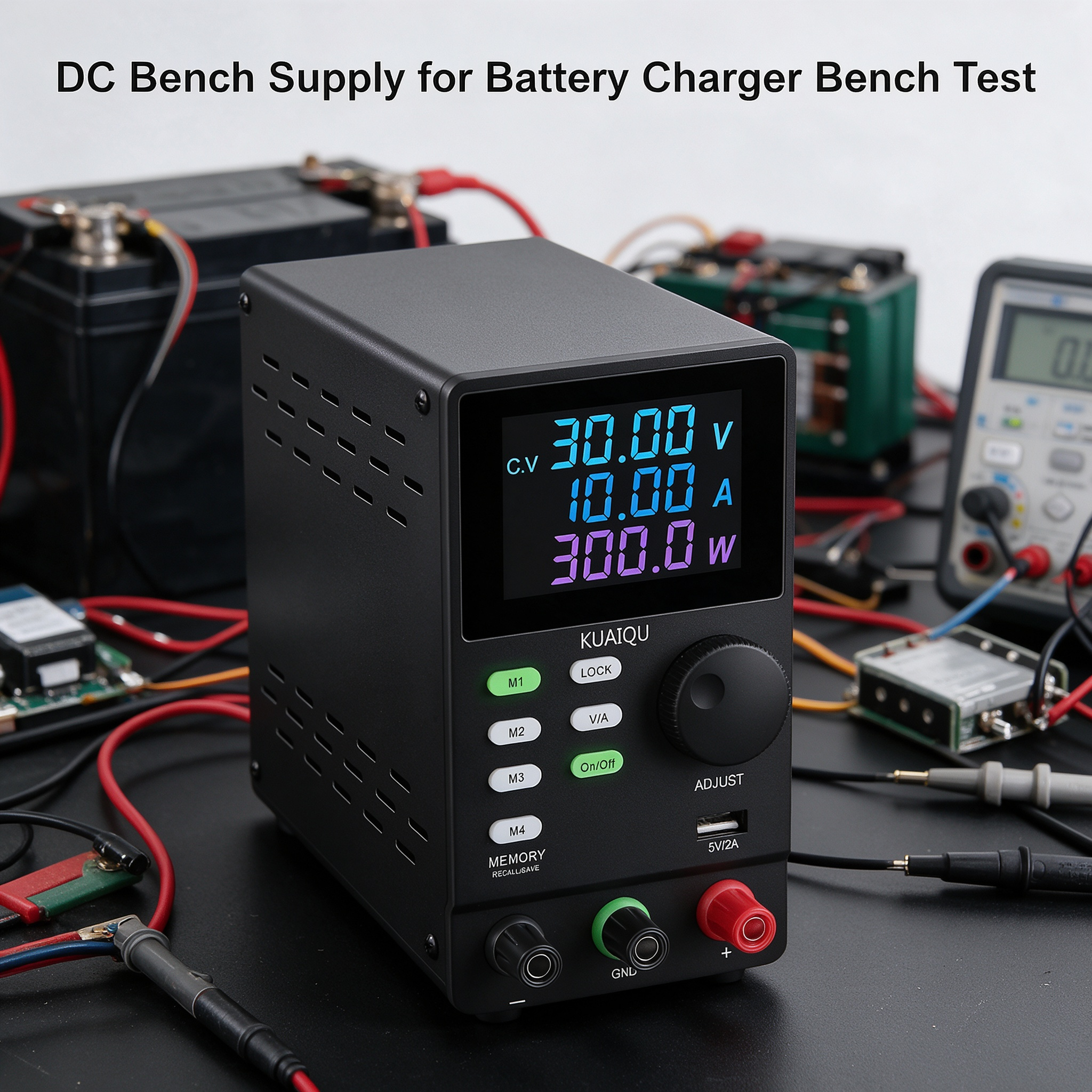

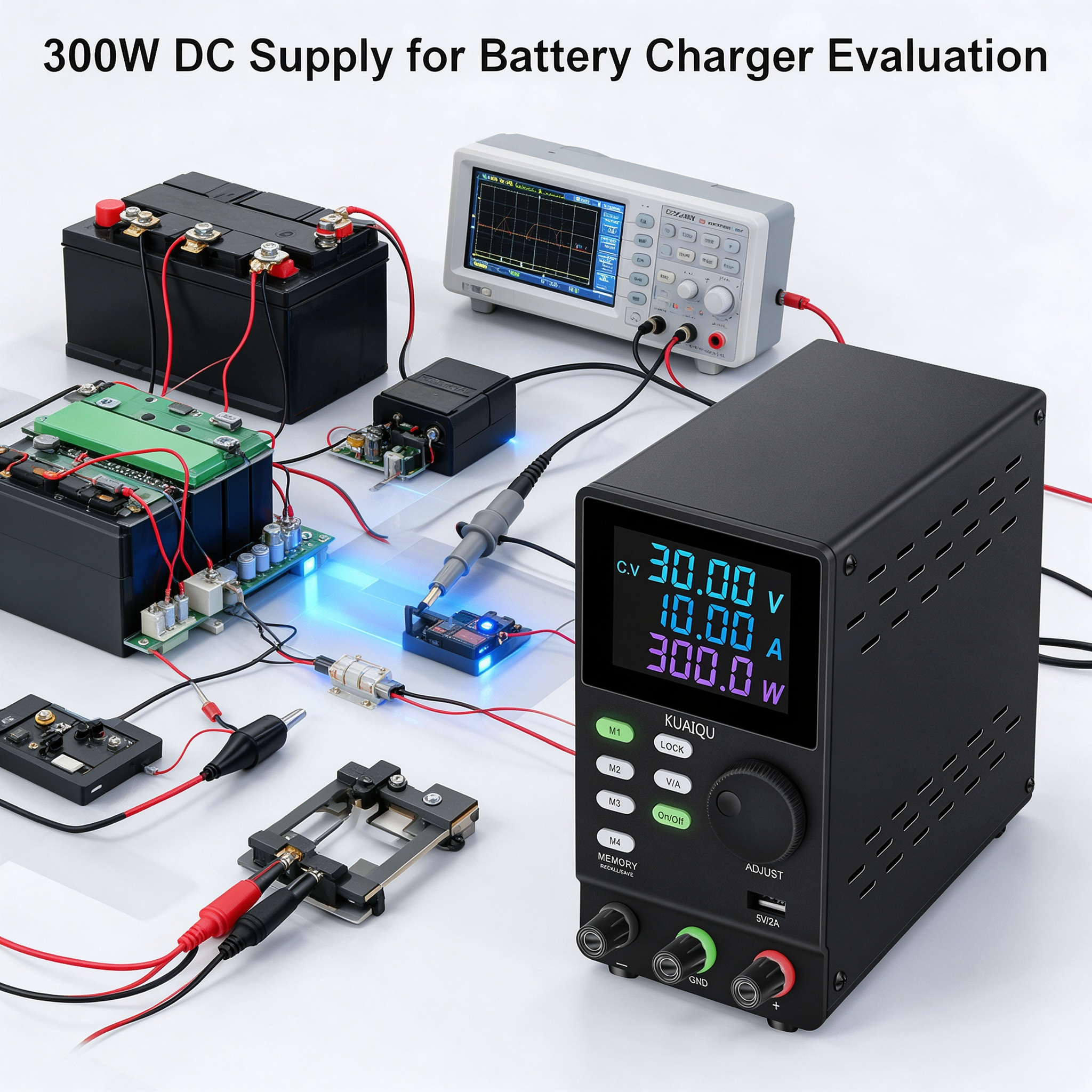

Battery Charger Output Testing

The SPPS3010D provides adjustable DC power for testing battery chargers and related charging circuits within its 0-30V, 0-10A, and 300W rated range. Users can set appropriate voltage and current conditions and observe the displayed electrical values during testing.

Charger Parameter Verification

Different battery chargers may require different test conditions. The adjustable voltage and current controls allow users to change the DC test settings, while the LCD provides voltage, current, and power readouts for monitoring the power supply during verification work.

Repeated Charger Testing

When testing multiple chargers with similar requirements, M1-M4 Memory Storage can store commonly used voltage and current settings. Recalling stored settings can reduce repeated manual adjustment and make recurring Battery Charger Testing more convenient.

Charging Circuit Bench Testing

The DC Bench Power Supply can be used as an adjustable DC source for laboratory and bench testing of charging-related circuits within the SPPS3010D output range. Precision encoder adjustment, output switching, and panel lock support controlled operation during repeated test procedures.

Quality Check and Terms of Service:

Each KUAIQU DC Power Supply and its accessories are inspected before shipment to help ensure product quality and reliable delivery.

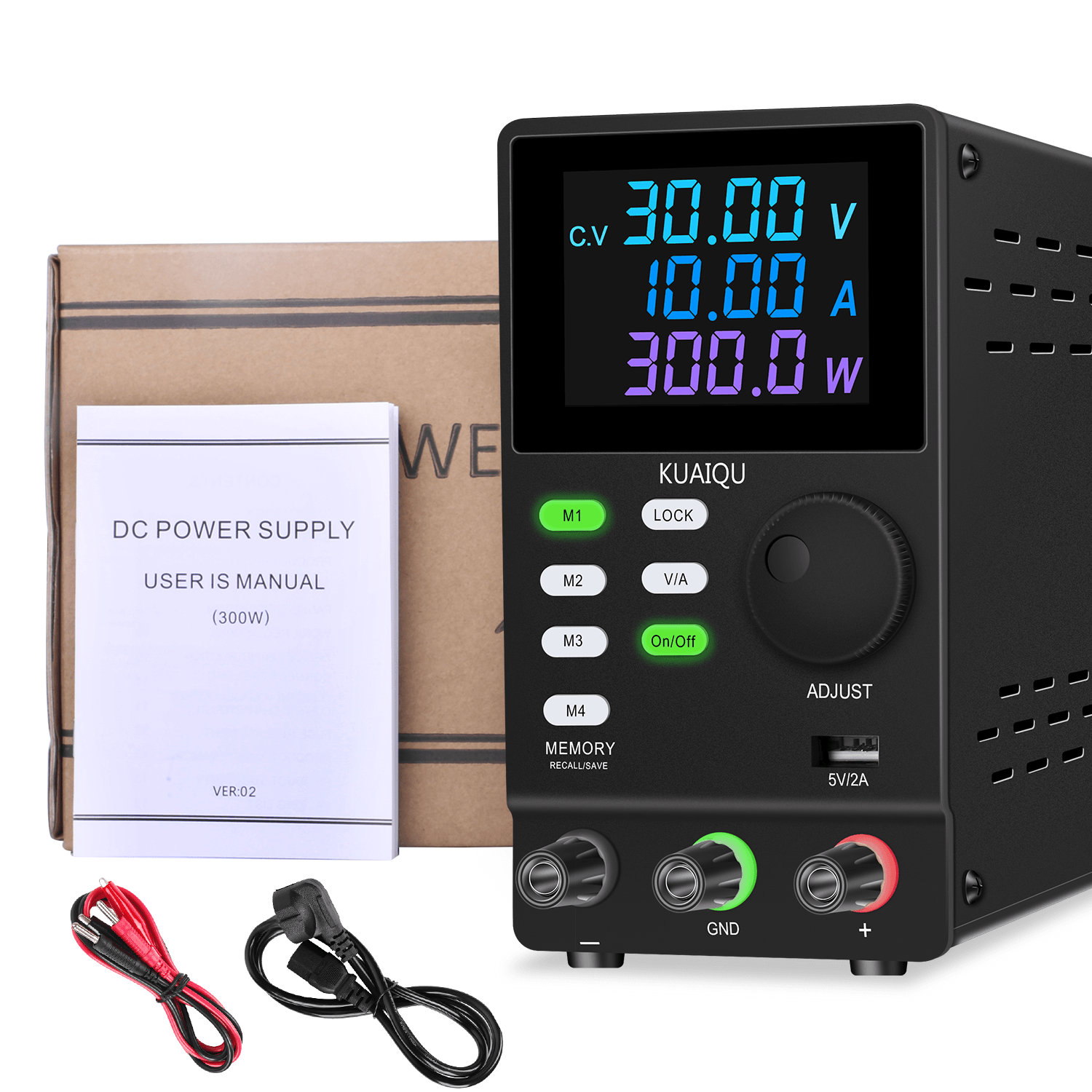

Package Includes:

  • 1 × SPPS3010D DC Power Supply

  • 1 × Output Power Cord

  • 1 × Input Power Cord

  • 1 × User Manual

  • 1 × Warranty Card

Quality Assurance:

  • CE & FCC Certification

  • All DC Power Supplies and accessories are inspected before shipment

  • Customer support within 24 hours

Technical Specifications

Parameter Specification
Model SPPS3010D
Output Voltage 0-30V
Output Current 0-10A
Output Power 300W
USB Output 5V 2A
Memory Storage M1-M4, 4 Groups
Load Regulation Voltage ≤0.3%+10mV
Load Regulation Current ≤0.1%+2.5mA
Line Regulation Voltage ≤0.01%+2.5mV
Line Regulation Current ≤0.1%+2.5mA
Setting Resolution Voltage 10mV
Setting Resolution Current 1mA
Readback Resolution Voltage 10mV
Readback Resolution Current 1mA
Setting Accuracy Voltage ≤0.05%+10mV
Setting Accuracy Current ≤0.01%+10mA
Readback Accuracy Voltage ≤0.05%+10mV
Readback Accuracy Current ≤0.01%+10mA
Ripple Voltage ≤100 mVp-p  / ≤15 mVrms
Ripple Current ≤15mArms
Rise Time, No Load ≤200mS
Rise Time, Full Load ≤300mS
Fall Time, No Load ≤20S
Fall Time, Full Load ≤300mS
Dynamic Response Time ≤200mS
Efficiency ≥85%
Input Voltage AC 220V, AC 110V Optional
Dimensions Approx. 24 × 8.5 × 16cm
Net Weight Approx. 1.3KG
Package Dimensions Approx. 33.5 × 13 × 22cm
Package Weight Approx. 1.7KG

Why Choose KUAIQU SPPS3010D?

The KUAIQU SPPS3010D combines a 30V 10A 300W DC Bench Power Supply output with M1-M4 Memory Storage, precision encoder adjustment, full-color LCD voltage, current and power display, independent output control, and panel lock. For Battery Charger Testing, these real functions provide flexible DC power adjustment, convenient recall of repeated test settings, and clear operating information for charger and charging-circuit testing within the rated output range.
