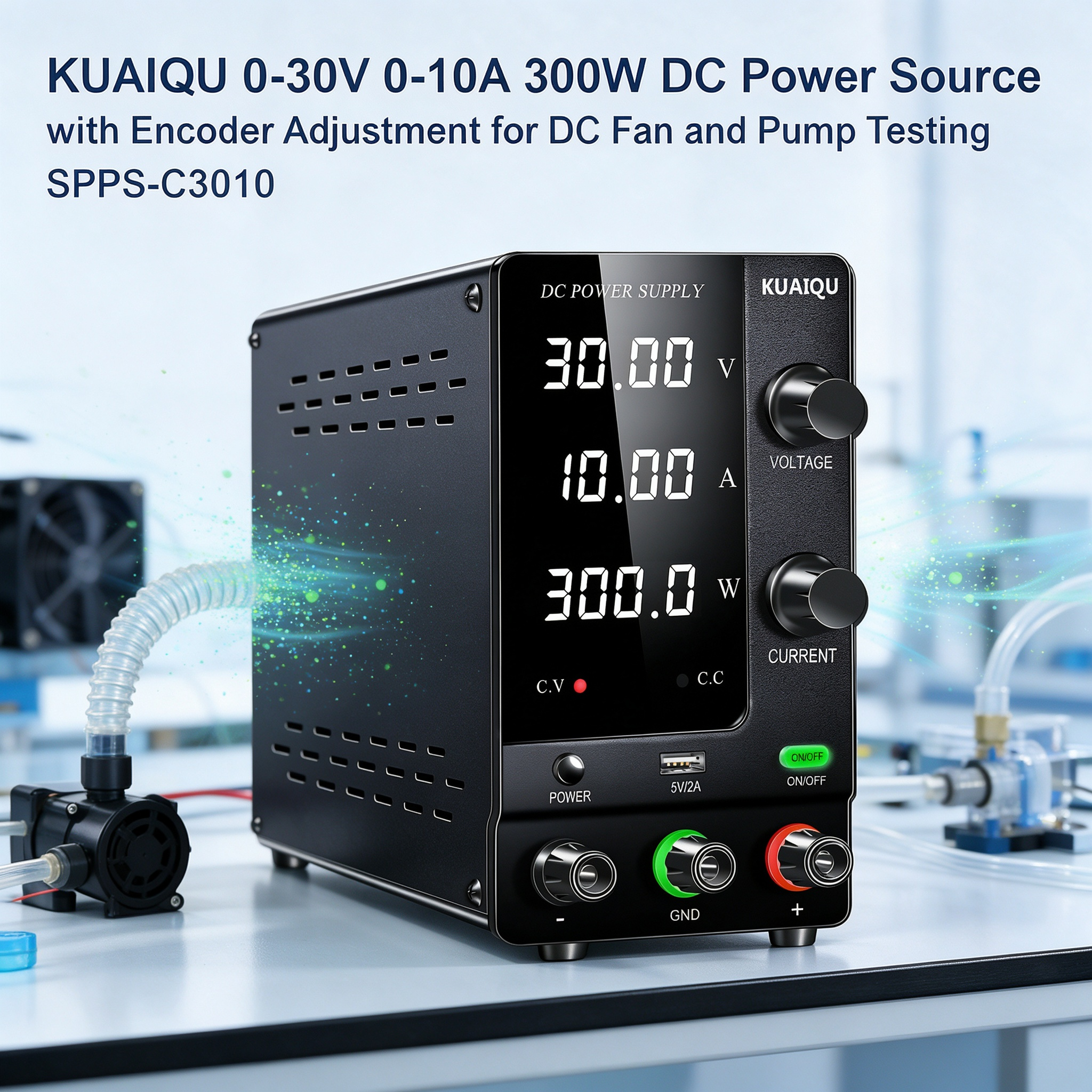

KUAIQU 0-30V 0-10A 300W DC Power
Source with Encoder Adjustment for DC
Fan and Pump Testing
The KUAIQU SPPS-C3010 provides adjustable DC power for testing small DC fans, pumps, motors, and other motor-driven devices within its 0-30V, 0-10A, and 300W output range. For DC Fan and Pump Testing, the power supply allows users to adjust voltage and current according to the device under test while monitoring voltage, current, and power during operation. The encoder adjustment and Output ON/OFF control also make it convenient to establish test conditions before applying power.
Key Features

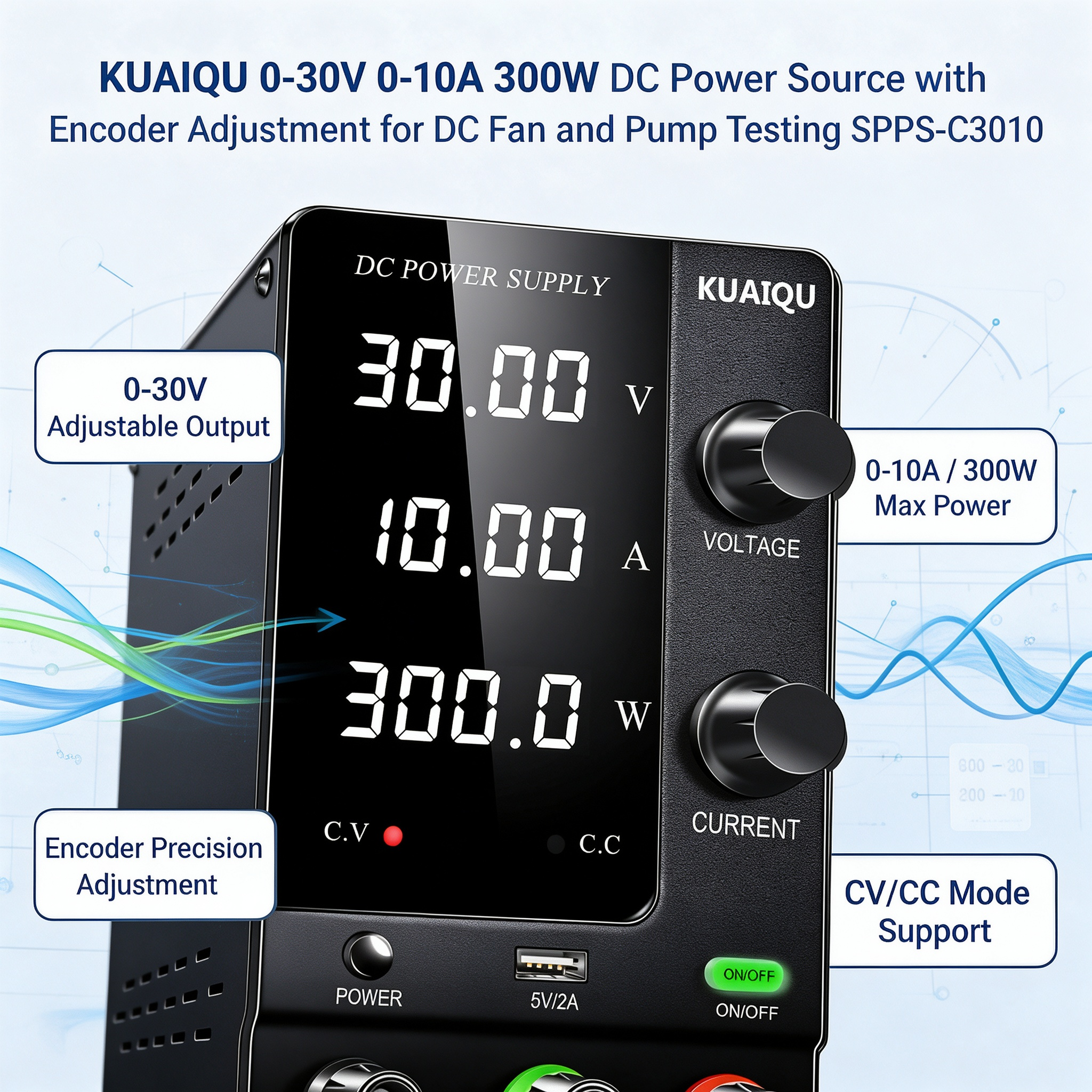

0-30V 0-10A 300W DC Power Source for Fan and Pump Testing
The SPPS-C3010 provides up to 30V DC output, 10A current, and 300W maximum power. This output range is suitable for testing compatible DC fans, water pumps, small motors, and other low-voltage motor-driven equipment within the rated specifications.
Encoder Adjustment for Controlled Test Conditions
The dual-knob encoder provides precise adjustment of voltage and current settings. During DC Fan and Pump Testing, users can adjust the power supply according to the required operating conditions and observe how the device responds to different DC input settings.
Voltage, Current and Power Display for Operating Monitoring
The 4-digit digital display provides real-time voltage, current, and power readings. This allows users to observe the electrical operating condition of a fan or pump while it is running and identify changes in current draw or power consumption during testing.
CV/CC Automatic Switching for Different Loads
The SPPS-C3010 automatically switches between Constant Voltage and Constant Current operation according to the connected load. This provides a practical adjustable DC power source for different fan, pump, and motor testing conditions within the power supply's rated output range.
Output ON/OFF Control for Test Setup
The independent Output ON/OFF control allows users to prepare the required voltage and current settings before applying power to the device under test. This is useful when connecting, replacing, or restarting DC fans and pumps during bench testing.
Compact Bench Design with USB 5V/2A Output
The compact SPPS-C3010 is suitable for laboratory benches, engineering workstations, repair areas, and motor testing setups. Its USB 5V/2A output can provide auxiliary power for compatible USB-powered accessories used around the testing bench.
Applications
DC Fan Operating and Current Testing
Use the SPPS-C3010 to supply adjustable DC power to compatible DC fans and monitor voltage, current, and power while the fan is operating. The displayed electrical values can help users observe changes in current consumption under different test conditions.
Water Pump Testing
The adjustable DC Power Source can provide controlled power for compatible small DC water pumps within the 0-30V, 0-10A, and 300W rating. Users can adjust the supply conditions and monitor electrical readings while evaluating pump operation.
Small Motor and Pump Performance Checks
The SPPS-C3010 can be used as a DC Power Source for small motors, gear motors, fans, and pumps during bench evaluation. Adjustable voltage and current settings allow engineers and technicians to establish different operating conditions for comparative electrical testing.
Extended Operating and Burn-In Testing
For compatible DC fans, pumps, and small motor-driven devices, the SPPS-C3010 can provide adjustable DC power during extended operating tests. Real-time voltage, current, and power readings make it easier to observe electrical changes during continuous or repeated operation.
Quality Check and Terms of Service
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Product Type |
DC Power Source |
| Model |
SPPS-C3010 |
| Rated Voltage |
0-30V |
| Rated Current |
0-10A |
| Rated Power |
300W |
| Display |
4-Digit LED Display |
| Display Parameters |
Voltage / Current / Power |
| Control |
Dual-Knob Encoder Adjustment |
| Operating Mode |
CV/CC Automatic Switching |
| Output Control |
Output ON/OFF Switch |
| USB Output |
5V/2A |
| Rated Operating Temperature |
0-40°C |
| Voltage Ripple |
≤100 mVp-p / ≤15 mVrms |
| Current Ripple |
≤15 mArms |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Accuracy |
≤0.01% + 10mA |
| Voltage Setting Resolution |
10mV |
| Voltage Readback Resolution |
10mV |
| Current Setting Resolution |
1mA |
| Current Readback Resolution |
1mA |
| Load Regulation Voltage |
≤0.3% + 10mV |
| Load Regulation Current |
≤0.1% + 2.5mA |
| Line Regulation Voltage |
≤0.01% + 2.5mV |
| Line Regulation Current |
≤0.1% + 2.5mA |
| Rise Time No Load |
≤200ms |
| Rise Time Full Load |
≤300ms |
| Fall Time No Load |
≤20s |
| Fall Time Full Load |
≤300ms |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| Input |
AC 220V, AC110V Optional |
| Cooling |
Temperature-Controlled Fan |
| Dimensions |
Approx. 22 × 8.5 × 15.5 cm |
| Net Weight |
Approx. 1.2 kg |
Why Choose KUAIQU SPPS-C3010?
For DC Fan and Pump Testing, a suitable power source needs to provide adjustable DC output while allowing users to observe the electrical condition of the device under test. The KUAIQU SPPS-C3010 combines a 0-30V, 0-10A, 300W DC Power Source with Encoder Adjustment and real-time voltage, current, and power display.
The SPPS-C3010 is particularly suitable for bench testing of compatible DC fans, water pumps, small motors, and motor-driven components. Its adjustable output, CV/CC operation, Output ON/OFF control, and digital monitoring allow engineers and technicians to establish test conditions, observe operating current and power, and perform repeated or extended DC Fan and Pump Testing within the rated specifications.
