KUAIQU 0-15V 0-30A 450W R-SPS1530S
Adjustable DC Bench Power Supply with
OVP for Automotive Electronics Testing
The KUAIQU R-SPS1530S is a 0-15V 0-30A 450W Adjustable DC Bench Power Supply designed for compatible Automotive Electronics Testing applications. Its adjustable low-voltage output and high current capability provide a controlled DC power source for automotive electronic test setups within the rated 450W output range. The four-digit display provides voltage, current, and power readback, while OVP and OCP functions provide additional protection during testing. Precision encoder adjustment, Output ON/OFF control, M1-M3 memory functions, and panel lock further support organized bench testing and repeated test conditions.
Key Features
0-15V 0-30A 450W Adjustable DC Bench Power Supply
The R-SPS1530S provides an adjustable 0-15V voltage range, 0-30A current range, and 450W rated output power. This combination is suitable for automotive electronic test setups that require adjustable DC power within the product's rated voltage, current, and power range.
OVP and OCP for Controlled Automotive Electronics Testing
The R-SPS1530S includes OVP and OCP functions for the power output. These built-in protection functions provide additional protection for compatible test setups during Automotive Electronics Testing when abnormal voltage or current conditions occur.
Four-Digit Voltage, Current, and Power Readback
The four-digit display shows voltage, current, and power, allowing users to monitor the main electrical output parameters directly from the front panel. This is useful when checking the power conditions supplied to automotive electronic devices during bench testing.
Precision Encoder Adjustment
The precision encoder provides controlled adjustment of the power supply settings. For Automotive Electronics Testing, users can make fine changes to the output settings when different test conditions require different DC voltage or current values.
Output ON/OFF Control
The dedicated Output ON/OFF function allows users to control DC output without changing the configured settings. This provides a convenient way to apply or remove power during automotive electronic test procedures.
M1-M3 Memory for Repeated Test Conditions
The R-SPS1530S provides three groups of memory functions, M1-M3. These memory positions can be used for frequently used power supply settings, making repeated Automotive Electronics Testing more convenient when the same output conditions are required.
Panel Lock for Test Setup Stability
The Panel Lock Button helps reduce unintended changes to the power supply settings during operation. This can be useful when the R-SPS1530S is integrated into a test bench and the required output settings need to remain unchanged during a test procedure.
Front and Rear Output Ports
The R-SPS1530S provides front and rear output ports for flexible connection to different test setups. The product data specifies that the front panel can be used for output below 5A, while the rear panel can be used at full power.

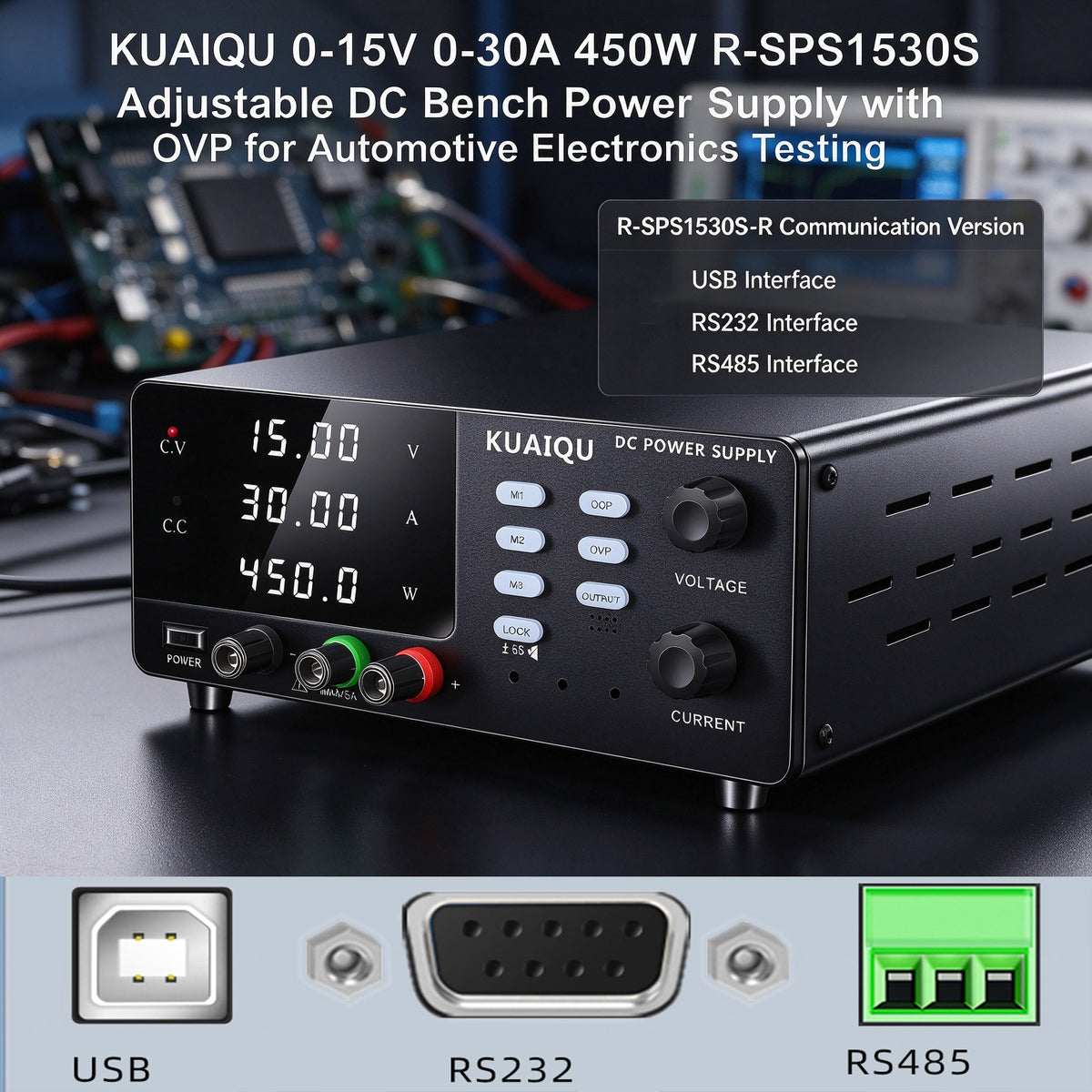

USB with Optional RS232 and RS485
The R-SPS-S High Power Pro Series provides a standard USB port, with RS232 and RS485 available as optional interfaces. These interface options provide additional connection choices for compatible automotive electronics testing configurations.
Applications

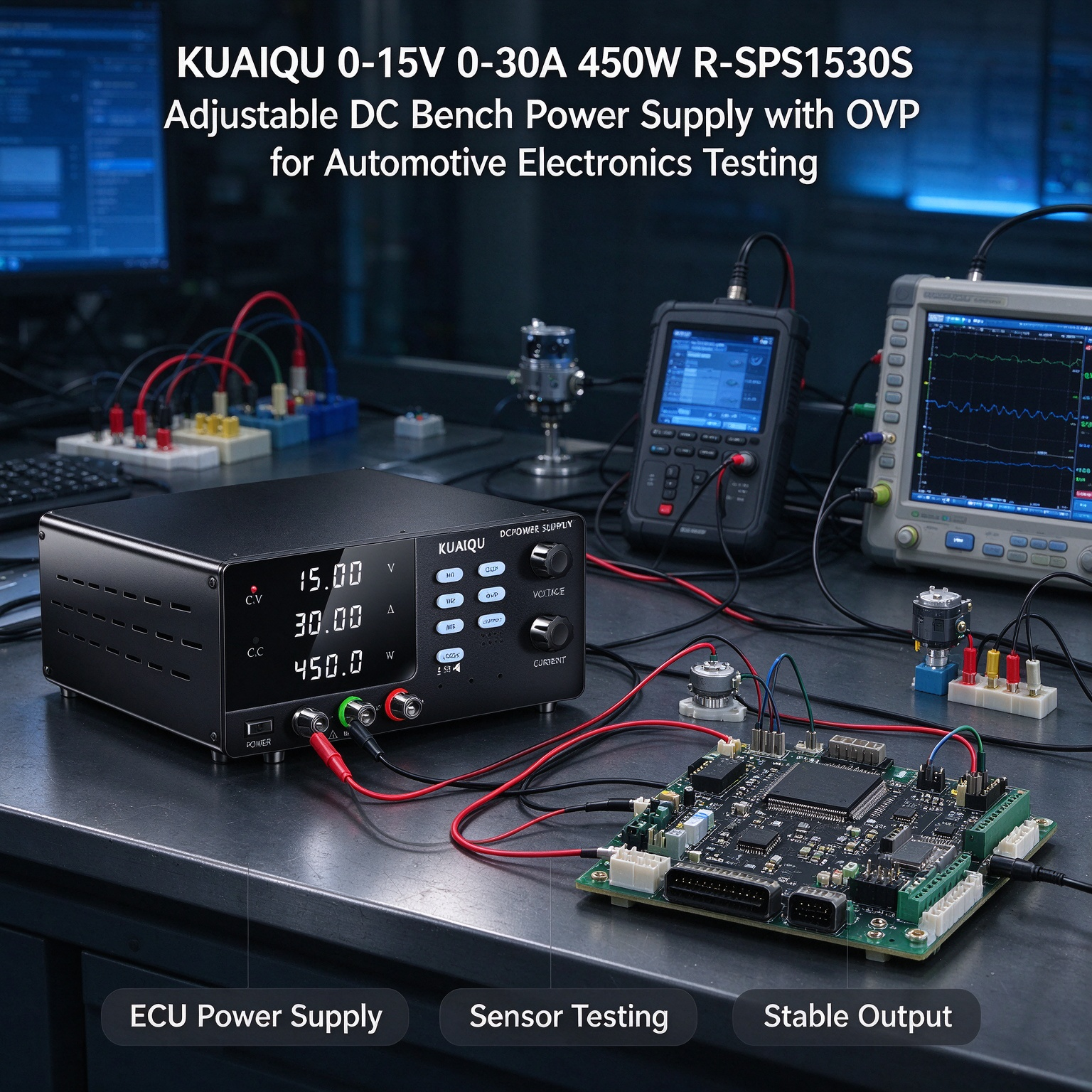

Automotive Electronics Testing
The R-SPS1530S provides adjustable DC power for compatible Automotive Electronics Testing applications. With a 0-15V voltage range, 0-30A current range, and 450W rated output, it can be used to supply suitable automotive electronic test setups within the specified operating range.
ECU and Control Module Testing
The Adjustable DC Bench Power Supply can provide controlled DC power for compatible ECU and automotive control module test setups. The four-digit voltage, current, and power display allows users to monitor the electrical output during bench testing.
Automotive Sensor Testing
The adjustable output can be used for compatible automotive sensor test setups that require a controlled DC power source. Users can adjust the voltage and current settings according to the requirements of the test equipment while remaining within the R-SPS1530S specifications.
Automotive Actuator Testing
For compatible automotive actuator test setups, the R-SPS1530S provides adjustable DC output with up to 30A current. OVP and OCP functions provide additional protection during testing, while the Output ON/OFF function provides direct control of power delivery.
Automotive Electronic Component Testing
The 0-15V adjustable output makes the R-SPS1530S suitable for compatible low-voltage automotive electronic component testing. The displayed voltage, current, and power values help users observe the electrical conditions of the test setup while adjusting the output.
Automotive Control System Testing
The R-SPS1530S can provide adjustable DC power for compatible automotive control system test setups. Its encoder adjustment, digital readback, OVP, OCP, and Output ON/OFF functions provide practical control of the power source during bench testing.
Automotive Electronics Development
During automotive electronics development, the R-SPS1530S can provide adjustable DC power for compatible prototype and evaluation setups. The 0-15V output range allows engineers to configure different supply conditions within the rated specifications.
Repeated Automotive Electronics Verification
The M1-M3 memory functions provide three groups of stored settings for repeated testing. When the same voltage and current conditions are required across multiple compatible test procedures, users can recall the stored settings instead of repeatedly configuring them manually.
Automotive Electronics Test Bench Applications
The combination of front and rear output ports, Output ON/OFF control, panel lock, precision encoder adjustment, and four-digit voltage, current, and power display makes the R-SPS1530S suitable for compatible automotive electronics test benches requiring adjustable DC power.
Quality Check and Terms of Service:
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Product Model |
R-SPS1530S |
| Series |
R-SPS-S High Power Pro Series |
| Rated Voltage |
15V |
| Adjustable Voltage Range |
0-15V |
| Rated Current |
30A |
| Adjustable Current Range |
0-30A |
| Rated Output Power |
450W |
| Operating Temperature |
0-40°C |
| Display |
Four-digit Voltage / Current / Power Display |
| Output Control |
Output ON/OFF |
| Panel Lock |
Yes |
| Memory |
M1-M3, 3 Groups |
| OCP Function |
Yes |
| OVP Function |
Yes |
| Encoder Adjustment |
Precision Encoder Adjustment |
| Buzzer |
Can be set to mute |
| USB Port |
Standard USB Port |
| RS232 / RS485 |
Optional |
| Output Ports |
Front + Rear Dual Output Ports |
| Front Output |
Below 5A |
| Rear Output |
Can be used at full power |
| Voltage Load Regulation |
≤0.1% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
10mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
10mA |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Ripple |
≤300 mVp-p / ≤30 mVrms |
| Current Ripple |
≤20 mArms |
| Ripple Test Frequency |
20Hz-20MHz |
| Rise Time, No Load |
≤150ms |
| Rise Time, Full Load |
≤200ms |
| Fall Time, No Load |
≤15s |
| Fall Time, Full Load |
≤50ms |
| Dynamic Response |
≤20ms |
| Efficiency |
≥85% |
| Size |
About 26.5 × 19 × 8.5 cm |
| Net Weight |
2.5KG |
| Package Size |
38 × 24.5 × 12.5 cm |
| Package Weight |
3.2KG |
| Carton Quantity |
6pcs / Carton |
The R-SPS1530S-specific voltage, current, power, and ripple values above follow the product data sheet you provided. The remaining regulation, resolution, accuracy, timing, efficiency, size, weight, and interface specifications are taken from the same R-SPS-S High Power Pro Series data.
Why Choose KUAIQU R-SPS1530S?
The KUAIQU R-SPS1530S combines a 0-15V adjustable voltage range, 0-30A current range, and 450W rated output power in an Adjustable DC Bench Power Supply for compatible automotive electronics testing applications. Its four-digit voltage, current, and power display provides direct output monitoring, while precision encoder adjustment gives users controlled adjustment of test power conditions.
For Automotive Electronics Testing, the R-SPS1530S also combines OVP, OCP, Output ON/OFF, M1-M3 memory, and Panel Lock functions in one bench power supply. These functions support different test procedures without claiming automotive-specific simulation, measurement, communication, or data-logging functions that are not specified for this product.
The front and rear output ports, standard USB port, and optional RS232/RS485 interfaces provide additional connection options for compatible test configurations. With its 450W high-current output capability, the R-SPS1530S is designed for automotive electronics test setups that require adjustable DC power within its specified 0-15V and 0-30A operating range.
