Are you struggling with the risks and inaccuracies associated with measuring high voltages in your electrical projects?
Do you find it challenging to ensure safety while obtaining precise voltage readings in high-voltage systems?

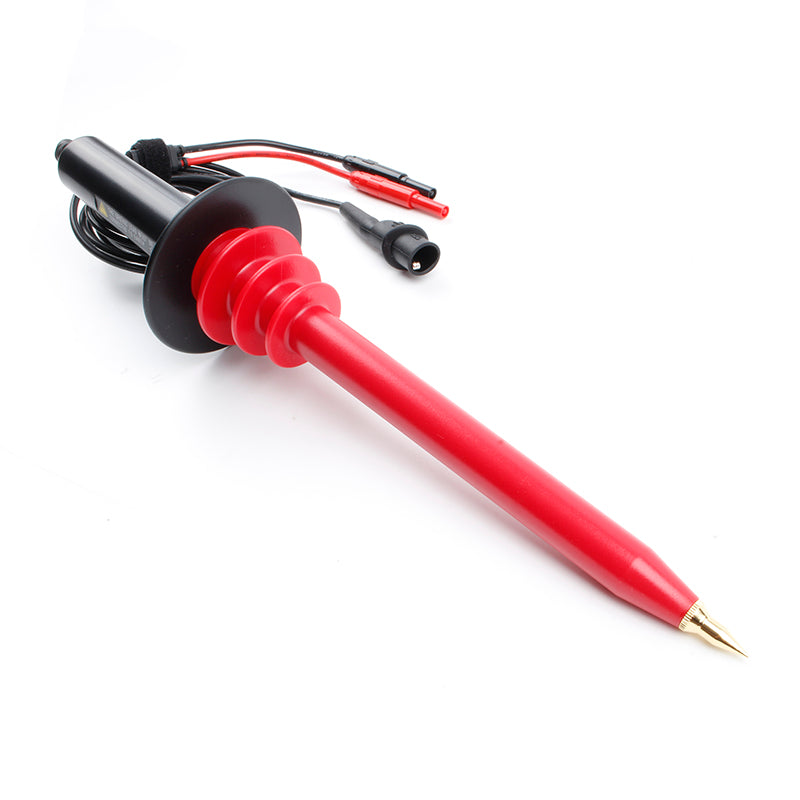

The HVP-40 is a high-precision, high-voltage probe designed for safe and accurate measurement of both AC and DC high voltages. With its robust construction and advanced electrical performance, this probe is ideal for engineers and technicians working with high-voltage systems.
Key Specifications
Model
HVP-40
Brand
KUAIQU
Type
AC/DC High Voltage Attenuation Probe
Dimensions
340mm in length, 80mm in diameter
Weight
300 grams
Electrical Performance
Maximum Measurable Voltage：DC 0~40kV, AC 0~28kV (50/60Hz only)
Input Impedance：1000MΩ
Attenuation Ratio: 1000:1
Polarity: Supports both positive and negative polarity measurements
Accuracy:
DC: ±1% (0–20kV range), ±2% (20–40kV range)
AC: -5% to -10% (1–28kV range, 50/60Hz)
Temperature Coefficient: ≤200ppm/℃
Maximum Load Current: ≤40μA (at 40kV DC)
Maximum Power Consumption: ≤1.6W
DC Voltage Measurement Scenarios
Power Supply Testing
Battery Research and Development
Electrostatic Equipment
AC Voltage Measurement Scenarios
Power System Maintenance
Industrial Machinery
Research and Development
Safety and Certifications
Passed TUV GS, UL safety tests, compliant with EN61010, UL3111-1, TUV-GS IEC1010 CATⅡ Pollution 2 standards
Usage Precautions
For use by trained or experienced engineers only
Operate with two people; avoid solo high-voltage testing
Inspect equipment and cables for damage before use
Ensure dry hands, shoes, and work surface during operation
Turn off high-voltage power before connecting or disconnecting devices
Keep the probe body clean to prevent induced currents and electric shock hazards
Purchase Notes
The PINTECH HVP-40 High Voltage Probe is an essential tool for high-voltage testing applications, providing reliable and safe measurements in demanding environments. Order now to enhance your high-voltage measurement capabilities!
