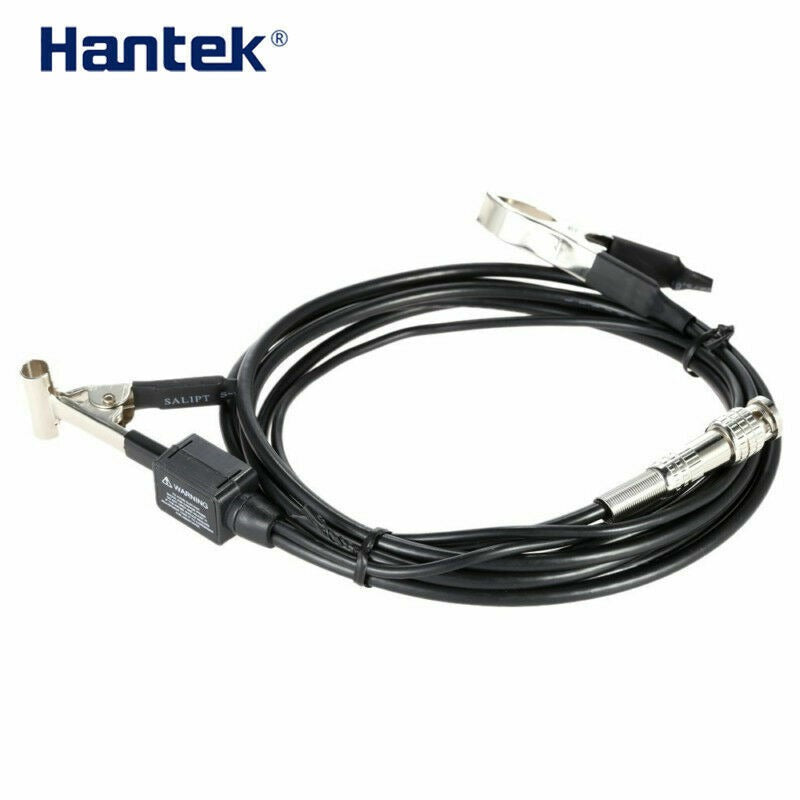

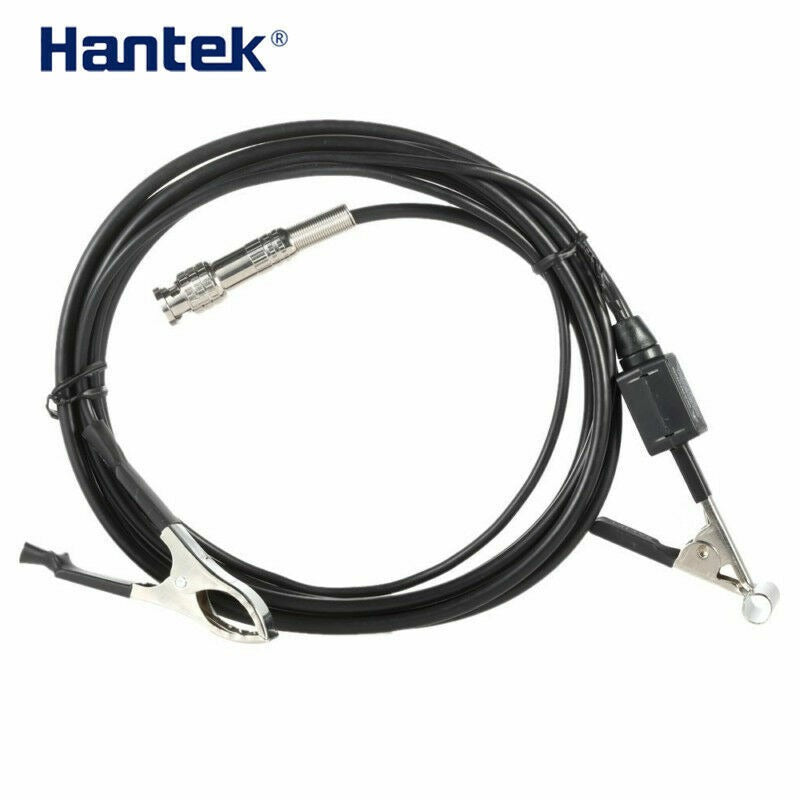

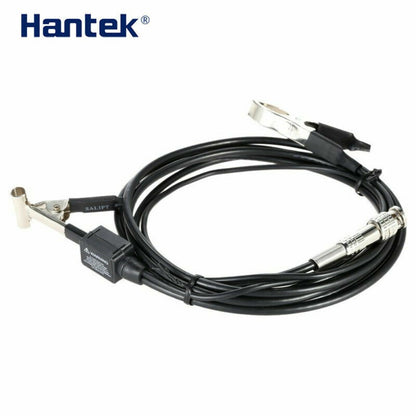

Hantek HT25 Auto Ignition Probe

Product Overview

The Hantek HT25 is a specialized auto ignition probe designed for accurate high - voltage signal measurement in automotive ignition systems. It's an essential tool for automotive technicians, mechanics, and hobbyists working on vehicle ignition diagnosis.

Key Features

High - Voltage Measurement: With a 10000:1 attenuation ratio, it can safely measure high output voltages from ignition coils, conventional spark systems, and high - voltage diodes. This allows you to accurately capture the high - voltage signals present in automotive ignition setups.

Direct Ignition Coil Measurement: Enables direct measurement on the ignition coil without the need for an additional extension cable. This simplifies the testing process and ensures a more accurate and stable connection.

Anti - interference Design: Features a special anti - interference design, which helps in providing high - accuracy measurements even in the presence of electromagnetic interference that is common in automotive environments.

Ergonomic & Flexible: The probe has an ergonomic design and can be bent arbitrarily, making it easy to position in tight engine compartments. This flexibility allows for better access to hard - to - reach ignition components.

Illuminated for Low - Light Conditions: Equipped with a highlight LED, it is convenient to operate at night or in dark areas. The LED provides sufficient illumination to clearly see the probe connections and the area around the ignition system being tested.

Long Cable Length: Comes with a 2.5 - meter cable that connects to the oscilloscope via a BNC connector. The long cable length gives you the freedom to move around the vehicle while maintaining a connection to the oscilloscope for continuous monitoring.

Ideal Use Scenarios

Automotive Repair Shops: In a professional automotive repair setting, the HT25 is used to diagnose engine ignition issues. Mechanics can use it to analyze the ignition waveforms of different cylinders, determine if there are problems such as misfires, weak spark, or incorrect ignition timing. By examining the ignition waveform, they can also assess the health of ignition components like spark plugs, ignition coils, and distributors.

Automotive Hobbyists: DIY car enthusiasts can use this probe to troubleshoot ignition problems in their projects. Whether working on a classic car with a traditional ignition system or a modern vehicle with an electronic ignition, the HT25 helps in understanding if the ignition system is functioning properly. It can also be used to optimize ignition performance during engine tuning.

Automotive Training Centers: In automotive training facilities, the HT25 serves as an educational tool. Instructors can use it to teach students how to interpret ignition waveforms and diagnose ignition - related faults. Students can gain hands - on experience in using oscilloscopes with this probe to learn about automotive electrical systems.

Specifications

Attenuation: 10000:1

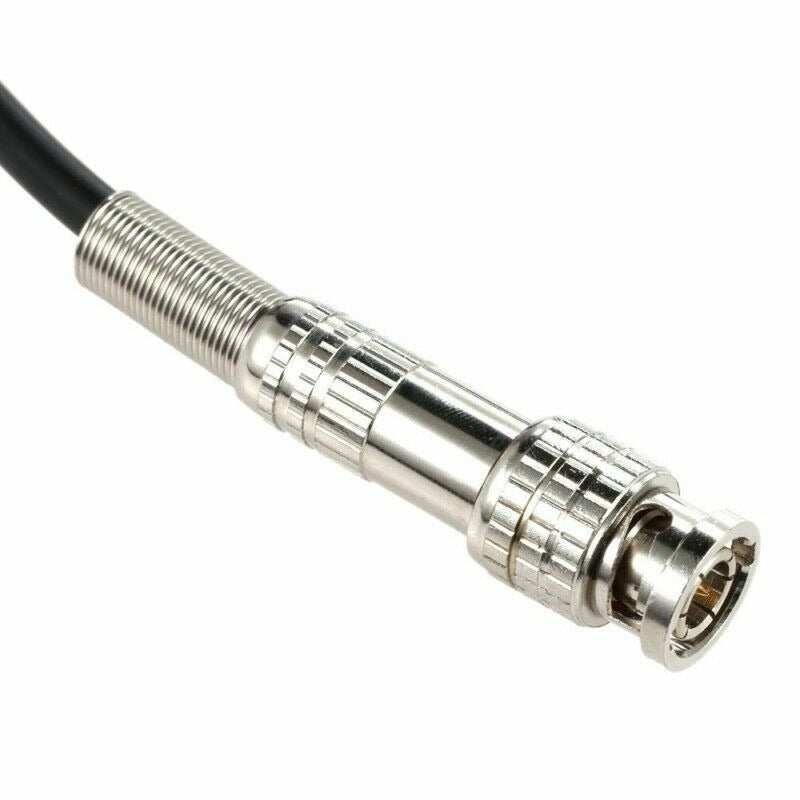

Connector A: BNC (for connection to oscilloscope)

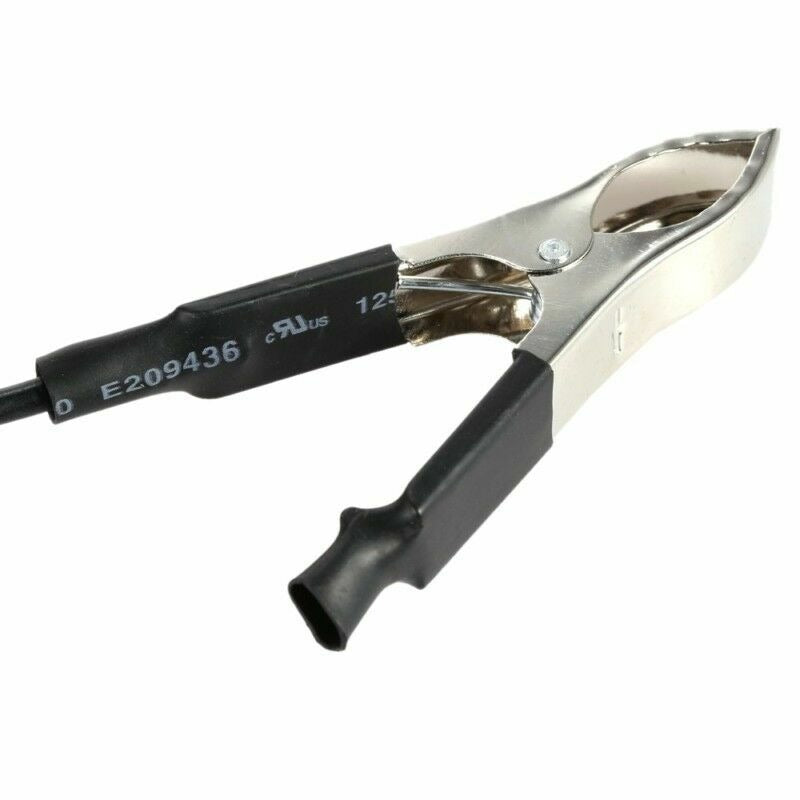

Connector B: Clamp (for connection to ignition system components)

Cable Length: 2.5 m

Weight: 150 g

Package Includes

1 x Hantek HT25 Auto Ignition Probe

Safety Warnings

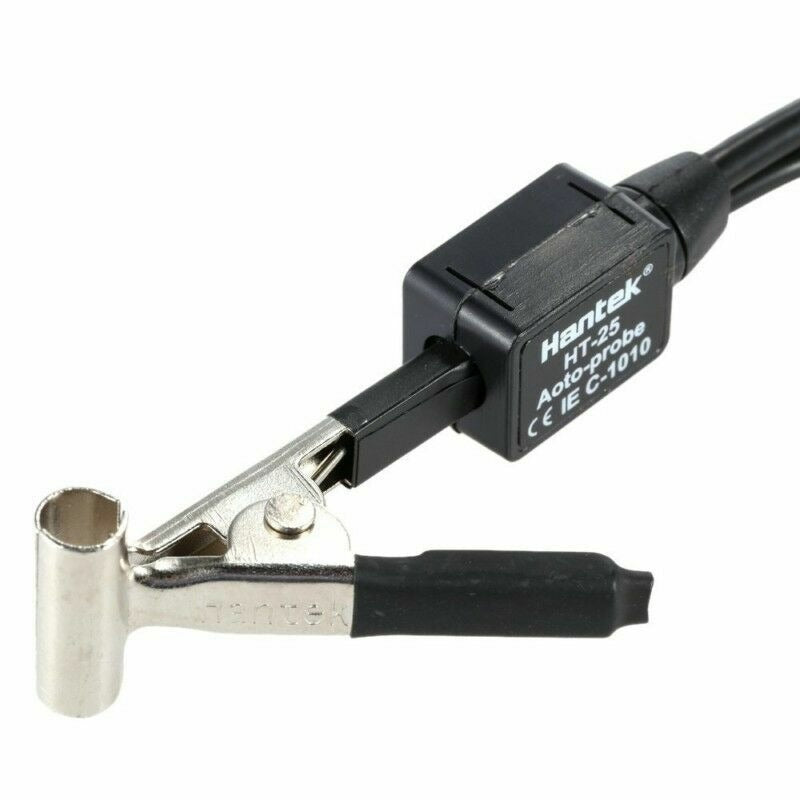

Ensure the clip is connected to the isolating wire of the ignition plug. Do not clip it directly to the ignition plug to avoid electrical shock and damage to the probe.

Keep the probe away from moving parts such as the alternator drive belt and cooling fans to prevent injury.

Do not use the probe if the sensor plate's insulation shows signs of damage to avoid electric shock.

Upgrade your automotive ignition testing capabilities with the Hantek HT25! Add it to your cart now.
