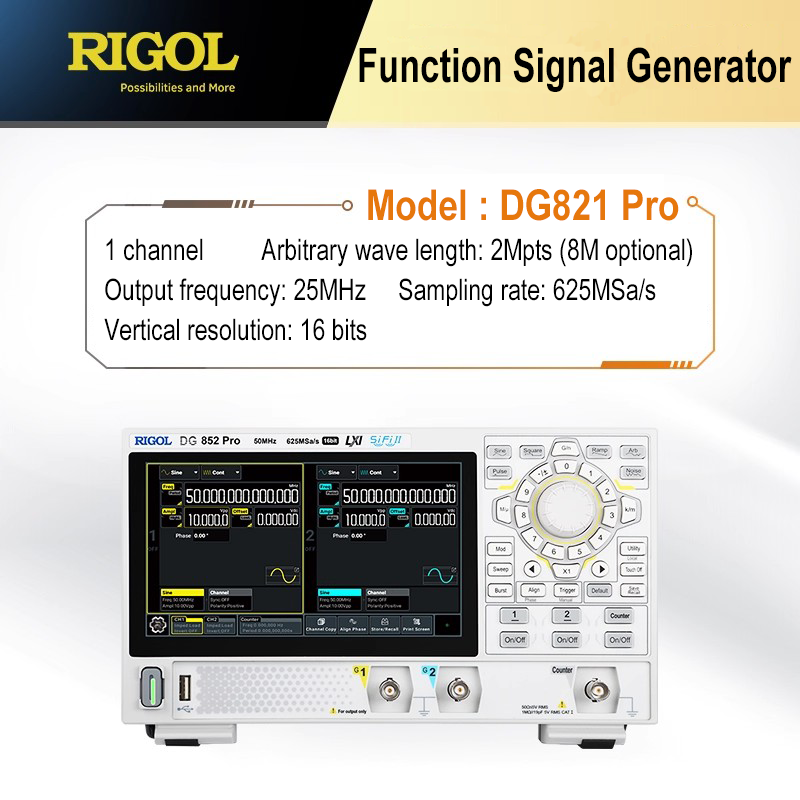

RIGOL Function Signal Generator DG821 Pro DG822 Pro DG852 Pro Signal Generator Adjustable 25MHz 50MHz 625 MSa/s Frequency Meter
RIGOL Function Signal Generator DG821 Pro DG822 Pro DG852 Pro Signal Generator Adjustable 25MHz 50MHz 625 MSa/s Frequency Meter
Precio habitual
$428.00 USD
Precio habitual
Precio de oferta
$428.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Overview
RIGOL's DG821 Pro, DG822 Pro, and DG852 Pro are high - performance function signal generators, ideal for precise signal generation in electronics, telecommunications, and research.
Key Features
- High Resolution & Sampling Rate: 16 - bit vertical resolution and 625 MSa/s sampling rate for accurate signal output.
- Rich Built - in Waveforms: Include sine, square, sawtooth, pulse, noise, and 148 arbitrary waveforms like Sinc, exponential rise/fall, ECG, and Gaussian.
- Diverse Output Modes & Modulation: Support continuous wave, modulation, sweep, burst, and sequence modes, with modulation types such as AM, FM, PM, ASK, FSK, PSK, PWM, and SUM.
- Intuitive Operation & Connectivity: 7 - inch 1024*600 touchscreen, support for Web Control, and interfaces like LAN, USB Host, and USB Device.
- Portable & Flexible Power Supply: Compact size (26616580mm) and weight (1.78kg), with power supply options of mains or mobile power (DC 15V, 3A).
Technical Specifications
|
Parameter
|
DG821 Pro
|
DG822 Pro
|
DG852 Pro
|
|
Channels
|
1
|
2
|
2
|
|
Frequency Range
|
1uHz - 25MHz
|
1uHz - 25MHz
|
1uHz - 50MHz
|
|
Storage Depth
|
2 Mpts/CH (8 Mpts/CH optional)
|
2 Mpts/CH (8 Mpts/CH optional)
|
2 Mpts/CH (8 Mpts/CH optional)
|
|
Sampling Rate
|
625 MSa/s
|
625 MSa/s
|
625 MSa/s
|
|
Vertical Resolution
|
16bit
|
16bit
|
16bit
|
|
Amplitude Range
|
50Ω: 1mVpp - 10Vpp; High Impedance: 2mVpp - 20Vpp
|
50Ω: 1mVpp - 10Vpp; High Impedance: 2mVpp - 20Vpp
|
50Ω: 1mVpp - 10Vpp; High Impedance: 2mVpp - 20Vpp
|
|
Frequency Counter
|
500MHz
|
500MHz
|
500MHz
|
|
Modulation Types
|
AM, FM, PM, ASK, FSK, PSK, PWM, SUM
|
AM, FM, PM, ASK, FSK, PSK, PWM, SUM
|
AM, FM, PM, ASK, FSK, PSK, PWM, SUM
|
|
Remote Control
|
Support Web Control
|
Support Web Control
|
Support Web Control
|
|
Interfaces
|
LAN, USB Host, USB Device
|
LAN, USB Host, USB Device
|
LAN, USB Host, USB Device
|
|
Screen
|
7 - inch touchscreen (1024*600)
|
7 - inch touchscreen (1024*600)
|
7 - inch touchscreen (1024*600)
|
|
Dimensions
|
26616580mm
|
26616580mm
|
26616580mm
|
|
Weight
|
1.78kg
|
1.78kg
|
1.78kg
|
|
Power Supply
|
Mains/mobile power (DC 15V, 3A)
|
Mains/mobile power (DC 15V, 3A)
|
Mains/mobile power (DC 15V, 3A)
|
|
Power Consumption
|
≤ 45W
|
≤ 45W
|
≤ 45W
|
Selection Tips
- Choose DG821 Pro if you need a single - channel signal generator with a frequency range up to 25MHz.
- Opt for DG822 Pro when you require dual - channel signal generation with a frequency range up to 25MHz.
- Select DG852 Pro if dual - channel signal generation with a frequency range up to 50MHz is needed.
Application Scenarios
- Electronics R & D: Generate test signals for circuit design and debugging.
- Telecommunications Testing: Test communication systems with modulated signals.
- Education: Demonstrate signal generation principles in electronics courses.
- Industrial Automation: Provide control signals for automated systems.
- Audio Testing: Generate audio frequency signals for speaker and amplifier testing.
- Research Labs: Create custom waveforms for scientific experiments.
Get RIGOL function signal generators now for precise signal generation!
