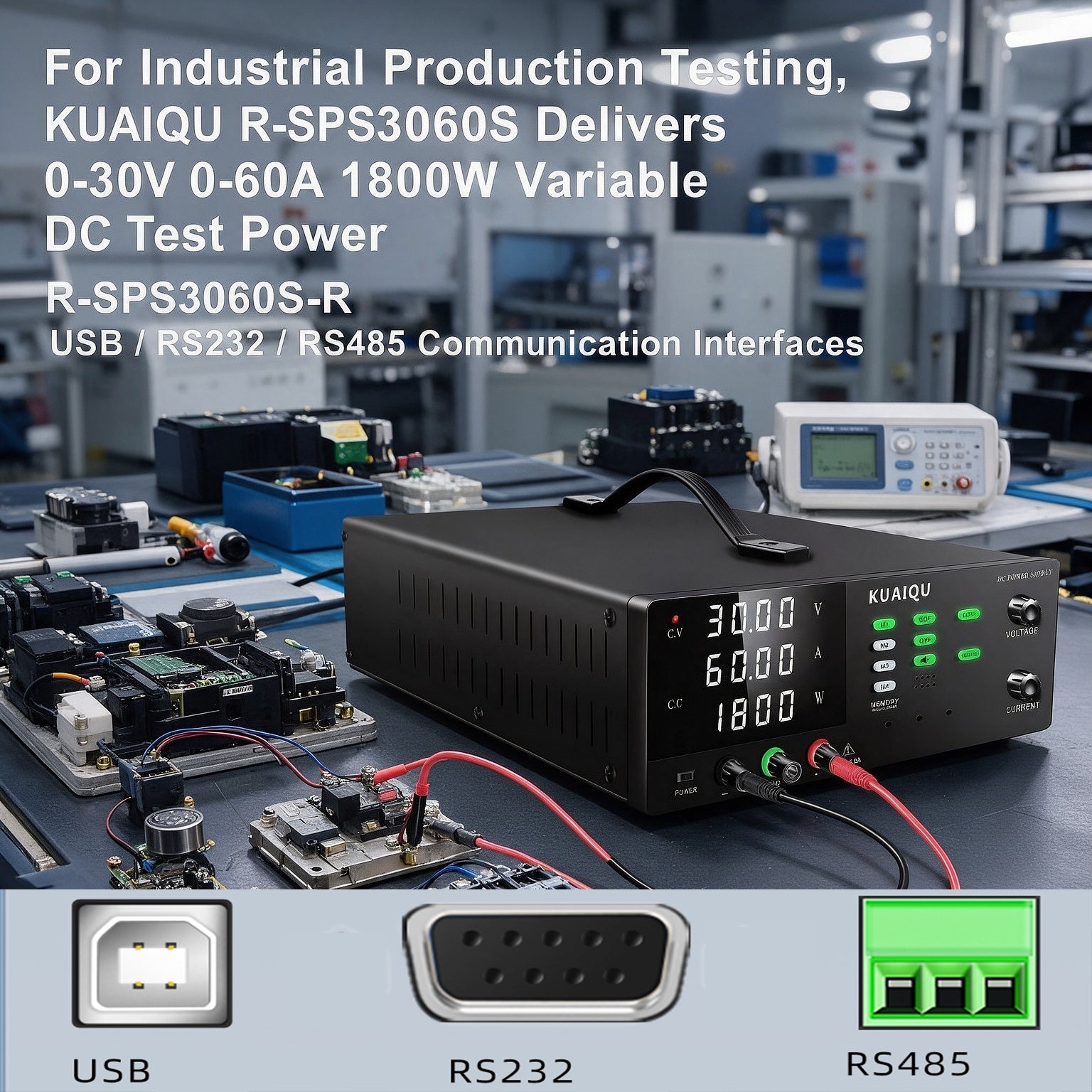

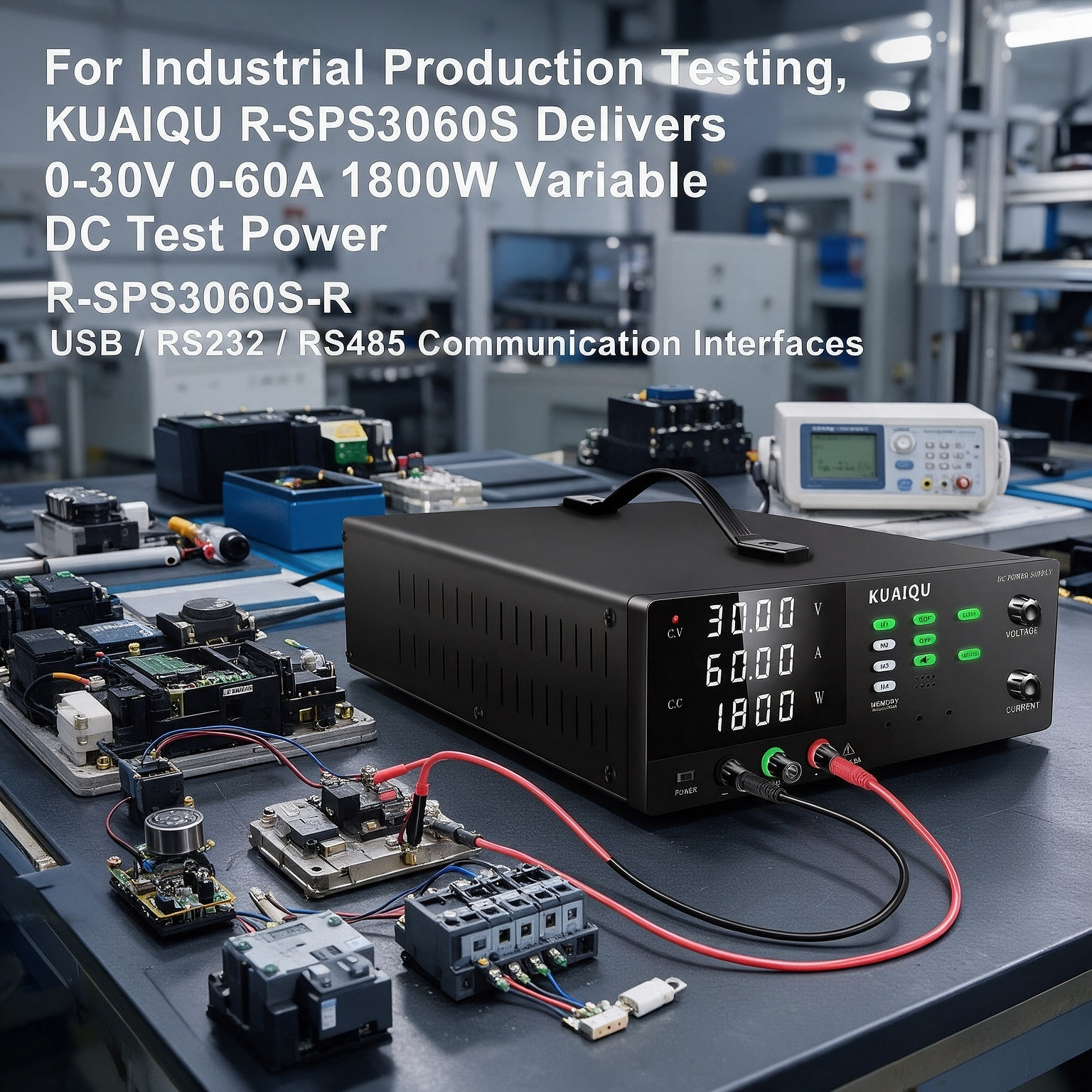

For Industrial Production Testing, KUAIQU
R-SPS3060S Delivers 0-30V 0-60A 1800W
Variable DC Test Power
The KUAIQU R-SPS3060S is a high-current bench power supply designed to provide adjustable DC test power for industrial production testing and equipment testing applications. With a 0–30V adjustable output, up to 60A current, and 1800W maximum output power, it provides a flexible DC power source for production environments that require different voltage, current, and power conditions.
For industrial production testing, a DC power supply needs to provide adjustable output, clear electrical readback, convenient output control, and reliable protection. The R-SPS3060S combines a four-digit voltage, current, and power display with precision encoder adjustment, OCP and OVP protection, Output ON/OFF control, M1-M3 memory settings, Panel Lock, and front and rear output connections. These functions make it suitable as variable DC test power for compatible production test equipment and industrial electronic systems.
Key Features
0-30V 0-60A 1800W Variable DC Test Power
The R-SPS3060S provides a 0–30V adjustable DC output, up to 60A current, and 1800W maximum output power. This combination provides the output capacity needed for industrial production testing applications that require higher current and adjustable DC power.
Adjustable Output for Production Testing
The adjustable voltage and current output allows users to establish different DC power conditions for production testing. Test parameters can be adjusted according to the requirements of compatible electronic equipment and production test setups.
60A High Current Capacity
With output current up to 60A, the R-SPS3060S provides substantial current capacity for industrial production testing involving higher-current equipment and DC loads.
1800W Output for Industrial Test Equipment
The 1800W maximum output provides additional power capacity for production test benches and industrial equipment testing applications. It can serve as the adjustable DC power source for compatible equipment within its rated output range.
Four-Digit Voltage, Current, and Power Display
The four-digit display provides direct readback of output voltage, current, and power. Operators can monitor the electrical output during production testing without requiring a separate basic display for these values.
Precision Encoder Adjustment
The precision encoder provides controlled adjustment of voltage and current settings. This allows operators to make accurate changes to the DC test power according to the requirements of different production test conditions.
OCP and OVP Protection
Built-in over-current protection and over-voltage protection provide additional protection for the power supply and connected equipment. These functions are useful when the power supply is used across different industrial production test configurations.
Output ON/OFF Control
The Output ON/OFF function allows operators to enable or disable DC output directly from the power supply. This provides convenient control when connecting equipment, changing test configurations, or starting and stopping a production test.
M1-M3 Memory Settings
Three memory groups allow frequently used voltage, current, and power settings to be stored and recalled. This can simplify repeated production testing when the same DC test conditions are used regularly.
Panel Lock Function
The Panel Lock function helps prevent unintended changes to the selected settings during operation. This is useful when production test equipment needs to remain at a defined voltage and current setting.
Front and Rear Output Connections
The R-SPS3060S provides front and rear output connections for different production test bench configurations. This allows the power supply to be used as a flexible DC source in different equipment layouts.
USB, RS232 and RS485 Communication Interfaces
The R-SPS3060S supports USB, RS232, and RS485 communication interface configurations according to the selected configuration. These interfaces provide additional connection options for compatible industrial and laboratory test environments.
Applications
Industrial Production Testing
Provides adjustable DC test power for compatible electronic equipment and production test systems requiring controlled voltage and current conditions.
Industrial Equipment Testing
The 30V, 60A, and 1800W output range provides a high-current DC source for testing compatible industrial equipment within the rated operating range.
Electronic Equipment Production Testing
Provides adjustable DC power for production testing of compatible electronic equipment and assemblies.
DC Power Input Testing
The variable DC output allows users to establish different voltage and current conditions when evaluating equipment that operates from a DC power input.
High Current Production Test Bench
The 60A output capability makes the R-SPS3060S suitable for production test benches involving higher-current DC loads.
Industrial Electronics Testing
The adjustable DC output, direct electrical readback, and protection functions provide a practical power source for compatible industrial electronic test setups.
Repeated Production Testing
M1-M3 memory settings allow frequently used voltage, current, and power settings to be recalled for repeated production test procedures.
Production Equipment Development
The adjustable DC output can be used during development and evaluation of compatible production equipment and industrial electronic systems before deployment in production environments.
Laboratory and Engineering Production Testing
The high-current bench supply format provides a flexible DC source for engineering laboratories and test areas supporting industrial production development and verification.
Industrial Test Equipment Power Source
The R-SPS3060S can provide variable DC test power for compatible test equipment operating within its 0–30V, 0–60A, and 1800W rated output range.
Quality Check and Terms of Service:
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
R-SPS3060S |
| Product Type |
Variable DC Test Power Supply |
| Output Voltage |
0-30V |
| Output Current |
0-60A |
| Maximum Output Power |
1800W |
| Load Regulation Voltage |
≤0.1% + 10mV |
| Load Regulation Current |
≤0.1% + 2.5mA |
| Line Regulation Voltage |
≤0.01% + 2.5mV |
| Line Regulation Current |
≤0.1% + 2.5mA |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
10mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
10mA |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Ripple |
≤400mVp-p / ≤60mVrms |
| Current Ripple |
≤20mArms |
| Rise Time, No Load |
≤150ms |
| Rise Time, Full Load |
≤200ms |
| Fall Time, No Load |
≤15s |
| Fall Time, Full Load |
≤50ms |
| Dynamic Response |
≤20ms |
| Efficiency |
≥85% |
| Operating Temperature |
0°C-40°C |
| Display |
Four-Digit Voltage, Current and Power Display |
| Protection |
OCP and OVP |
| Output Control |
Output ON/OFF |
| Memory |
M1-M3 |
| Adjustment |
Precision Encoder Adjustment |
| Panel Lock |
Supported |
| Output Ports |
Front and Rear |
| Communication Interfaces |
USB, RS232 and RS485 |
| Buzzer |
Buzzer Feedback with Mute Setting |
Why Choose KUAIQU R-SPS3060S?
High Current Variable DC Test Power
The combination of 0–30V adjustable output, up to 60A current, and 1800W maximum power provides a high-current DC source for industrial production testing applications.
Flexible Production Test Conditions
Adjustable voltage and current allow operators to establish different DC power conditions for compatible production equipment and electronic systems.
Direct Output Monitoring
The four-digit display provides voltage, current, and power readback, allowing operators to monitor the DC test power directly during production testing.
OCP and OVP Protection
OCP and OVP provide additional protection functions when the power supply is used with different industrial test loads and connected equipment.
Convenient Memory Settings
M1-M3 memory groups make it easier to recall frequently used voltage, current, and power settings for repeated production tests.
Controlled Production Test Operation
Output ON/OFF control and Panel Lock help operators manage the DC output and reduce unintended changes to selected test settings.
Flexible Industrial Test Bench Integration
Front and rear output connections provide flexible connection options, while USB, RS232, and RS485 communication interfaces offer additional connectivity for compatible industrial and laboratory test environments.
