ETX-1825 Handheld Multifunctional Process Calibrator: All-in-One Precision Testing
Need comprehensive process parameter calibration? The ETX-1825 offers 0.05% accuracy , dual isolated channels, and multi-function testing (voltage/current/temperature/frequency/resistance)—ideal for industrial on-site debugging, instrument calibration, and process control.
User-Friendly & Durable Design
Clear Display : Large screen with adjustable white LED backlight; dual channels for 同步 measurement/output.
Easy Operation : Auto-identifies 3/4-wire connections; manual/auto cold-end compensation for thermocouples; supports step/slope/step output.
Sturdy Build : IP67 waterproof; 220V misconnection protection; compact (200×96×47mm, 650g); runs on 6 AA Ni-MH batteries or AC adapter.
Key Specifications
Parameter
Detail
Model
ETX-1825
Accuracy
0.05% (readings)
Measurement Functions
- DC voltage: 0~50V (dual channels, 0.001V resolution)- DC current: 0~24mA (dual channels, 0.001mA)- DC millivolt: 0~200mV (dual channels, 0.001mV)- Resistance: 0~3200Ω (dual channels, 0.01Ω)- Frequency: 1Hz~100kHz (0.001Hz~1Hz)- Temperature: Thermocouple (E/J/K/T/B/R/S/N: -200~1800℃); Thermal resistance (Pt100/Pt1000/Cu50/Cu100: -200~850℃)
Output Functions
- DC voltage: 0~11V/0~125mV (0.001V/mV)- DC current: 0~24mA (active/passive + transmitter simulation)- Resistance: 0~3200Ω (0.01Ω)- Frequency: 0~20kHz (0.01Hz~1Hz)- Temperature: Simulates thermocouple/thermal resistance
Extra Features
Dual isolated channels; 24V loop power; optional APSL pressure module; auto power-off
Power
6 AA Ni-MH batteries or AC adapter
Core Advantages
All-in-One Testing : Covers voltage, current, temperature, frequency, resistance—replaces multiple tools.
Dual-Channel Efficiency : Synchronous measurement/output speeds up on-site debugging.
On-Site Ready : IP67 waterproof + battery power suits damp/dusty industrial environments.
Safe & Practical : 220V misconnection protection; 24V loop power simplifies transmitter testing.
Applicable Scenarios
Industrial Debugging : Calibrate sensors, transmitters, and meters in manufacturing/automation lines.
Temperature Control : Test thermocouples/thermal resistors in HVAC, chemical, and food processing.
Instrument Calibration : Verify accuracy of multi-parameter meters in labs.

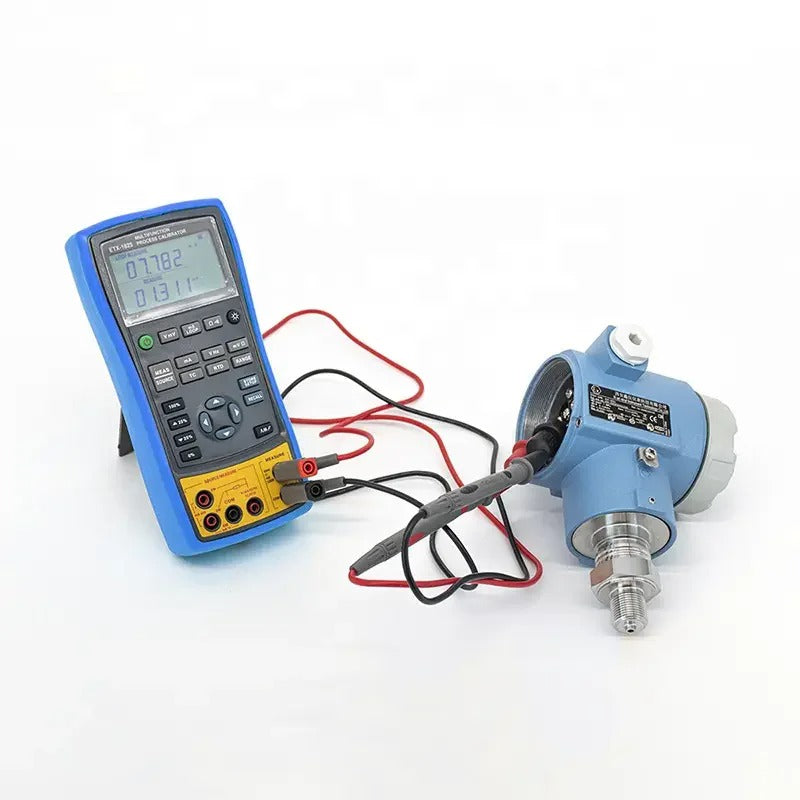

Pressure Testing : Add APSL module for pressure measurement (optional) in fluid systems.
Why Choose ETX-1825?
Cost-Effective : One tool replaces multiple calibrators, saving budget.
Efficient : Dual channels reduce testing time for complex processes.
Durable & Safe : IP67 + misconnection protection ensures long-term use.
Flexible : Optional pressure module expands testing range; easy battery replacement.
Upgrade your process calibration workflow! Click “Add to Cart” to get the ETX-1825 handheld calibrator.
