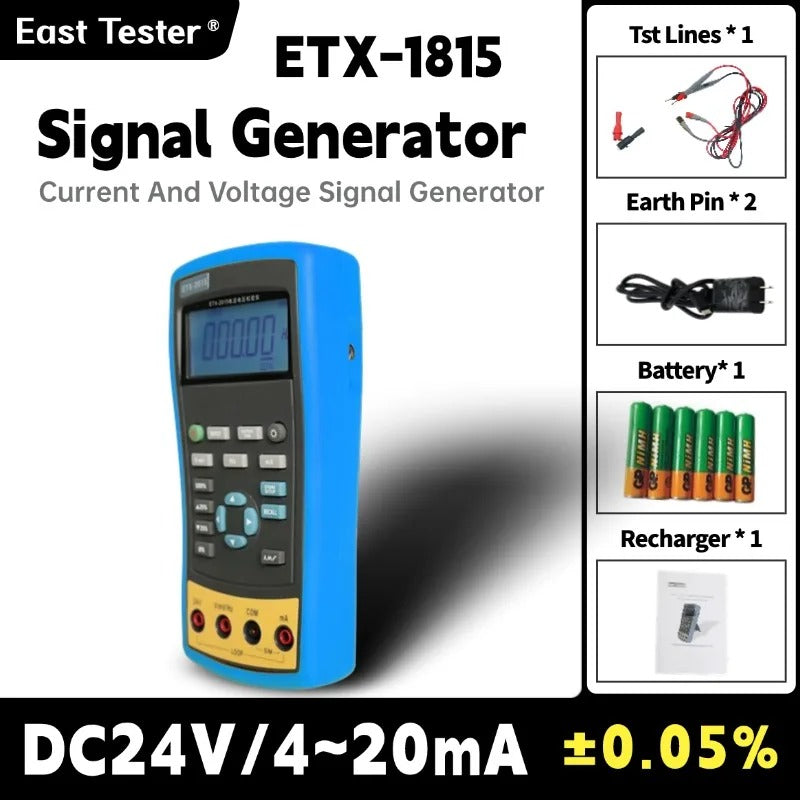

ETX-1815 hand-held Current and Voltage Calibrator adjustable backlight automatic shutdown DC AC powersupply for process control testing

ETX-1815 hand-held Current and Voltage Calibrator adjustable backlight automatic shutdown DC AC powersupply for process control testing

$499.99 USD
$999.98 USD $499.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

ETX-1815 Handheld Current-Voltage Calibrator: Precision for Electrical Testing

Need versatile electrical parameter calibration? The ETX-1815 offers 0.05% accuracy, multi-function testing (voltage/current/frequency/millivolt), and IP67 waterproofing—ideal for on-site industrial maintenance, instrument calibration, and process control testing.

User-Friendly & Durable Design

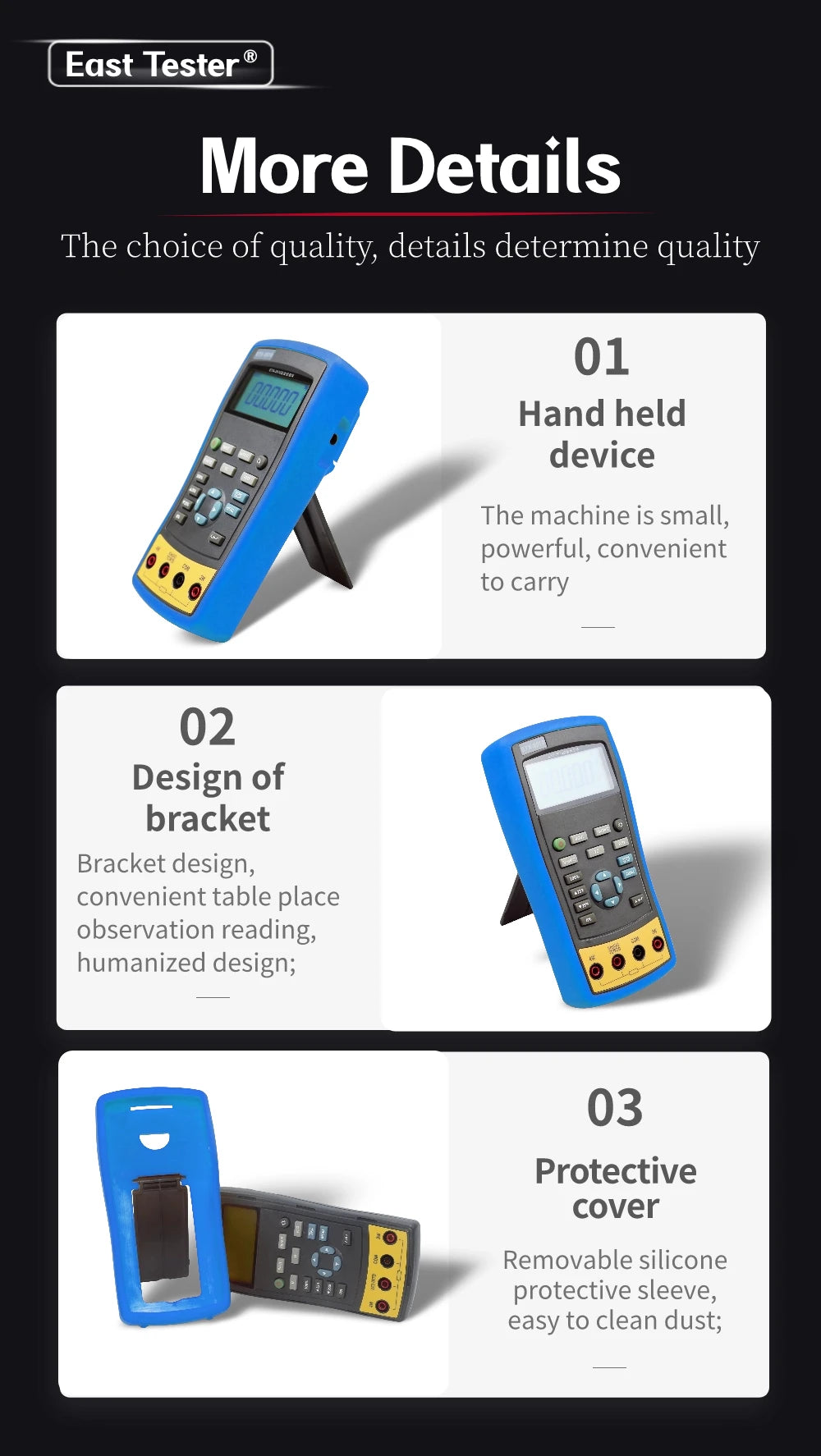

  • Clear Display: Large LCD with adjustable white LED backlight (easy to read in dark); compact size for handheld use.

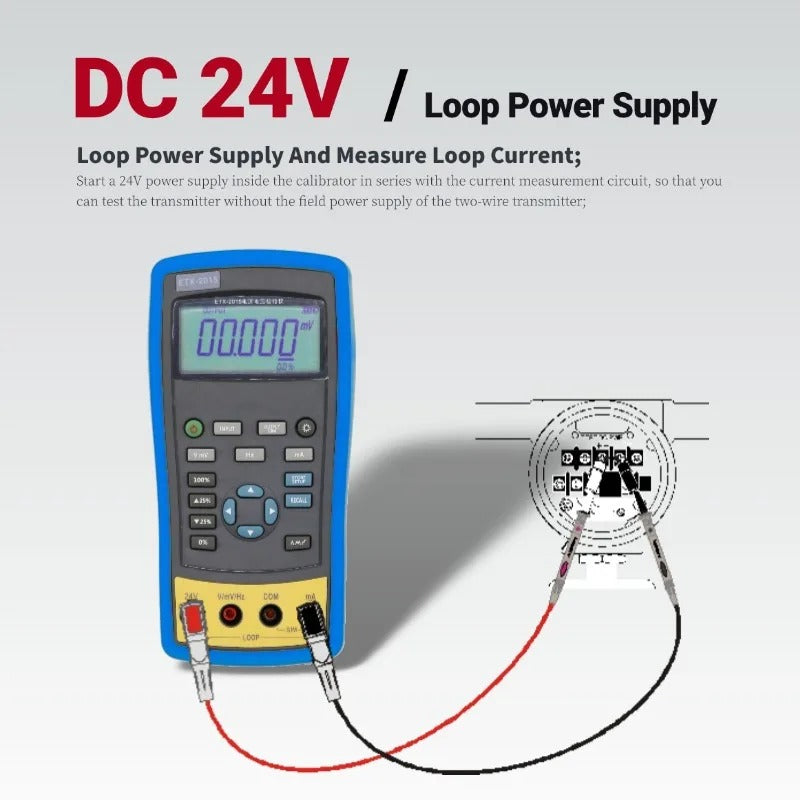

  • Easy Operation: Supports manual/auto stepping, slope/step output; built-in 24V loop power for on-site debugging.

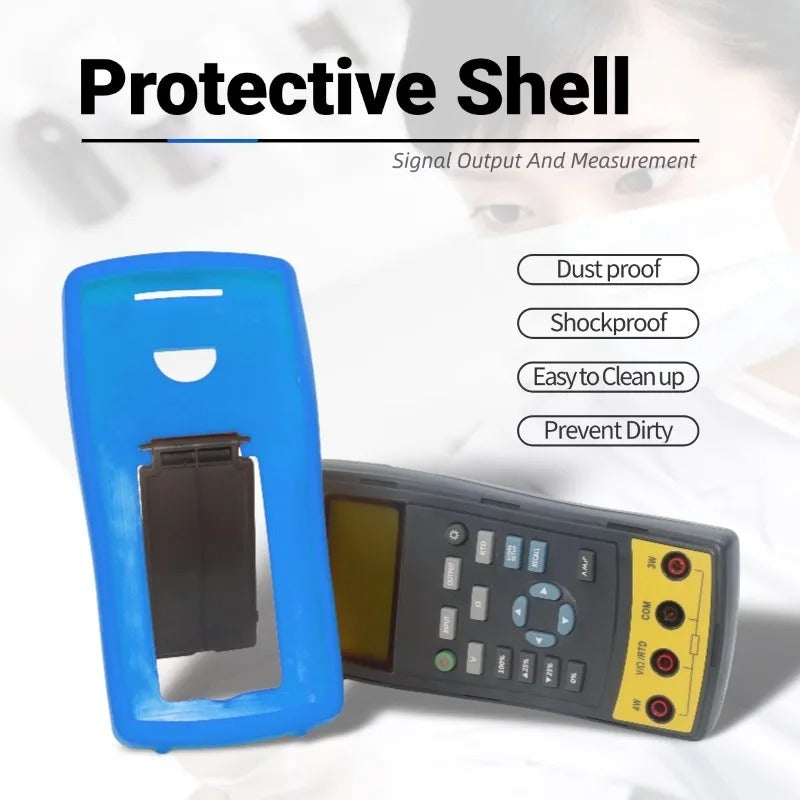

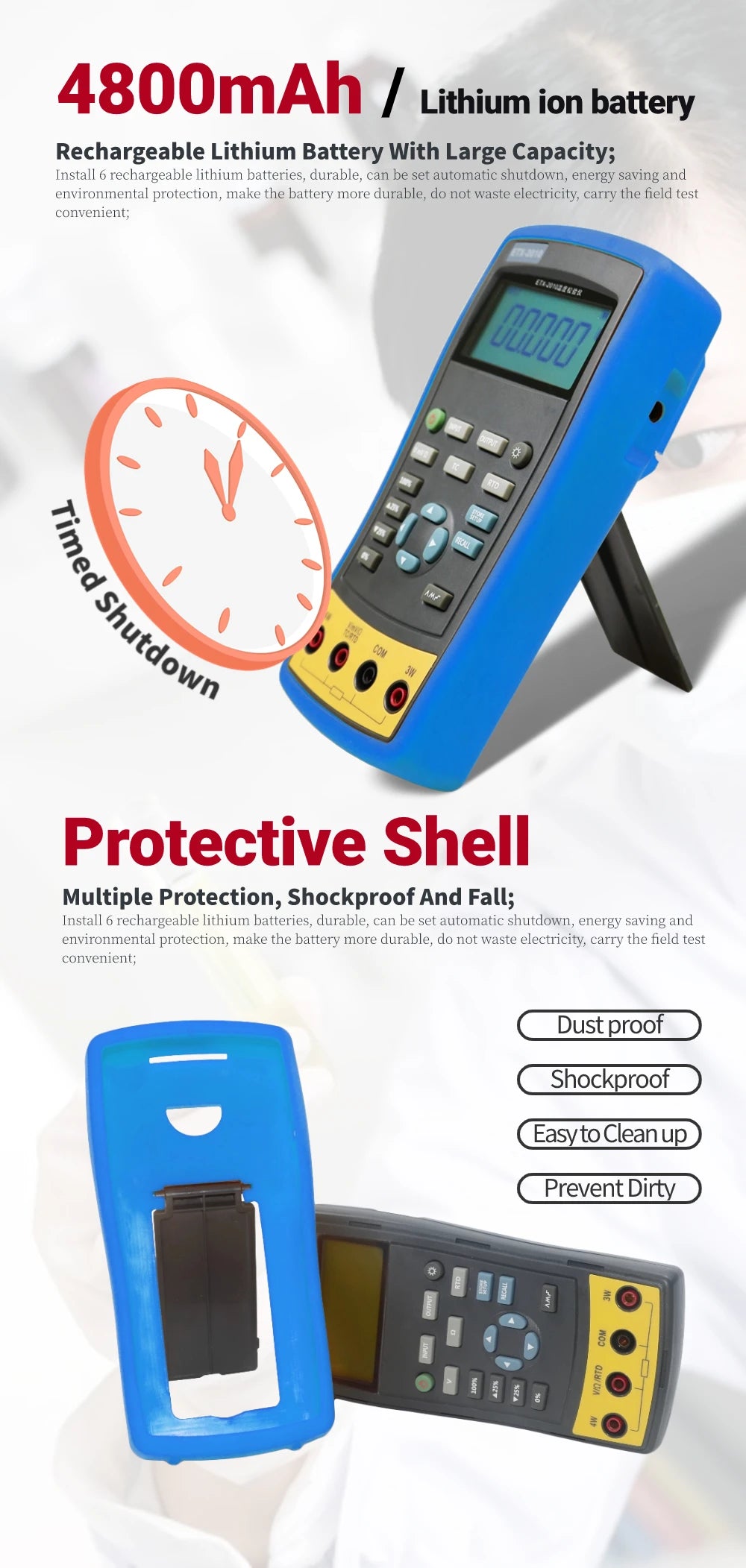

  • Sturdy Build: IP67 waterproof; 220V misconnection protection; runs on batteries or AC adapter (convenient for fieldwork).

Key Specifications

Parameter
Detail
Model
ETX-1815
Accuracy
0.05% (readings)
Measurement Functions
- DC voltage: 0~31V (0.001V resolution)- DC millivolt: -15~125mV (0.001mV/0.01mV resolution)- DC current: 0~24mA (0.001mA resolution)- Frequency: 1Hz~99.999kHz (0.001Hz~1Hz resolution)
Output Functions
- DC voltage: 0~11V (0.001V) / -15~125mV (0.001mV/0.01mV)- DC current: 0~24mA (0.001mA, supports active/passive + transmitter simulation)- Frequency: 0~20kHz (0.01Hz~1Hz resolution)- Step/slope/0~100% step output
Extra Features
24V loop power supply; IP67 waterproof; 220V misconnection protection
Power

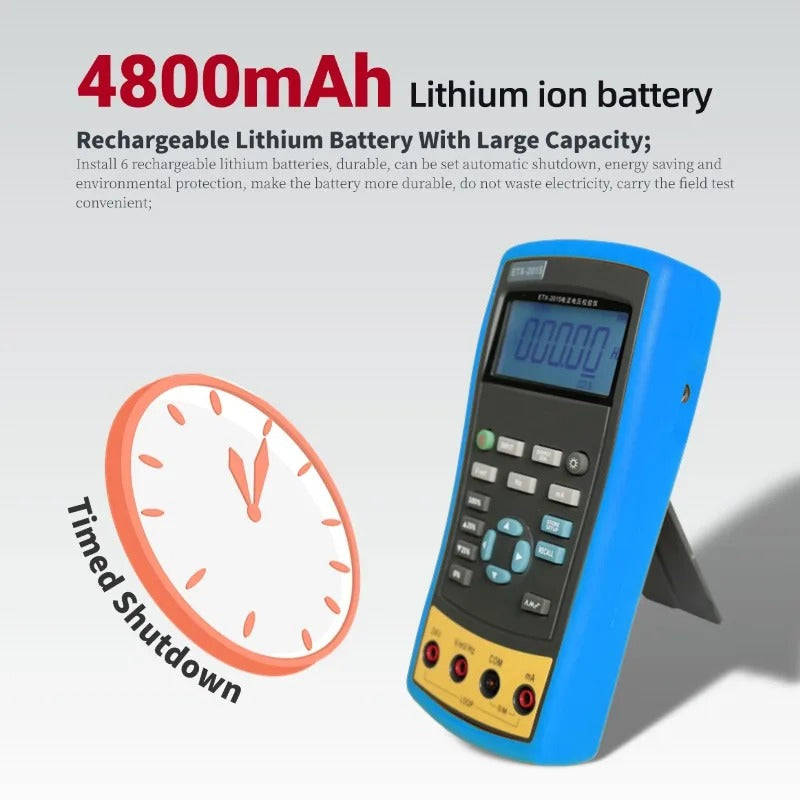

Batteries or AC adapter

Core Advantages

  • All-in-One Testing: Covers voltage, current, frequency, millivolt—replaces single-function tools.
  • On-Site Ready: Compact, battery-powered, waterproof—suits industrial fieldwork (damp/dusty sites).
  • Safe & Durable: 220V misconnection + IP67 protection reduces damage risks; long service life.

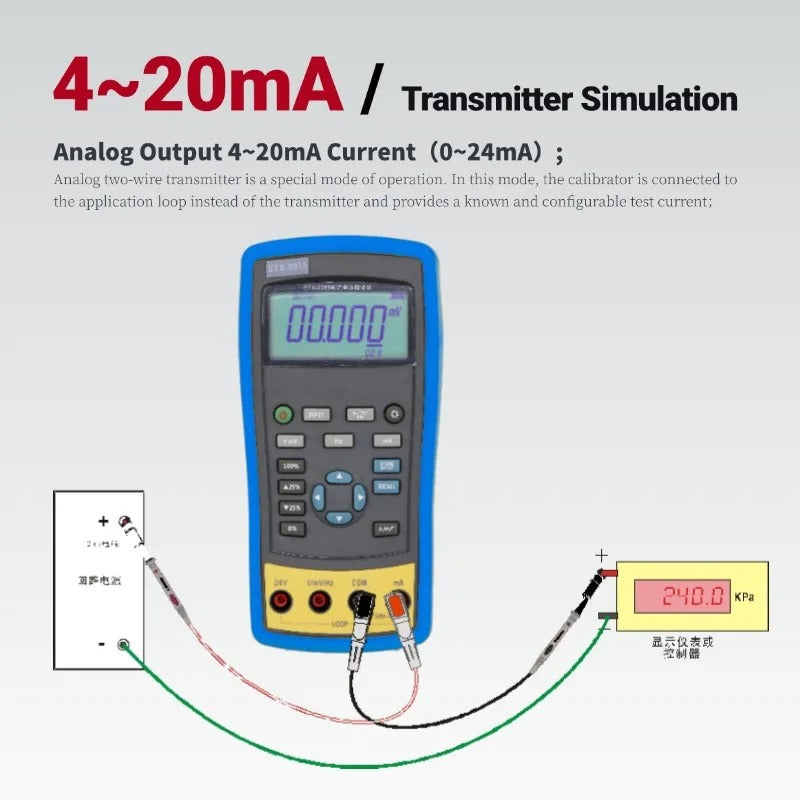

  • Practical Functions: 24V loop power + transmitter simulation simplifies on-site debugging.

Applicable Scenarios

  1. Industrial Maintenance: Calibrate sensors, transmitters, and meters in power/automation systems.
  1. Process Control: Test current/voltage signals in HVAC, manufacturing, and chemical process lines.
  1. Instrument Calibration: Verify accuracy of frequency meters, voltmeters, and ammeters in labs.
  1. Field Debugging: Use 24V loop power to debug transmitters and control circuits.

Why Choose ETX-1815?

  • Cost-Effective: One tool replaces multiple calibrators, saving budget.
  • Flexible & Safe: Waterproof + misconnection protection for harsh environments.
  • Convenient Power: Dual power options (battery/AC) for anytime, anywhere use.
  • Easy to Operate: Intuitive functions reduce on-site testing time.
Upgrade your electrical calibration workflow! Click “Add to Cart” to get the ETX-1815 handheld calibrator.
