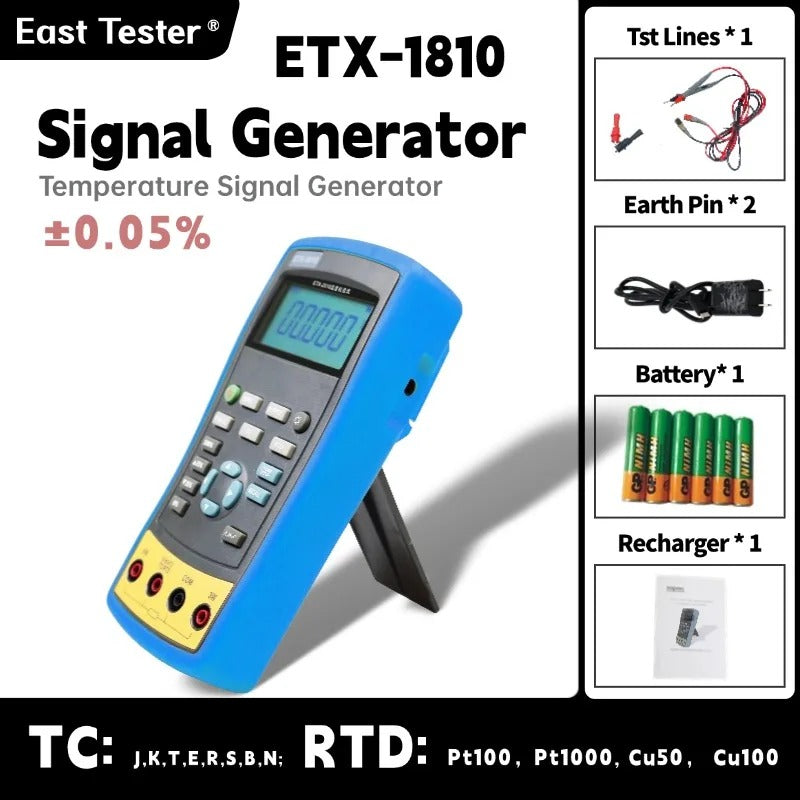

ETX-1810 Handheld Temperature Calibrator large screen display backlight Multifunctional process calibrator Signal Generator Thermal Resistance(RTD)

ETX-1810 Handheld Temperature Calibrator large screen display backlight Multifunctional process calibrator Signal Generator Thermal Resistance(RTD)

$579.99 USD
$1,159.98 USD $579.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

ETX-1810 Handheld Temperature Calibrator: Precision for Sensor Testing

Need reliable temperature & electrical parameter calibration? The ETX-1810 offers 0.05% accuracy, multi-function testing (thermocouple/thermal resistance/voltage/resistance), and IP67 waterproofing—ideal for on-site maintenance, industrial calibration, and lab testing.

User-Friendly & Durable Design

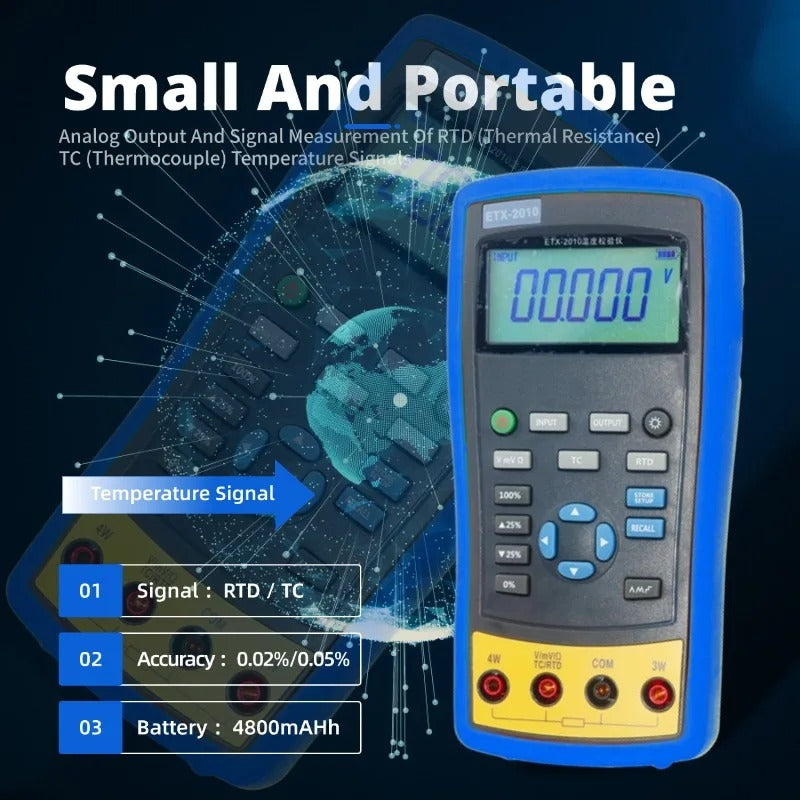

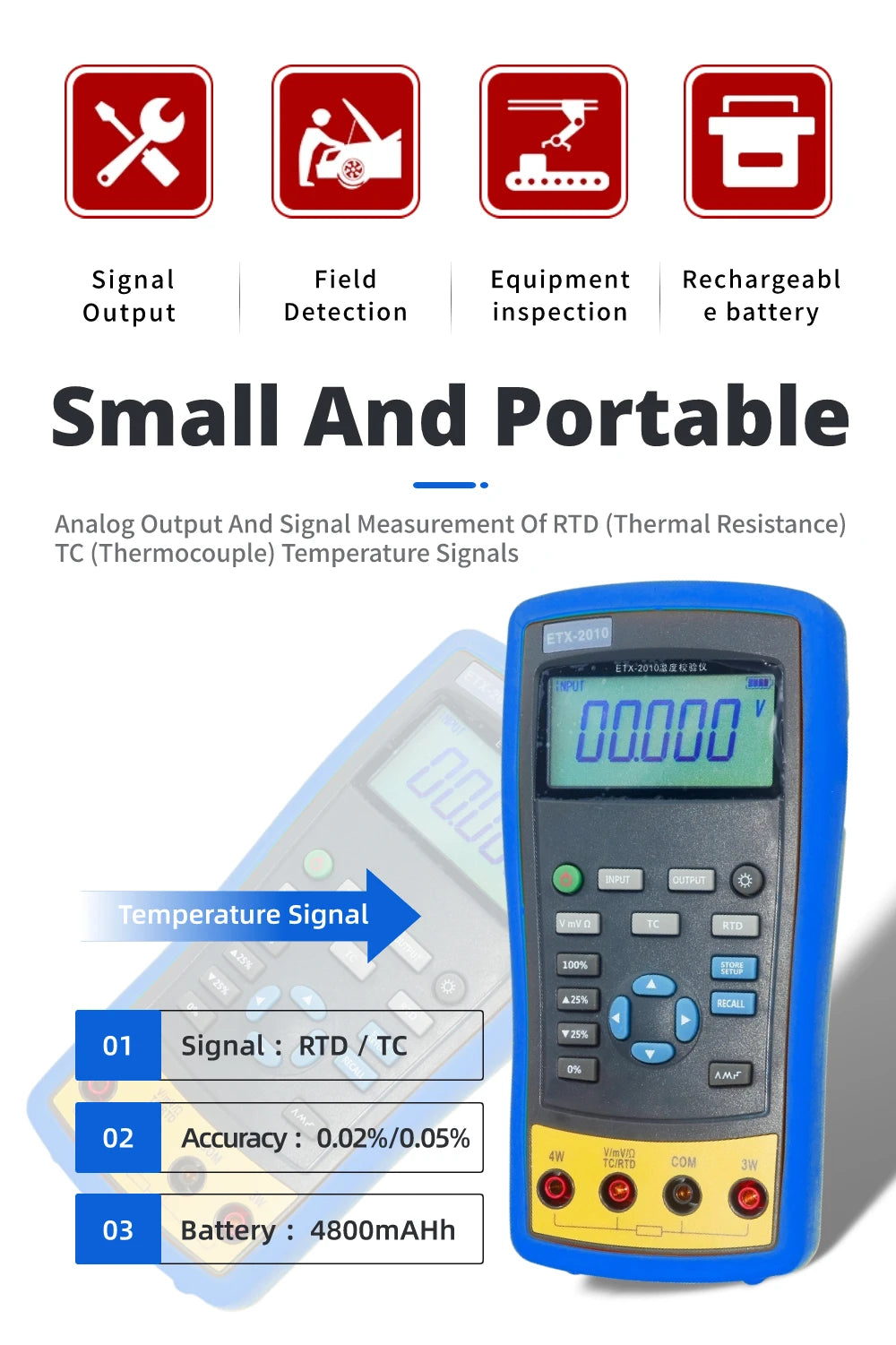

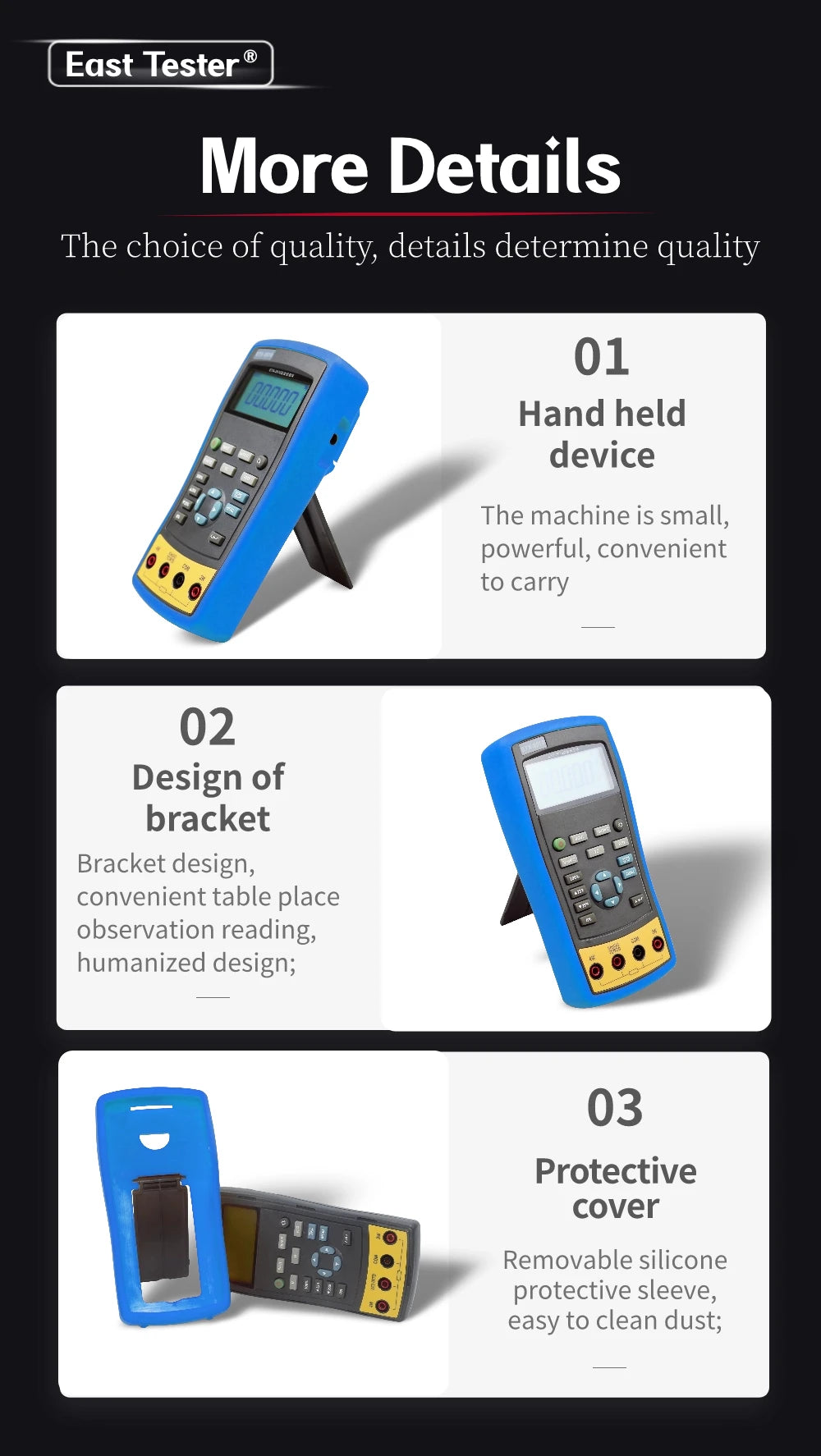

  • Clear Display: High-brightness backlit screen (easy to read in dark); compact size (185×93×47mm, 350g) for handheld use.
  • Easy Operation: Auto-identify 3/4-wire connections; manual/auto cold-end compensation for thermocouples.

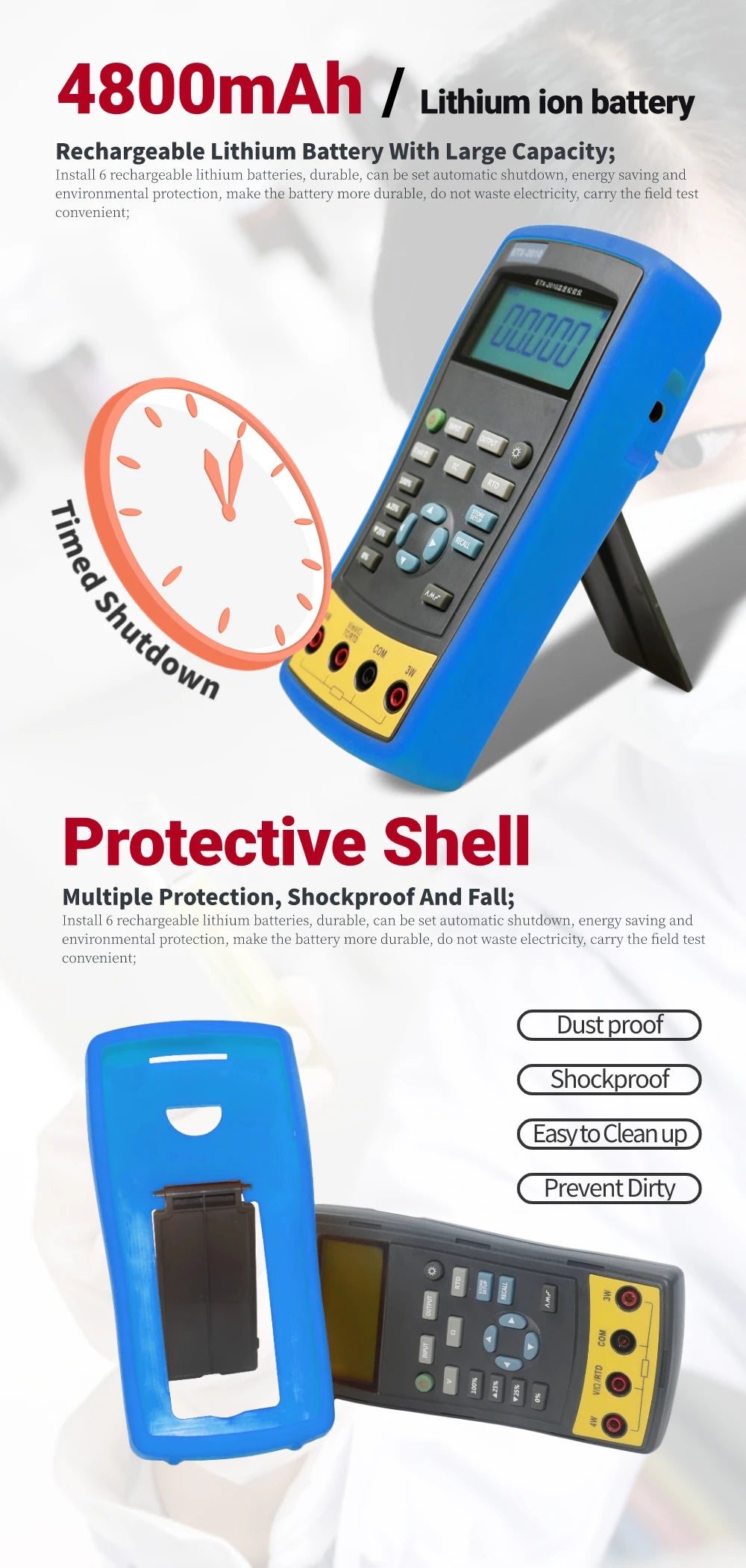

  • Sturdy Build: IP67 waterproof; 220V misconnection protection; runs on 6 AA Ni-MH batteries or AC adapter.

Key Specifications

Parameter
Detail
Model
ETX-1810
Accuracy
0.05% (readings)
Measurement Functions
- DC voltage: 0~31V (0.001V resolution)- DC millivolt: -15~125mV (0.001mV resolution)- Resistance: 0~3600Ω (0.01Ω resolution)- Thermocouple (E/J/K/T/B/R/S/N): -200~1800℃- Thermal resistance (Pt100/Pt1000/Cu50/Cu100): -200~850℃
Output Functions

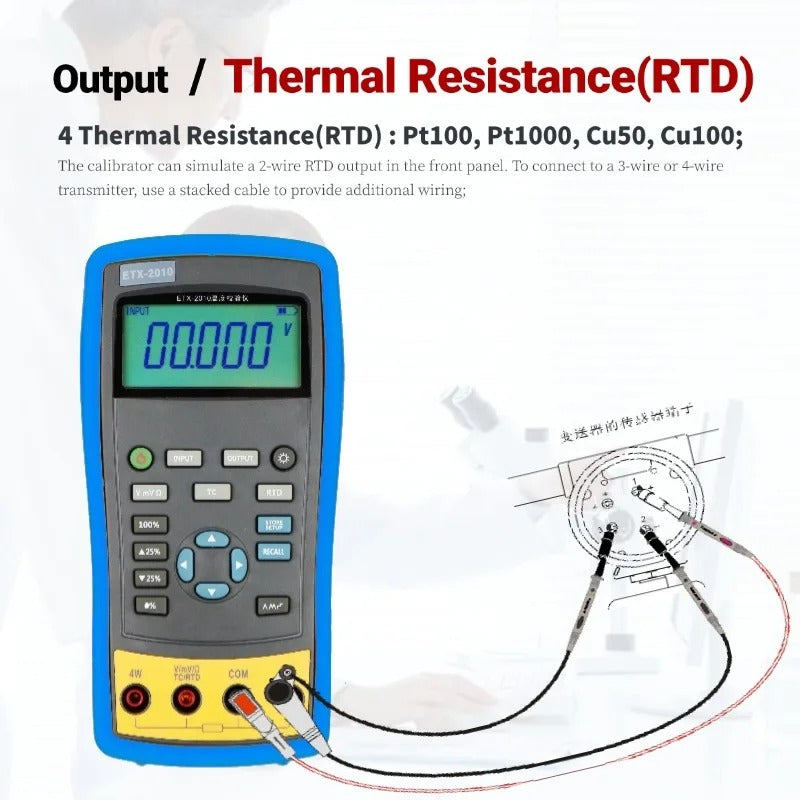

- DC millivolt: -15~125mV- Resistance: 0~3600Ω- Thermocouple/thermal resistance simulation- Step/slope/0~100% step output
Environmental Adaptability
Operating temp: -10~55℃; IP67 waterproof; 220V misconnection protection
Power
6 AA Ni-MH batteries (rechargeable) or AC adapter

Core Advantages

  • Multi-Function: Replaces multiple tools—calibrates thermocouples, thermal resistors, voltage, and resistance.
  • On-Site Friendly: Compact, battery-powered, waterproof—suitable for industrial fieldwork.
  • Reliable Protection: 220V misconnection + IP67 waterproofing reduces damage risks.
  • Precise Compensation: Manual/auto cold-end compensation ensures thermocouple measurement accuracy.

Applicable Scenarios

  1. Industrial Maintenance: Calibrate temperature sensors (thermocouples/thermal resistors) in factories.
  1. On-Site Testing: Maintain HVAC, power systems, and process control equipment.
  1. Lab Calibration: Verify accuracy of voltage/resistance measuring instruments.
  1. Harsh Environments: IP67 waterproofing works in damp/dusty sites (e.g., chemical plants, construction).

Why Choose ETX-1810?

  • All-in-One Tool: Saves cost vs. buying single-function calibrators.
  • Durable & Safe: IP67 + misconnection protection for long-term use.
  • Flexible Power: Battery/AC adapter—use anywhere, anytime.
  • Easy to Use: Auto-wire identification + backlit screen—simplifies on-site operation.
Upgrade your calibration workflow! Click “Add to Cart” to get the ETX-1810 handheld temperature calibrator.
