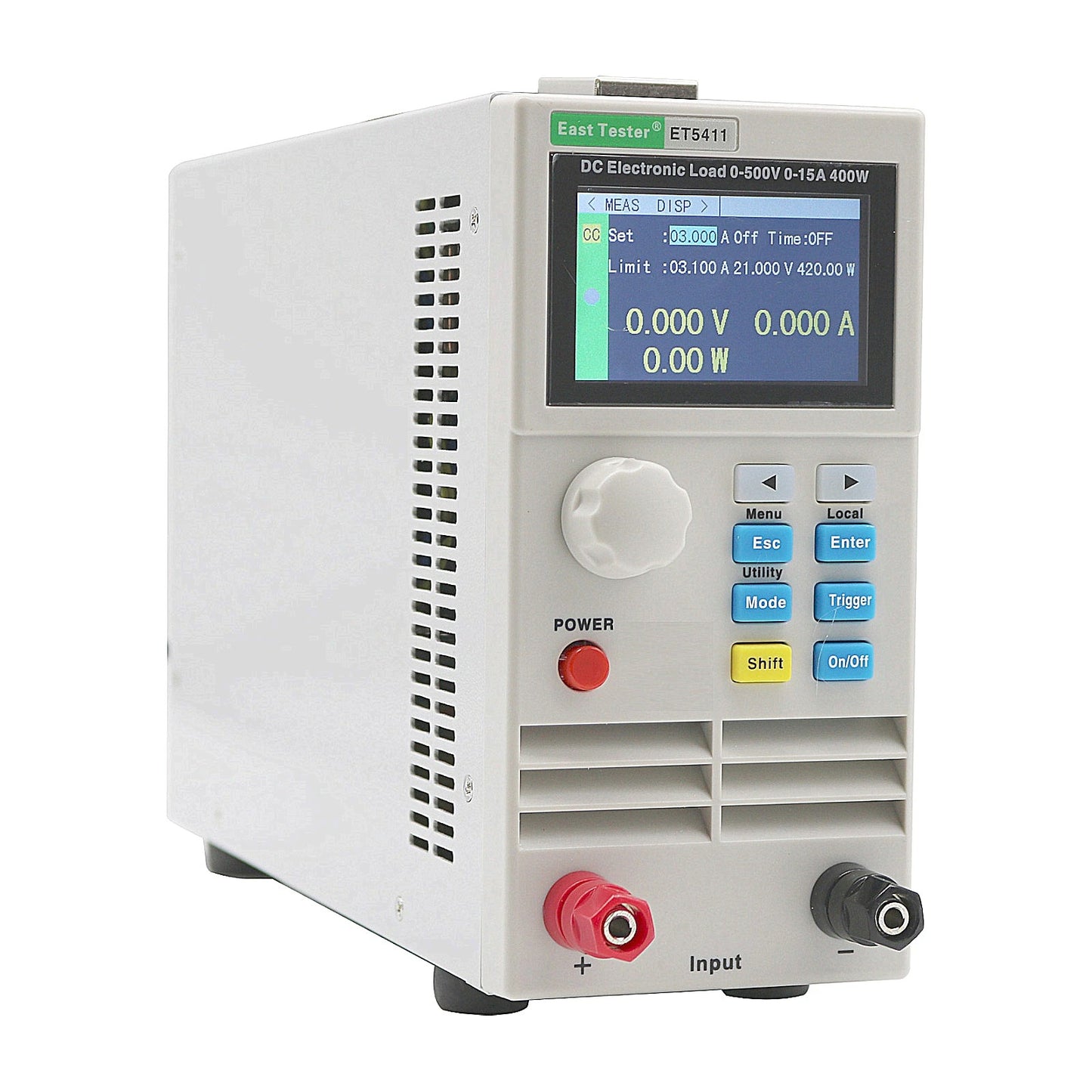

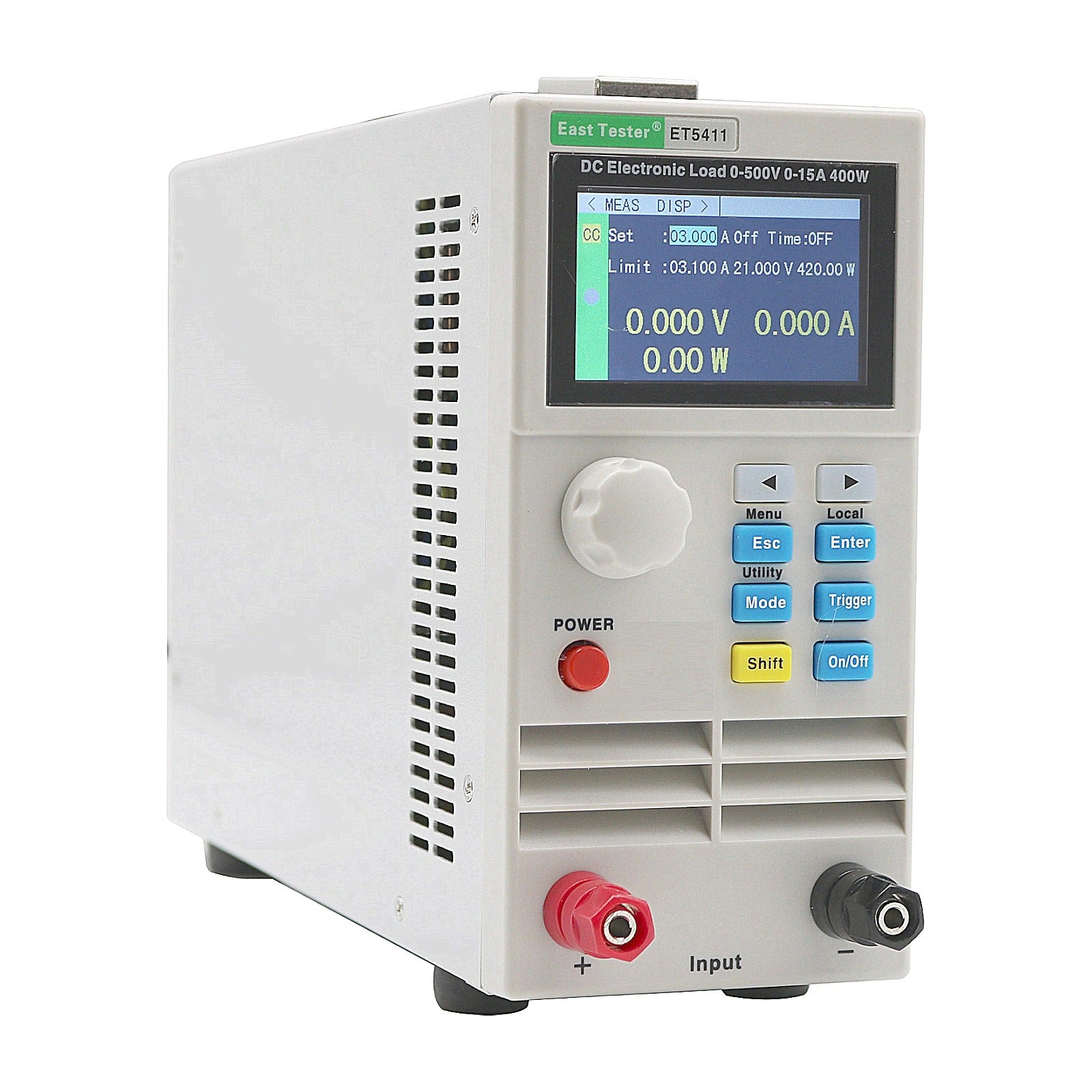

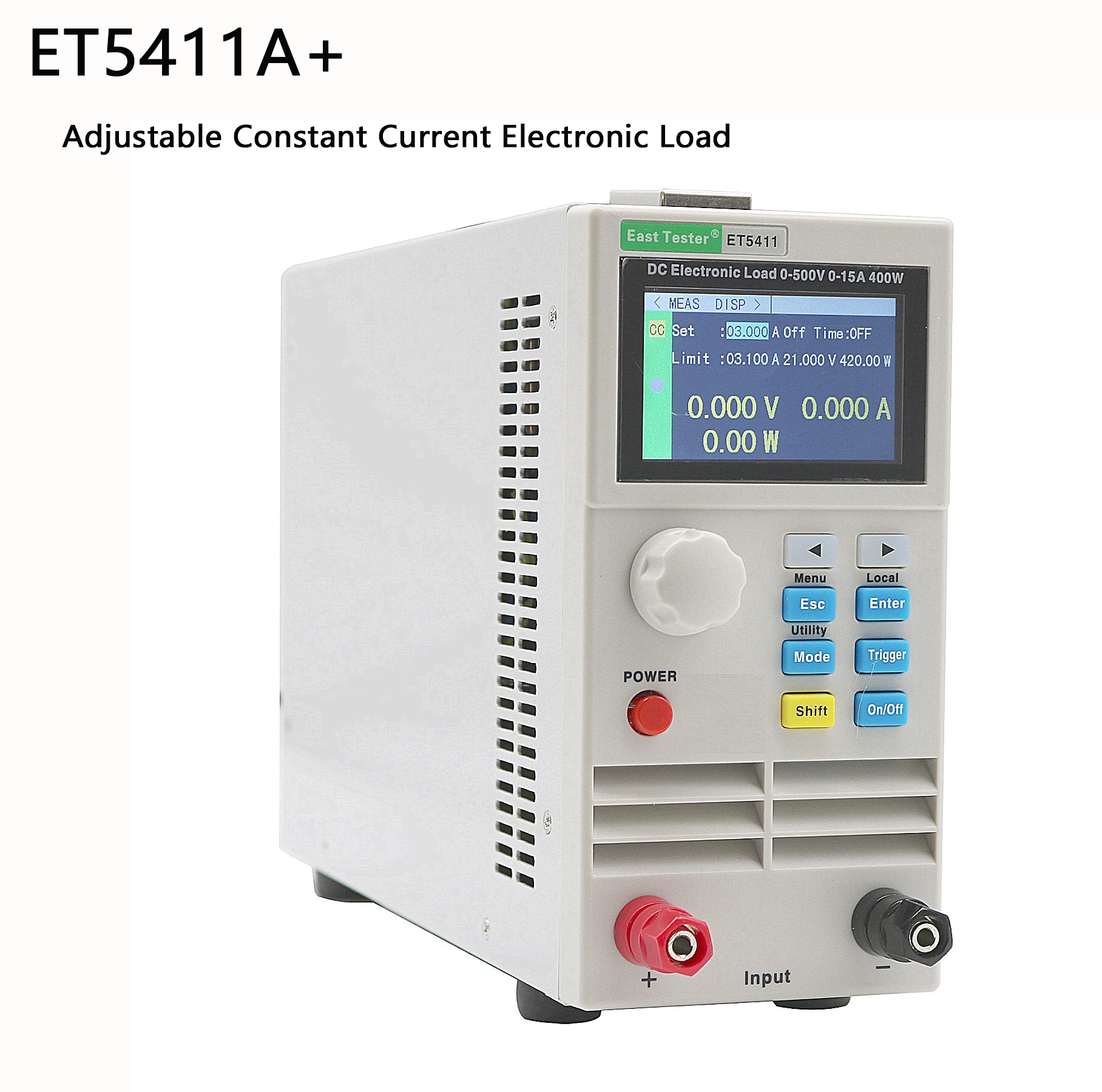

Struggle with insufficient voltage range for high-voltage power device testing? The ET5411A+ DC Electronic Load delivers 400W power, 0-500V high voltage, 0-15A current + 1mV/1mA high resolution—ideal for charger, switch power supply, high-voltage battery, and LED product testing, plus lab R&D!
User-Friendly & Sturdy Design

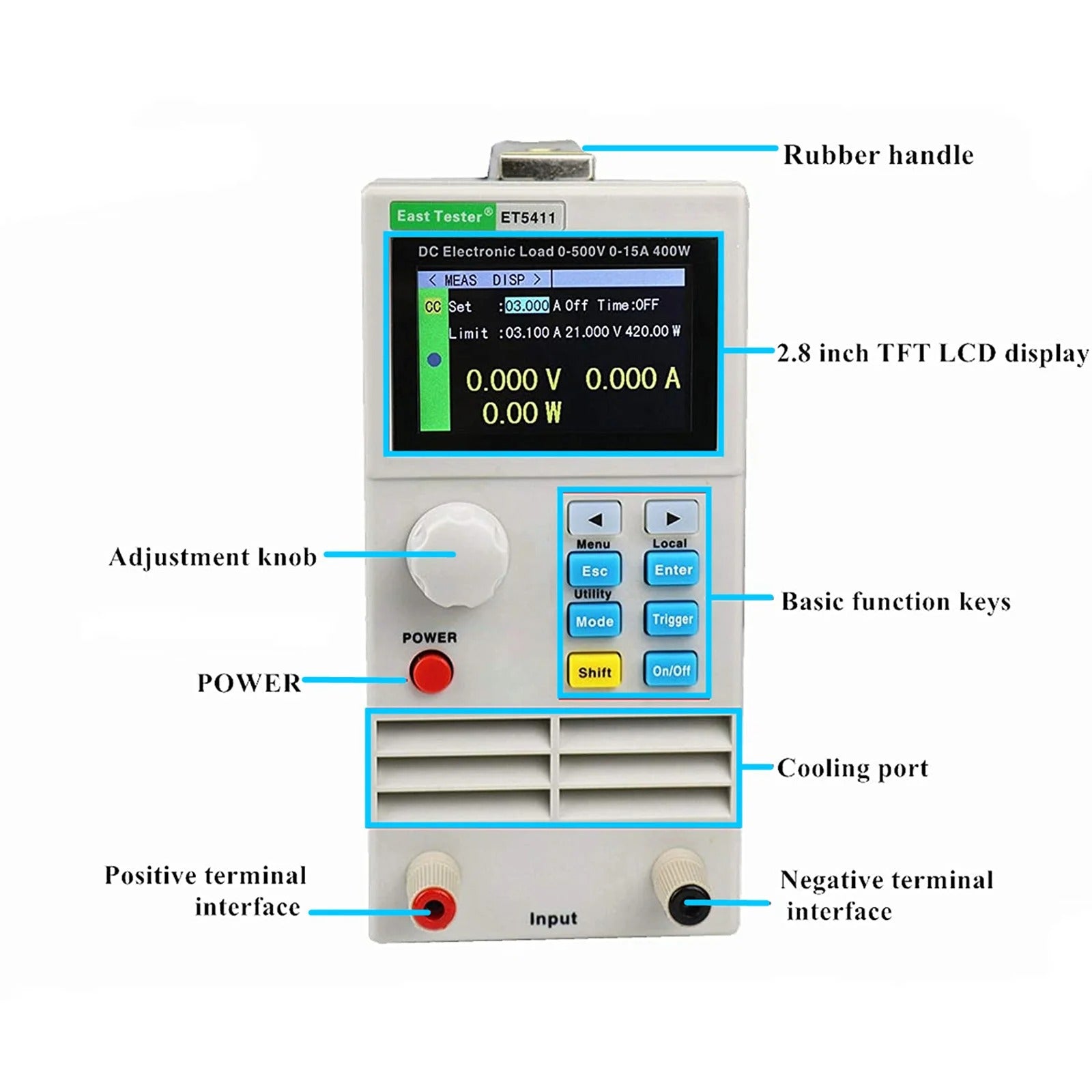

Clear Display: 2.8-inch TFT HD LCD screen (400×240 resolution) with bilingual (Chinese/English) support, showing test data like voltage, current, and mode at a glance.
Easy Operation: Intuitive interface + one-key entry/exit function reduces learning time; key lock feature prevents misoperation during critical tests.

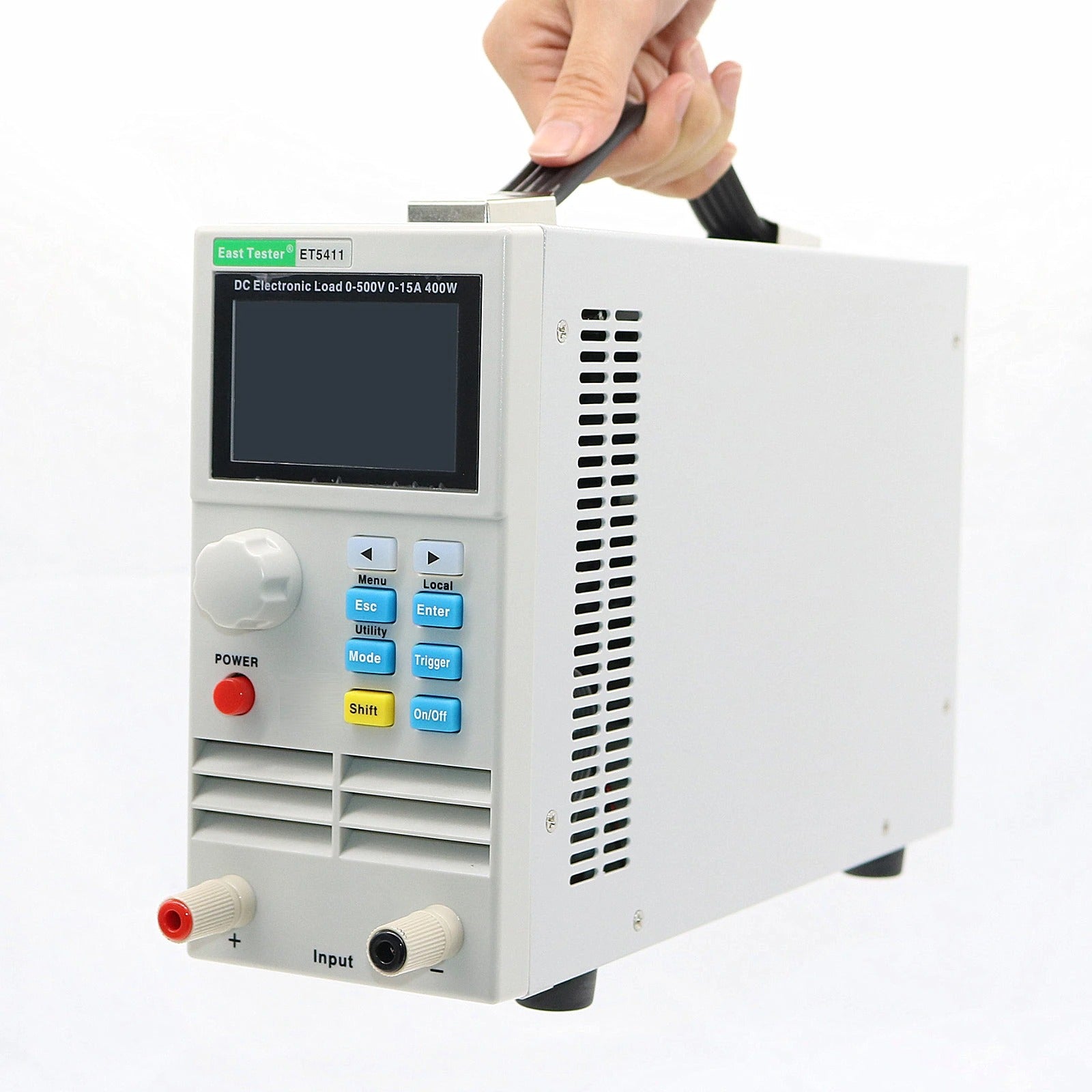

Durable Build: Compact size (90×190×300mm, W×H×D) and 2.9kg weight—easy to place on workbenches; built-in buzzer alarm for real-time fault reminders, ensuring safe use.
Key Specifications
Parameter
Detail
Model
ET5411A+
Channels
Single Channel
Rated Input
400W Power, 0-500V Voltage, 0-15A Current
Testing Modes
6 Basic Modes: CC (Constant Current), CV (Constant Voltage), CR (Constant Resistance), CP (Constant Power), CC+CV, CR+CV; 8 Professional Modes (Battery Test, LED Test, Dynamic Test, Scan Test, etc.)

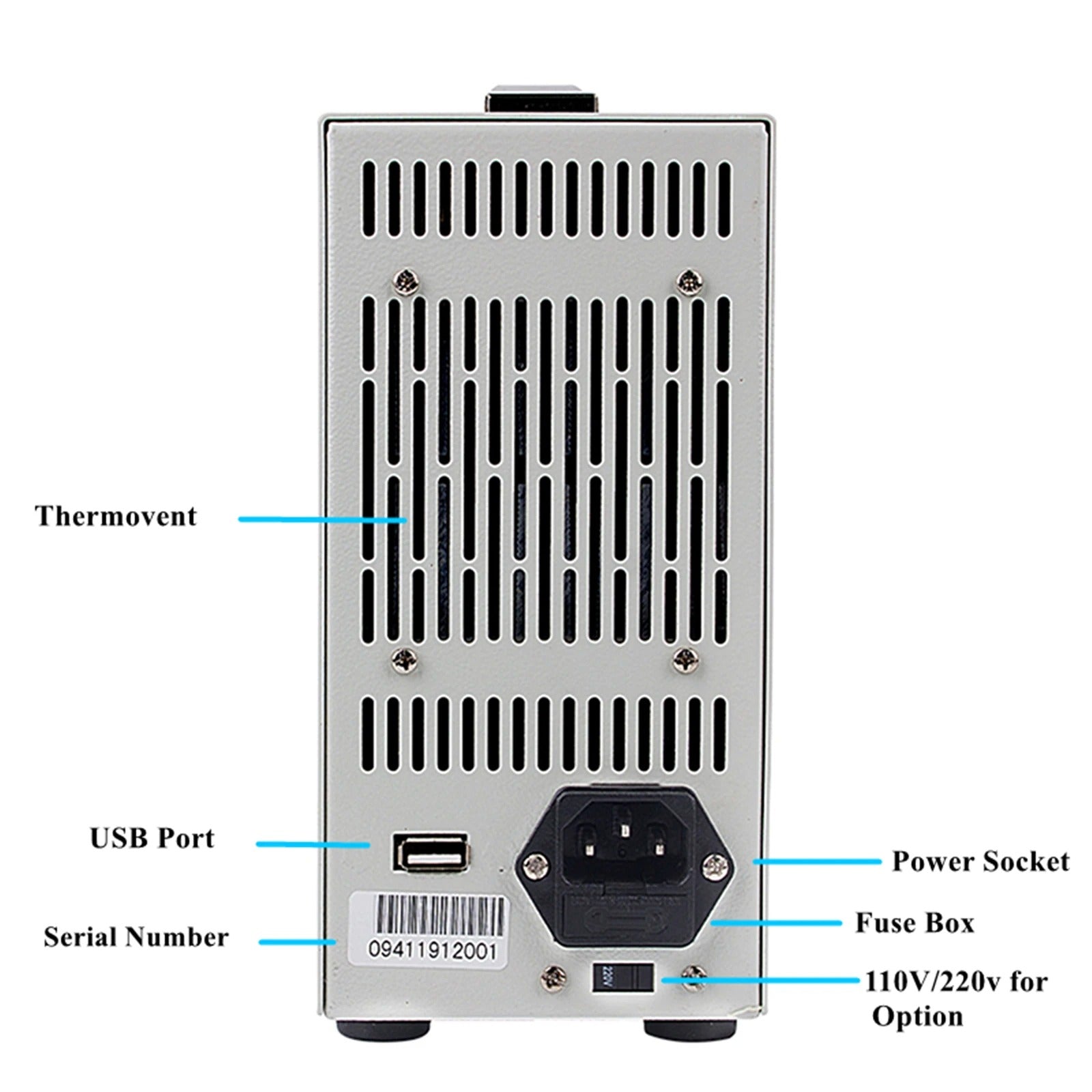

Standard USB interface (supports PC connection + free upper computer software); External trigger input; AC 110V~220V (±10%, 45-65Hz)
Core Advantages
High-Voltage Adaptability: 0-500V voltage range covers high-voltage power devices (e.g., industrial power supplies, high-voltage batteries) that low-voltage loads can’t handle.
Precise Testing: 1mV/1mA resolution captures tiny signal changes, avoiding test errors; high accuracy ensures reliable data for R&D and production verification.
Multi-Scenario Use: From battery capacity testing and LED power simulation to power supply dynamic performance and short-circuit testing—one device replaces multiple tools.
Smart Features: Power-off data retention saves test parameters; list mode simulates multiple load status changes, meeting automated production line testing needs.

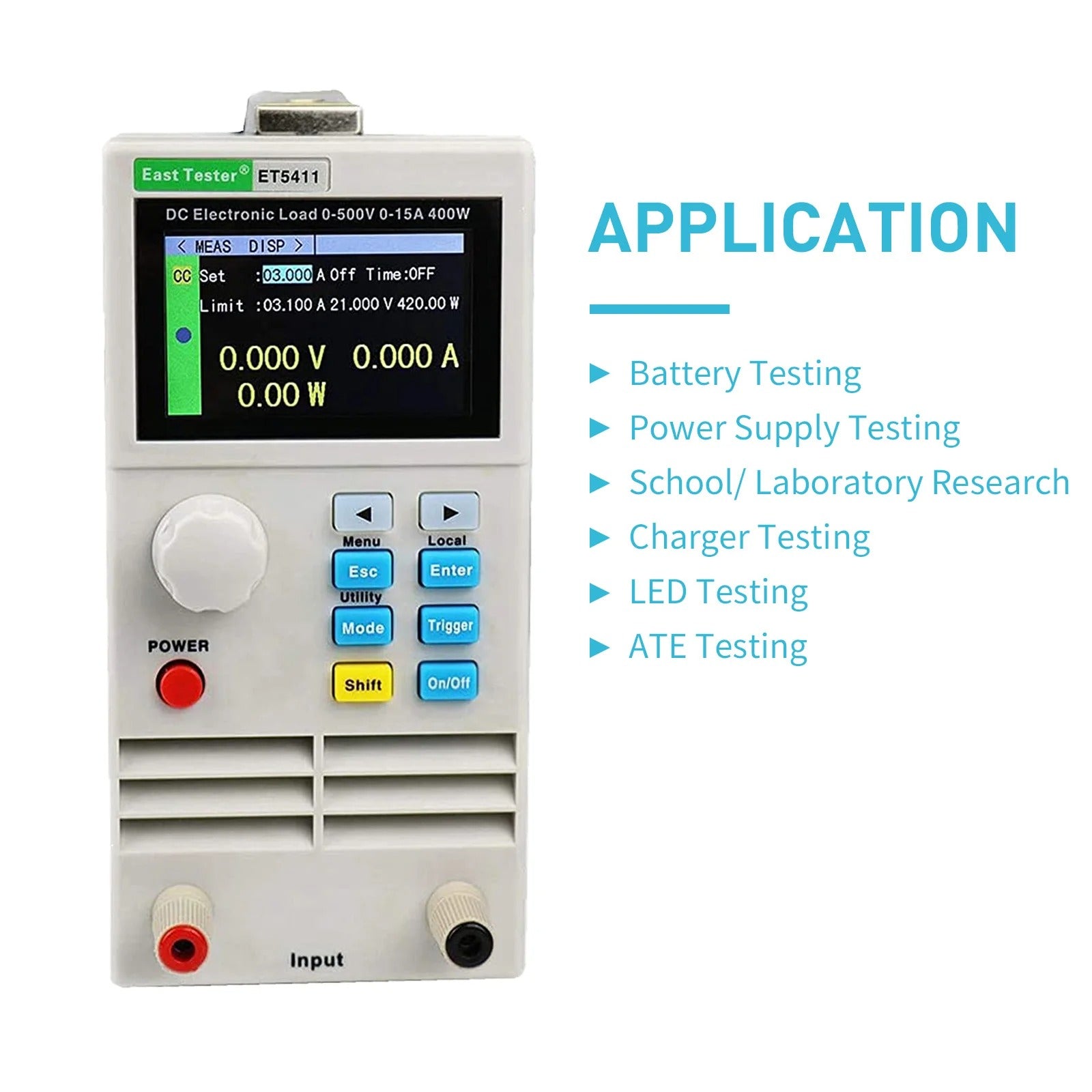

Applicable Scenarios
High-Voltage Power Testing: Test switch power supplies, linear power supplies, and chargers with high output voltage—verify stability and qualification via PASS/FAIL function.
Battery Industry: Measure capacity, discharge performance, and internal resistance of high-voltage batteries (e.g., industrial lithium batteries).
LED & Electronic R&D: Simulate LED power loads to test stability; use dynamic/scan tests for prototype verification of high-voltage power supplies.
Lab & Education: Suitable for scientific research experiments and electronics courses—intuitive operation helps students master high-voltage load testing principles.
Why Choose ET5411A+?
High-Voltage Expert: 0-500V range fills the gap of low-voltage loads, perfect for high-voltage power device testing.
All-in-One Efficiency: 14 professional functions (6 basic + 8 advanced) save cost and space vs. separate single-function tools.
Reliable & Safe: Comprehensive protection mechanisms prevent device damage from over-voltage, over-current, etc., extending service life.
Ready to tackle high-voltage power testing? Click “Add to Cart”—the ET5411A+’s high voltage, precision, and versatility make it a must-have for engineers, production teams, and lab researchers. Secure yours today!
