ET5302 High Precision DC Electronic Load remote control + free software LED Driver Testing DC Electronic Load High-Power & High-Current

ET5302 High Precision DC Electronic Load remote control + free software LED Driver Testing DC Electronic Load High-Power & High-Current

$699.99 USD
$699.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

ET5302 Programmable DC Electronic Load: 1200W High-Power for Heavy-Duty Testing

Struggling with loads that can’t handle high-power, high-current tests? The ET5302 delivers 1200W power, 0-150V voltage, 0-80A current + 1mV/1mA resolution—ideal for high-power chargers, industrial power supplies, large batteries, and heavy-duty electronics in R&D, production, and labs.

User-Friendly & Durable Design

  • Clear Display: 3.5-inch TFT LCD (Chinese/English) shows voltage, current, power, and test mode at a glance.
  • Easy Operation: Intuitive interface + one-key mode entry/exit; key lock prevents misoperation during high-stakes tests.
  • Sturdy & Quiet: Reinforced housing handles heavy-duty use; smart fan reduces low-load noise; built-in buzzer alarms for real-time faults.

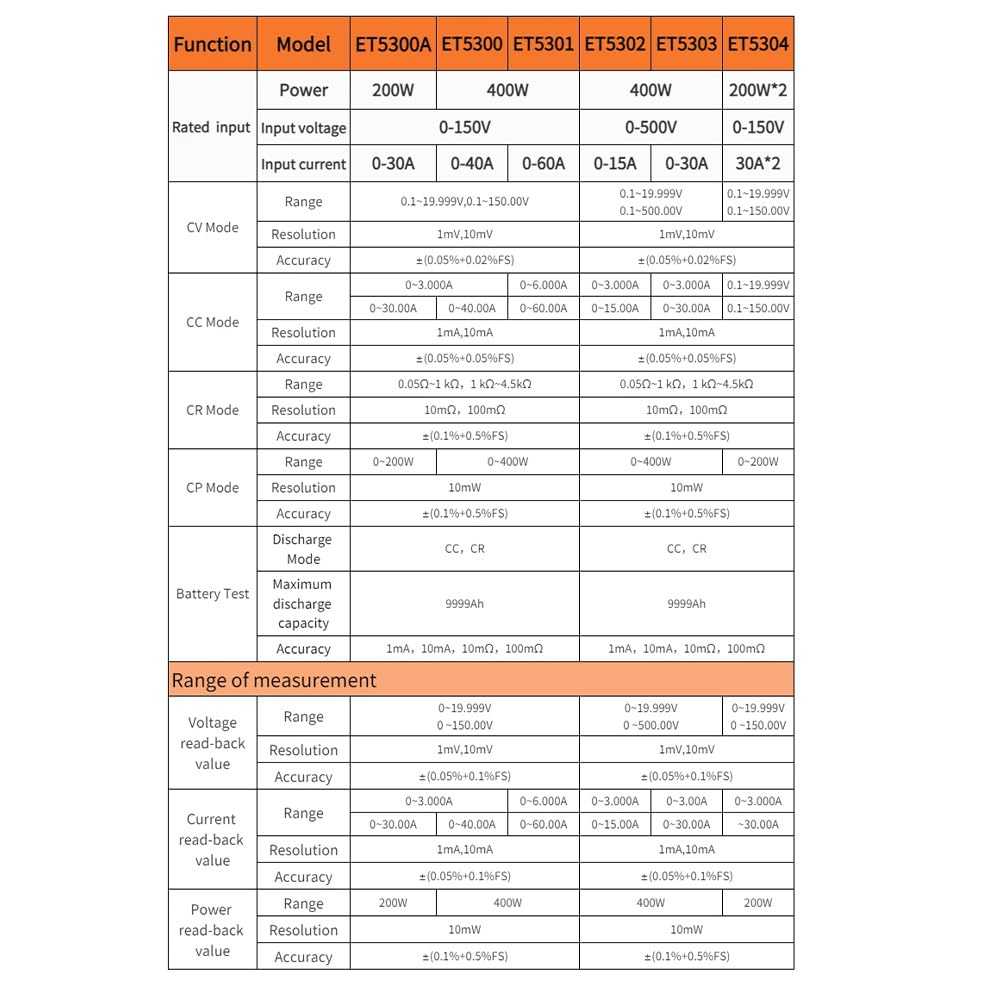

Key Specifications

Parameter
Detail
Model
ET5302
Channels
Single Channel
Rated Input
1200W Power, 0-150V Voltage, 0-80A Current
Testing Modes
6 Basic (CC/CV/CR/CP/CC+CV/CR+CV); 4 Professional (Battery/LED/Dynamic/Scan)
Resolution
Voltage:1mV(0.1-19.999V)/10mV(0.1-150V); Current:1mA(0-30A)/10mA(0-80A); Power:10mW
Accuracy
Voltage:±(0.05%+0.02%FS); Current:±(0.05%+0.05%FS); Power/Resistance:±(0.1%+0.5%FS)
Battery Test
CC/CR discharge; Max capacity:9999Ah
Protection Functions
Over-Voltage(>21V/150V), Over-Current(>8.1A/81A), Over-Power(1260W), Over-Temp(85℃)
Connectivity
USB+RS-232 (remote control + free software); External trigger

Core Advantages

  • High-Power & High-Current: 1200W/80A handles heavy-duty devices (e.g., industrial power supplies, large batteries) that low-power loads can’t test.
  • Precision Testing: 1mV/1mA resolution captures tiny signal changes for reliable R&D/production data.
  • Multi-Mode Versatility: Replaces single-function tools—covers basic tests to advanced battery/dynamic scans.
  • Safe & Convenient: Multi-layer protection safeguards equipment; power-off data retention + remote control boost efficiency.

Applicable Scenarios

  1. Heavy-Duty Production: Test high-power chargers, industrial power supplies via PASS/FAIL for fast qualification.
  1. Battery Industry: Test large batteries (e.g., electric vehicle, industrial backup) for capacity and discharge performance.
  1. Industrial R&D: Analyze high-power prototype stability with dynamic/scan modes.
  1. Labs/Education: Teach heavy-duty load testing principles—intuitive for students, precise for researchers.

Why Choose ET5302?

  • Heavy-Duty Expert: 1200W/80A fills the gap for high-power testing needs.
  • Trusted Precision: Low error rates meet professional industrial standards.
  • Cost-Effective: 10+ functions in one device—saves space vs. multiple tools.
Ready to tackle high-power testing? Click “Add to Cart”—the ET5302’s power, precision, and durability make it a must-have for industrial teams and engineers!
