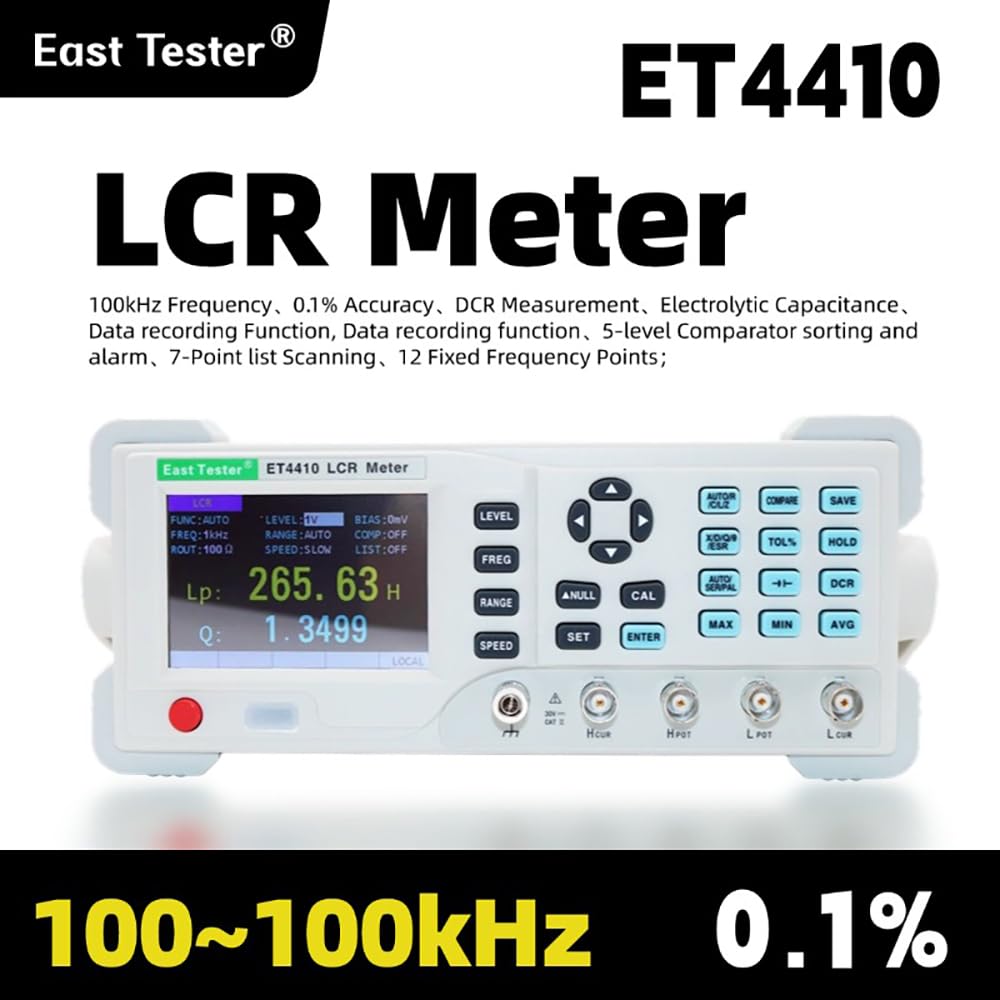

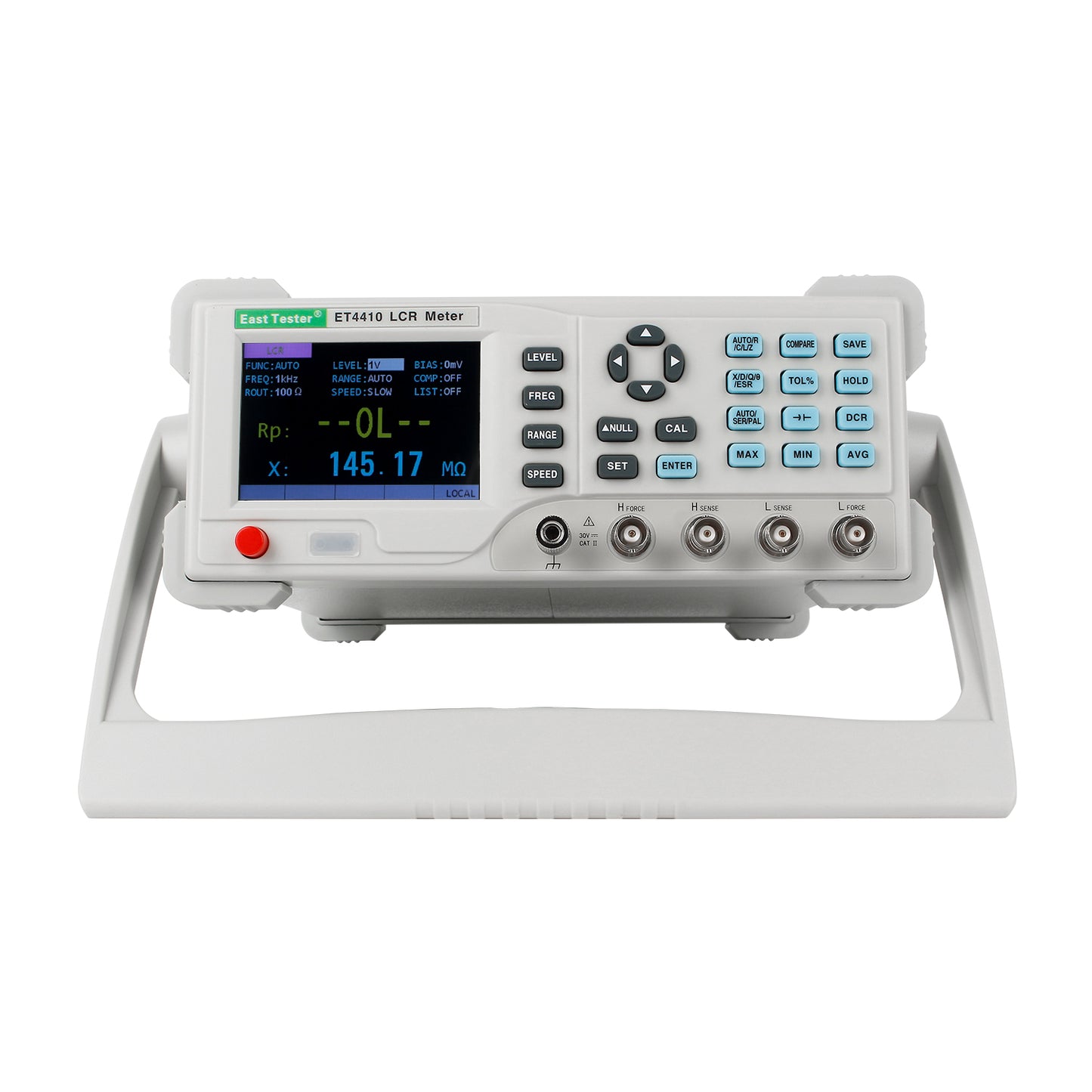

ET4410 Digital LCR Meter 100Hz~100K Benchtop Inductance Capacitance Meter Resisitance Multimeter Tester Reliable Precision

ET4410 Digital LCR Meter 100Hz~100K Benchtop Inductance Capacitance Meter Resisitance Multimeter Tester Reliable Precision

$379.99 USD
$759.98 USD $379.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

English Manual

ET4410 Benchtop LCR Meter: High-Precision for Component Testing

Tired of unreliable L/C/R measurements? The ET4410 delivers 0.05% basic accuracy and a 10Hz-1MHz test frequency range—ideal for electronics R&D, precision manufacturing, and strict quality control.

User-Friendly & Sturdy Design

  • Clear Display: 4.3-inch TFT color screen shows L/C/R/Z + X/D/Q/θ/ESR in detail; bilingual (Chinese/English) for global use.
  • Easy Operation: Tactile buttons + rotary encoder for quick navigation; customizable shortcuts streamline testing.
  • Durable Build: High-quality materials handle lab/production use, ensuring stable measurements.

Key Specifications

Parameter
Detail
Model
ET4410
Basic Accuracy
0.05%
Test Frequency
10Hz-1MHz (fine steps for diverse components)
Measurement Parameters
Main: L/C/R/Z; Sub: X/D/Q/θ/ESR/ESL (Equivalent Series Inductance)
Measuring Range
L: 0.00001μH-99999.9H; C: 0.00001pF-99999.9μF; R: 0.0001Ω-999.999MΩ
Special Modes
Electrolytic cap test, inductor saturation, sorting (0.01%-100% tolerance), deviation measurement, temp comp (-40℃-85℃)
Internal Bias Voltage
0-5V (0.01V step) for in-depth analysis
Test Level
0.01Vrms-2.0Vrms (selectable for component types)
Connectivity

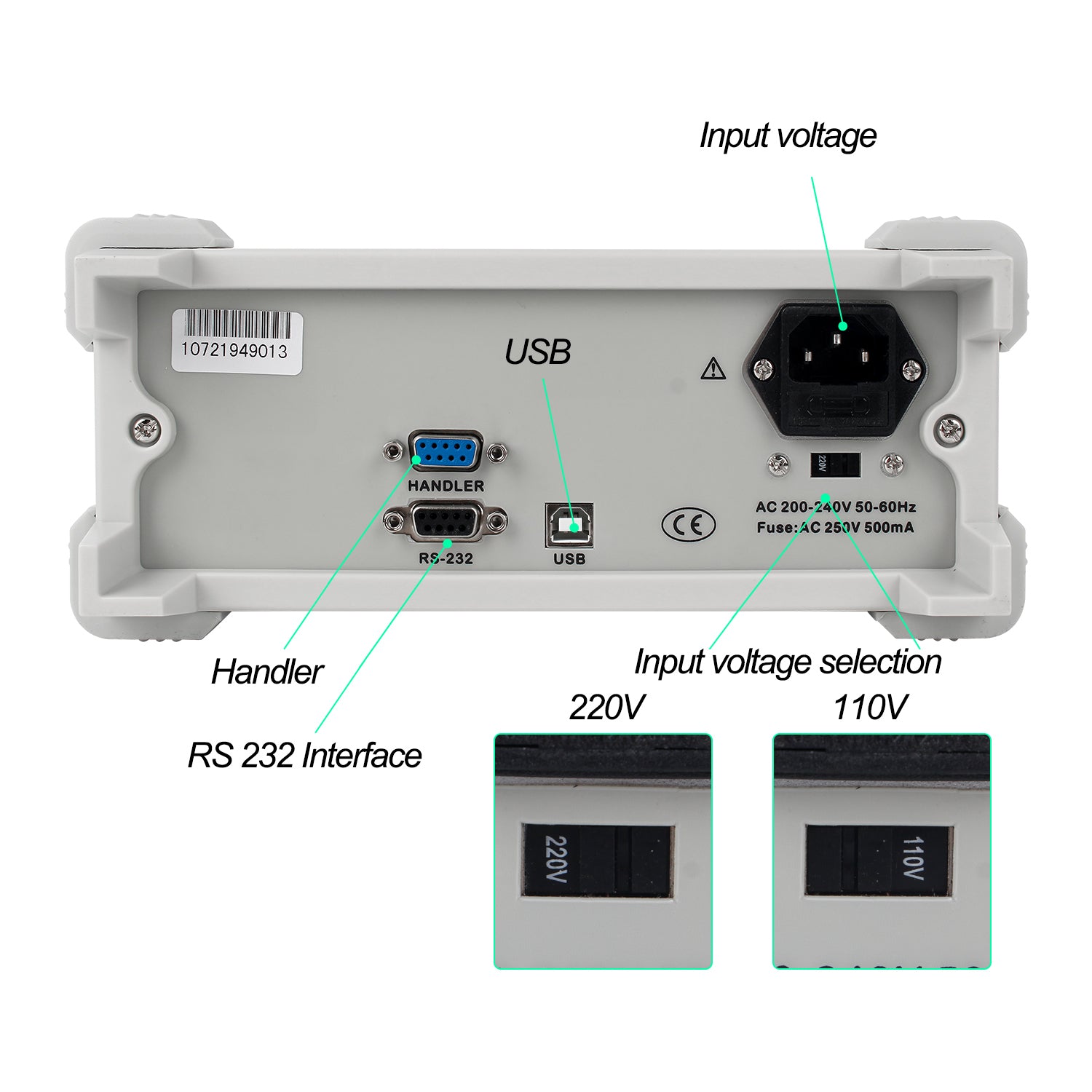

USB 2.0, RS-232, Handler interfaces for data sync/automation

Core Advantages

  • Reliable Precision: 0.05% accuracy captures tiny component changes, critical for R&D/quality assurance.
  • Versatile Testing: Dedicated modes + sorting/temp comp cover diverse needs; replaces multiple tools.
  • Automation-Ready: Interfaces integrate with automated systems, boosting production efficiency.
  • Data Management: Stores 2000+ results; easy PC transfer for analysis/reports.

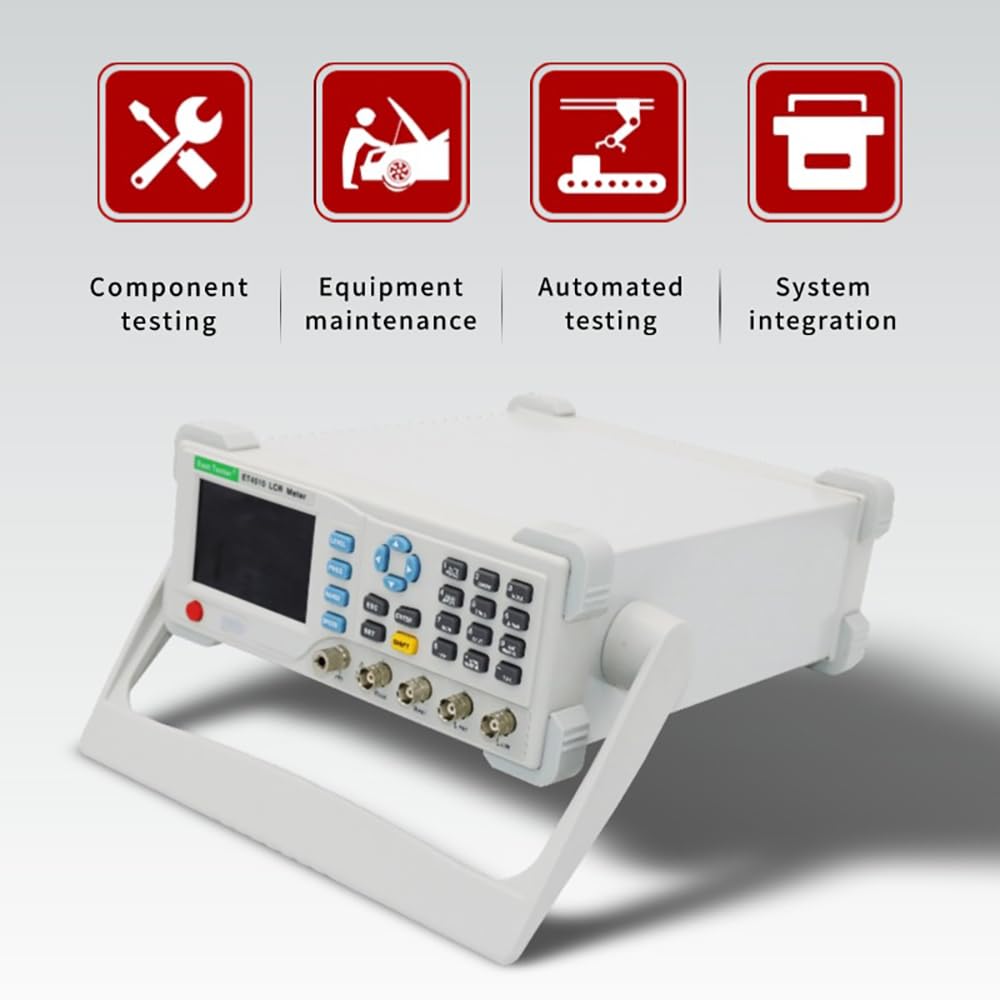

Applicable Scenarios

  1. R&D Labs: Test 5G/audio/industrial components for accurate design.
  1. Automotive Manufacturing: Ensure reliability of in-vehicle electronics.
  1. Semiconductor Industry: Test passive components with adjustable bias.
  1. Precision Production: Fast component sorting via customizable tolerance.

Why Choose ET4410 ?

  • Solid Accuracy: Meets professional requirements for critical applications.
  • All-in-One Tool: Saves space/cost by combining multiple testing functions.
  • Seamless Connectivity: Integrates with existing testing/data systems.
  • Complete Package: Includes test leads, power cord, and software—ready to use.
Ready to upgrade component testing? Click “Add to Cart” to equip your lab/production line with the ET4410!
