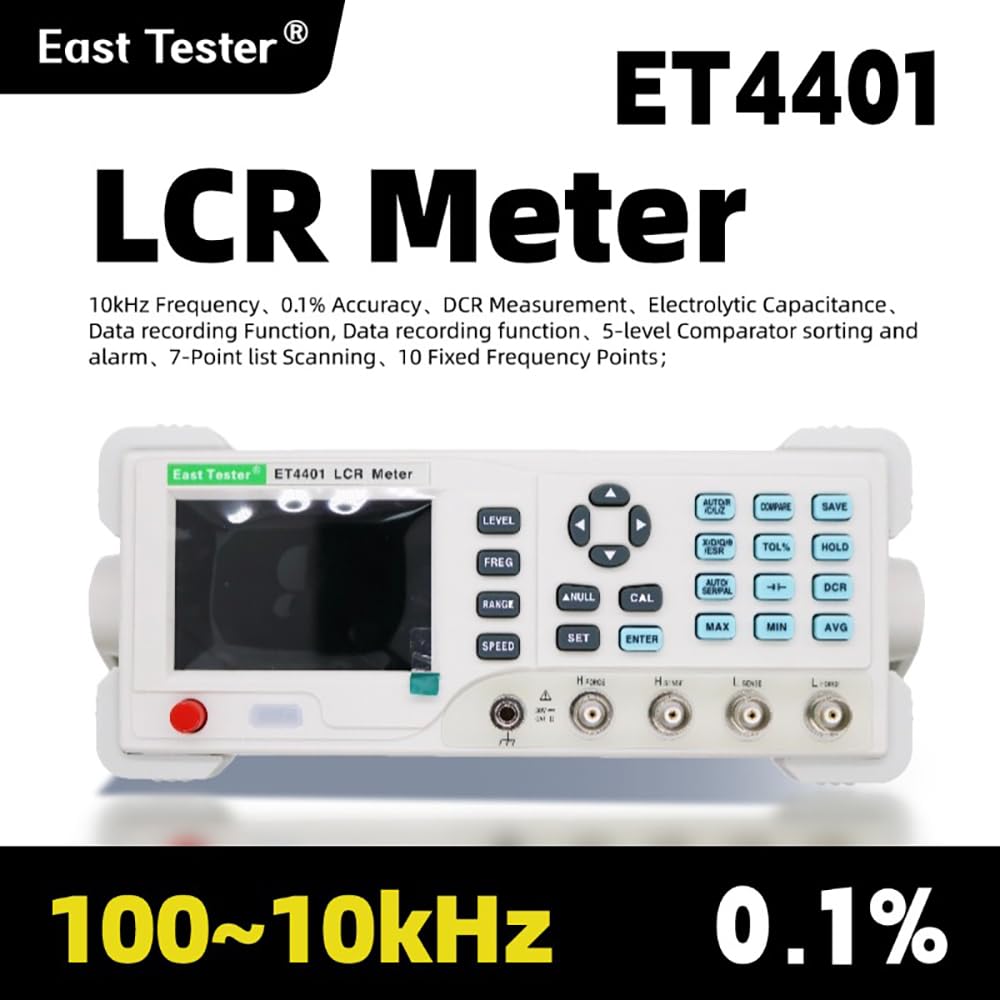

ET4401 Inductance Meter capacitance Meter Test Frequency 10 Points; Accuracy 0.1%, Support SCPI,LCR Benchtop Digital Bridge Tester Desktop LCR Meter

ET4401 Inductance Meter capacitance Meter Test Frequency 10 Points; Accuracy 0.1%, Support SCPI,LCR Benchtop Digital Bridge Tester Desktop LCR Meter

$269.99 USD
$539.98 USD $269.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

English Manual

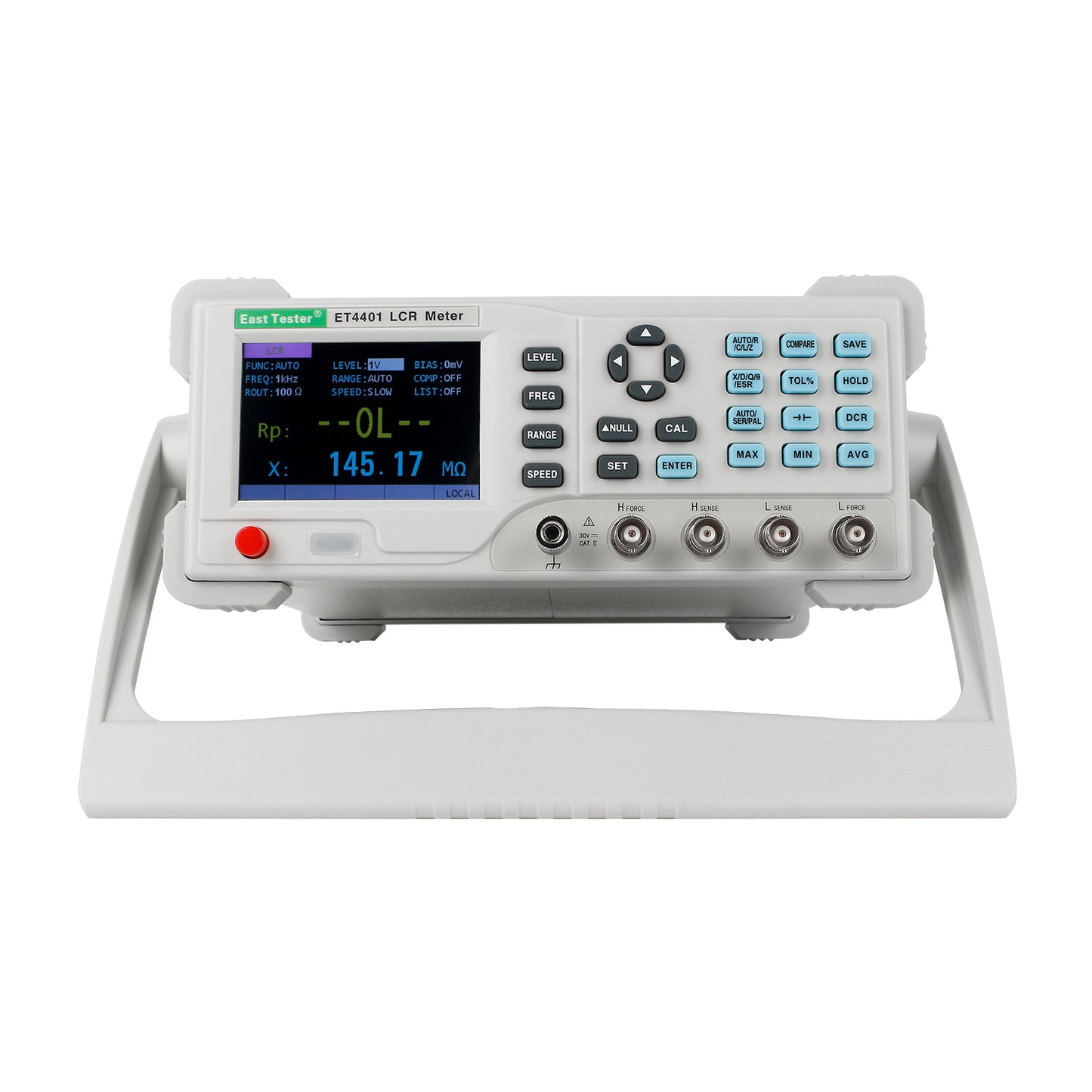

ET4401 Benchtop LCR Meter: Precision Component Measurement

Struggle with inaccurate component testing? The ET4401 delivers 0.05% basic accuracy and a 20Hz - 1MHz frequency range—ideal for R&D, production lines, and quality control.

Key Features

  • Clear Display: 4.3 - inch TFT color screen shows L/C/R/Z + X/D/Q/θ/ESR in detail; supports Chinese/English.

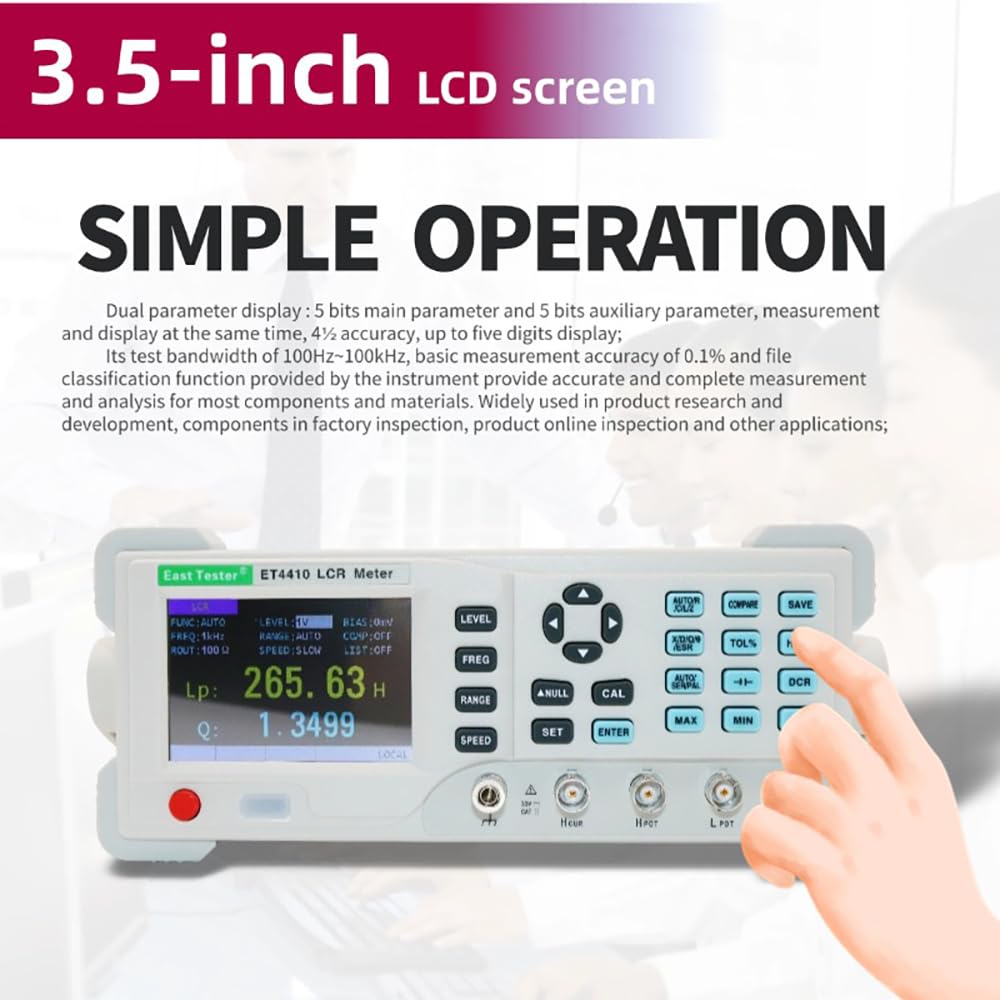

  • Easy Operation: Intuitive buttons + rotary encoder for quick navigation; one - key access to core functions.
  • Sturdy Build: Designed for lab/production use, minimizing vibration interference.

Specifications

Parameter
Detail
Model
ET4401
Basic Accuracy
0.05%
Test Frequency
20Hz–1MHz (precise steps for diverse components)
Measured Values
L/C/R/Z (main); X/D/Q/θ/ESR (sub)
Range
L: 0.00001μH–9999.99H; C: 0.00001pF–99999.9μF; R: 0.0001Ω–99.9999MΩ
Special Modes
Electrolytic cap test, inductor saturation, deviation measurement, sorting (0.01%–100% tolerance)
Bias Voltage
0–5V (0.01V step) for bias - dependent testing
Connectivity

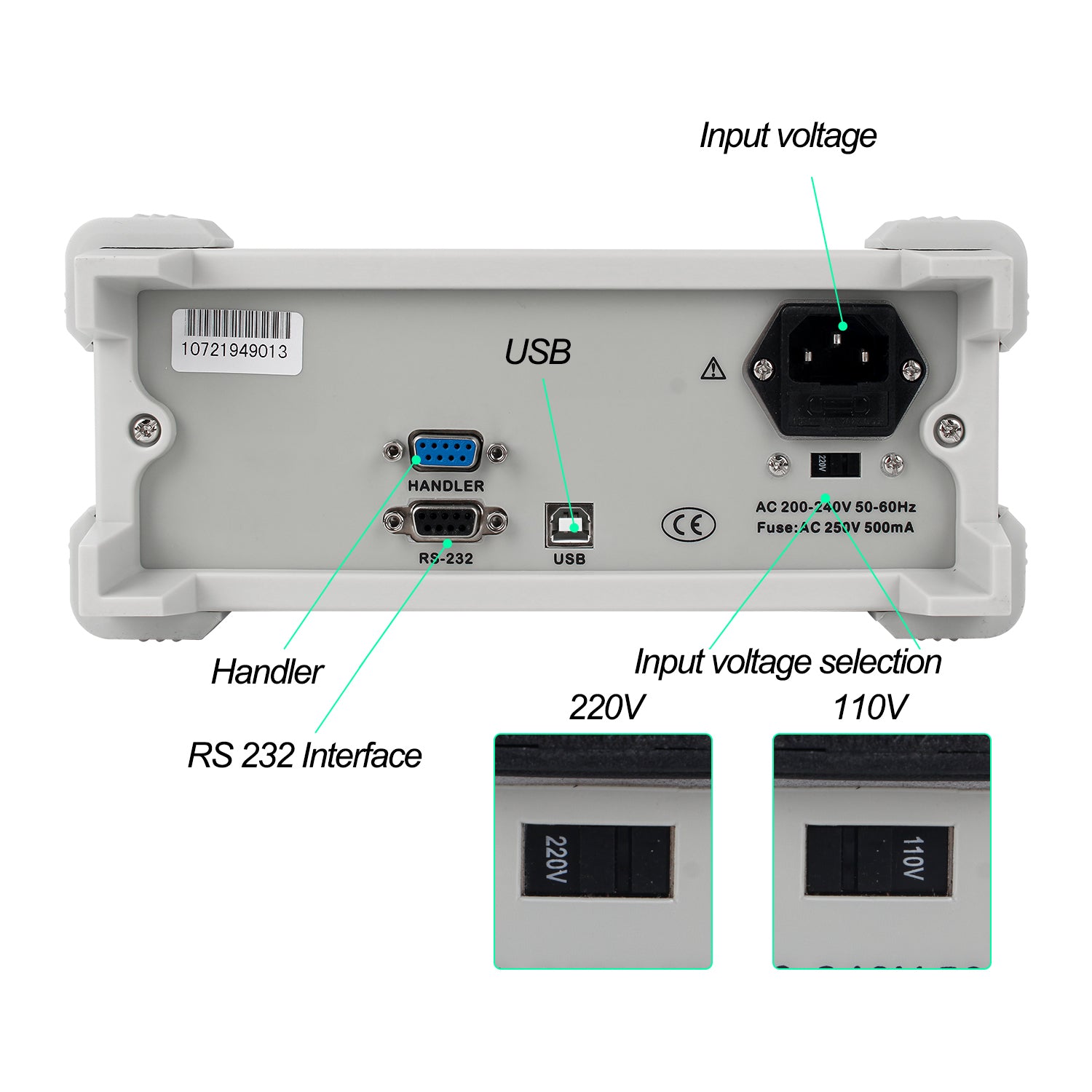

USB/RS - 232/Handler for data sync with PCs/automated systems

Core Advantages

  • Ultra - Precision: 0.05% accuracy captures tiny component variations—critical for high - end R&D.
  • Versatile Testing: Dedicated modes (electrolytic caps, inductors) + sorting/temperature compensation cover diverse needs.

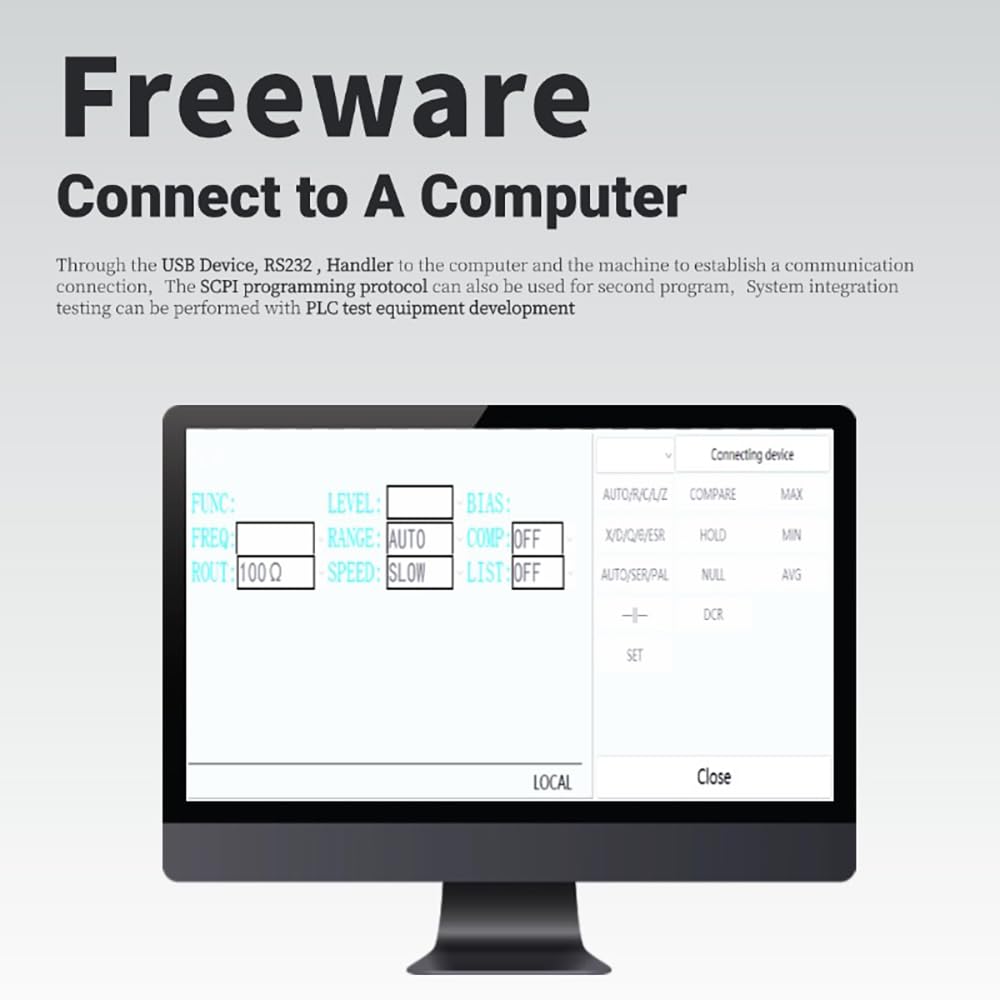

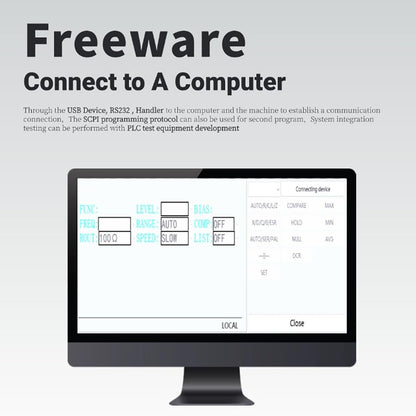

  • Automation Ready: Integrate via USB/RS - 232 for high - volume production line testing.
  • Data Management: Stores 1000+ results; easy PC transfer for analysis/reports.

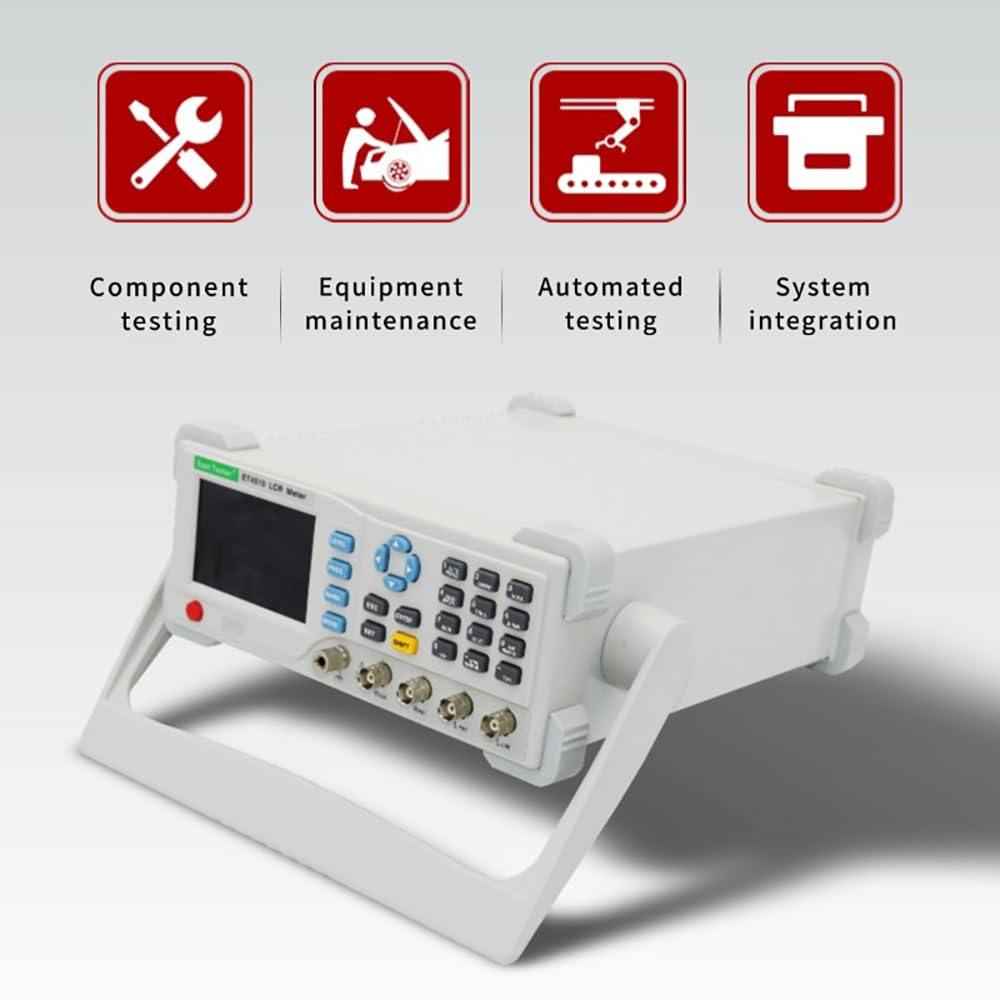

Use Cases

  • R&D Labs: Characterize 5G/audio/aerospace components with precision.
  • Automotive Production: Ensure reliability of in - vehicle electronics.
  • Semiconductor Testing: Test passive components under custom bias conditions.
  • Quality Control: Screen components via 0.01%–100% tolerance sorting.

Why ET4401?

  • Top - Tier Accuracy: 0.05% sets industry standards for critical applications.
  • All - in - One Tool: Replaces multiple testers, saving space/cost.
  • Full Package: Includes test leads, software, and power cord—start testing instantly.
Upgrade your component testing! Click Add to Cart—the ET4401 transforms lab/production workflows with precision and efficiency.
