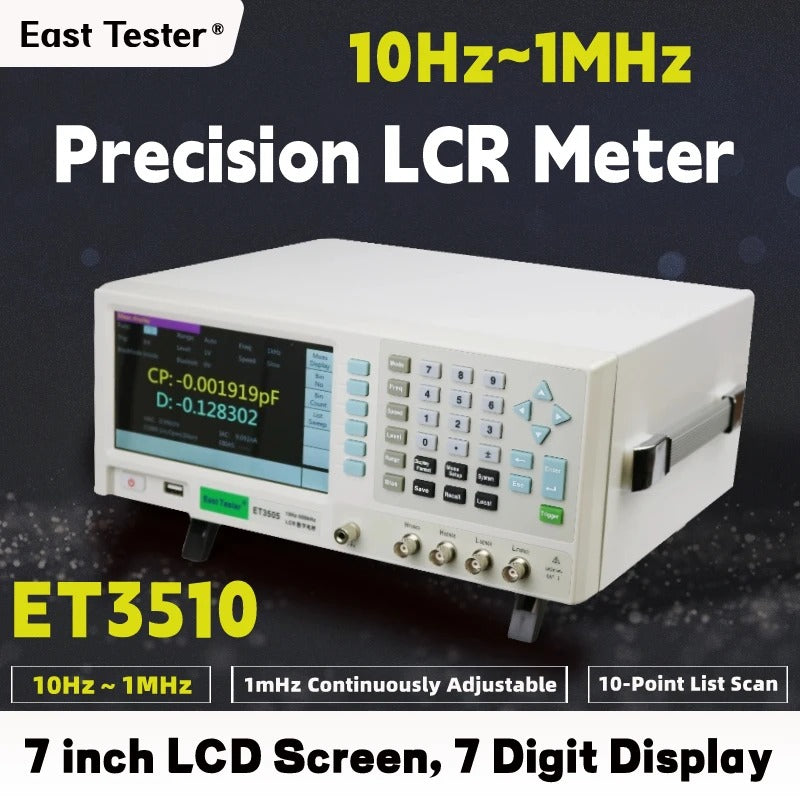

ET3510 Benchtop High-Frequency LCR Meter: 10Hz-1MHz Precision for Advanced Testing
Need top-tier high-frequency component testing? The ET3510 delivers 0.05% basic accuracy and a 10Hz-1MHz continuous frequency range —ideal for 5G/RF, aerospace, and high-end electronics R&D, precision production, and strict quality control.
User-Friendly & Sturdy Design
Clear Display : 7-inch TFT LCD (800×480); 6 1/2-digit resolution for micro-level readings; bilingual (Chinese/English).
Easy Operation : Tactile buttons + 10-point list scanning; 4 trigger modes (internal/manual/external/bus) for flexible testing.
Durable Build : 330×285×136mm (3.9kg); anti-interference shielded signal path; works in 0°C-40°C environments.
Key Specifications
Parameter
Detail
Model
ET3510
Test Frequency
10Hz-1MHz (1mHz step), 0.01% frequency accuracy
Basic Accuracy
0.05%
Measurement Params
Cp-D/Cp-Q/Cp-G/Cp-Rp, Cs-D/Cs-Q/Cs-Rs, Lp-D/Lp-Q/Lp-Rp, Ls-D/Ls-Q/Ls-Rs, Rs-Xs,
Range
C:0.001pF~99.9999F; L:0.001nH~99.9999kH; R/
Test Signal
0~2Vrms (1mV step); 100μA~20mA rms; 30/100Ω optional source impedance
Bias
Internal: -2V~+2V (voltage)/-20mA~+20mA (current); External: -60V~+60V (voltage)
Speed
Fast:50/s, Medium:10/s, Slow:1.25/s; Custom:0.5-200/s (>1kHz)
Connectivity
RS232, USB (Host/Device), LAN, Handler; GPIB optional
Extra Functions
10-grade sorting/counting, 100-set self-calibration, frequency sweep, open/short/load calibration
Core Advantages
Full High-Freq Coverage : 10Hz-1MHz suits 5G RF components, aerospace electronics, and high-speed PCBs.
Ultra-Precision : Captures parasitic parameters (ESL/ESR) of high-freq parts for accurate analysis.
Versatile Testing : Works for passives, semiconductors, magnetic materials, and dielectrics; supports frequency sweep.
Efficient Batch Testing : 10-point scanning + sorting speeds up production line inspection.
Applicable Scenarios
5G/RF R&D : Test RF inductors, high-freq capacitors, and PCB antenna impedance.
Aerospace/National Defense : Ensure reliability of high-freq stealth materials and avionics components.
High-End Production : Batch screen high-freq parts via automated trigger modes.
Material Analysis : Evaluate dielectric constant of high-freq ceramics and permeability of magnetic cores.
Why Choose ET3510?
Top-Tier High-Freq Performance : Meets 5G/aerospace advanced testing needs.
All-in-One Tool : Replaces multiple testers, saving space and cost.
Reliable Data : Anti-interference design + multi-calibration ensures consistency.
Ready-to-Use : Includes power cord + Kelvin test clip; optional SMD fixtures.
Upgrade high-frequency testing! Click “Add to Cart” to equip your lab/production line with the ET3510.
