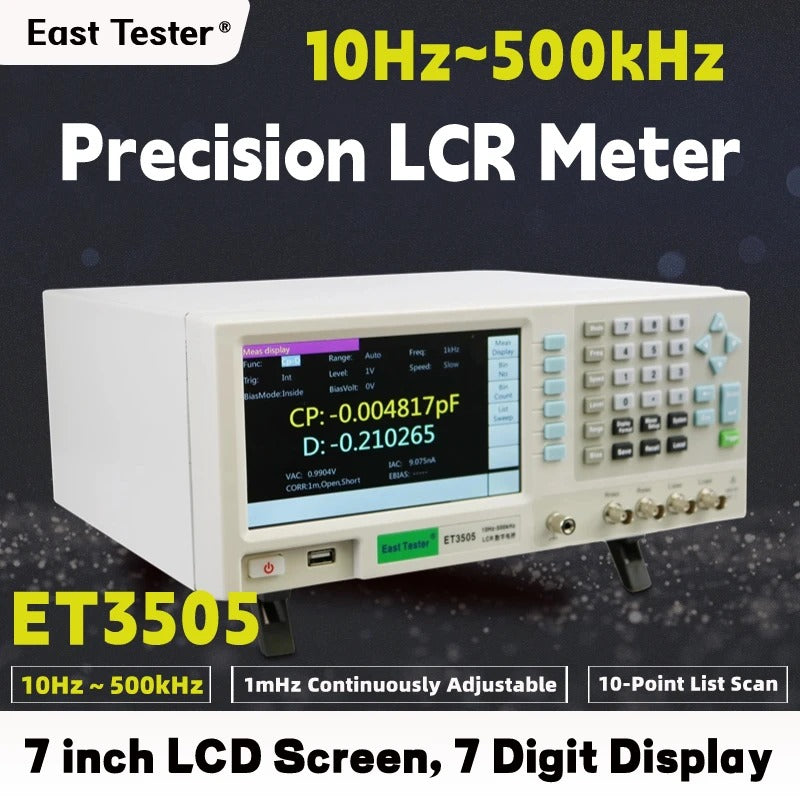

ET3505 Tester LCR Benchtop Digital Bridge 10Hz-500kHZ Desktop LCR Tester Meter Capacitance Resistance Impedance Inductance Measure for Electrical Testing

ET3505 Tester LCR Benchtop Digital Bridge 10Hz-500kHZ Desktop LCR Tester Meter Capacitance Resistance Impedance Inductance Measure for Electrical Testing

$1,299.00 USD
$2,598.00 USD $1,299.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

ET3505 Benchtop High-Frequency LCR Meter: 10Hz-1MHz Precision Testing

Need high-end high-frequency component testing? The ET3505 offers 0.05% basic accuracy and a 10Hz-1MHz continuous frequency range—ideal for 5G/RF, aerospace, and industrial electronics R&D, precision production, and strict quality control.

User-Friendly & Sturdy Design

  • Clear Display: 7-inch TFT LCD (800×480); 6 1/2-digit resolution; bilingual (Chinese/English) for global use.
  • Easy Operation: Tactile buttons + 10-point list scanning; supports 4 trigger modes (internal/manual/external/bus).
  • Durable Build: 330×285×136mm (3.9kg); anti-interference shielded path; works in 0°C-40°C environments.

Key Specifications

Parameter
Detail
Model
ET3505
Test Frequency
10Hz-1MHz (1mHz step), 0.01% frequency accuracy
Basic Accuracy
0.05%
Measurement Params
Cp-D/Cs-Q, Lp-D/Ls-Q, Rs-Xs,
Range
C:0.001pF~99.9999F; L:0.001nH~99.9999kH; R/
Test Signal
0~2Vrms (1mV step); 100μA~20mA rms; 30/100/500Ω optional impedance
Bias
Internal: -2V~+2V/-20mA~+20mA; External: -60V~+60V
Speed
Fast:50/s, Medium:10/s, Slow:1.25/s; Custom:0.5-200/s (>1kHz)
Connectivity
RS232, USB (Host/Device), Handler; GPIB optional
Extra Functions
10-grade sorting, 100-set calibration data, frequency sweep, open/short/load calibration

Core Advantages

  • Wide High-Freq Range: 10Hz-1MHz suits 5G RF components, aerospace electronics, high-speed PCBs.
  • Ultra-Precision: Captures parasitic parameters (ESL/ESR) of high-freq parts.
  • Versatile: Tests passives, semiconductors, magnetic materials; frequency sweep for performance analysis.
  • Efficient: 10-point scanning + sorting speeds up batch production testing.

Applicable Scenarios

  1. 5G/RF R&D: Test RF inductors, high-freq caps, PCB impedance.
  1. Aerospace: Ensure reliability of high-freq in-vehicle/aviation components.
  1. Precision Production: Batch screen high-freq parts via automated trigger.
  1. Material Analysis: Evaluate high-freq ceramic dielectric constant, magnetic core permeability.

Why Choose ET3505?

  • High-Freq Expertise: Meets 5G/aerospace high-freq testing needs.
  • All-in-One: Replaces multiple testers, saves space/cost.
  • Reliable: Anti-interference + multi-calibration ensures stable data.
  • Ready-to-Use: Includes power cord + Kelvin clip; optional SMD fixtures.
Upgrade high-frequency testing! Click “Add to Cart” for the ET3505.
