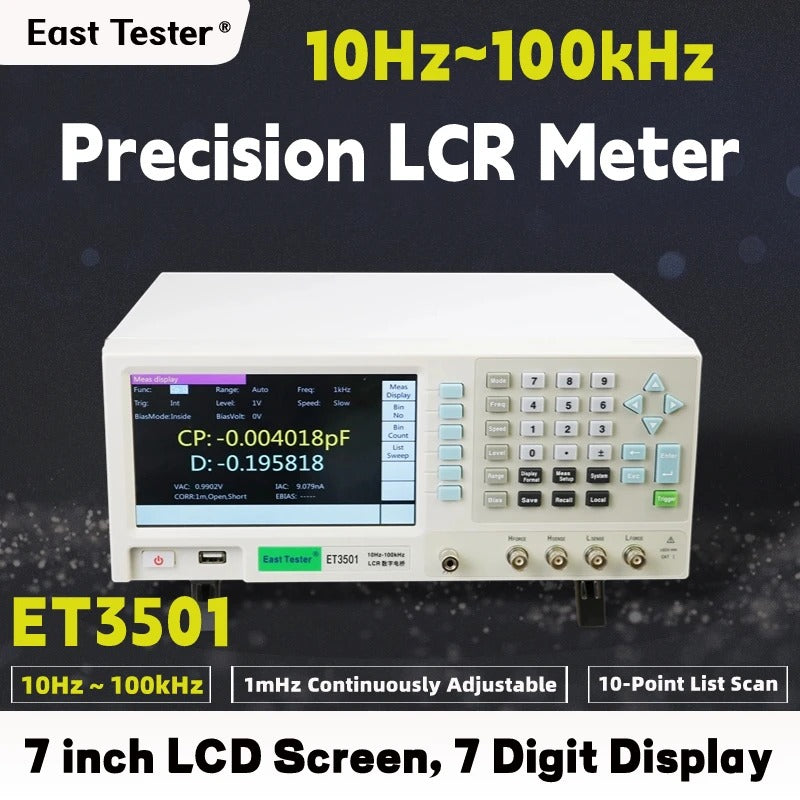

LCR Digital Bridge ET3501 10Hz-100kHz LCR Benchtop Digital Bridge Tester Precision LCR Meter for High-Freq Production

LCR Digital Bridge ET3501 10Hz-100kHz LCR Benchtop Digital Bridge Tester Precision LCR Meter for High-Freq Production

$899.00 USD
$1,798.00 USD $899.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

ET3501 Benchtop High-Frequency LCR Meter: Precision for High-Freq Components

Need reliable high-frequency component testing? The ET3501 delivers 0.1% basic accuracy and an ultra-wide 100kHz-30MHz frequency range—ideal for RF, 5G, and high-frequency electronics R&D, production, and quality control.

User-Friendly & Sturdy Design

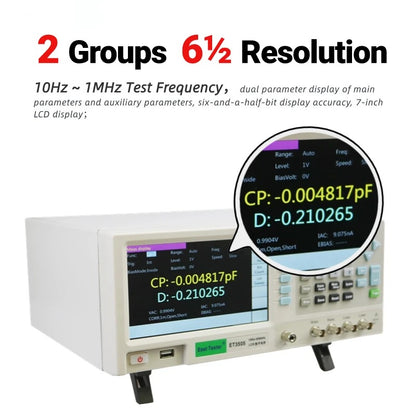

  • Clear Display: 4.3-inch TFT color screen shows L/C/R/Z + X/D/Q/θ/ESR; bilingual (Chinese/English) for global use.
  • Easy Operation: Tactile buttons + rotary encoder; one-key access to high-frequency test modes.
  • Durable Build: Industrial-grade materials resist lab/production wear; anti-interference design ensures stable high-freq measurements.

Key Specifications

Parameter
Detail
Model
ET3501
Basic Accuracy
0.1%
Test Frequency
100kHz-30MHz (fine steps for high-freq components like RF inductors/capacitors)
Measurement Parameters
Main: L/C/R/Z; Sub: X (reactance), D (dissipation), Q (quality), θ (phase), ESR
Measuring Range
L: 0.001μH-9999H; C: 0.01pF-9999μF; R: 0.01Ω-999.999MΩ
Special Modes
High-freq component optimization, deviation measurement, sorting (0.1%-100% tolerance), temp comp (-30℃-70℃)
Bias Voltage
0-2V (0.01V step) for high-freq component characterization
Connectivity
USB 2.0, RS-232, GPIB (optional) for data sync + automated testing

Core Advantages

  • High-Freq Precision: 100kHz-30MHz range + 0.1% accuracy captures tiny changes in RF/5G components.
  • Anti-Interference: Special design reduces high-freq signal interference, ensuring reliable data.
  • Versatile: Optimized for high-freq inductors/capacitors; replaces dedicated high-freq testers.
  • Data Management: Stores 1500+ results; USB/GPIB enables fast PC analysis/reports.

Applicable Scenarios

  1. RF/5G R&D Labs: Test high-freq components for 5G base stations, wireless devices.
  1. High-Freq Production: Screen RF inductors/capacitors for telecom equipment manufacturing.
  1. Aerospace Electronics: Ensure high-freq component reliability in avionics.
  1. Quality Control: Strict checks for high-freq passive components via deviation sorting.

Why Choose ET3501?

  • High-Freq Expertise: Specialized for 100kHz-30MHz testing—meets RF/5G industry needs.
  • Cost-Effective: Replaces multiple high-freq tools, saving space and budget.
  • Seamless Integration: GPIB (optional) supports automated high-volume testing.
  • Ready-to-Use: Includes high-freq test leads, power cord, software—start testing instantly.
Upgrade high-frequency component testing! Click “Add to Cart” to equip your lab/production line with the ET3501.
