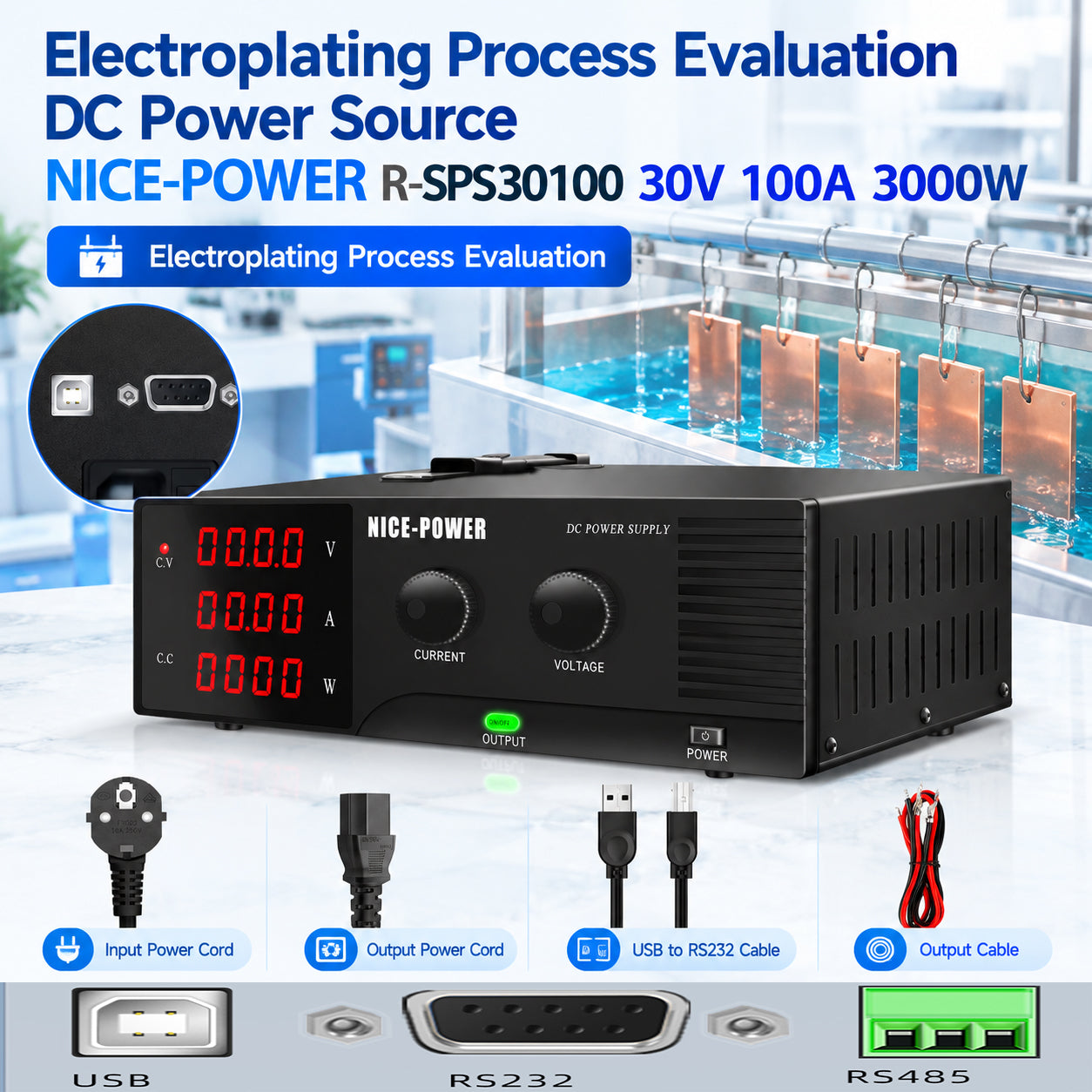

Electroplating Process Evaluation DC Power Source
NICE-POWER R-SPS30100 30V 100A 3000W
The NICE-POWER R-SPS30100-R DC power source delivers adjustable output from 0–30V, with a maximum output current of 100A and rated power of 3000W. Designed for high-current DC bench testing, it can provide adjustable power for laboratory electroplating process evaluation and related material or electrical testing applications when the required operating conditions fall within the power supply’s rated limits.
Voltage, current, and power displays help users monitor the power supply output during experiments. The front-panel encoder knobs allow voltage and current adjustment, while the Output ON/OFF control makes it convenient to manage power delivery during test preparation and operation. The CV/CC indicators provide a visual reference to the supply’s operating mode. For compatible externally controlled test setups, the R-SPS30100-R also features USB, RS-232, and RS485 communication interfaces.
Key Features
Adjustable 0–30V Output for Electroplating Process Evaluation
The adjustable 0–30V DC output allows users to configure the supply voltage for electroplating process experiments and related bench evaluations. With a maximum output current of 100A and rated power of 3000W, the R-SPS30100-R can support test conditions that require high-current DC power, provided the required voltage, current, and power remain within its rated output range.
High-Current DC Output for Process Testing
With an output current capability of up to 100A, this high-current DC power source can supply power for compatible electroplating test setups and related electrical experiments. Users should select output settings according to the requirements of the test load and the rated limits of the power supply.
Voltage, Current, and Power Display for Output Monitoring
The four-digit voltage/current display and separate power display provide output readings during testing. These displays help users monitor the applied voltage, delivered current, and output power while evaluating different DC operating conditions.
Encoder Knob Adjustment for Flexible Test Conditions
The front-panel encoder knobs allow users to adjust voltage and current settings to suit different test requirements. This is useful when conducting bench experiments that compare process conditions at different DC output settings within the power supply’s operating range.
Output ON/OFF Control for Convenient Test Operation
The front-panel Output ON/OFF control allows users to turn the DC output on or off during test operation. It is convenient when preparing the test setup, connecting the load with the output disabled, or managing individual steps in an evaluation procedure. Always follow the test equipment’s operating instructions when connecting or disconnecting the load.
CV/CC Indicators for Operating-Mode Monitoring
The CV and CC indicators show whether the power supply is operating in constant-voltage or constant-current mode. Together with the voltage and current readings, these indicators help users observe the supply’s operating condition while evaluating a process or test load.
USB, RS-232, and RS485 Interfaces for Programmable Control
The R-SPS30100-R programmable-control version is equipped with USB, RS-232, and RS485 communication interfaces. These interfaces support connection to compatible external control equipment for computer-assisted or automated test setups. Programmable operation depends on compatibility with the external control system and its supported commands.
Applications
Electroplating Process Evaluation
Provides adjustable DC power for laboratory evaluation of electroplating setups and process conditions that fall within the power supply’s rated voltage, current, and power limits.
High-Current DC Testing for Electroplating Setups
The maximum output current of 100A supports compatible test configurations that require high-current DC power. The required output settings should be determined according to the process equipment, test load, and experiment requirements.
Comparison of DC Operating Conditions
Adjustable voltage and current settings, together with voltage, current, and power readouts, help users observe supply output while comparing different DC operating conditions during laboratory evaluation.
Computer-Controlled Process Test Setups
The USB, RS-232, and RS485 interfaces support connection to compatible external control equipment for programmable power-supply operation in computer-assisted test environments.
Quality Check and Terms of Service:
Package Includes: DC Power Supply × 1, Output Power Cord × 1, Input Power Cord × 1, User Manual × 1, Warranty Card × 1.
Certifications: Has passed CE & FCC Certification.
Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.
Customer Support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Product Series |
NICE-POWER R-SPS High Power Basic Series |
| Model |
R-SPS30100-R |
| Rated Output Voltage |
0–30V DC |
| Rated Output Current |
0–100A |
| Rated Output Power |
3000W |
| Voltage/Current Display |
Four-digit display |
| Power Display |
Yes |
| Output Control |
Front-panel Output ON/OFF |
| Adjustment Method |
Encoder knobs |
| Operating Indicators |
CV/CC |
| Communication Interfaces |
USB, RS-232, RS485 |
| Load Regulation — Voltage |
≤0.1% + 10mV |
| Load Regulation — Current |
≤0.1% + 2.5mA |
| Line Regulation — Voltage |
≤0.01% + 2.5mV |
| Line Regulation — Current |
≤0.1% + 2.5mA |
| Setting Resolution — Voltage |
10mV |
| Setting Resolution — Current |
10mA |
| Readback Resolution — Voltage |
10mV |
| Readback Resolution — Current |
10mA |
| Setting Accuracy — Voltage |
≤0.05% + 10mV |
| Setting Accuracy — Current |
≤0.01% + 10mA |
| Readback Accuracy — Voltage |
≤0.05% + 10mV |
| Readback Accuracy — Current |
≤0.01% + 10mA |
| Voltage Ripple (20Hz–20MHz) |
≤400mVp-p; ≤60mVrms |
| Current Ripple (20Hz–20MHz) |
≤200mArms |
| Rise Time (No Load) |
≤100ms |
| Rise Time (Full Load) |
≤150ms |
| Fall Time (No Load) |
≤15s |
| Fall Time (Full Load) |
≤50ms |
| Dynamic Response |
≤20ms |
| Efficiency |
≥85% |
Why Choose NICE-POWER R-SPS30100-R?
The NICE-POWER R-SPS30100-R combines adjustable 0–30V DC output, up to 100A current, and 3000W rated power in one high-current DC power source. Its voltage, current, and power displays help users monitor output conditions, while encoder adjustment and Output ON/OFF control make everyday test operation more convenient. With CV/CC indicators and USB, RS-232, and RS485 communication interfaces, it also supports compatible externally controlled test setups. For laboratories and engineering teams evaluating electroplating processes or other high-current DC applications, it offers a flexible power source for experiments within its rated specifications.
