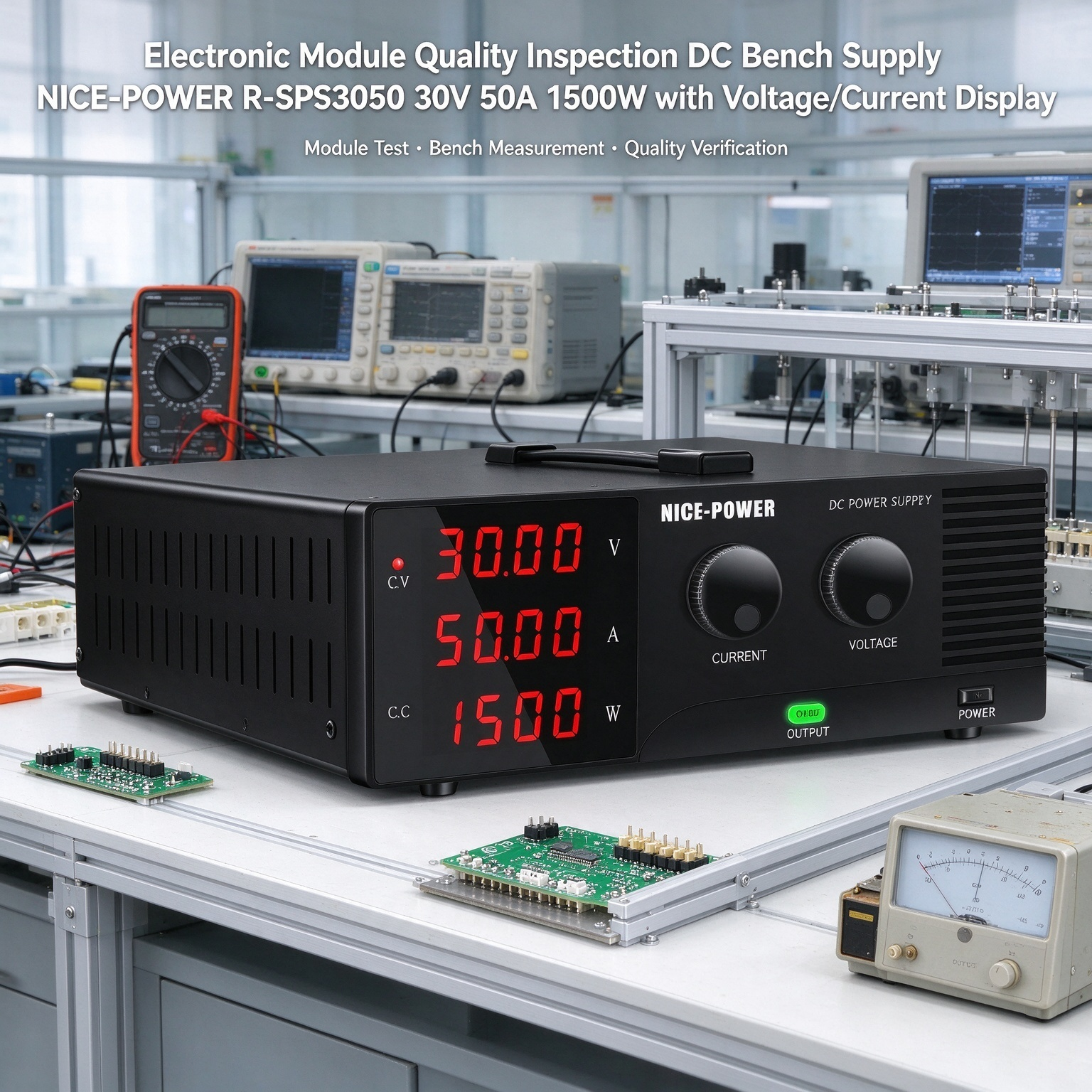

Electronic Module Quality Inspection DC Bench

Supply NICE-POWER R-SPS3050 30V 50A 1500W

with Voltage/Current Display

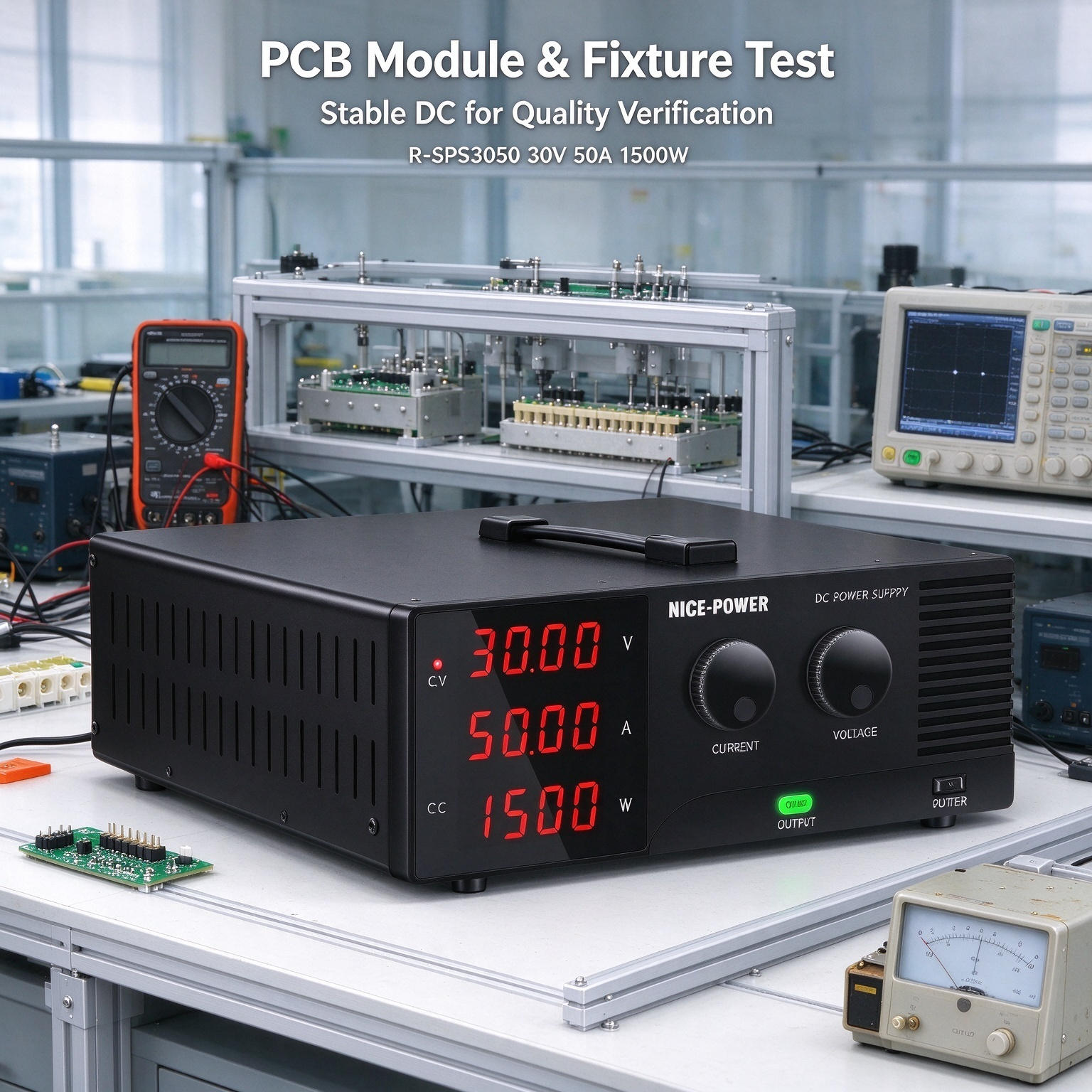

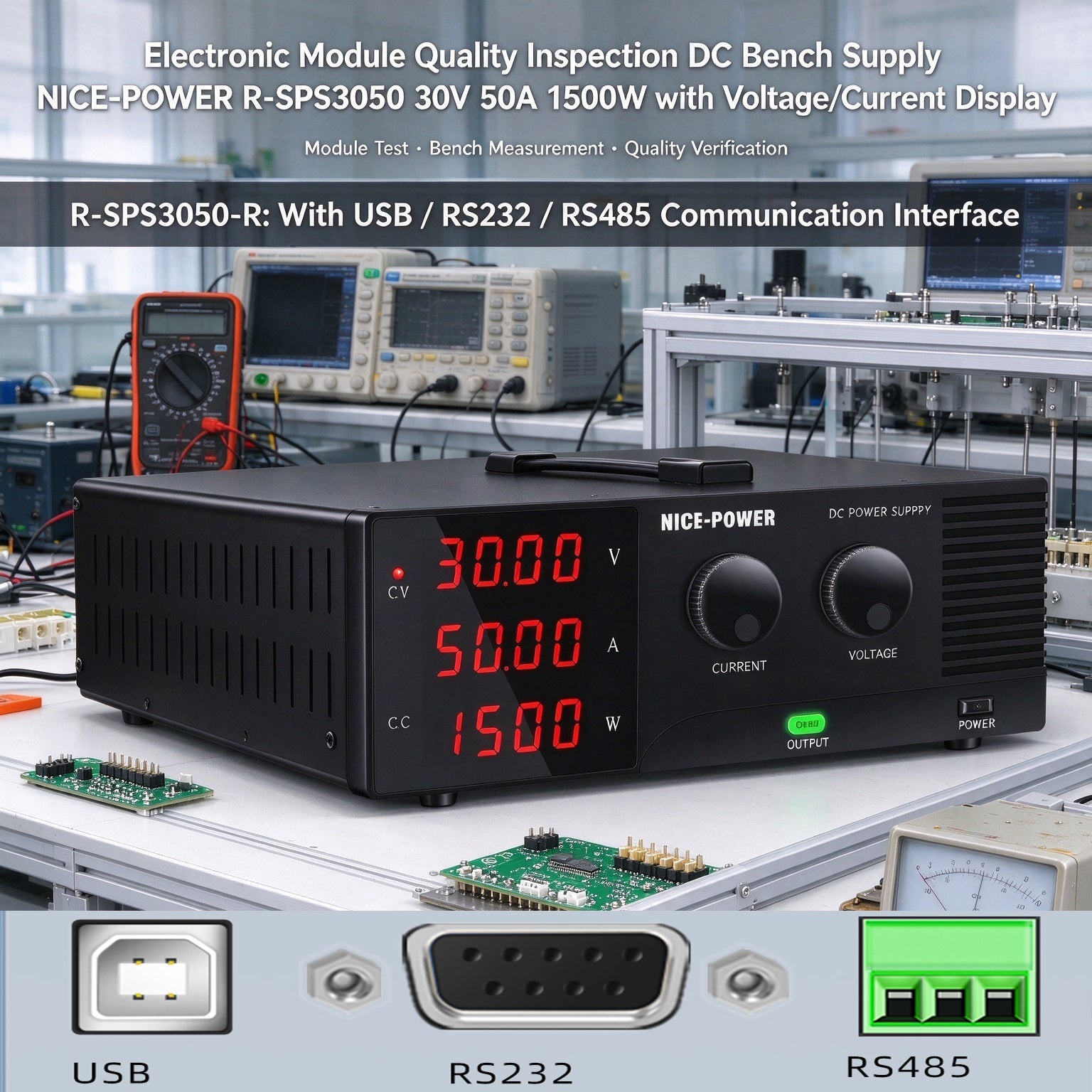

Quality inspection of electronic modules often begins with applying the correct DC input and checking the module's electrical behavior under defined test conditions. The NICE-POWER R-SPS3050-R DC Bench Supply provides an adjustable 0–30V output, a maximum output current of 50A, and a rated output power of 1500W for compatible electronic modules and assemblies that operate within these ratings.

For incoming inspection, production-line troubleshooting, and engineering verification, the R-SPS3050-R offers front-panel encoder adjustment, four-digit voltage and current displays, power readout, and Output ON/OFF control. The CV/CC indicators show the supply's operating mode, giving inspectors useful information when checking a module's response to a configured DC input. Voltage, current, and power readings can be recorded by the operator for comparison with the module's specified requirements.

Key Features

Adjustable 0–30V DC Output for Electronic Module Inspection

Set the DC output voltage to match the input requirements of a compatible electronic module. The adjustable 0–30V range supports electrical checks on modules and assemblies designed to operate within this range, making it useful for incoming inspection, sample evaluation, and bench-level verification.

50A Maximum Output Current with 1500W Rated Power

The R-SPS3050-R provides up to 50A output current with a rated output power of 1500W. This capacity supports inspection of compatible modules with higher-current DC input requirements. The actual output operating point must remain within the power supply's voltage, current, and power limits as well as the module's rated input specifications.

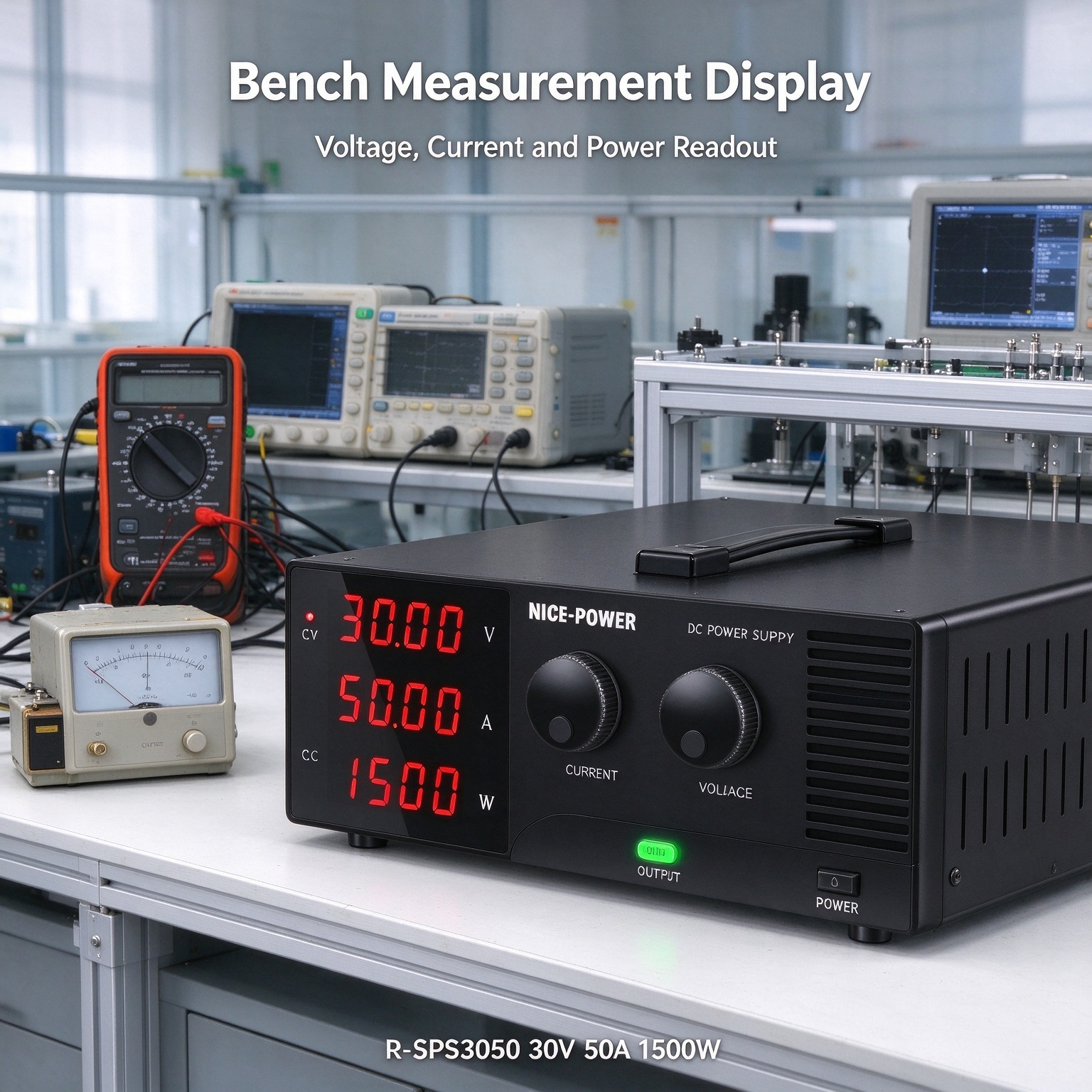

Four-Digit Voltage and Current Display for Inspection Readings

The front-panel four-digit displays show voltage and current readings during operation. Inspectors can observe the supply output while a module is powered, record readings, and compare the observed conditions against the module's documented electrical requirements. The readings are displayed by the power supply; inspection records and pass/fail decisions must be handled separately.

Power Readout for Reviewing Electrical Input Conditions

The power display provides an additional reading of output power during a test. Together with the voltage and current displays, it helps technicians review the electrical conditions under which a module is being evaluated. These readings support manual assessment but do not independently identify defects or certify product quality.

CV/CC Indicators for Observing Supply Operation

The constant-voltage (CV) and constant-current (CC) indicators show the power supply's operating mode. During module inspection, these indicators help technicians understand whether the supply is operating in constant-voltage or constant-current mode under the connected load conditions.

Encoder Knob Adjustment for Repeatable Manual Test Setup

The front-panel encoder knobs allow users to adjust voltage and current settings when preparing inspection procedures for different modules. Operators can configure the required output values before each check and document the settings used for comparison across samples or inspection batches.

Output ON/OFF Control for Inspection Workflow

The front-panel Output ON/OFF control allows the DC output to be switched on or off during test preparation and connection changes. This supports a more orderly bench inspection workflow when modules are connected, removed, or exchanged for the next check. Switch the output off before changing wiring.

Bench DC Supply for Module-Level Electrical Verification

With adjustable DC output and visible voltage, current, and power readings, the R-SPS3050-R can serve as a supply source for compatible electronic modules during inspection and verification. It does not replace dedicated functional testers, automated inspection systems, or measurement instruments required by a specific quality-control procedure.

Applications

Incoming Electronic Module Inspection

Supply a suitable DC input to compatible electronic modules during incoming inspection. Inspectors can observe voltage and current readings while performing the checks required by the module's specification.

Production Sample Verification

Use the adjustable DC output when checking selected samples from a production batch. Operators can record the supply settings and observed readings for comparison with established inspection criteria.

Electronic Module Power-Up Checks

Apply a suitable DC supply to compatible modules during initial power-up verification. Confirm the module's required voltage, polarity, and expected current consumption before enabling the output.

Electrical Performance Verification

Provide DC power while technicians conduct defined electrical checks on compatible electronic assemblies. The power supply's readings provide information about the output conditions during the test; module performance must be assessed using the applicable inspection procedure and acceptance criteria.

Quality Inspection of Control and Power Modules

Support bench inspection of compatible control modules, power-related electronic assemblies, and other DC-powered modules with input requirements inside the 0–30V range and within the supply's rated current and power limits.

Comparative Testing Across Samples

Use consistent manually configured supply settings when checking multiple compatible modules. Operators can compare recorded readings between samples, provided the test connections, load conditions, and measurement procedures are kept appropriate and consistent.

Engineering Bench Verification and Troubleshooting

Provide adjustable DC power for investigating the electrical behavior of a compatible module during engineering verification or fault investigation. Further diagnostic equipment may be needed to determine the cause of an abnormal reading or to establish whether a module passes a formal quality test.

Quality Check and Terms of Service:

Product Inspection on Receipt

Inspect the power supply and included accessories upon delivery. Check the unit's physical condition, input power requirements, output terminals, and accompanying documentation before use.

Defined Test Conditions

Before testing a module, confirm its rated input voltage, polarity, expected current consumption, and connection requirements. Use test settings appropriate to the module and remain within the power supply's voltage, current, and power ratings.

Consistent Inspection Records

For quality-control work, record the selected supply settings, module identification, test conditions, and observed readings according to your own inspection procedure. The power supply provides electrical output and displayed readings but does not automatically generate quality reports or determine whether a module passes acceptance criteria.

Safe Connections and Operation

Use wires and connectors suitable for the expected current, keep ventilation openings unobstructed, and switch the output off before changing connections. Follow the product documentation and the safety procedures applicable to the inspection environment.

Equipment Compatibility

Not every electronic module is designed for a 0–30V DC input or for high-current supply operation. Confirm that the module's electrical requirements are compatible with the selected settings before applying power.

Warranty and Customer Support

For warranty coverage, returns, and after-sales assistance, refer to the seller's published store policies and the product documentation supplied with the unit.

Technical Specifications

Why Choose NICE-POWER R-SPS3050-R?

Electronic module quality inspection requires suitable test conditions and electrical readings that can be compared against defined product specifications. The NICE-POWER R-SPS3050-R provides adjustable 0–30V DC output, up to 50A output current, and 1500W rated power for compatible modules that require a higher-current DC supply.

Its voltage and current displays, power readout, encoder adjustment, and CV/CC indicators give inspectors practical information for setting up and observing a bench test. The front-panel Output ON/OFF control also supports routine connection and inspection procedures. For incoming inspection, sample evaluation, and engineering verification, the R-SPS3050-R serves as an adjustable DC source for operator-led electrical checks, while acceptance decisions remain based on the module's specifications and the established inspection procedure.
