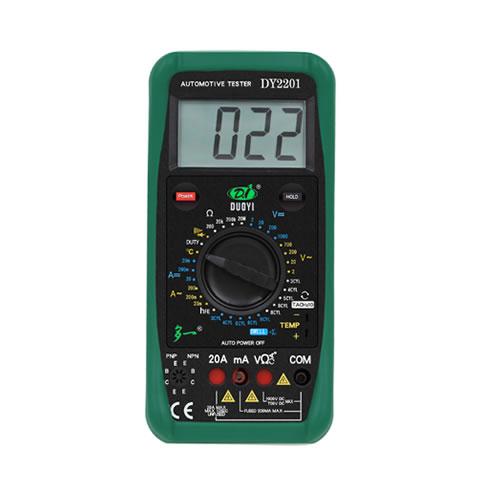

Digital Automotive Multimeter Closing angle 120 ° 360 ° 500~10000RPM 300 ~ 19999 RPM Battery Testing Professional Digital Multimeter

$28.90 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

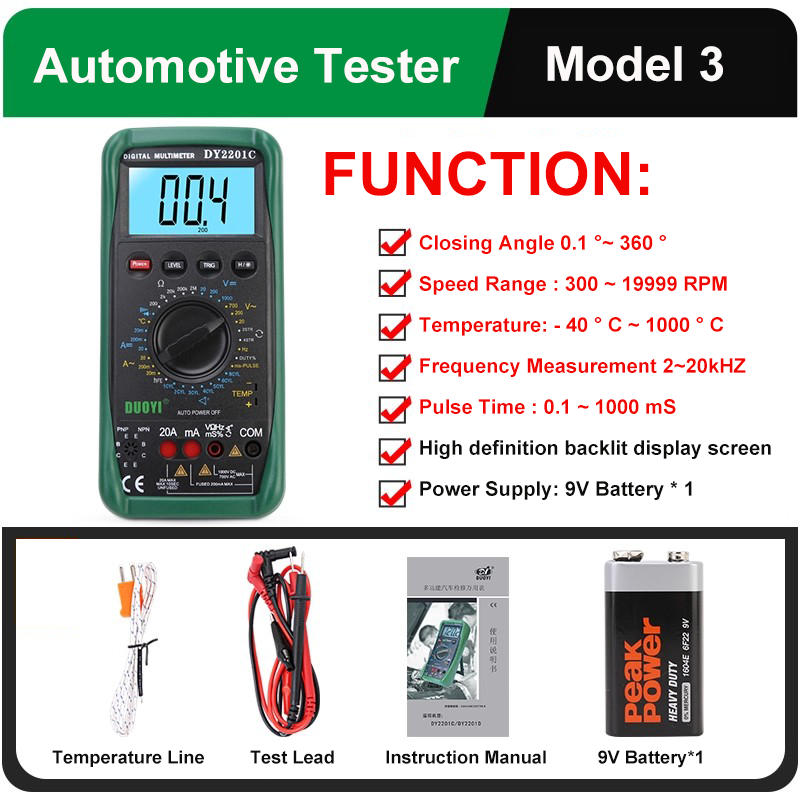

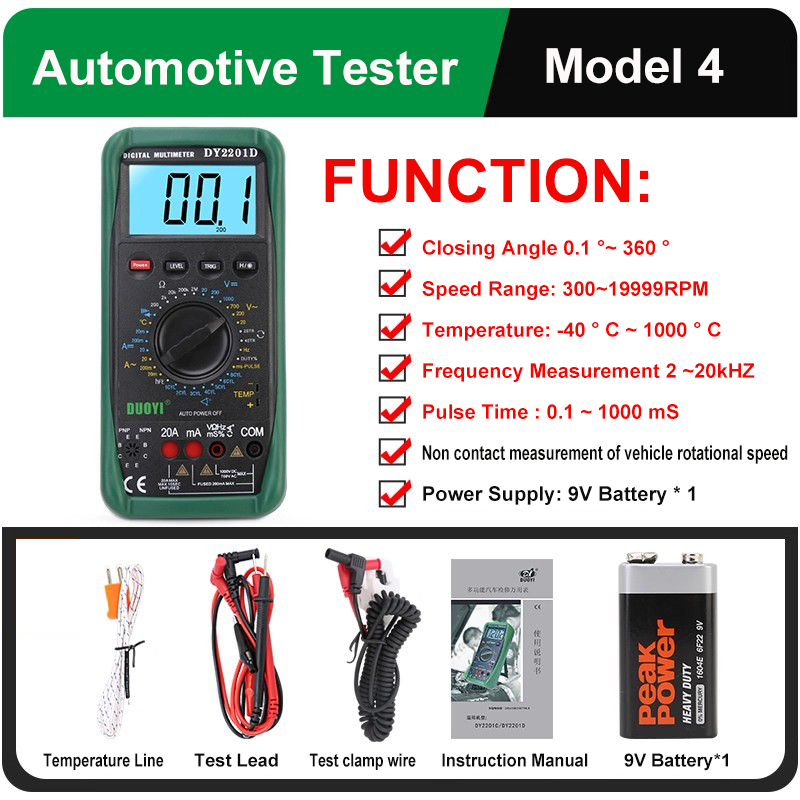

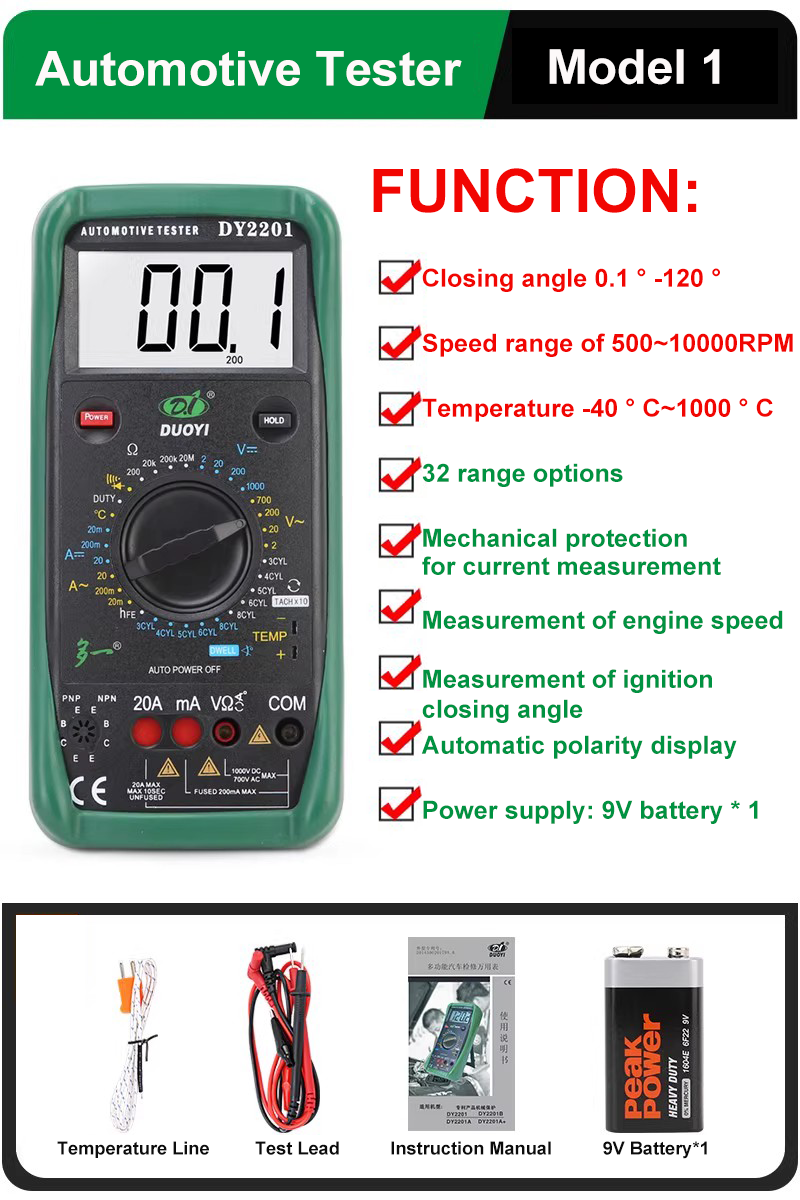

Model Model 1(Basic) Model 2(+ 12V & Hz measurement) Model 3(Typical standard) Model 4(+ inductive pick up)

Cantidad

Overview

The Automotive Multimeter is a lineup of digital automotive multimeters, including Model 1, Model 2, Model 3, and Model 4. Designed for comprehensive automotive electrical system testing, they offer multiple functions and patented safety features.

Key Features

Patented Safety Mechanism: Terminal shutter interlock mechanism (patent code: ZL 01 20 15021.5) prevents mis - operation.

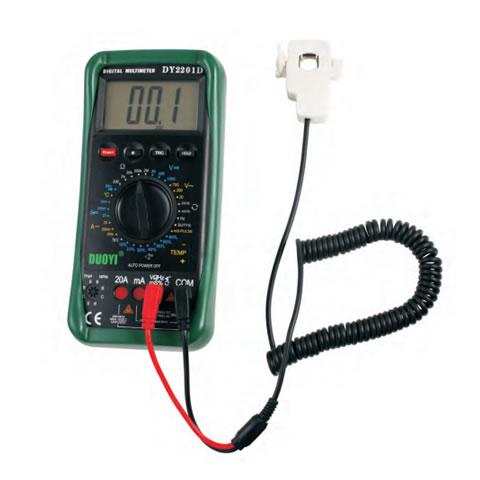

Automotive - Specific Functions: TACH and DWELL functions for engine diagnostics; inductive pick - up for measuring duty, ignition frequency, ms - pulse width, and RPM.

Versatile Measurement: Covers battery, voltage (AC/DC), current (AC/DC), resistance, frequency, temperature, and more.

Convenient & Durable: Data hold, auto power off; heavy - duty rubber holster; feature - rich with up to 11 functions.

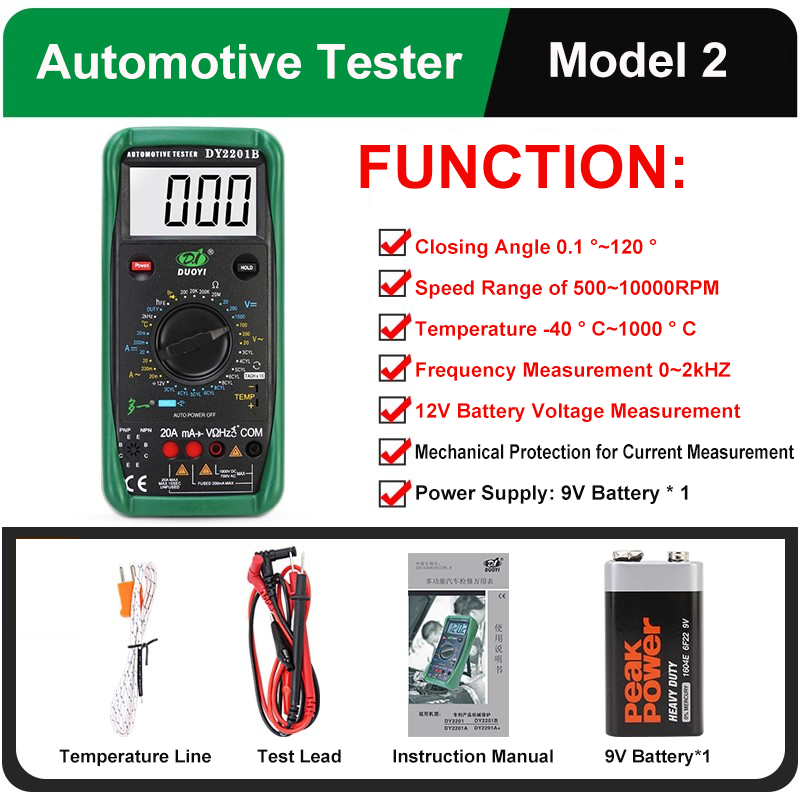

Battery Testing (Model 2 Only): Measures 12V batteries.

Technical Specifications

Parameter	Model 1	Model 2	Model 3	Model 4
Battery Test	-	12V (≤2.5%+10)	-	-
Inductive Pick - up	-	-	0.1Hz - 20kHz (±2.0%+2)	0.1Hz - 20kHz (±2.0%+2)
Ignition Frequency	-	0.1 - 999.9Hz (±3.0%+5)	0.1 - 999.9Hz (±3.0%+5)	0.1 - 999.9Hz (±3.0%+5)
Pulse RPM	-	25STR: 300 - 1999rpm (±3%+5); 45TR: 600 - 1999rpm (±3%+5)	25STR: 300 - 1999rpm (±3%+5); 45TR: 600 - 1999rpm (±3%+5)	25STR: 300 - 1999rpm (±3%+5); 45TR: 600 - 1999rpm (±3%+5)
DC V	2V/20V/200V (±0.5%+3)	20V/200V (±0.5%+3)	20V/200V (±0.5%+3)	20V/200V (±0.5%+3)
AC V	2V/20V/200V (±1%+5)	20V/200V (±1%+5)	20V/200V (±1%+5)	20V/200V (±1%+5)
DC A	20mA/200mA (±1%+5)	20mA/200mA (±1%+5)	20mA/200mA (±1%+5)	20mA/200mA (±1%+5)
AC A	20mA/200mA (±2%+5)	20mA/200mA (±2%+5)	20mA/200mA (±2%+5)	20mA/200mA (±2%+5)
Resistance	200Ω (±1%+5); 2kΩ (±1%+3); 20kΩ (±1%+3); 200kΩ (±1%+3); 2MΩ (±1%+3); 20MΩ (±5%+5)	200Ω (±1%+5); 2kΩ (±1%+3); 20kΩ (±1%+3); 200kΩ (±1%+3); 2MΩ (±1%+3); 20MΩ (±5%+5)	200Ω (±1%+5); 2kΩ (±1%+3); 20kΩ (±1%+3); 200kΩ (±1%+3); 2MΩ (±1%+3); 20MΩ (±5%+5)	200Ω (±1%+5); 2kΩ (±1%+3); 20kΩ (±1%+3); 200kΩ (±1%+3); 2MΩ (±1%+3); 20MΩ (±5%+5)
Frequency	2kHz (±1%+5)	2kHz (±1%+5)	2kHz/20kHz (±1%+10)	2kHz/20kHz (±1%+10)
Temperature	-40°C - 0°C (±5%+3); 0°C - 400°C (±2%+3)	-40°C - 0°C (±5%+3); 0°C - 400°C (±2%+3)	-40°C - 0°C (±5%+3); 0°C - 400°C (±2%+3)	-40°C - 0°C (±5%+3); 0°C - 400°C (±2%+3)
DUTY	1% - 99% (±3%+3)	1% - 99% (±3%+3)	0.1% - 99.9% (±3%+3)	0.1% - 99.9% (±3%+3)
TACH	3/4/5/6CYL (±3%+5)	3/4/5/6CYL (±3%+5)	3/4/5/6CYL (±3%+5)	3/4/5/6CYL (±3%+5)
DWELL	3/4/5/6CYL (±3%+3)	3/4/5/6CYL (±3%+3)	1/2/3/4/5/6/8 (±3%+5)	1/2/3/4/5/6/8 (±3%+5)
Terminal Shatter Interlocking	√		√	√
Diode Test	√	√	√	√
Transistor Test	√	√	√	√
Continuity Buzzer	√	√	√	√
Data Hold	√	√	√	√
Auto Power Off	√	√	√	√
Power Source	6F22(9V)	6F22(9V)	6F22(9V)	6F22(9V)
Dimension	200×85×38 mm	200×85×38 mm	200×85×38 mm	200×85×38 mm
Weight	approx. 800g	approx. 800g	approx. 800g	approx. 800g
Special Features	Heavy - duty rubber holster; up to 11 functions	Heavy - duty rubber holster; measures 12V battery; up to 11 functions	Heavy - duty rubber holster; up to 11 functions	Heavy - duty rubber holster; up to 11 functions

Application Scenarios

Automotive Repair Shops: Diagnose engine (TACH, DWELL, RPM) and electrical system issues.

Car Enthusiasts & DIYers: Perform vehicle maintenance and troubleshooting at home.

Automotive Workshops: Test 12V batteries (DY2201B) and various electrical components.

Professional Mechanics: Use for precise measurement of duty cycle, ignition frequency, and more with inductive pick - up.

Electrical Training Centers: Teach automotive electrical system testing principles.

Fleet Maintenance: Keep vehicle electrical systems in check for fleets.

Get the digital automotive multimeter (Model 1/Model 2/Model 3/Model 4) for reliable automotive testing!
