Overview

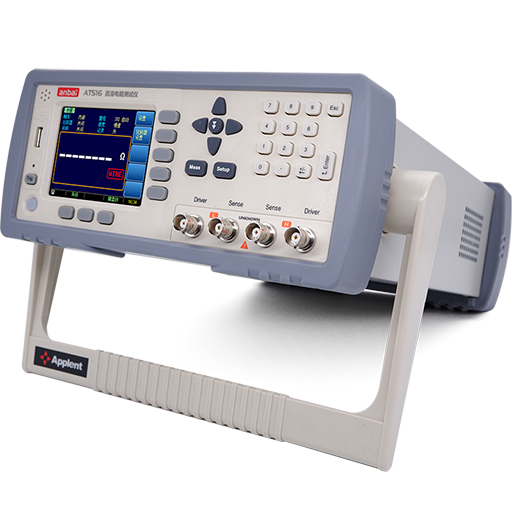

This benchtop DC low resistance tester is a high - performance instrument designed for accurate resistance measurement. It caters to diverse resistance testing needs in various scenarios, ensuring precise and reliable assessment of resistance values.

Key Features

  • Buzzer Alarm: Equipped with a buzzer alarm for timely alerts during testing.
  • Comparator Sorting: Features comparator sorting with 14 - gear options for efficient resistance classification.
  • SCPI Command Set Compatibility: Compatible with SCPI command sets, enabling seamless integration into automated testing systems.
  • Keyboard Lock Function: Comes with a keyboard lock function to prevent accidental operation.
  • Data Hold Function: Has a data hold function for convenient data reading and recording.
  • High Sampling Rate: One model boasts a 7ms sampling rate, ensuring fast and accurate data acquisition.
  • True - Color TFT - LCD Display: Features a true - color TFT - LCD display with Chinese and English menus for clear and user - friendly operation.

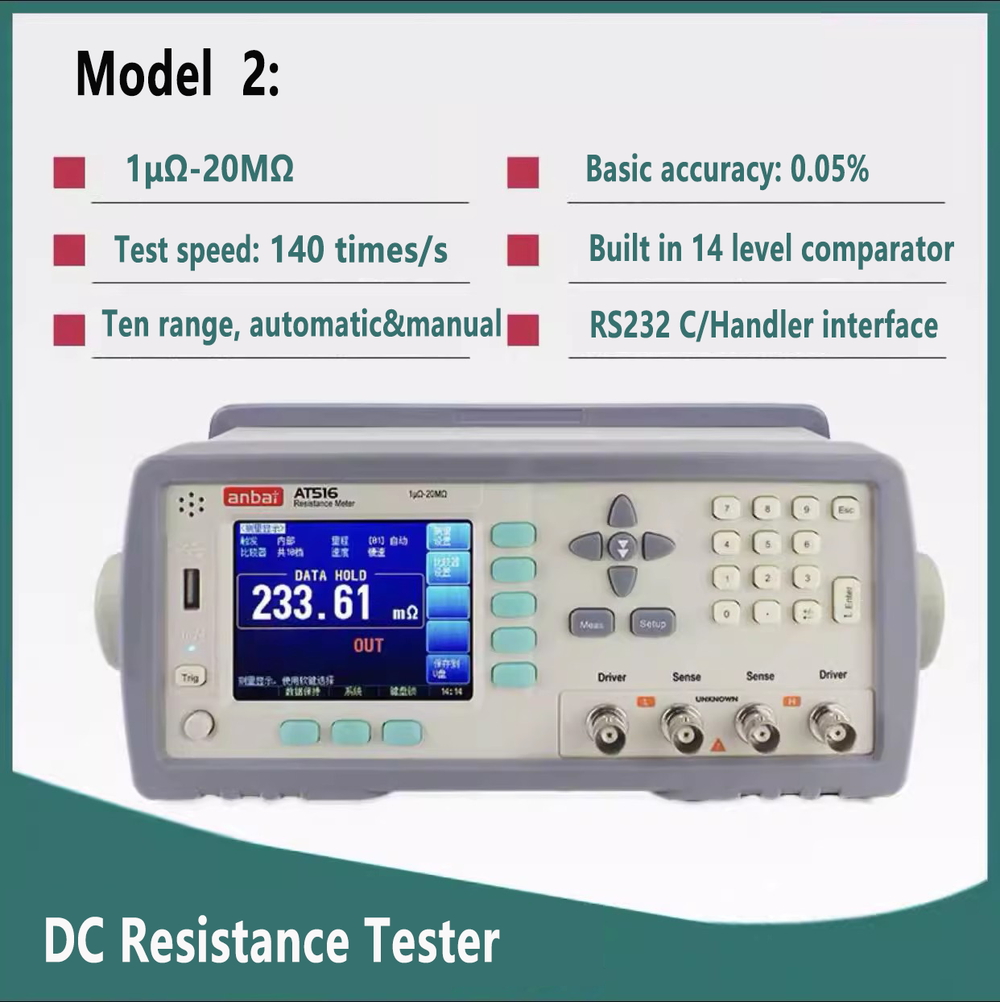

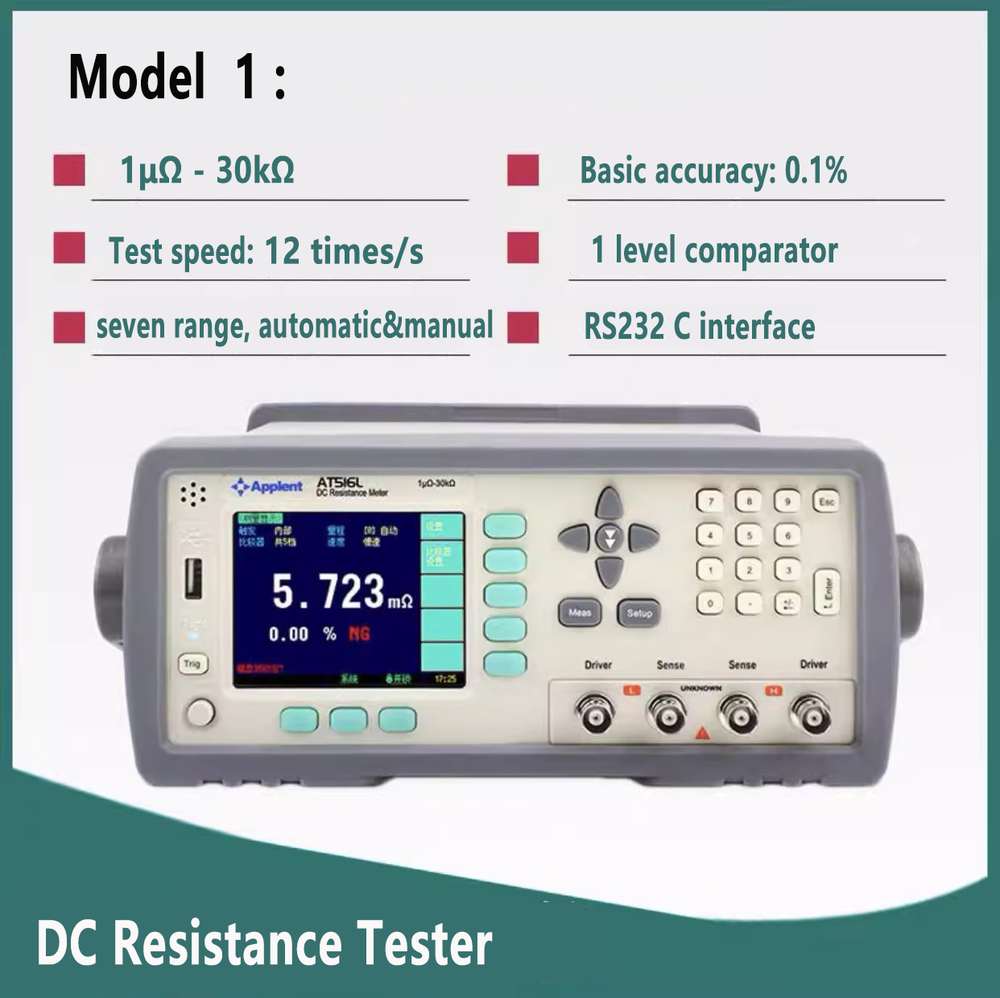

Technical Specifications

Parameter
Model 1
Model 2
Measurement Parameter
DC resistance
DC resistance
Basic Accuracy
0.1%
0.05%
Measurement Range
1μΩ - 30KΩ
1μΩ - 20MΩ
Signal Source Maximum Current
<1A
<1A
Number of Ranges
7 - range automatic and manual
10 - range automatic and manual
Test Speed
12 times/second, 2 times/second
140 times/second, 67 times/second, 35 times/second, 12 times/second, 2 times/second
Comparator
1 - group comparator, buzzer alarm
Built - in 14 - gear comparator, display and output BIN1 - BIN10, HIGH, IN, LOW, buzzer alarm
Trigger Modes
Internal trigger, manual trigger, remote trigger
Level trigger, internal trigger, manual trigger, external trigger, remote trigger

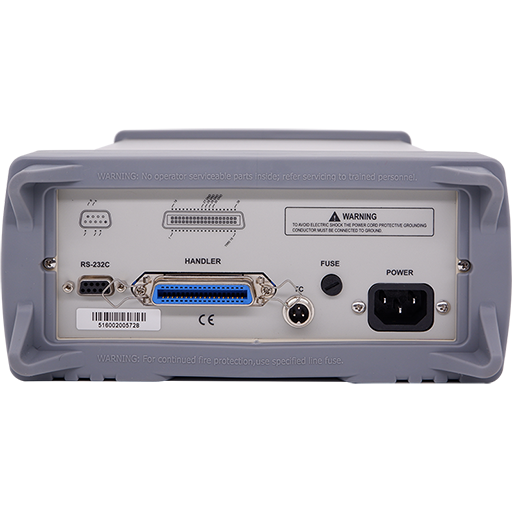

Standard Interfaces
RS232C, USB
RS232C, Handler (PLC) interface, USB, temperature compensation interface
Temperature Compensation
Accuracy: 0.2°C; Temperature measurement range: 0~80°C
Accuracy: 0.2°C; Temperature measurement range: 0~80°C
Dimensions (mm)
External: 264 (W)×107 (H)×350 (D); Internal: 216 (W)×88 (H)×323 (D)
External: 264 (W)×107 (H)×350 (D); Internal: 216 (W)×88 (H)×323 (D)
Weight
4kg
4kg

Application Scenarios

  1. Resistor Measurement: Measures various high, medium, and low - value resistors for quality control in production.
  1. Switch Contact Resistance Testing: Tests contact resistance of various switches to ensure good electrical connections.
  1. Wire and Coil Resistance Testing: Measures resistance of enameled wires, transformer, inductor, motor, and deflection coil windings.
  1. Contact Resistance Testing: Tests contact resistance of connectors, relay coils and contacts, and solder joints.
  1. Metal Riveting Resistance Testing: Measures metal riveting resistance of cars, ships, and airplanes, as well as resistance of printed circuit board traces and vias.
  1. Low - Resistance Characteristic Evaluation: Evaluates the low - resistance characteristics of electronic components.
Get this benchtop DC low resistance tester now for accurate and efficient resistance measurement!
