DC Low Resistance Tester 10μΩ ~ 20KΩ 1μΩ ~ 2MΩ Four Wire Kelvin Measurement Professional Digital Ohm Meter Data Hold

DC Low Resistance Tester 10μΩ ~ 20KΩ 1μΩ ~ 2MΩ Four Wire Kelvin Measurement Professional Digital Ohm Meter Data Hold

$399.00 USD
$399.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Model

Overview

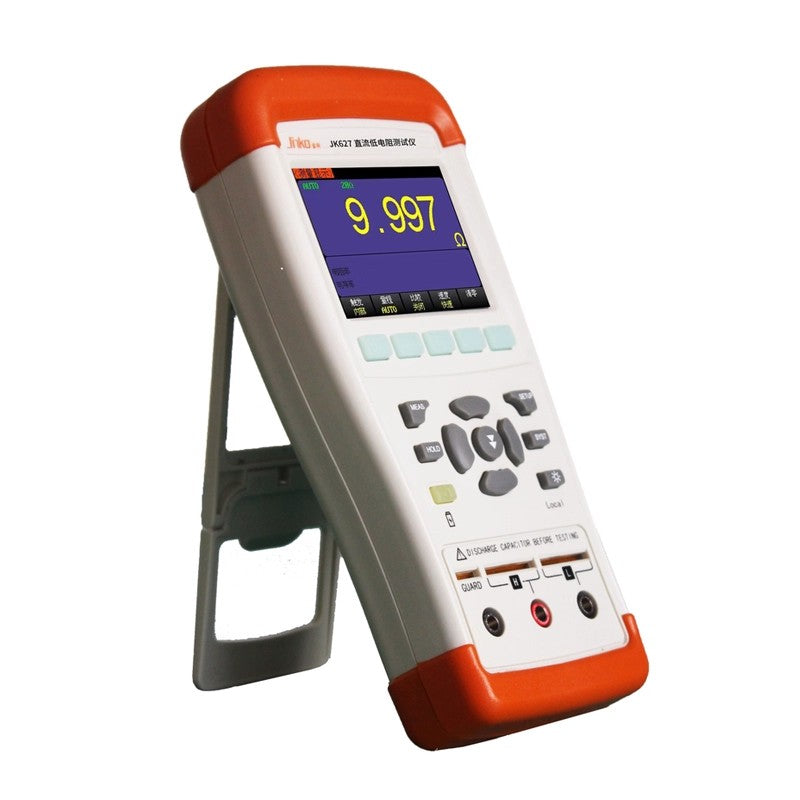

The JK627 Series DC Resistance Tester is a reliable and high - precision device designed for accurate DC resistance measurement. Available in two variants with distinct measurement ranges, it caters to a wide array of testing requirements in different industries.

Key Features

  • High Precision Measurement: Achieves a basic accuracy of 0.05% + 5 digits, ensuring reliable and consistent results.
  • Multiple Range Options: Offers seven - range automatic, manual, and nominal testing modes for flexibility.
  • Fast Measurement: With a measurement speed of 10 times per second, it enables efficient testing processes.
  • User - friendly Display: Features a 2.8 - inch true - color 16 - color TFT - LCD with large - font display for easy reading.
  • Convenient Functions: Includes full - range short - circuit zeroing, built - in sorting record with GD/NG result display, keyboard lock, data hold, and automatic shutdown.
  • Versatile Connectivity: Equipped with a built - in Mini - USB interface (virtual serial port) for seamless data transfer.

Technical Specifications

Parameter

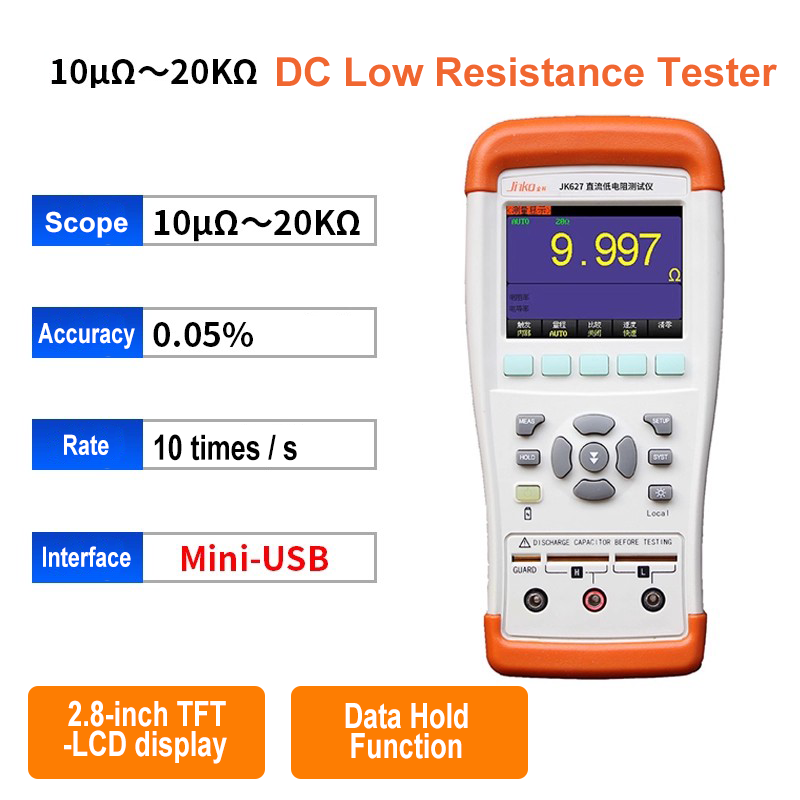

10μΩ ~ 20KΩ

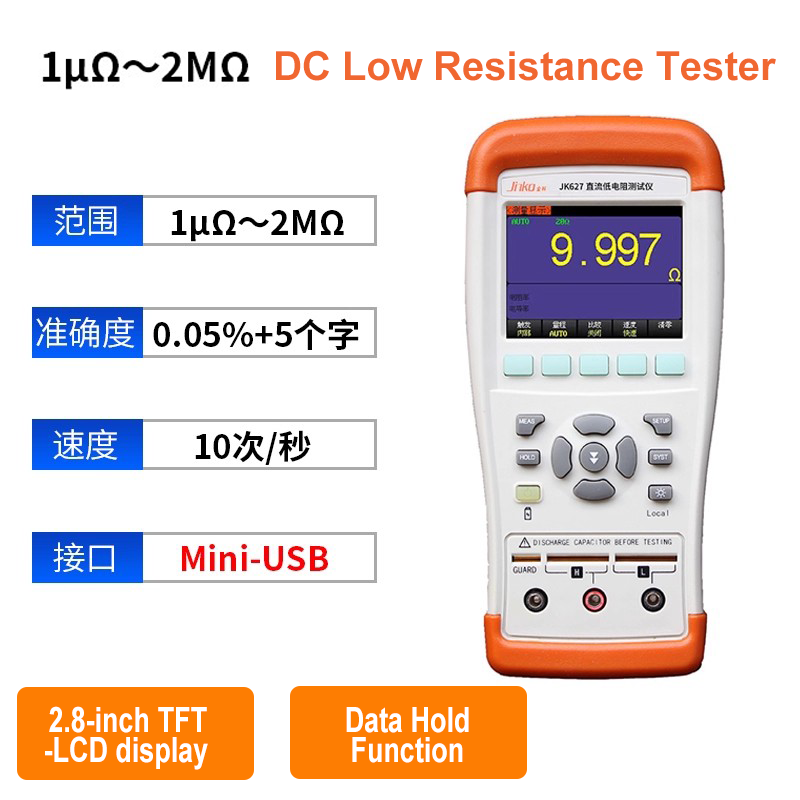

1μΩ ~ 2MΩ
Measured Parameter
DC Resistance
DC Resistance
Basic Accuracy
0.05% + 5 digits
0.05% + 5 digits
Measurement Range
10μΩ ~ 20KΩ
1μΩ ~ 2MΩ
Signal Source
Max current: ≤500mA, large - current mode
Max current: ≤500mA, large - current mode
Range Mode
Seven - range auto, manual, nominal
Seven - range auto, manual, nominal
Measurement Speed
10 times/s
10 times/s
Maximum Reading
20000 counts
20000 counts
Calibration Function
Full - range short - circuit zeroing
Full - range short - circuit zeroing
Comparator
Built - in sorting record, GD/NG sorting result display
Built - in sorting record, GD/NG sorting result display
Interface
Built - in Mini - USB interface (virtual serial port)
Built - in Mini - USB interface (virtual serial port)
Temperature Compensation
None
None
Test Terminals
4 - terminal shielding (2 detection + 2 drive terminals) and external shielding ground terminal
4 - terminal shielding (2 detection + 2 drive terminals) and external shielding ground terminal
Power Supply
Input: 100 - 240V~50/60Hz 0.35A; Output: DC9V 1A, 8.4V, 2200mAh lithium battery
Input: 100 - 240V~50/60Hz 0.35A; Output: DC9V 1A, 8.4V, 2200mAh lithium battery
Dimensions & Weight
130.23 (W)×210.76 (H)×37.88 (D) mm, 650g
130.23 (W)×210.76 (H)×37.88 (D) mm, 650g
Accessories
4 - terminal Kelvin test clip, DC power adapter, portable bag, lithium battery
4 - terminal Kelvin test clip, DC power adapter, portable bag, lithium battery
Optional Accessories
Mini - USB communication cable, data acquisition software
Mini - USB communication cable, data acquisition software
Other Features
Chinese/English switch, backlight adjustment
Chinese/English switch, backlight adjustment

Application Scenarios

  1. Electronics Manufacturing: Ideal for testing the resistance of various electronic components such as resistors, diodes, and transistors to ensure their quality and performance.
  1. Automotive Sector: Used to measure the resistance in automotive electrical systems, including wiring harnesses, ignition coils, and sensors, to diagnose and prevent electrical failures.
  1. Aerospace and Defense: Crucial for testing the resistance of aerospace - grade materials and components, ensuring reliability in extreme conditions.
  1. Power Generation and Distribution: Helps in monitoring the resistance of power cables, transformers, and circuit breakers to maintain the stability and safety of the power grid.
  1. Research and Development: Enables precise resistance measurements in scientific research experiments, facilitating accurate data collection and analysis.
  1. Quality Control in Manufacturing: Ensures that products meet the required resistance specifications across different industries, improving overall product quality.
 Order the DC Resistance Tester (either 10μΩ ~ 20KΩ or 1μΩ ~ 2MΩ) today and experience top - notch performance in your testing tasks!
