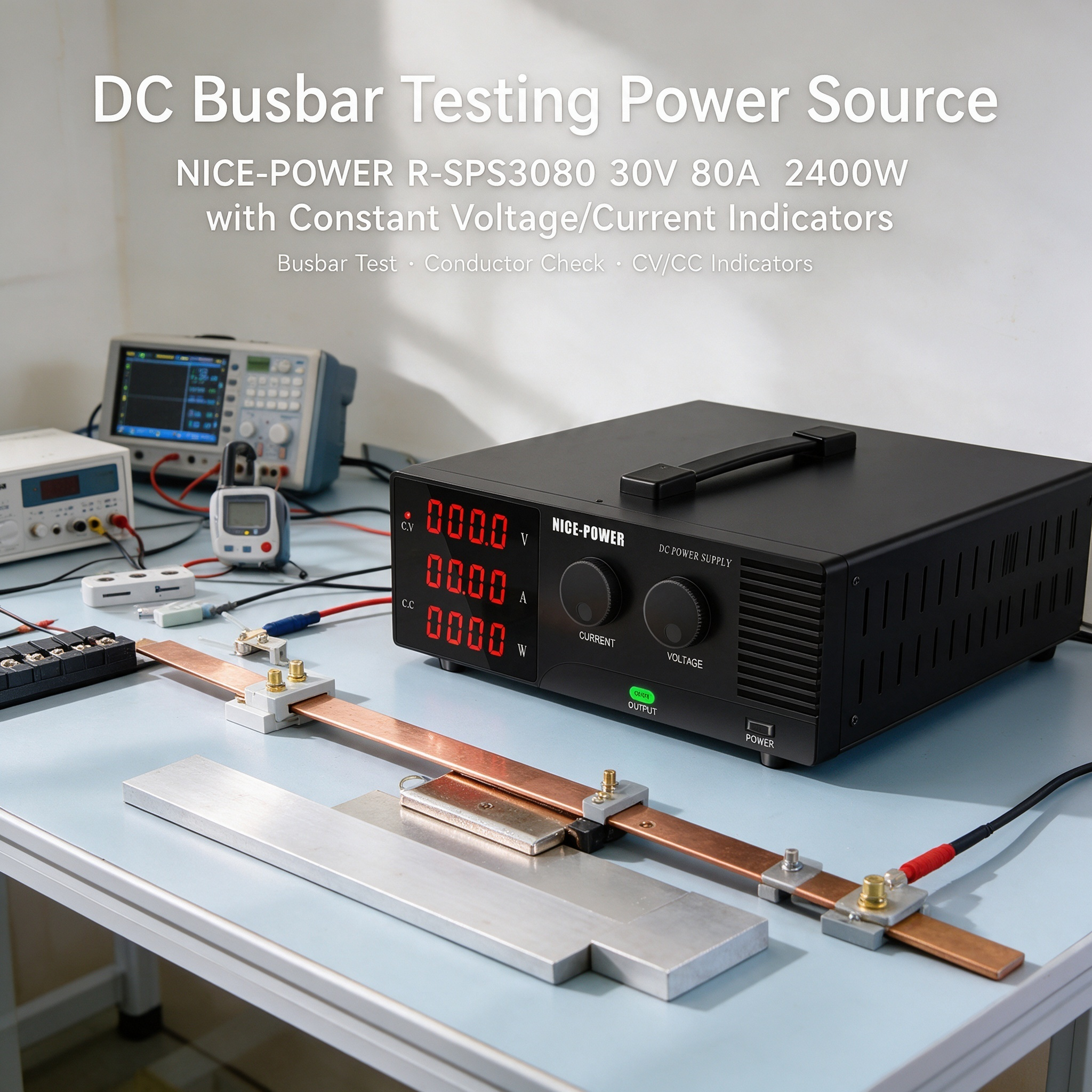

DC Busbar Testing Power Source NICE-POWER
R-SPS3080 30V 80A 2400W with Constant
Voltage/Current Indicators
During DC busbar and conductor testing, engineers and technicians need a suitable DC power source to supply electrical current for evaluating conductive components under specified operating conditions. The NICE-POWER R-SPS3080-R provides an adjustable 0–30V DC output, up to 80A output current, and 2400W rated output power for compatible busbars, conductors, electrical connections, and low-voltage power distribution components.
Designed for engineering workbenches and electrical testing environments, this DC busbar testing power source combines adjustable voltage and current settings with digital output displays and constant-voltage/constant-current indicators. The CV/CC indicators help technicians identify the power supply's operating mode during testing, while the voltage, current, and power readouts provide information about the applied DC output. For programmable testing setups, the USB, RS-232, and RS485 communication interfaces support integration with compatible computer-controlled systems.
When used with suitable external measurement instruments and appropriately rated test fixtures, the R-SPS3080-R can provide DC power for busbar and conductor evaluation, current-carrying tests, and electrical connection testing within its rated operating limits.
Key Features
Adjustable 0–30V DC Output for Busbar and Conductor Testing
DC busbars and conductors are used in power distribution systems and electrical assemblies with different operating voltage requirements. The adjustable 0–30V DC output allows technicians to configure a suitable supply voltage for compatible busbars, conductors, and electrical connections during bench testing. Users can select appropriate output settings according to the test procedure and the electrical ratings of the component under evaluation.
80A Maximum Output Current for High-Current Conductor Testing
The NICE-POWER R-SPS3080-R supports output current up to 80A, with a maximum rated output power of 2400W. This capacity is suitable for compatible low-voltage busbars, conductive components, and power distribution connections that require substantial current during electrical testing. Actual output depends on the selected voltage, load requirements, and the power supply's maximum rated power.

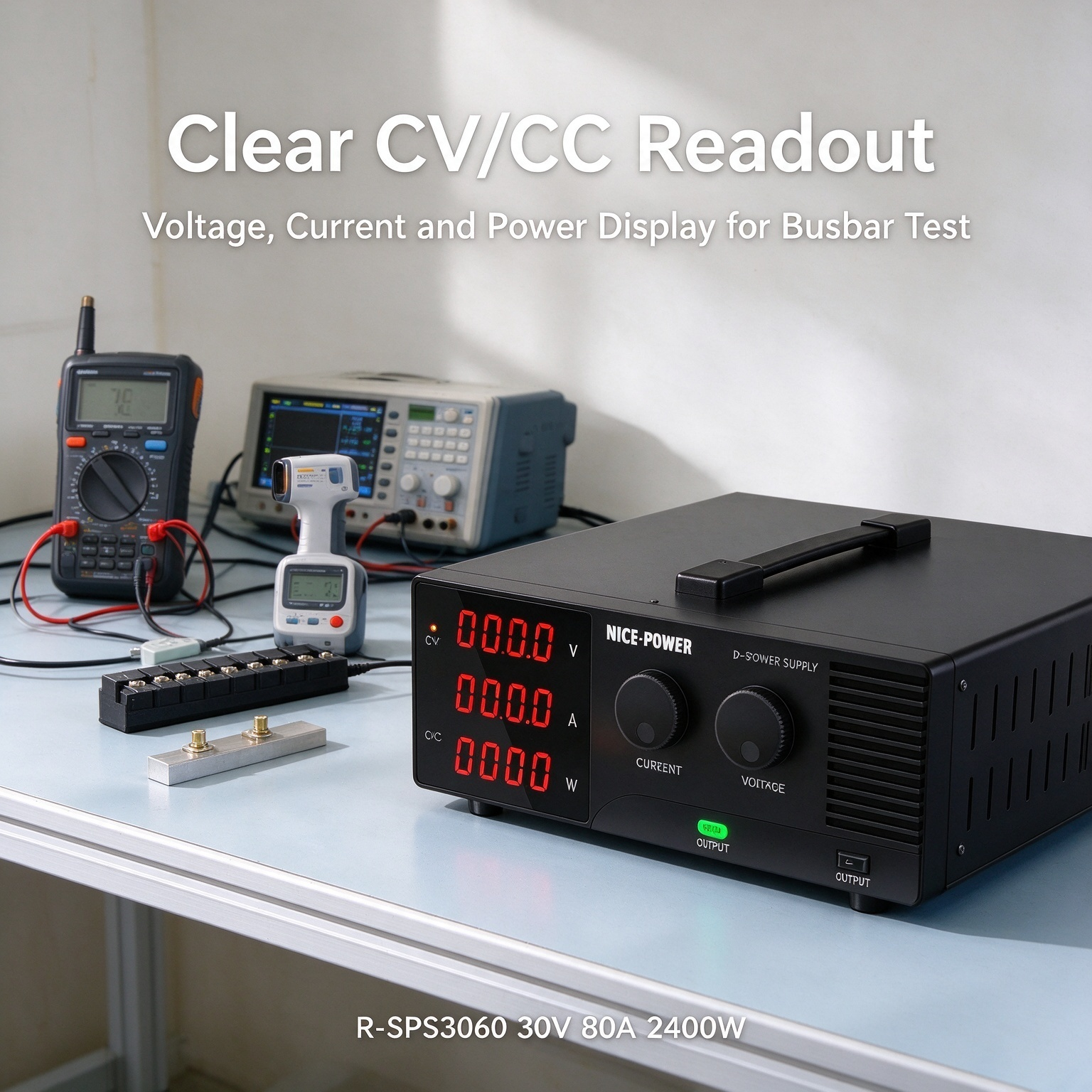

Constant Voltage and Constant Current Indicators for Operating Status Monitoring
The CV/CC indicators show whether the power supply is operating in constant-voltage or constant-current mode. During DC busbar and conductor testing, these indicators help technicians observe the power supply's operating state as the connected load changes. They provide information about the power supply's regulation mode and do not independently determine the resistance, temperature, or current-carrying performance of the busbar or conductor.
Voltage, Current, and Power Displays for DC Output Monitoring
Monitoring the applied DC output helps technicians document test conditions and observe changes in the electrical load. The R-SPS3080-R features four-digit voltage and current displays, together with a power display, allowing users to view the power supply's output readings during bench testing. These readings indicate supply output conditions; dedicated measurements of busbar resistance, conductor resistance, contact resistance, or temperature require appropriate external instruments.
Encoder Adjustment for Configuring Test Conditions
The encoder adjustment knobs provide a manual method for setting voltage and current output. This allows users to configure suitable DC supply conditions for different busbar dimensions, conductor assemblies, and electrical connection test setups, provided the required conditions remain within the power supply's ratings. The selected settings should follow the component specifications and the test procedure.

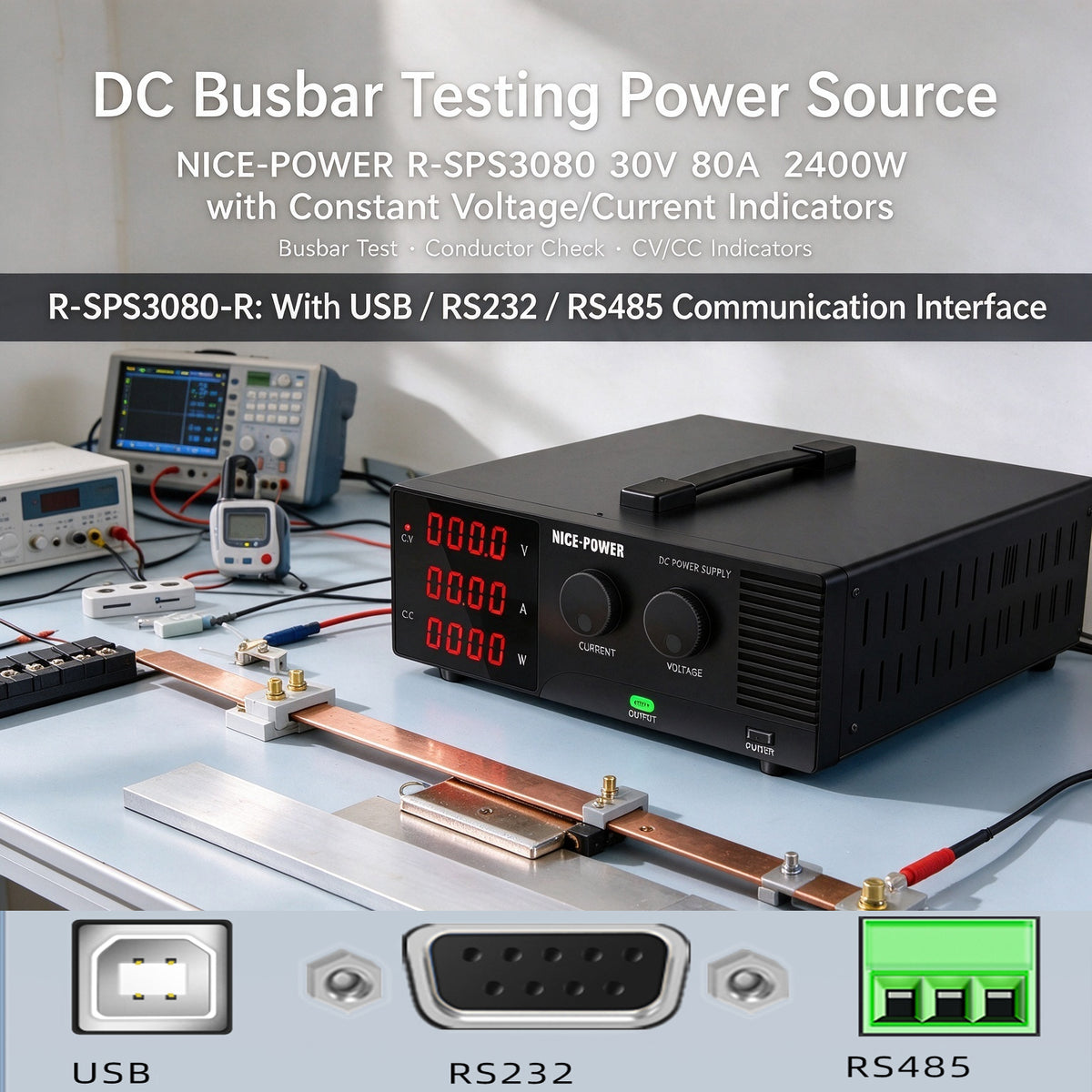

USB, RS-232, and RS485 Interfaces for Programmable DC Power Control
The R-SPS3080-R is the programmable version of the R-SPS High Power Basic Series and is equipped with USB, RS-232, and RS485 communication interfaces. These interfaces support integration with compatible computer-controlled systems for programmable power supply operation during busbar and conductor testing. Compatible software, communication commands, and appropriate system configuration may be required, depending on the test setup.
Output ON/OFF Control for Test Preparation and Inspection
The front-panel Output ON/OFF control allows users to enable or disable the DC output independently of the main power switch. This function can be incorporated into bench-testing procedures when preparing connections or managing the applied output during inspection. The DC output should be switched off before making or changing wiring connections.
2400W DC Busbar Testing Power Source for Engineering Workbenches
With adjustable 0–30V output, up to 80A output current, and 2400W rated power, the R-SPS3080-R provides a high-current DC source for compatible electrical test setups. Its output displays, CV/CC indicators, manual adjustment controls, and programmable communication interfaces support bench-level evaluation and integration with compatible control systems. Dedicated four-wire resistance measurement, automated continuity testing, current distribution analysis, and temperature monitoring require suitable external instruments or additional test equipment.
Applications

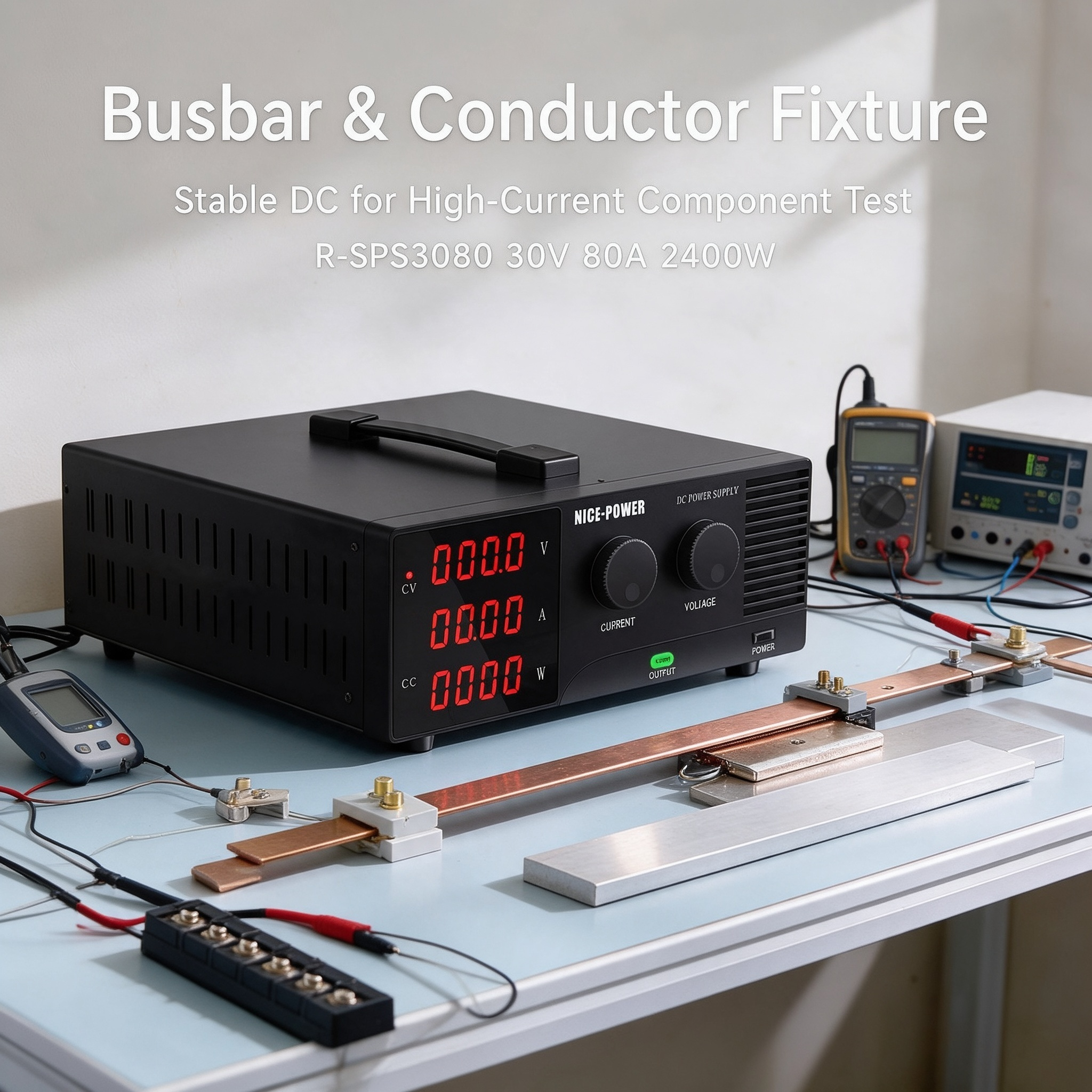

DC Busbar Current-Carrying Tests
Supply adjustable DC power to compatible busbars during current-carrying evaluations performed according to a defined test procedure. The 0–80A output range supports test setups that require substantial current, provided the selected voltage, total power demand, busbar rating, connections, and test fixtures remain within their respective limits. External instruments are required when the procedure calls for direct measurement of temperature rise or other specific performance parameters.
Conductor and Electrical Cable Testing
Provide DC power to compatible conductors and power cables for electrical evaluation under specified operating conditions. Technicians can configure the power supply output according to the requirements of the conductor assembly and observe the resulting supply voltage and current readings. Direct conductor resistance measurement requires an appropriate external instrument.
Busbar Connection and Joint Testing
Use the DC busbar testing power source to energize compatible busbar assemblies and electrical joints during bench-level evaluation. The power supply can provide current for a defined test setup, while external measuring instruments can be used to assess voltage drop or connection resistance where required. The power supply's CV/CC indicators do not themselves measure joint resistance or diagnose connection defects.
Low-Voltage Power Distribution Component Testing
Provide adjustable DC power for compatible low-voltage power distribution components, conductive assemblies, and electrical connections. The combination of 0–30V output and 2400W rated power supports test arrangements that require adjustable voltage and higher current within the unit's specified operating limits.
Electrical Conductor Production Testing
Integrate the R-SPS3080-R into manual production test stations that require an adjustable DC supply for compatible conductive components and busbar assemblies. The power supply can energize a component for specified electrical checks, while pass/fail evaluation depends on the test criteria, external measuring instruments, and inspection procedures used.
Programmable Busbar and Conductor Test Setups
Connect the R-SPS3080-R to compatible computer-controlled testing systems through its USB, RS-232, or RS485 communication interface. This supports programmable power supply operation in test workflows where compatible software and communication commands are available. Any automated measurement, data acquisition, or pass/fail function depends on the external control system and test instruments.
Engineering Laboratory and Electrical Workshop Testing
Use the high-current DC power supply in engineering laboratories and electrical workshops for busbar development, conductor evaluation, electrical assembly inspection, and prototype testing. Suitable external instruments can be added to measure parameters such as resistance, voltage drop, continuity, and temperature when required by the test procedure.
Electrical Power Distribution Component Troubleshooting
Provide DC power to compatible busbar assemblies, conductors, and electrical connections during troubleshooting procedures. Technicians can monitor the supply output readings and use external measurement equipment to investigate suspected electrical connection problems or abnormal behavior under defined test conditions.
Quality Check and Terms of Service:
-
Package Includes: DC Power Supply × 1, Output Power Cord × 1, Input Power Cord × 1, User Manual × 1, Warranty Card × 1.
-
Certifications: Has passed CE & FCC Certification.
-
Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer Support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Specification |
Details |
| Brand |
NICE-POWER |
| Series |
R-SPS High Power Basic Series |
| Model |
R-SPS3080-R |
| Product Type |
High-Current Programmable DC Power Supply |
| Application |
DC Busbar and Conductor Testing |
| Rated Output Voltage |
0–30V |
| Rated Output Current |
0–80A |
| Rated Output Power |
2400W |
| Rated Operating Temperature |
0°C–40°C |
| Voltage Display |
Four-digit digital display |
| Current Display |
Four-digit digital display |
| Power Display |
Supported |
| Adjustment Method |
Encoder knobs |
| Output Control |
Front-panel Output ON/OFF |
| Operating Status Indicators |
CV/CC |
| Communication Interfaces |
USB / RS-232 / RS485 |
| Load Regulation — Voltage |
≤ 0.1% + 10mV |
| Load Regulation — Current |
≤ 0.1% + 2.5mA |
| Line Regulation — Voltage |
≤ 0.01% + 2.5mV |
| Line Regulation — Current |
≤ 0.1% + 2.5mA |
| Setting Resolution — Voltage |
10mV |
| Setting Resolution — Current |
10mA |
| Readback Resolution — Voltage |
10mV |
| Readback Resolution — Current |
10mA |
| Setting Accuracy — Voltage |
≤ 0.05% + 10mV |
| Setting Accuracy — Current |
≤ 0.01% + 10mA |
| Readback Accuracy — Voltage |
≤ 0.05% + 10mV |
| Readback Accuracy — Current |
≤ 0.01% + 10mA |
| Ripple — Voltage (20Hz–20MHz) |
≤ 3500mVp-p; ≤ 1200mVrms |
| Ripple — Current (20Hz–20MHz) |
≤ 200mArms |
| Rise Time — No Load |
≤ 100ms |
| Rise Time — Full Load |
≤ 150ms |
| Fall Time — No Load |
≤ 35s |
| Fall Time — Full Load |
≤ 50ms |
| Dynamic Response |
≤ 20ms |
| Efficiency |
≥ 85% |
| Product Dimensions |
Approximately 33 × 27 × 9cm (series specification) |
| Net Weight |
Approximately 3.7kg (series specification) |
| Package Dimensions |
Approximately 42 × 33 × 15cm (series specification) |
| Package Weight |
Approximately 5.3kg (series specification) |
| Packaging Information |
Series specification lists 4 units per carton |
Why Choose NICE-POWER R-SPS3080-R?
DC busbar and conductor testing requires a suitable power source capable of supplying the voltage and current needed by the test setup. The NICE-POWER R-SPS3080-R provides adjustable 0–30V DC output, up to 80A output current, and 2400W rated power for compatible conductive components and low-voltage electrical assemblies. It is suitable for engineering workbenches, busbar evaluation, conductor testing, electrical connection inspection, and other applications that require adjustable high-current DC power.
Its combination of encoder adjustment, four-digit voltage and current displays, power readout, CV/CC indicators, Output ON/OFF control, and USB, RS-232, and RS485 communication interfaces supports manual bench work and integration with compatible computer-controlled test setups. For engineers who need a programmable DC busbar testing power source rather than a complete automated measurement system, the R-SPS3080-R provides a practical solution within its rated operating limits.
