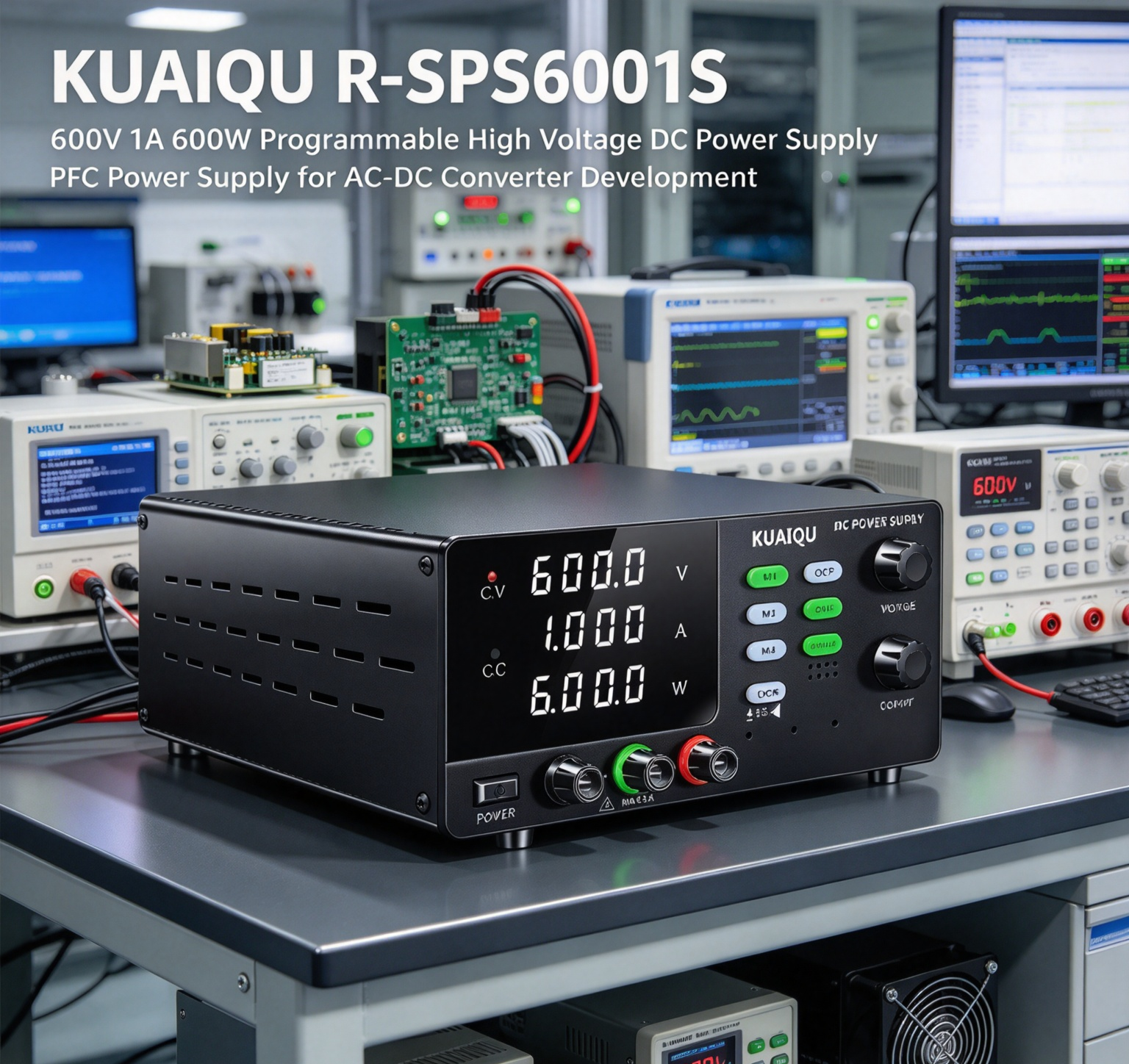

600V 1A 600W Programmable High Voltage DC Power Supply R-SPS6001S PFC Power Supply for AC-DC Converter Development

Description

The KUAIQU R-SPS6001S PFC Power Supply provides adjustable 0–600V DC, 0–1A output and up to 600W power for PFC circuit development, AC-DC power supply development, DC bus simulation and power conversion engineering. This 600V programmable DC power supply works as a controllable high-voltage DC source for AC-DC converter prototyping, PFC controller development and power supply R&D, with stable output, 4-digit digital monitoring, memory presets and comprehensive protection.

Key Features

600V Programmable DC Output – Adjustable 0–600V and 0–1A output provides a flexible 600V DC power supply for power electronics and high-voltage DC development.
PFC Development Power Supply – Provides a controlled DC source for PFC circuit development, PFC controller development and PFC testing.
AC-DC Power Supply Development – Suitable for AC-DC converter development, power supply prototyping and evaluation of high-voltage DC input stages.
600V DC Bus Simulation – Can be used as a programmable high voltage DC bus power supply for DC bus development and power conversion engineering.
High Voltage, Low Current Configuration – The 600V/1A output range is suitable for controlled high-voltage DC source applications without requiring high-current output.
4-Digit Digital Display – Provides clear monitoring of voltage and current during power supply development and laboratory work.
Three Memory Presets – Store commonly used voltage/current parameters for faster and more repeatable PFC and converter development.
Stable Regulated Output – Low-ripple output helps provide a consistent DC source for power conversion development and validation.
Output ON/OFF Control – Conveniently controls DC output during circuit setup, parameter adjustment and converter testing.
Comprehensive Protection – OVP, OCP, short-circuit and external circuit protection help safeguard the power supply and connected power electronics.
600W Power Conversion Development Source – Provides a programmable high-voltage DC source for laboratory and engineering applications.

Application

PFC Circuit Development – Controlled DC input source for PFC circuits and power-factor-correction development.
PFC Controller Development – Supports development and validation of PFC controller hardware and associated power stages.
AC-DC Power Supply Development – Provides a programmable DC source for AC-DC power supply development and converter prototyping.
AC-DC Converter Testing – Suitable for evaluating converter input stages and high-voltage DC operating conditions.
High-Voltage DC Bus Development – Used for 600V DC bus simulation and power conversion system development.
Power Supply Prototyping – A 600V programmable power supply for prototype power supplies, converter circuits and power electronics assemblies.
Power Conversion Engineering – Supports controlled DC input requirements during power conversion research and development.
Power Electronics Laboratory – Suitable as a 600V bench power supply for laboratory development and high-voltage DC experiments.

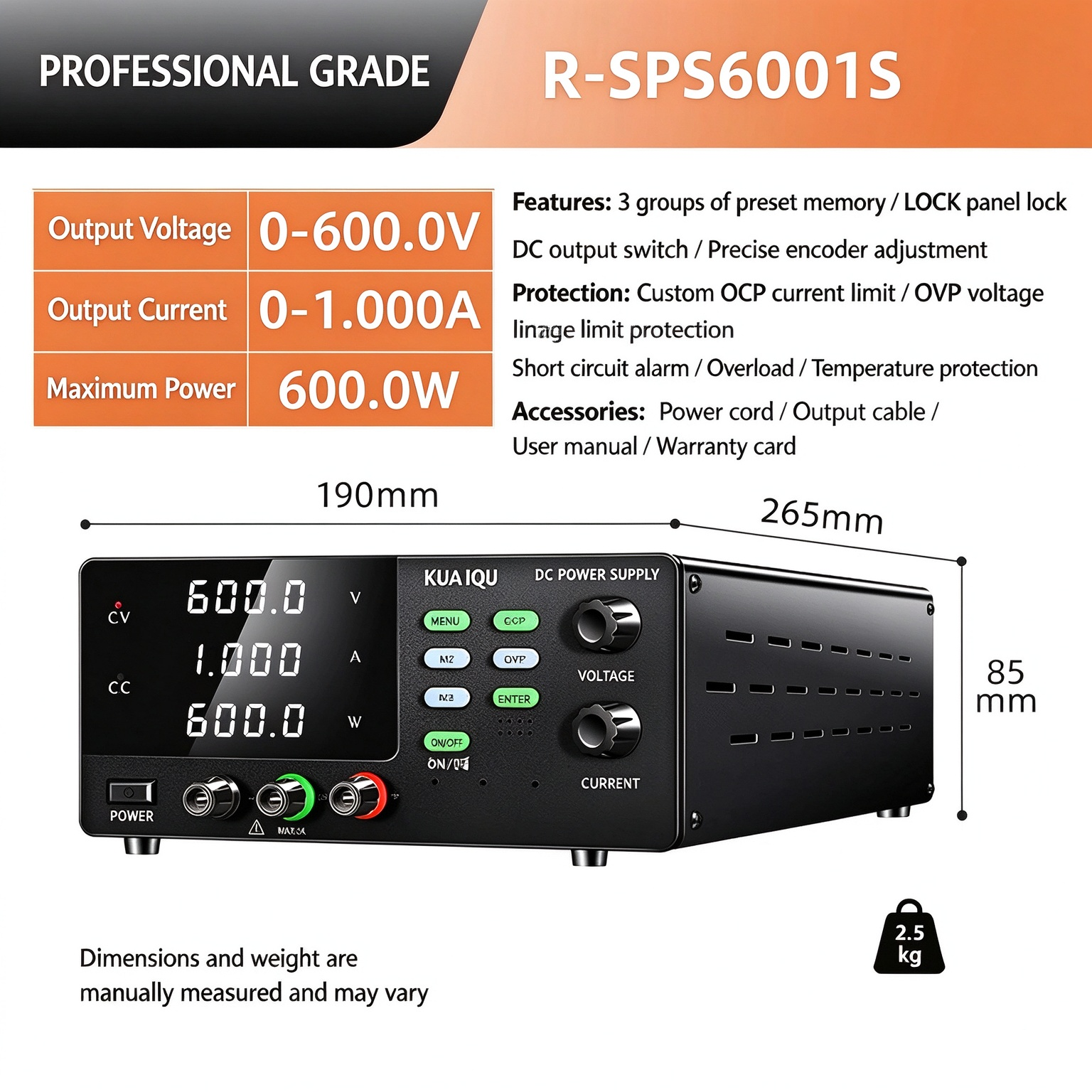

Specifications

Specification	R-SPS6001S
Output Voltage	0-600V
Output Current	0-1A
Max Power	600W
Working Temperature	-10°C ~ 40°C
Storage Temperature	-20°C ~ 80°C
Relative Humidity	≤80% RH
Voltage Stability	≤0.5% +20mV
Load Stability (CV)	≤0.5% +2mV
Ripple Noise (CV)	≤1%
Current Stability	≤0.5% +30mA
Load Stability (CC)	≤0.5% +30mA
Ripple Noise (CC)	≤1%
Display Accuracy	1% +4 digits
Display Resolution	1V / 0.001A

Garantía

Warranty

30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
