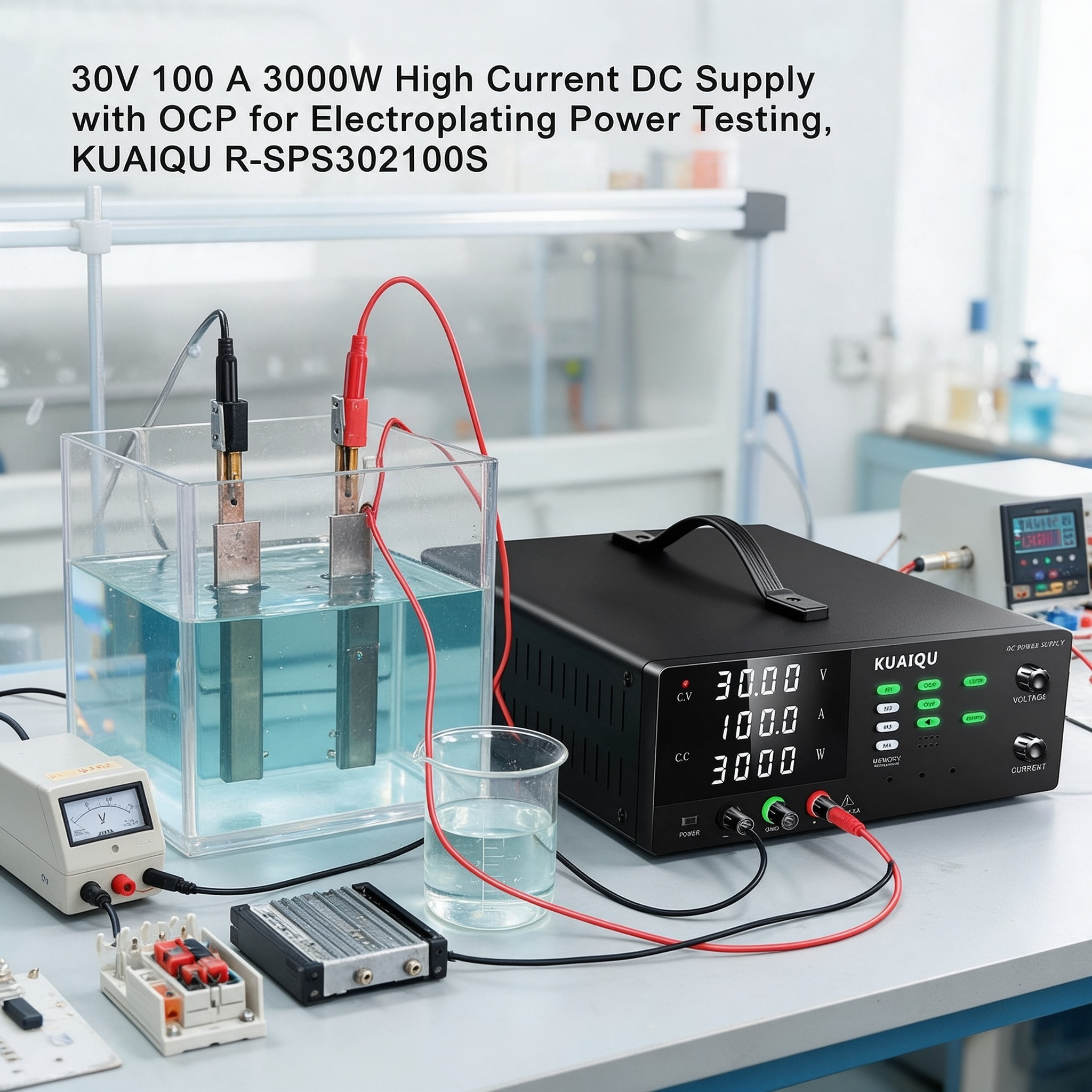

30V 100A 3000W High Current DC Supply
with OCP for Electroplating Power
Testing, KUAIQU R-SPS30100S
The KUAIQU R-SPS30100S is a 30V 100A 3000W High Current DC Supply designed for demanding Electroplating Power Testing applications. Its adjustable DC output provides up to 100A of current and 3000W of power, allowing users to establish controlled DC power conditions for electroplating equipment, plating power circuits, test fixtures, and related industrial systems within the rated output range.
For Electroplating Power Testing, the high current capacity, adjustable output, OCP protection, clear electrical readback, and rear high-current output provide practical control of the DC power source during setup, adjustment, and repeated testing.
Key Features
30V Adjustable DC Output for Electroplating Power Testing
The 0–30V adjustable output allows users to establish different DC voltage conditions for electroplating power testing and related plating equipment within the rated operating range.
100A High Current Output for Plating Power Tests
With output current up to 100A, the R-SPS30100S provides the high current capacity required for electroplating power testing setups that operate under demanding DC current conditions.
3000W High Power Capacity for Electroplating Equipment
The 3000W output rating provides substantial DC power capacity for high-current electroplating test setups, plating equipment evaluation, and related industrial power testing applications.
CC and CV Operation for Controlled DC Conditions
Constant Current and Constant Voltage operation allows the power supply to provide controlled DC output conditions during electroplating power testing, depending on the requirements of the connected test setup.

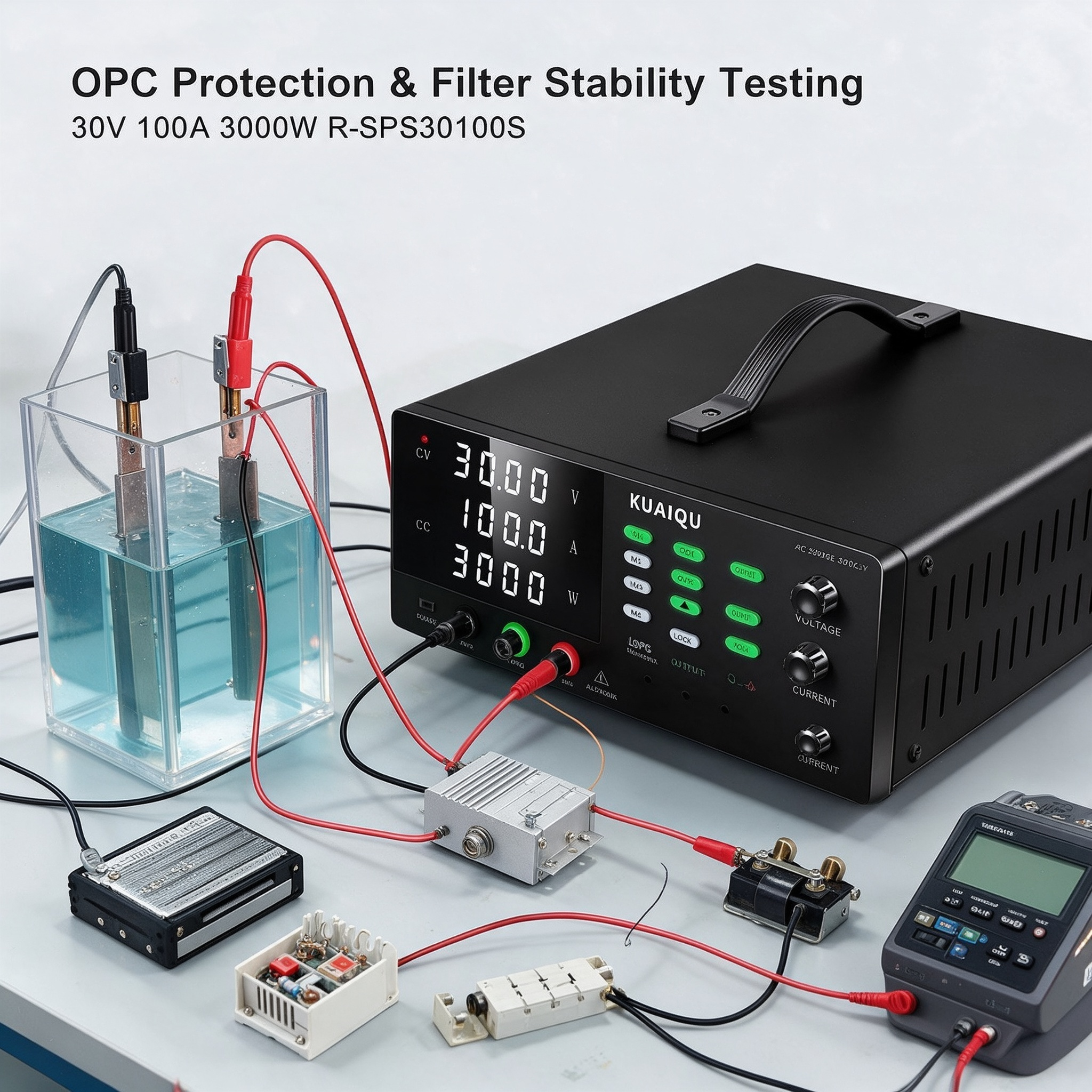

OCP Protection for High Current Testing
The built-in Over-Current Protection helps limit excessive current conditions during high-current electroplating power testing, adding protection when working with demanding test loads.
OVP Protection for Controlled Voltage Conditions
Over-Voltage Protection helps protect connected equipment and test circuits from excessive voltage conditions during electroplating power testing.
Four-Digit Voltage, Current, and Power Display
The four-digit display provides direct visibility of voltage, current, and power values, helping users monitor the DC output condition while adjusting electroplating test parameters.

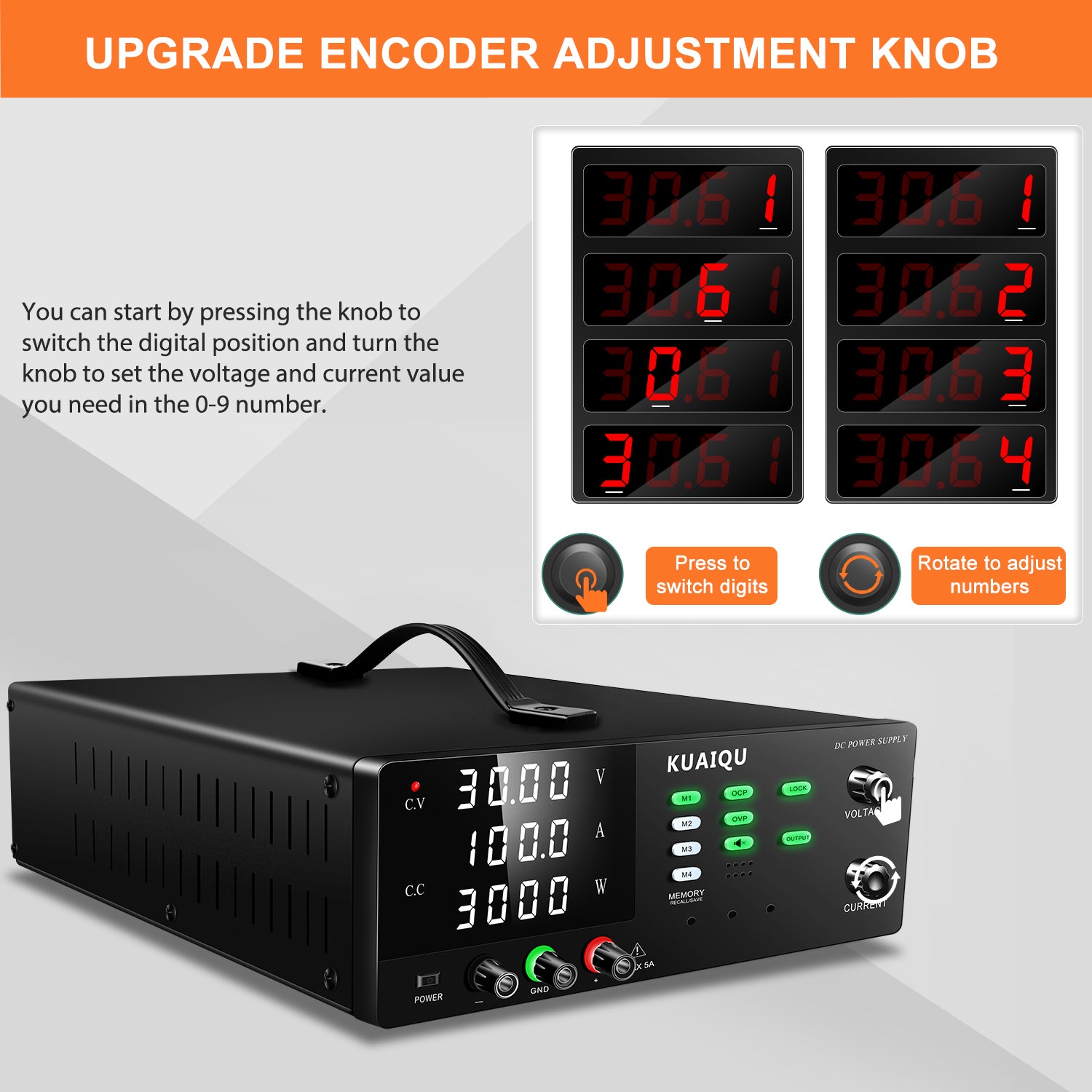

Encoder Adjustment for Precise Test Setup Changes
The encoder knob provides convenient adjustment of voltage and current settings, allowing users to change DC output conditions when establishing or repeating electroplating power tests.
M1–M4 Memory for Repeated Electroplating Tests
Four memory groups, M1–M4, allow frequently used voltage and current settings to be stored and recalled for repeated electroplating power testing conditions.
Output ON/OFF Control for Test Operation
The Output ON/OFF function allows users to enable or disable the DC output directly from the power supply, making it easier to control when power is applied to the electroplating test setup.
Panel Lock for Stable Test Settings
The Panel Lock function helps prevent unintended changes to voltage and current settings after the desired electroplating test parameters have been established.
Rear High-Current Output for 100A Applications
The rear-panel high-current output terminals are designed for high-current operation and provide the appropriate connection point when using the R-SPS30100S at its high-current output capability.

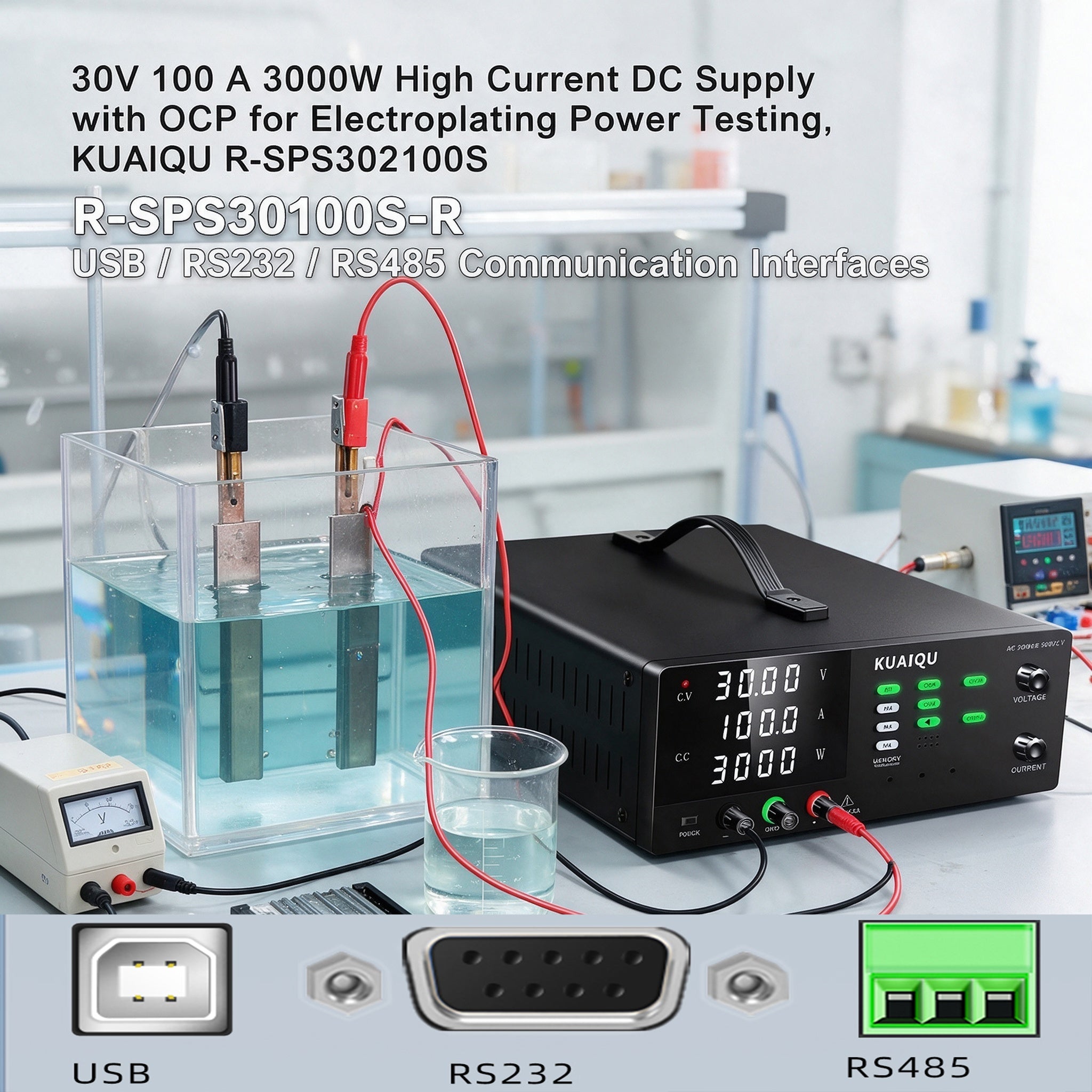

USB, RS232, and RS485 Communication Interfaces
The R-SPS30100S is equipped with USB, RS232, and RS485 communication interfaces for integration with compatible external control or communication systems. These interfaces should be used according to the capabilities of the connected system.
Applications
Electroplating Power Testing
Provides adjustable high-current DC power for testing electroplating equipment and related DC power circuits within the 30V, 100A, and 3000W output range.
High Current Electroplating Testing
The 100A current capability supports electroplating test setups that require substantial DC current during equipment and power-condition evaluation.
Plating Equipment Power Testing
Provides a controllable DC power source for evaluating the electrical power conditions of compatible plating equipment.
Electroplating Power Circuit Testing
Suitable for testing DC power circuits associated with electroplating equipment and industrial plating systems.
High Power Plating Test Bench
The 3000W output capacity provides a high-power DC source for laboratory or industrial electroplating test benches operating within the rated output range.
Electroplating Equipment Development
The adjustable 0–30V output and 0–100A current capability can be used when developing and evaluating compatible electroplating equipment and related power circuits.
Repeated Electroplating Power Testing
M1–M4 memory groups help recall frequently used voltage and current settings when the same electroplating power conditions need to be tested repeatedly.
High Current Plating Equipment Evaluation
The high-current output, V/I/P display, encoder adjustment, and protection functions provide practical DC power control for compatible high-current plating equipment evaluation.
Industrial Electroplating Testing
The 3000W High Current DC Supply can provide adjustable DC power for industrial electroplating testing applications that require output conditions within its rated voltage and current range.
Electroplating Laboratory Testing
The adjustable output, direct electrical readback, OCP, OVP, and Output ON/OFF functions make the R-SPS30100S suitable as a high-current DC source for laboratory electroplating power tests.
Quality Check and Terms of Service:
-

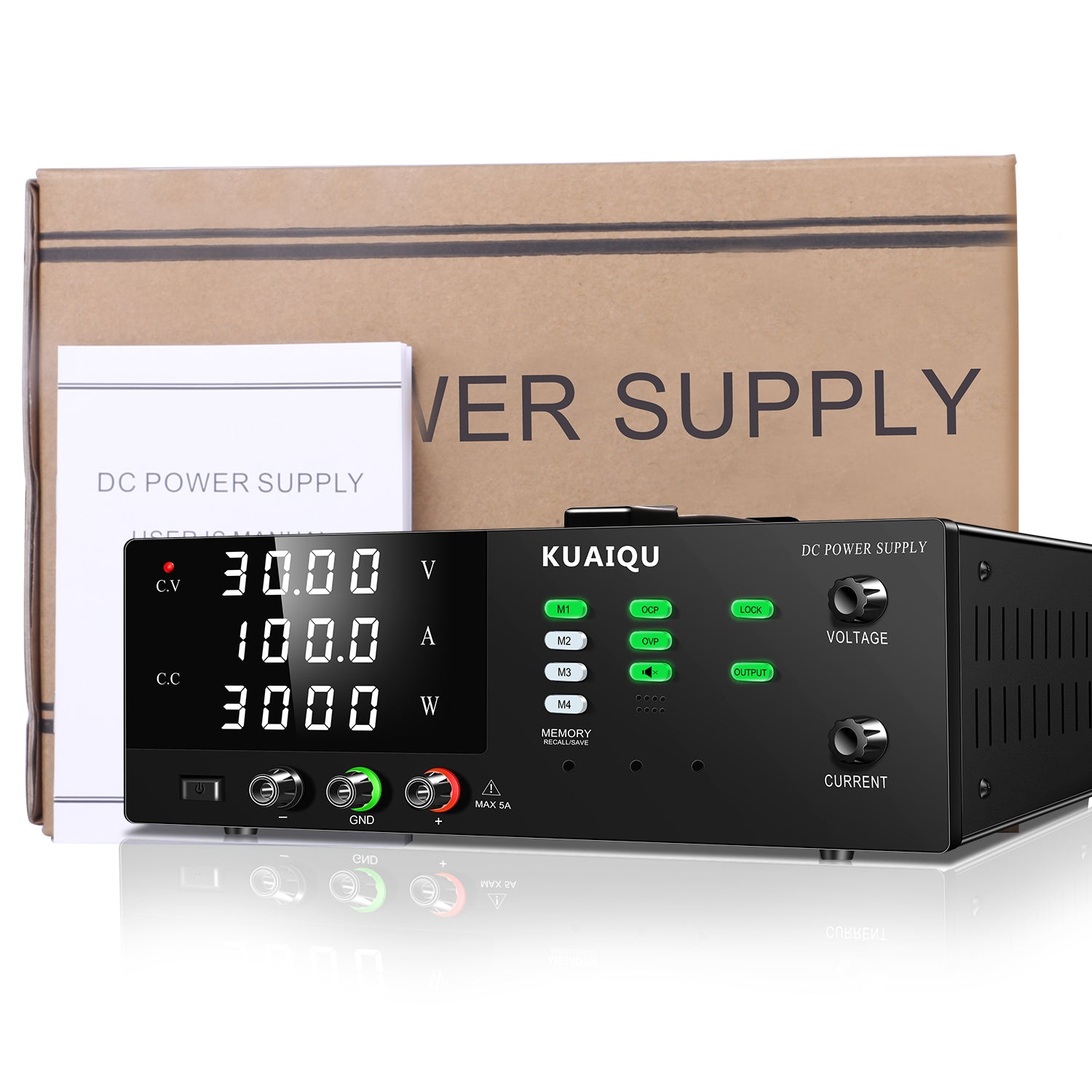

Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
R-SPS30100S |
| Product Type |
High Current DC Supply |
| Application |
Electroplating Power Testing |
| Rated Voltage |
0–30V |
| Rated Current |
0–100A |
| Rated Power |
3000W |
| Operating Mode |
CC / CV |
| Load Regulation Voltage |
≤0.1% + 10mV |
| Load Regulation Current |
≤0.1% + 2.5mA |
| Line Regulation Voltage |
≤0.01% + 2.5mV |
| Line Regulation Current |
≤0.1% + 2.5mA |
| Setting Resolution Voltage |
10mV |
| Setting Resolution Current |
10mA |
| Readback Resolution Voltage |
10mV |
| Readback Resolution Current |
10mA |
| Setting Accuracy Voltage |
≤0.05% + 10mV |
| Setting Accuracy Current |
≤0.01% + 10mA |
| Readback Accuracy Voltage |
≤0.05% + 10mV |
| Readback Accuracy Current |
≤0.01% + 10mA |
| Ripple Voltage |
≤3500mVp-p / ≤1200mVrms |
| Ripple Current |
≤200mArms |
| Ripple Test Range |
20Hz–20MHz |
| Rise Time No Load |
≤100ms |
| Rise Time Full Load |
≤150ms |
| Fall Time No Load |
≤15s |
| Fall Time Full Load |
≤50ms |
| Dynamic Response |
≤20ms |
| Efficiency |
≥85% |
| Display |
4-Digit Voltage / Current / Power Display |
| Protection |
OCP / OVP |
| Memory |
M1–M4, 4 Groups |
| Output Control |
Output ON/OFF |
| Adjustment |
Encoder Knob |
| Output Connection |
Rear High-Current Output |
| Communication |
USB / RS232 / RS485 |
| Panel Lock |
Yes |
Why Choose KUAIQU R-SPS30100S?
100A High Current Capacity for Electroplating Power Testing
The R-SPS30100S provides up to 100A output current, making it suitable for electroplating power testing setups that require substantial DC current within a 30V operating range.
3000W Output for High Power Plating Test Setups
With 3000W maximum output power, the unit provides a high-capacity DC source for compatible electroplating equipment, plating power circuits, and industrial test benches.
Adjustable Output for Different Test Conditions
The 0–30V adjustable output and CC/CV operation allow users to establish different DC power conditions for electroplating power testing without changing the power supply.

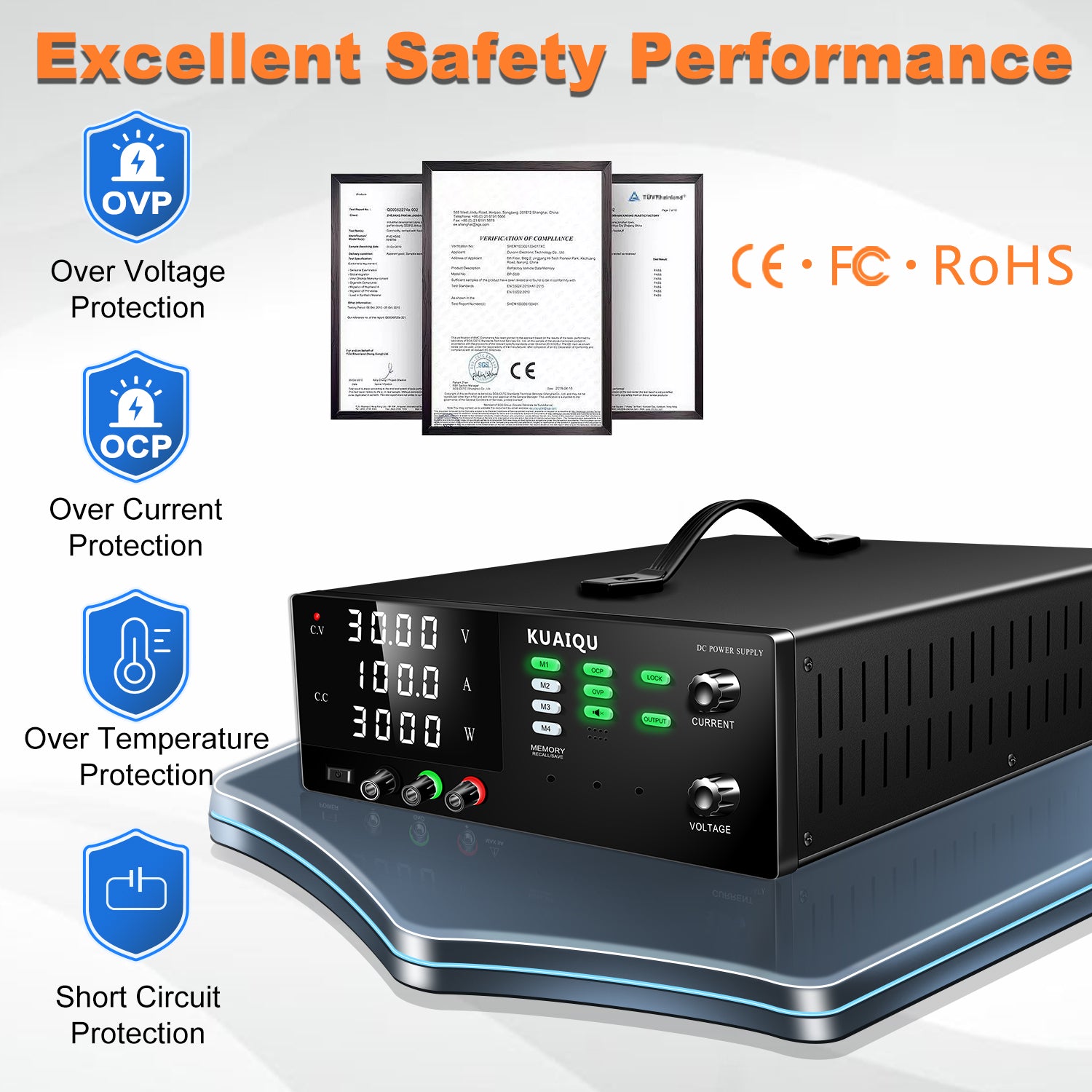

Integrated OCP and OVP Protection
OCP and OVP provide additional protection during high-current and adjustable-voltage testing, helping users manage the DC output conditions applied to connected equipment.
Practical Controls for Repeated Testing
The encoder, Output ON/OFF control, Panel Lock, and M1–M4 memory functions provide practical control when setting up and repeating electroplating power test conditions.
Direct Monitoring of Electrical Output
The four-digit voltage, current, and power display provides direct visibility of the supply output, helping users monitor electrical conditions during electroplating power testing.
High Current Rear Output Connection
The rear high-current output terminals provide a suitable connection point for high-current applications and are particularly relevant when operating the R-SPS30100S at its high-current capability.
Built for High Current Industrial Testing
The combination of 30V output, 100A current capability, 3000W power, protection functions, memory settings, and communication interfaces makes the R-SPS30100S a practical High Current DC Supply for demanding Electroplating Power Testing applications.
