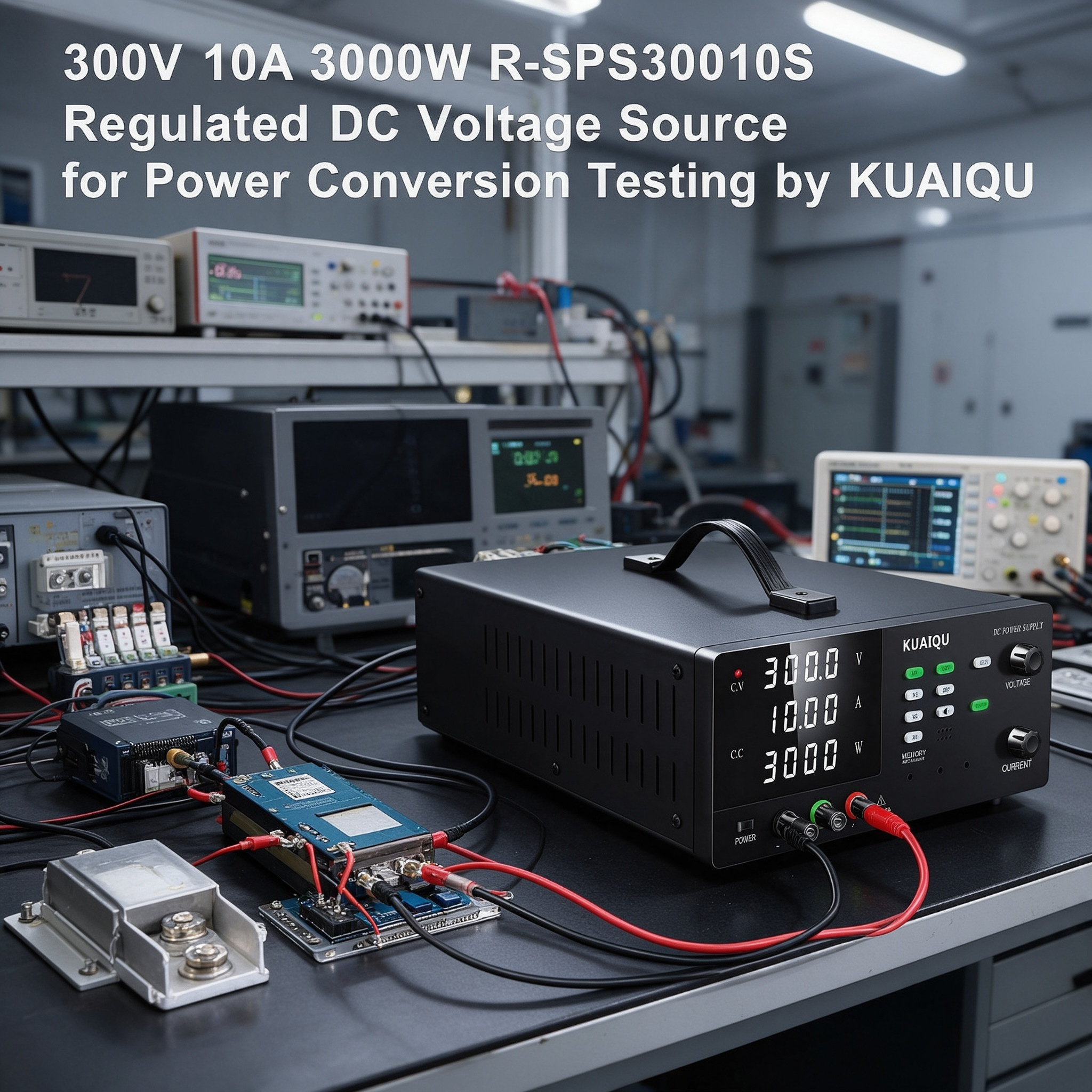

300V 10A 3000W R-SPS30010S Regulated
DC Voltage Source for Power Conversion
Testing by KUAIQU
The KUAIQU R-SPS30010S is a 300V 10A 3000W Regulated DC Voltage Source developed for Power Conversion Testing. Its 0–300V adjustable DC output provides a controllable input source for evaluating power conversion circuits, DC-DC converters, power modules, and other equipment that requires variable DC input conditions within the rated output range.
The 300V voltage capability makes the R-SPS30010S particularly suitable for test setups where the DC input voltage needs to be adjusted across different conversion operating points. With CC and CV operation, direct voltage, current, and power display, OCP and OVP protection, and four memory groups, users can establish and repeat defined DC input conditions during power conversion evaluation.
Key Features
0-300V Regulated DC Voltage Source for Conversion Testing
The 0–300V adjustable output provides a broad DC voltage range for establishing different input conditions during Power Conversion Testing. This allows compatible conversion equipment to be evaluated at different DC supply voltage settings within the rated range.
3000W Power Capacity for Conversion Equipment
The 3000W output rating provides substantial power capacity for power conversion test setups. It allows the DC Voltage Source to support compatible conversion equipment and power modules operating at higher power levels within the rated voltage and current limits.
10A Output for Controlled Conversion Test Conditions
The adjustable 0–10A current range allows users to establish appropriate current limits for different power conversion test conditions while using the 0–300V voltage range.
CC and CV Operation for Power Conversion Evaluation
CC and CV operation provides two practical output regulation modes. Users can establish constant voltage or controlled current conditions according to the requirements of the connected conversion circuit or equipment.
Adjustable Input Conditions for Conversion Operating Points
The encoder-based voltage and current adjustment allows test operators to change the DC input conditions when evaluating different operating points of compatible power conversion equipment.

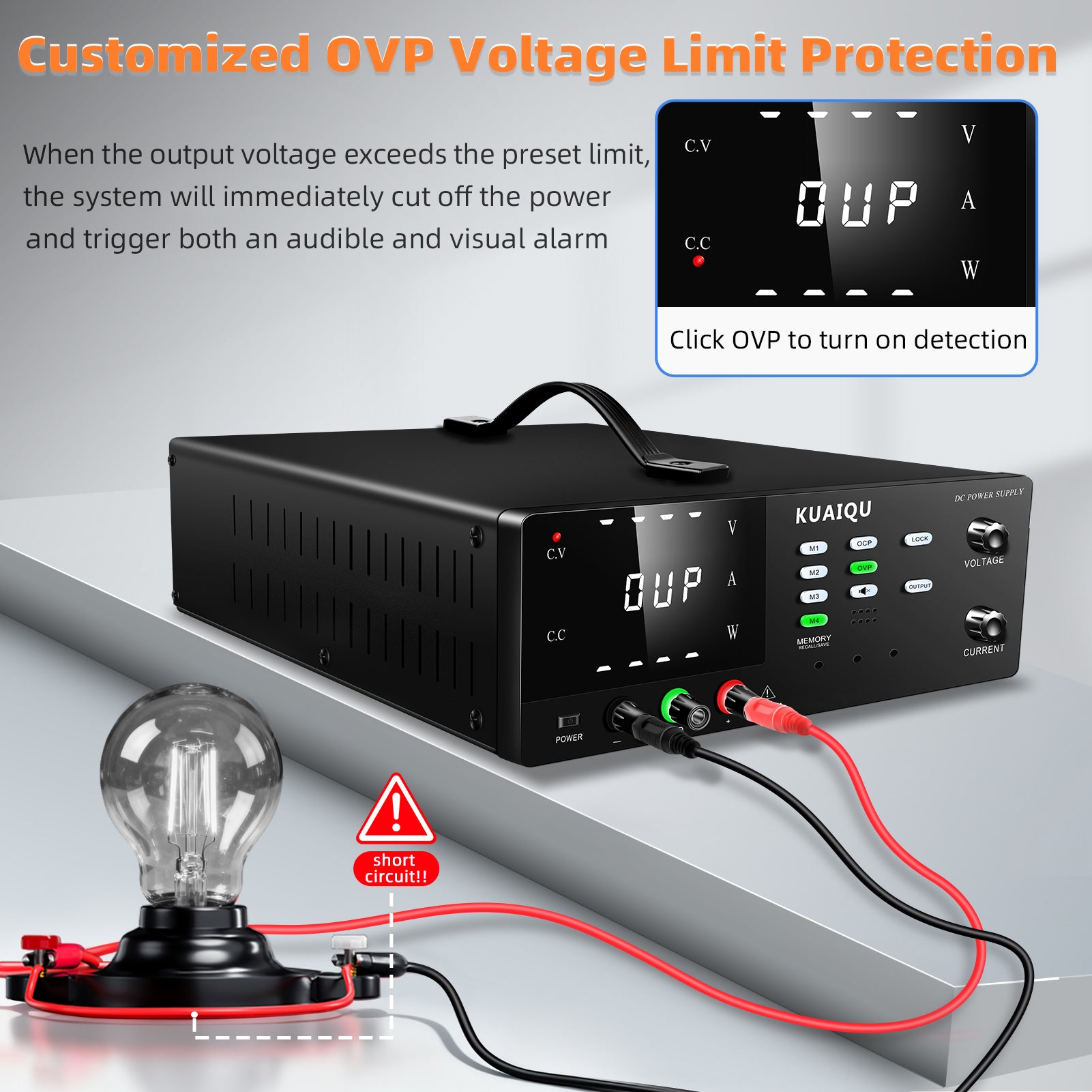

OVP for High-Voltage DC Test Conditions
The built-in Over-Voltage Protection provides an additional protection function when working with adjustable DC voltage conditions, particularly during higher-voltage Power Conversion Testing.

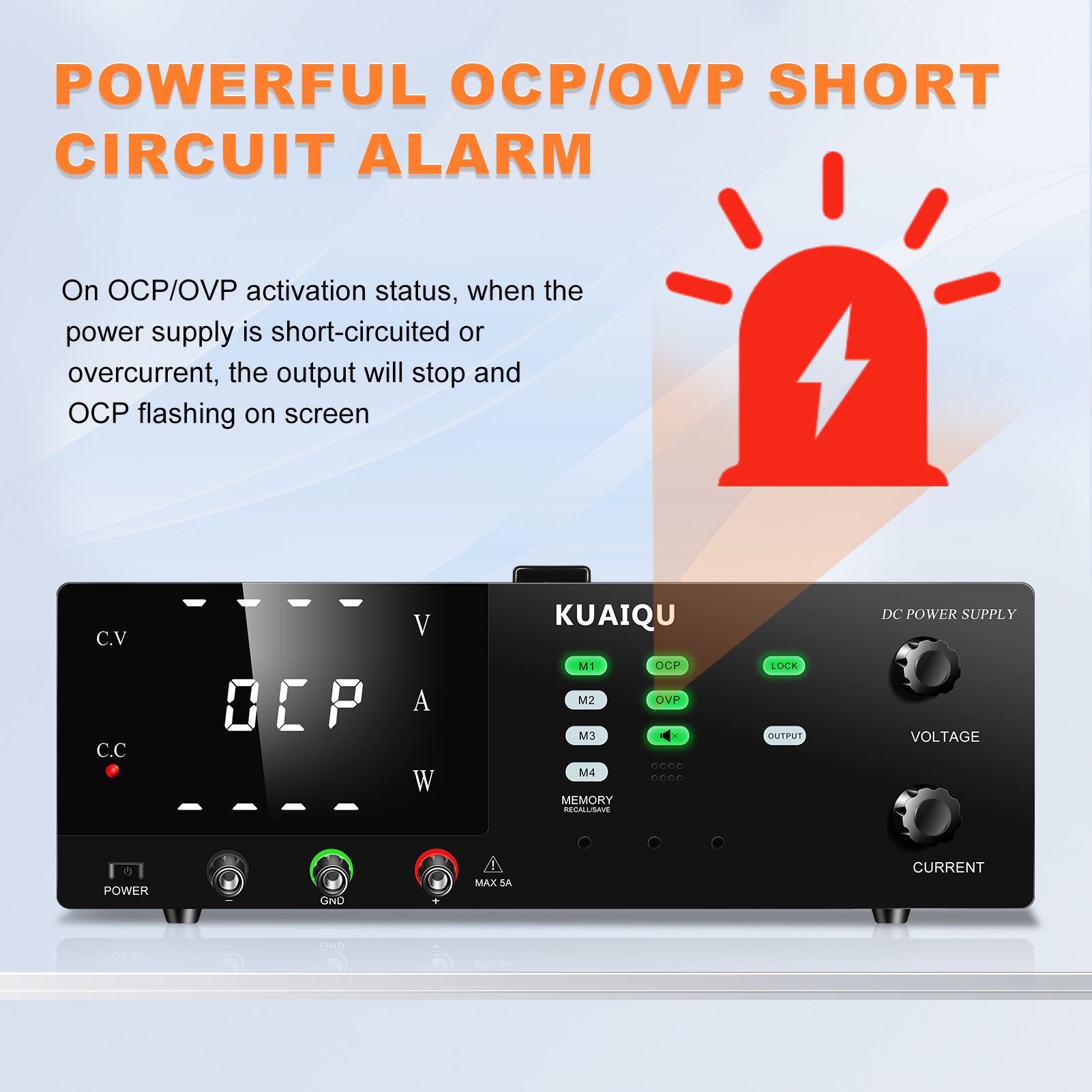

OCP for Controlled Current Limits
Over-Current Protection helps manage excessive current conditions during conversion testing and provides additional protection for the power supply and connected test setup.
Direct Voltage, Current, and Power Readback
The four-digit display shows voltage, current, and power values directly, allowing users to observe the electrical conditions supplied to the equipment under test.
M1-M4 Memory for Repeated Conversion Conditions
Four memory groups, M1-M4, provide storage for frequently used voltage and current settings. This is useful when a power conversion test requires the same DC input conditions to be established repeatedly.
Output ON/OFF for Controlled Power Application
The Output ON/OFF function allows users to apply or remove DC output from the connected conversion equipment without changing the stored voltage and current settings.
Panel Lock for Fixed Conversion Test Settings
Once the required voltage and current conditions have been established, the Panel Lock function helps prevent unintended changes to the test parameters during operation.
Rear Output for High-Power Conversion Test Setups
The rear output connection provides a practical connection point for power conversion applications and supports use of the R-SPS30010S in higher-power test configurations.

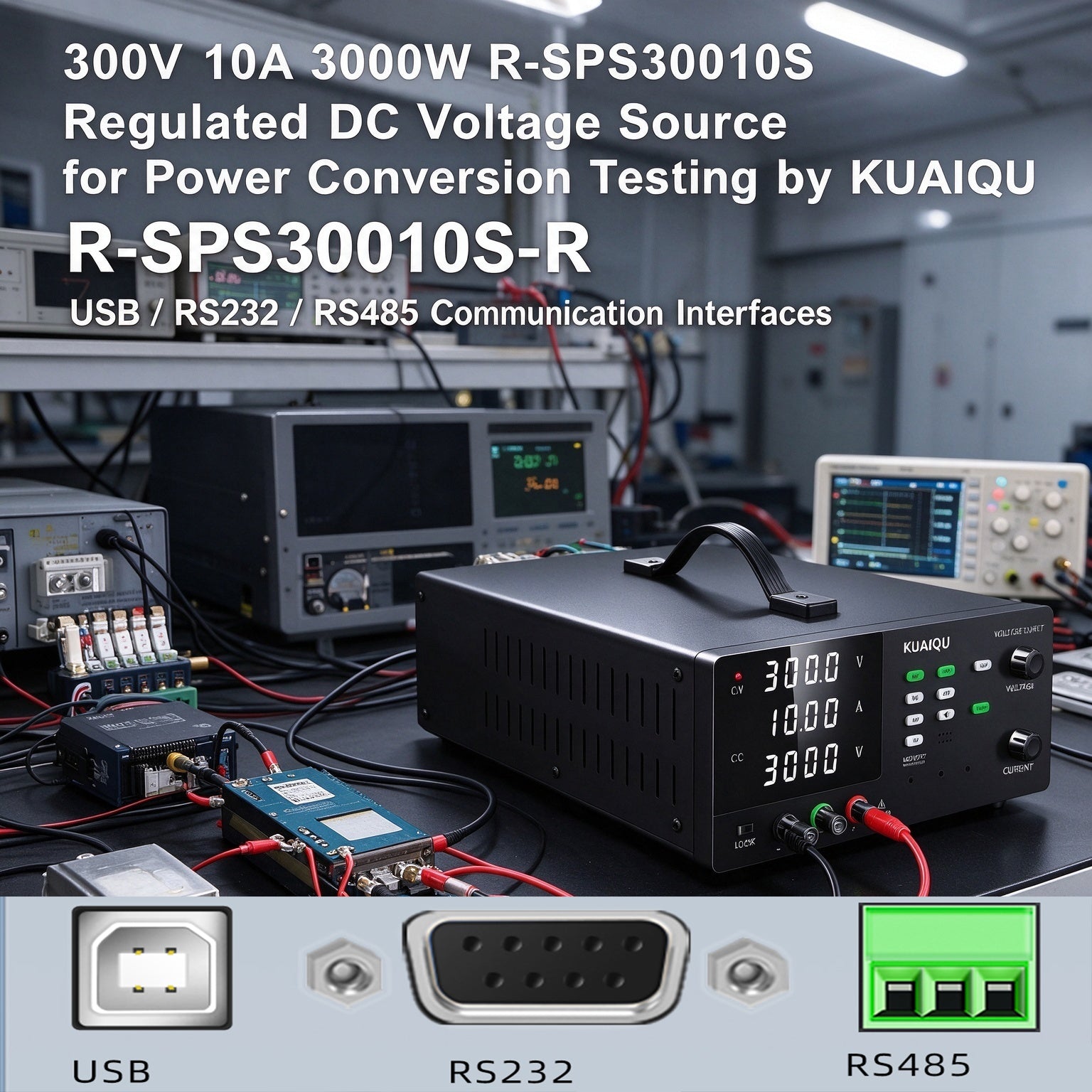

USB, RS232, and RS485 Communication Interfaces
The R-SPS30010S is equipped with USB, RS232, and RS485 communication interfaces for compatible external communication or control applications. The available control functions depend on the connected system and supported interface configuration.
Applications
Power Conversion Testing
Provides a regulated and adjustable DC source for evaluating power conversion equipment under different DC input voltage and current conditions.

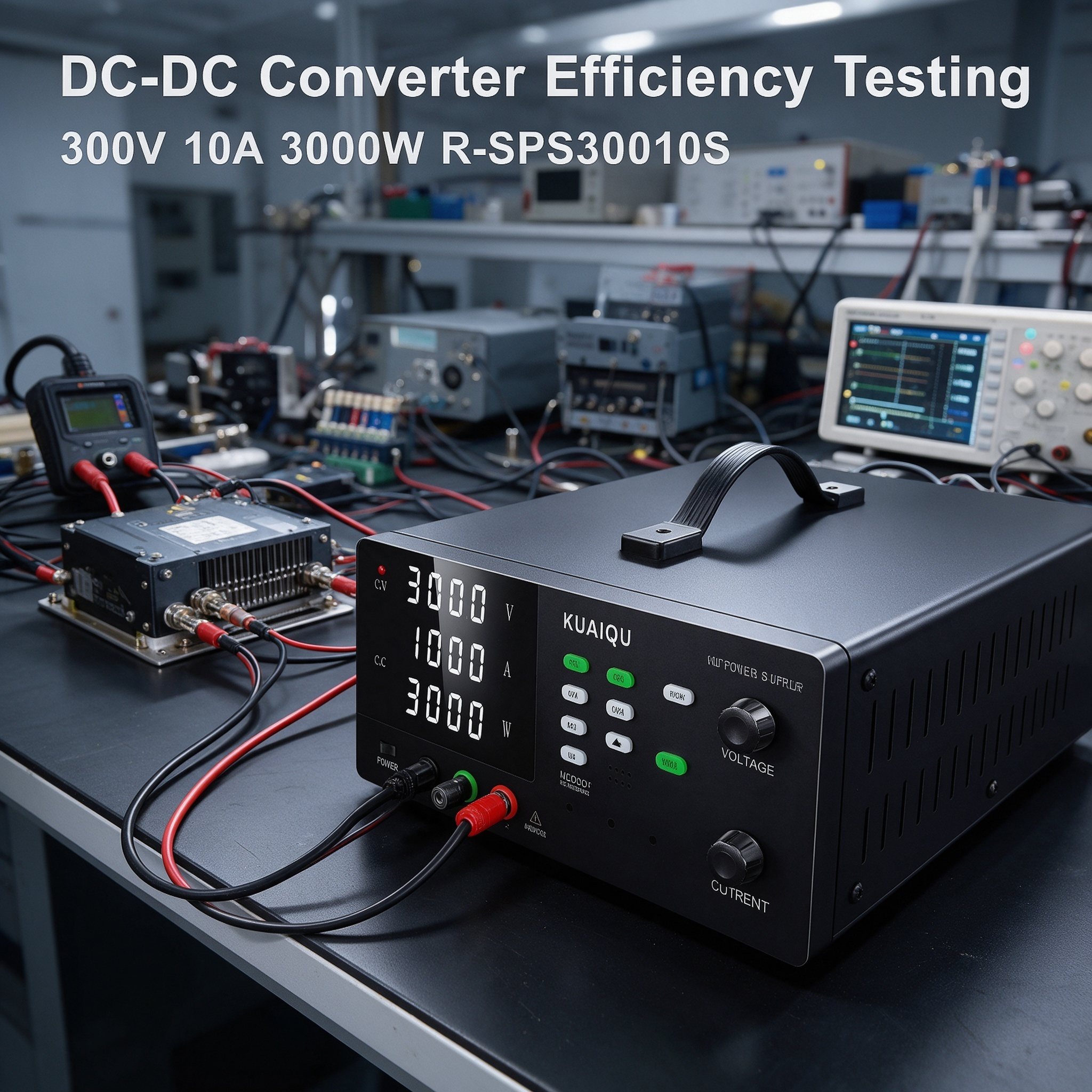

DC-DC Converter Testing
The 0–300V adjustable output can be used as a DC input source for compatible DC-DC converter test setups where different input voltage conditions need to be evaluated.
Power Conversion Circuit Testing
Suitable for supplying controlled DC input conditions to power conversion circuits during laboratory or engineering evaluation.
High Voltage DC Input Testing
The 300V maximum output provides a higher-voltage DC source for conversion test setups that require adjustable input conditions above conventional low-voltage bench supply ranges.
Power Module Evaluation
The 3000W output capacity allows compatible power modules to be evaluated under higher-power DC input conditions within the rated voltage and current range.
DC Power Conversion Equipment Testing
Provides adjustable DC input power for equipment that processes or converts DC electrical power during development and testing.
Conversion Operating Point Evaluation
The adjustable voltage and current settings allow test operators to establish different DC operating conditions and observe the corresponding electrical output of compatible conversion equipment.
Power Conversion Prototype Testing
The regulated DC output can provide a controllable input source during prototype evaluation of compatible power conversion circuits and equipment.
Repeated Power Conversion Testing
M1-M4 memory settings allow frequently used DC input conditions to be recalled when the same conversion test parameters need to be applied repeatedly.
Industrial Power Conversion Testing
The 3000W Regulated DC Voltage Source can support compatible industrial power conversion test setups that require adjustable DC input conditions within the 0–300V and 0–10A range.
Quality Check and Terms of Service:
-

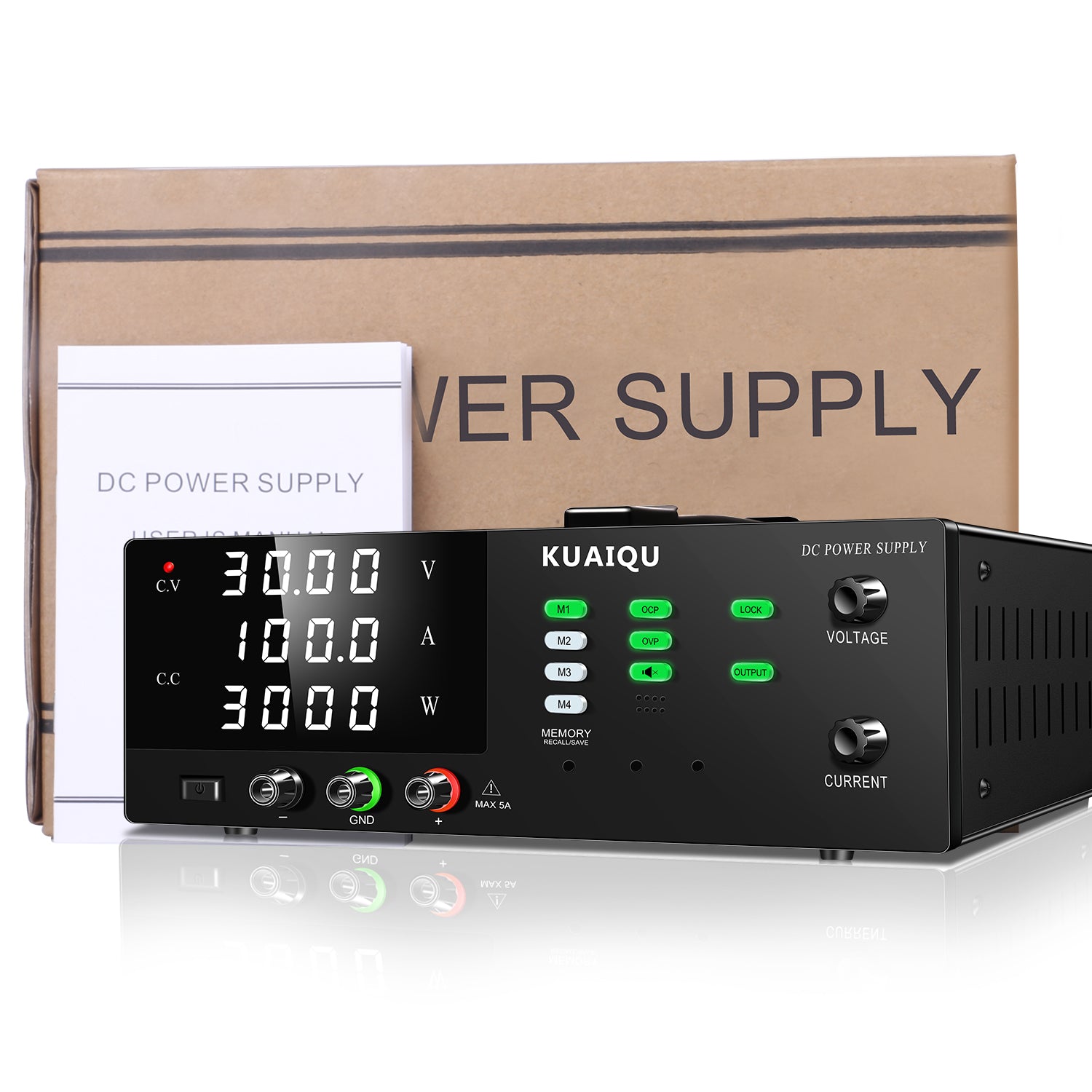

Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
R-SPS30010S |
| Product Type |
Regulated DC Voltage Source |
| Application |
Power Conversion Testing |
| Rated Voltage |
0-300V |
| Rated Current |
0-10A |
| Rated Power |
3000W |
| Operating Mode |
CC / CV |
| Load Regulation Voltage |
≤0.1% + 10mV |
| Load Regulation Current |
≤0.1% + 2.5mA |
| Line Regulation Voltage |
≤0.01% + 2.5mV |
| Line Regulation Current |
≤0.1% + 2.5mA |
| Setting Resolution Voltage |
10mV |
| Setting Resolution Current |
10mA |
| Readback Resolution Voltage |
10mV |
| Readback Resolution Current |
10mA |
| Setting Accuracy Voltage |
≤0.05% + 10mV |
| Setting Accuracy Current |
≤0.01% + 10mA |
| Readback Accuracy Voltage |
≤0.05% + 10mV |
| Readback Accuracy Current |
≤0.01% + 10mA |
| Ripple Voltage |
≤3500mVp-p / ≤1200mVrms |
| Ripple Current |
≤200mArms |
| Ripple Test Range |
20Hz-20MHz |
| Rise Time No Load |
≤100ms |
| Rise Time Full Load |
≤150ms |
| Fall Time No Load |
≤15s |
| Fall Time Full Load |
≤50ms |
| Dynamic Response |
≤20ms |
| Efficiency |
≥85% |
| Display |
4-Digit Voltage / Current / Power Display |
| Protection |
OCP / OVP |
| Memory |
M1-M4, 4 Groups |
| Output Control |
Output ON/OFF |
| Adjustment |
Encoder Knob |
| Output Connection |
Rear Output |
| Communication |
USB / RS232 / RS485 |
| Panel Lock |
Yes |
Why Choose KUAIQU R-SPS30010S?
300V DC Voltage Range for Conversion Testing
The 0–300V adjustable range gives Power Conversion Testing setups a broad DC input range for evaluating conversion equipment under different voltage conditions.
3000W Output for Higher Power Conversion Applications
The 3000W capacity provides a substantial DC power source for compatible power conversion equipment and circuits that require higher input power during testing.
Regulated DC Input for Defined Test Conditions
The adjustable regulated output allows test operators to establish specific voltage and current conditions rather than relying on a fixed DC input source.
Suitable for Multiple Conversion Operating Points
By adjusting voltage and current through the encoder, users can establish different operating conditions for compatible power conversion equipment and compare its behavior across test settings.
CC and CV Output Modes
CC and CV operation provides practical flexibility when a conversion test requires either a controlled voltage condition or a defined current limit.
High-Voltage DC Protection
OVP and OCP provide additional protection when working with adjustable high-voltage DC input conditions during Power Conversion Testing.
Direct Electrical Readback
The four-digit V/I/P display provides immediate visibility into the DC input supplied to the conversion equipment, helping users observe the test condition directly.
Four Stored Conversion Test Conditions
M1-M4 memory storage provides four groups for frequently used voltage and current settings, reducing repeated manual parameter setup.
Designed as a DC Source for Power Conversion Evaluation
With 0–300V output, 0–10A current capacity, and 3000W power capability, the R-SPS30010S functions as a high-power Regulated DC Voltage Source for Power Conversion Testing where adjustable DC input conditions are required.
